Goodman

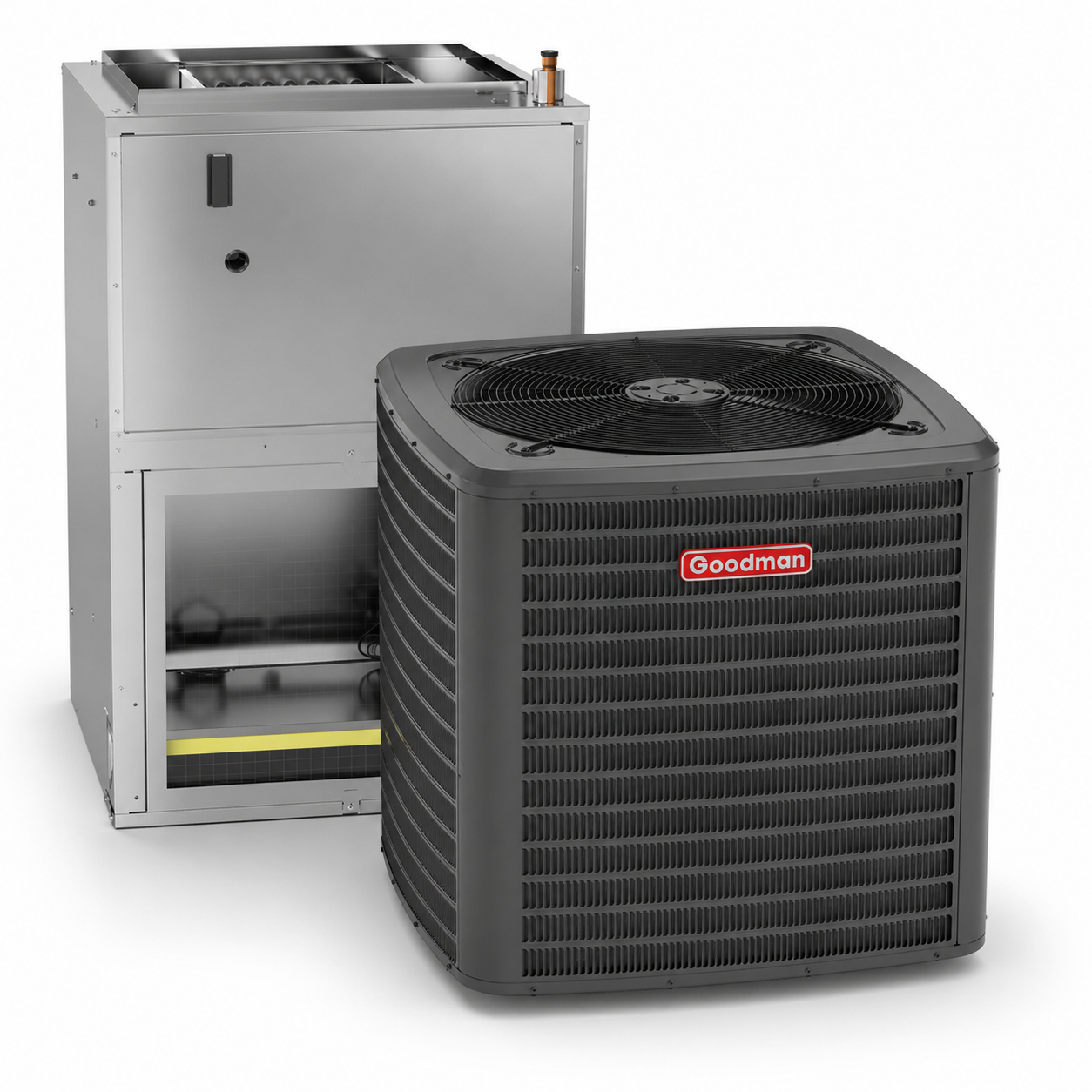

Goodman 2.5 Ton 15.2 SEER2 R32 Air Conditioner Split System w/ 5kW Heat - Wall Mounted

SKU: AWST36LU1308 + GLXS4MA3010

System highlights
AC Type
Stud Mount Air Handler AC System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
30000 BTU VO (2.5 TON)
Indoor Unit
36000 BTU (3.0 TON)
Voltage
208-230V, 208-240V
Looking For
Ducted
SEER2 Rating
15.2
Airflow Direction
Upflow
Electric Heat
5 Kilowatt
Goodman 3 Ton Wall Mounted Air Handler w/ 8kW Heat - R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$3,281.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 2.5 Ton 15.2 SEER2 R32 Air Conditioner Split System w/ 5kW Heat - Wall Mounted

Product Overview

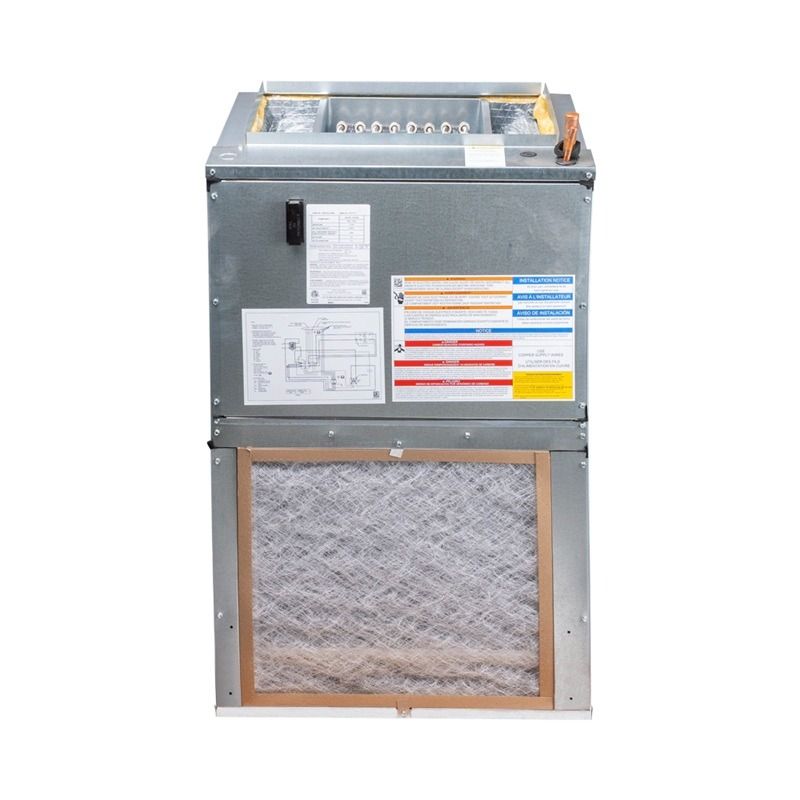

The Goodman AWST wall-mounted air handler is a space-saving alternative to traditional air handlers. Designed to be stud-mounted to a wall or installed in tight recessed spaces, this air handler comes built with a fully insulated, galvanized-steel cabinet for added durability. These air handlers are excellent options for any multi-tenant buildings, such as apartments, condos, and townhomes. With the AWST air handler, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.

Features

  • Suitable for use with R32 refrigerant
  • Equipped with a fully adjustable TXV for cooling-only and heat pump operation
  • Direct-drive, multi-speed motor allows air volume variation for heating and cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Factory-installed pull-type disconnect
  • Aluminum tube coils on all models
  • AHRI Certified
  • ETL Listed
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2.5- and 3-ton units) - front return only
  • Small chassis (1.5- and 2-ton units) - front or bottom return
  • Wall-hanging bracket provided

Goodman 2.5 Ton 14.3 SEER2 Air Conditioner Condenser Multi-Family R32 GLXS4MA3010

Experience next-generation cooling performance with this high-efficiency R32 air conditioning unit. Engineered to meet the 2025 refrigerant standards and built for durability, this unit combines energy-saving technology with rugged construction, making it ideal for both residential and light commercial applications. With a scroll compressor, enhanced coil design, and hurricane-compliant build, it's the reliable solution for hot climates and coastal regions.

Key Features

  • Energy-Efficient Scroll Compressor – Delivers reliable, quiet performance with improved energy savings.
  • Factory-Installed Filter Drier – Protects the system from moisture and contaminants, extending the lifespan.
  • Pre-Charged for 15 Feet of Tubing – Saves installation time and ensures optimal refrigerant levels out of the box.
  • 5mm Copper Tubing with Enhanced Aluminum Fin Coil – Maximizes heat transfer for faster and more efficient cooling.
  • Service Valves with Sweat Connections & Easy-Access Gauge Ports – Simplifies maintenance and diagnostics.
  • Enclosed Contactor with Ground Lug Connection – Increases safety and longevity of electrical components.
  • High-Pressure Safety Switch – Offers added protection and system reliability.
  • Top & Side Maintenance Access – Improves serviceability and reduces maintenance time.
  • Single-Panel Control Access – Provides room for field-installed accessories and simplifies servicing.
  • AHRI Certified & ETL Listed – Meets industry standards for performance, safety, and reliability.
  • Heavy-Gauge Galvanized Steel Cabinet – Built to withstand the elements with corrosion-resistant protection.
  • UL 60335-2-40 Compliant Removable Grille-Style Top – Ensures safe, efficient operation and easy coil access.
  • Architectural Gray Powder-Coated Finish – Rated for 500-hour salt-spray durability—ideal for coastal areas.
  • Steel Louver Coil Guard – Protects the coil without restricting airflow.
  • Venturi Design for Enhanced Airflow Velocity – Promotes efficient system operation and improved cooling.
  • Hurricane-Ready Construction – Meets 2023 Florida Building Code for hurricane-type winds when properly anchored.
  • R32 Refrigerant System – Eco-friendly and compliant with upcoming 2025 refrigerant transition regulations.

This R32 air conditioner with a scroll compressor is your go-to solution for efficient, durable, and code-compliant cooling. Whether you're upgrading your system or installing new, this unit is designed to perform under pressure—literally.

Goodman 2.5 Ton 14.3 SEER2 Air Conditioner Condenser Multi-Family R32 GLXS4MA3010

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Product Benefits (AWST36LU1308)

  • All Aluminum Coil
  • Improved Reliability and Quality
  • Factory TXV Installed for Quicker Install
  • More Efficient Refrigerant Metering

Product Features (AWST36LU1308)

  • AWST Models: Equipped wit a fully adjustable TXV
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Aluminum tubing coils on all models
  • Factory-installed pull-type disconnect
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • AHRI Certified and ETL Listed
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

Cabinet Features (AWST36LU1308)

  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Built-in filter rack (filter included)
  • Large chassis (2-1/2 and 3 ton units), front return only
  • Small chassis (1-1/2 and 2 ton units), front or bottom return
  • Wall-hanging bracket provided

Technical Specifications - AWST36LU1308

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family AWST_32
series name AWST
family description Wall-Mount Air Handler 1½ to 3 Tons
installation type Ducted Wall Mounted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051683716
item stocking unit of measure uom EA
pallet qty 4
us hts code 8415.90.8065
cooling capacity nominal 36000 Btu/H
produced in us No
indoor blower fla 3.8 A
max overcurrent protection 40/45 A
max voltage 253 V
min circuit amps 37.7/42.8 A
min voltage 197 V
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions evap wheel diameter 10 in
dimensions evap wheel width 8 in
dimensions unit depth 21 in
dimensions unit height 36 in
dimensions unit width 24 in
evap coil face area ft 3.35
evap motor rpm 1200 r/min
expansion device TXV
motor speed type Multi Speed ECM
number of speeds 5
weight unit 109 lb
blower motor horsepower 1/2 metric hp
tonnage 3
tonnage range 1.5;3
factory std refrigerant charge 0.5 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 25.00 in
dimensions case height 39.00 in
dimensions case width 22.50 in
dimensions distribution unit depth 25 in
dimensions distribution unit height 39 in
dimensions distribution unit width 22.5 in
dimensions pallet depth 52.00 in
dimensions pallet height 44.00 in
dimensions pallet width 46.00 in
dimensions shipping unit depth 25.00 in
dimensions shipping unit height 39.00 in
dimensions shipping unit width 22.50 in
distribution shipping volume unit 21937.5 in³
shipping volume unit 21937.500 in³
truck factor 0.0000
volume case 21937.500 in³
volume distribution shipping unit 21937.5 in³
weight case 110.090 lb
weight distribution shipping unit 110.09 lb
weight shipping unit 110.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Features (GLXS4MA3010)

  • Removable grille-style top design compliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Cabinet Features (GLXS4MA3010)

  • High-Efficiency Scroll Compressor
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • 5mm diameter copper tube/enhanced aluminum fin coil
  • Service valves with sweat connections and easy-to-access gauge ports
  • Enclosed contactor with lug connection
  • Ground lug connection
  • High-pressure switch
  • AHRI Certified
  • ETL Listed

Technical Specifications - GLXS4MA3010

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXS4M
series name GLXS4M
model efficiency 14.3 SEER2
family description ENERGY-Efficienct Multi-Family R-32 Split System Air Conditioner, Up to 15.2 SEER2, 1½ To 3 Tons
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051692114
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cooling capacity nominal 30000 Btu/H
eer2 hsvtc 11.7
energy star certified No
seer 2 hsvtc 14.3
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
max overcurrent protection 25 A
min circuit amps 15.349999999999998 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 11.52 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 29 in
dimensions unit height 29 in
dimensions unit width 35-3/4 in
sound pressure high cooling 70 dBA
weight unit 70 lb
cooling capacity rated 28400 Btu/H
tonnage 2.5
additional refrigerant charge oz ft 0.55 lb
factory std refrigerant charge 64 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.50 in
dimensions case height 38.50 in
dimensions case width 30.00 in
dimensions distribution unit depth 30.5 in
dimensions distribution unit height 38.5 in
dimensions distribution unit width 30 in
dimensions pallet depth 30.50 in
dimensions pallet height 38.50 in
dimensions pallet width 60.00 in
dimensions shipping unit depth 30.50 in
dimensions shipping unit height 38.50 in
dimensions shipping unit width 30.00 in
distribution shipping volume unit 35227.5 in³
shipping volume unit 35227.500 in³
truck factor 0.0000
volume case 35227.500 in³
volume distribution shipping unit 35227.5 in³
weight case 179.000 lb
weight distribution shipping unit 179 lb
weight shipping unit 179.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
