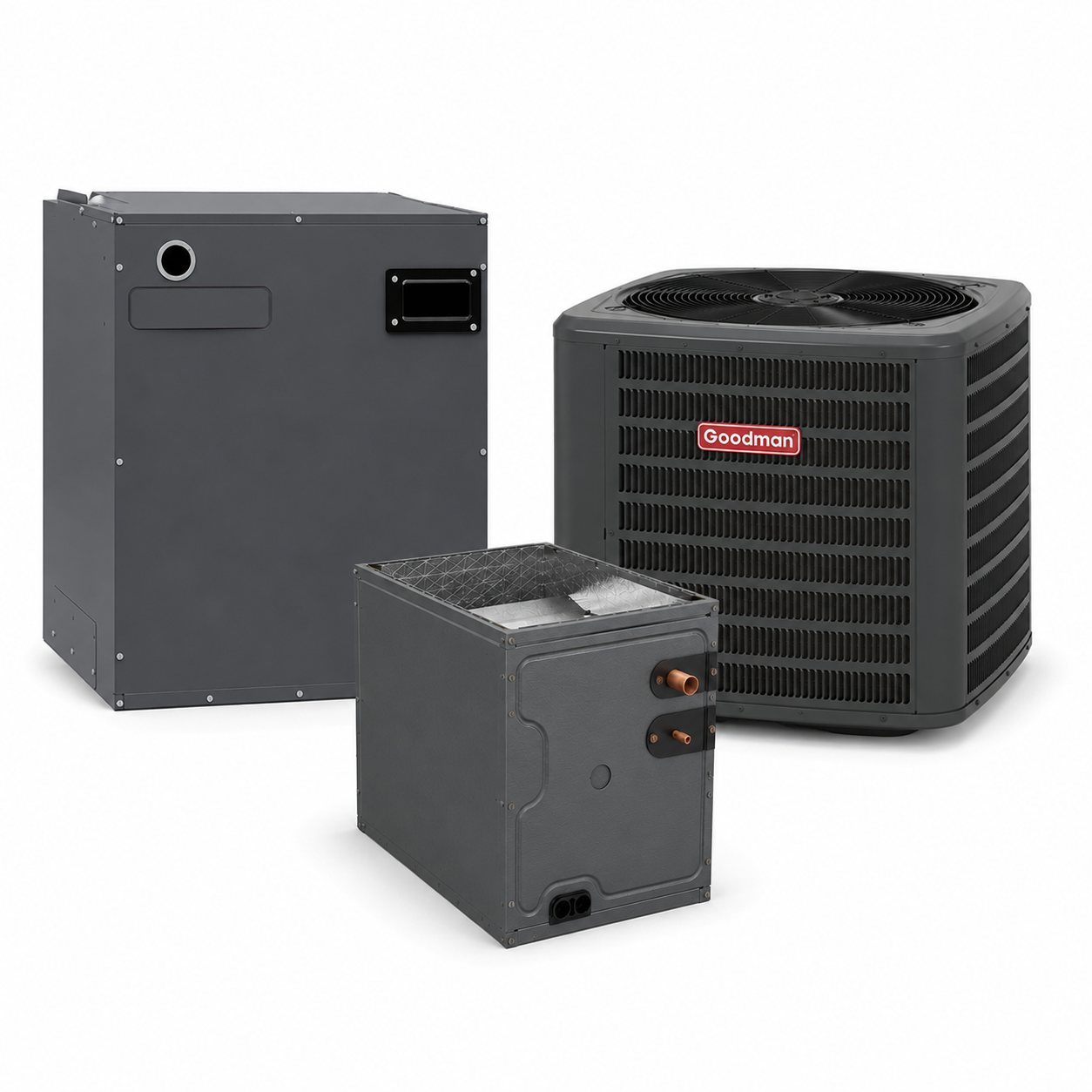

Goodman 2.5 Ton 14.5 SEER2 Electric Furnace and Heat Pump System - Upf

Product Overview

OVERVIEW

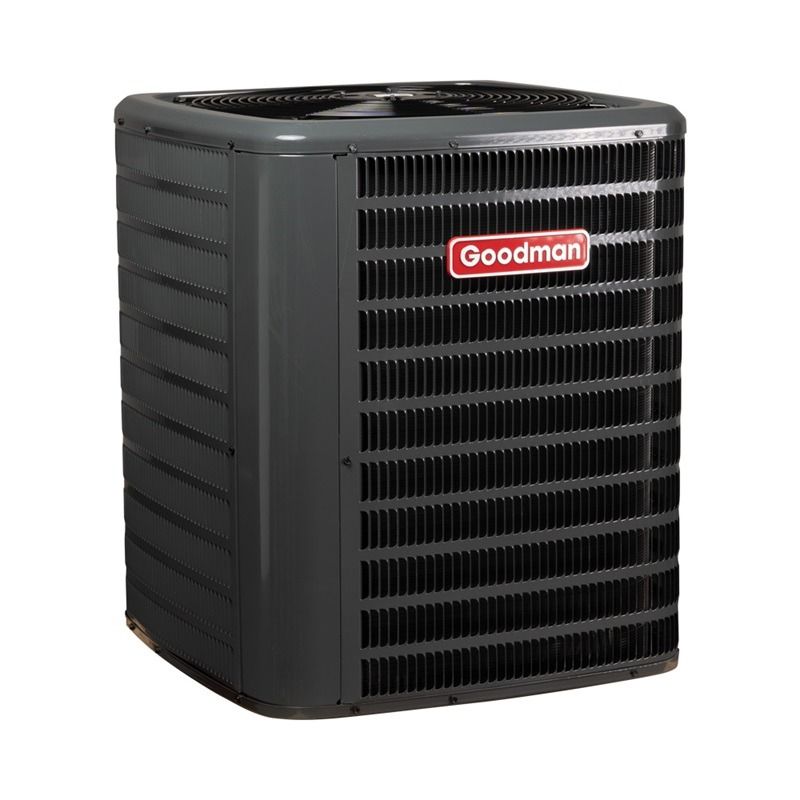

The Goodman GLZS4BA3010 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of Goodman's equipment, the GLZS4BA3010 is manufactured with high-quality materials to provide a superior comfort in your home.

Utilizing advanced technology, the Goodman heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.

QUICK FACTS

Ideal size to cover a small to medium house in ideal climates
2.5 ton, 14.3 SEER2 heat pump condenser
R32: Complies with Clean Air Act New Refrigerant Requirements
Low sound output
Fully charged for up to 15' of line set
Factory-installed bi-flow filter drier

2.5 Ton

The Goodman GLZS4BA3010 heat pump has a capacity of 2.5 tons. In an ideal climate, this tonnage will normally cover up to a small to medium house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit's overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.

14.3 SEER2

At 14.3 SEER2, the GLZS4BA3010 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER2 ratings. If you are replacing an existing heat pump, in most cases this SEER2 rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.

Efficiency Choices for Every Climate

Not all heat pumps are built the same. Depending on the climate of where you live, your best fit can depend dramatically on the efficiency of the heat pump at lower temperatures. The right fit saves you money by reducing energy bills. At 0°F, this heat pump operates at 44% efficiency, making it a good fit for warmer climates where not much heating is needed.

Warranty

The GLZS4BA3010 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The Goodman GLZS4BA3010 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.

Installation and Maintenance

The Goodman GLZS4BA3010 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn't have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.

Comfort in Mind

With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the GLZS4BA3010 heat pump has some of the lowest sound outputs on a single stage unit on the market today.

Why Buy at

is one of the leading and reliable sources for top-quality heat pump systems. With its superior energy efficiency, our heat pumps not only provide significant upfront cost savings but also ensures long-term economic benefits through reduced energy consumption. Known for delivering heat pump package units that excel in both performance and durability, we are a trusted choice for various heating and cooling needs. Our customers can confidently rely on the efficiency and effectiveness of our heat pump systems, making us a preferred destination for those seeking high-performance solutions in the HVAC industry and a trusted choice for various heating and cooling needs.

Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

Variable-Speed Air Handler with ComfortBridge Technology – MBVB Series

Upgrade your home’s comfort with the MBVB Series Variable-Speed Air Handler, featuring advanced ComfortBridge Technology. Engineered for efficiency and reliability, this air handler delivers precise temperature control and enhanced airflow for a consistently comfortable environment. With its sleek design and cutting-edge technology, the MBVB Series ensures energy savings while keeping your home cozy year-round.

Perfect for modern homes seeking superior performance and innovative climate solutions.

Features

Vertical or Horizontal Installation: Flexible design to fit any space requirement.
Variable-Speed Motor: Ensures efficient, quiet, and consistent airflow.
Field-Installed Heat Strips: Customizable heating options for added comfort.
Blower Section Usable as Electric Heater: Versatile functionality to meet your heating needs.

Product Benefits (GLZS4BA3010)

Meets the 2023 M1 Test Standards

Product Features (GLZS4BA3010)

High-Efficiency Compressor
SmartShift technology to ensure quiet reliable defrost
Factory-installed bi-flow liquid line filter drier
Factory-installed suction-line accumulator
Factory-installed compressor crankcase heater
Factory-installed high-capacity muffler
Enhanched aluminum fin coil with 5mm diameter coper tubes in 1.5 -to 3.5 ton
Enhanched aluminum fin coil with 7mm diameter coper tubes in 4.0 -to 5.0 ton
High and low-pressure switches
Fully charged for 15’ of tubing length
Service valves with sweat connections and easy-to-access gauge ports
Fully enclosed contactor with lug connection
Ground lug connection
Single-speed PSC condenser fan motor
Capacitor with extended life
AHRI Certified
ETL Listed

Cabinet Features (GLZS4BA3010)

Removable grille style top design compliant with UL 60335-2-40
Steel louver coil guard
Heavy-gauge galvanized-steel cabinet
Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
Top and side maintenance access
When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available

Technical Specifications - GLZS4BA3010

product category	Unitary
product class pim	Split Heat Pump
system family	Unitary Split System
function category	Heat Pump
product type	Equipment
unit type	Outdoor
market type	Residential-Single Family
product family	GLZS4B
series name	GLZS4B
model efficiency	14.3 SEER2
family description	Energy-Efficient Standard Family R-32 Split System Heat Pump, up to 15.2 SEER2 and 7.8 HSPF2, 1-1/2 to 5Tons
installation type	Ducted
communication feature	No
export control classification number eccn	EAR99
iso certified	Yes
product notes	R32 Outdoor
universal product code upc	663051689640
item stocking unit of measure uom	EA
pallet qty	2
country of origin	USA
us hts code	8415.90.8065
canadian hts code	8415.90.90.00
eer2 hsvtc	12
energy star certified	No
heating capacity nominal	30000 Btu/H
hspf 2 hsvtc	7.8
seer 2 hsvtc	14.5
produced in us	No
cooling operation range std max	125 °F
cooling operation range std min	55 °F
heating operation range std max	70 °F
heating operation range std min	-20 °F
rated cooling condition ambient db	95 °F
rated cooling condition ambient wb	75 °F
rated heating condition ambient db	47 °F
rated heating condition ambient wb	43 °F
max overcurrent protection	25 A
min circuit amps	15 A
power frequency	60 Hz
power phase	1 Ph
power voltage	208/240 V
rated load amps	11.2 A
compressor stages	Single Stage
compressor type	Rotary
dimensions unit depth	29 in
dimensions unit height	39.5 in
dimensions unit width	29 in
expansion device	TXV
sound pressure high cooling	77 dBA
weight unit	174 lb
cooling capacity rated	28400 Btu/H
heating capacity rated	28400 Btu/H
additional refrigerant charge oz ft	0.55 lb
factory std refrigerant charge	81 oz
pipe size gas	3/4 in
pipe size liquid	3/8 in
refrigerant pre charged line length	15 ft
refrigerant type	R-32
standard line set length max	200 ft
standard line set length vertical	79 ft
valve size suction o d	3/4 in
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	30.50 in
dimensions case height	42.00 in
dimensions case width	30.00 in
dimensions distribution unit depth	30.5 in
dimensions distribution unit height	42 in
dimensions distribution unit width	30 in
dimensions pallet depth	30.50 in
dimensions pallet height	42.00 in
dimensions pallet width	60.00 in
dimensions shipping unit depth	30.50 in
dimensions shipping unit height	42.00 in
dimensions shipping unit width	30.00 in
distribution shipping volume unit	38430 in³
shipping volume unit	38430.000 in³
truck factor	0.0000
volume case	38430.000 in³
volume distribution shipping unit	38430 in³
weight case	194.000 lb
weight distribution shipping unit	194 lb
weight shipping unit	194.000 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS

Product Features (CAPTA3026C3)

All-Aluminum evaporator coil
Optimized for use with R-32 refrigerant including circuits and manifolds
R-32 sensor designed for the life span of the coil
Factory-installed thermal expansion valves for cooling and heat pump applications
Standardized copper suction tube stub length
Check flowrator for cooling and heat pump applications
Vertical application
21" depth for easier attic access
Single front access panel
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Rust resistant, thermoplastic drain pan featuring a low water-retention design
DecaBDE-free thermoplastic drain pan with secondary drain connections
Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
UV-resistant drain pan

Technical Specifications - CAPTA3026C3

product category	Unitary
product class pim	Coil
system family	Unitary Split System
function category	Cooling Only
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	CAPTA_3
series name	CAPTA AlumaFin7™
family description	CAPTA AlumaFin7™ Evaporator Coil
installation type	Ducted
communication feature	No
export control classification number eccn	EAR99
universal product code upc	663051688391
item stocking unit of measure uom	EA
pallet qty	8
country of origin	USA
us hts code	8415.90.8025
canadian hts code	8415.90.90.00
produced in us	Yes
cabinet finish	Painted
cased vs uncased	Cased
dimensions unit depth	21 in
dimensions unit height	26 in
dimensions unit width	21 in
expansion device	TXV
tonnage	2.5
tonnage range	2.0;2.5
condensate drain outlet	3/4 in
pipe size gas	7/8 in
pipe size liquid	3/8 in
refrigerant type	R-32
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	26.25 in
dimensions case height	28.50 in
dimensions case width	23.50 in
dimensions distribution unit depth	26.25 in
dimensions distribution unit height	28.5 in
dimensions distribution unit width	23.5 in
dimensions pallet depth	54.00 in
dimensions pallet height	61.50 in
dimensions pallet width	50.00 in
dimensions shipping unit depth	26.25 in
dimensions shipping unit height	28.50 in
dimensions shipping unit width	23.50 in
distribution shipping volume unit	17580.9375 in³
shipping volume unit	17580.937 in³
truck factor	0.0000
volume case	17580.937 in³
volume distribution shipping unit	17580.9375 in³
weight case	57.000 lb
weight distribution shipping unit	57 lb
weight shipping unit	57.000 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family	10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial	5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential	10 YEARS UNIT REPLACEMENT
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial	5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family	5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential	5 YEARS UNIT REPLACEMENT

Product Features (MBVB12BP1X00)

Variable-speed ECM blower motor
Integrated communicating ComfortBridge™ technology
Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
Advanced configuration of the airflow and tonnage in communicating mode
Provides constant CFM over a wide range of static pressure conditions independent of duct system
CFM indicator
Provides adjustable low CFM for efficient fan-only operation
Improved humidity and comfort control
Built-in compatibility with multi-stage heat pump and cooling applications;10. 3 kW – 21 kW electric heat kits
Blower section usable as electric heater
Compatible with both R410A and R32 (use integration kit)

Cabinet Features (MBVB12BP1X00)

Horizontal or vertical configuration capabilities;2. 21" depth for easier attic access
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193

Technical Specifications - MBVB12BP1X00

product category	Unitary
product class pim	Air Handler
system family	Unitary Split System
function category	Air Handler
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	MBVB
series name	Modular Blower
communication feature	Yes
communication feature type	ComfortBridge Technology compatible
export control classification number eccn	EAR99
universal product code upc	663051692886
item stocking unit of measure uom	EA
pallet qty	8
country of origin	Mexico
us hts code	8414.59.6560
canadian hts code	8414.59.00.92
produced in us	No
indoor blower fla	3.9 A
max overcurrent protection	15/15 A
max voltage	253 V
min voltage	197 V
power frequency	60 Hz
power voltage	208/230 V
dimensions blower diameter	10 in
dimensions blower width	8 in
dimensions unit depth	21 in
dimensions unit height	26 in
dimensions unit width	17-1/2 in
motor speed type	Fixed Speed ECM
blower motor horsepower	0.5 metric hp
tonnage range	1.5;5
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	26.00 in
dimensions case height	29.00 in
dimensions case width	20.00 in
dimensions distribution unit depth	26 in
dimensions distribution unit height	29 in
dimensions distribution unit width	20 in
dimensions pallet depth	54.00 in
dimensions pallet height	62.50 in
dimensions pallet width	41.00 in
dimensions shipping unit depth	26.00 in
dimensions shipping unit height	29.00 in
dimensions shipping unit width	20.00 in
distribution shipping volume unit	15080 in³
shipping volume unit	15080.000 in³
truck factor	0.0000
volume case	15080.000 in³
volume distribution shipping unit	15080 in³
weight case	69.000 lb
weight distribution shipping unit	69 lb
weight shipping unit	69.000 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS
