Goodman

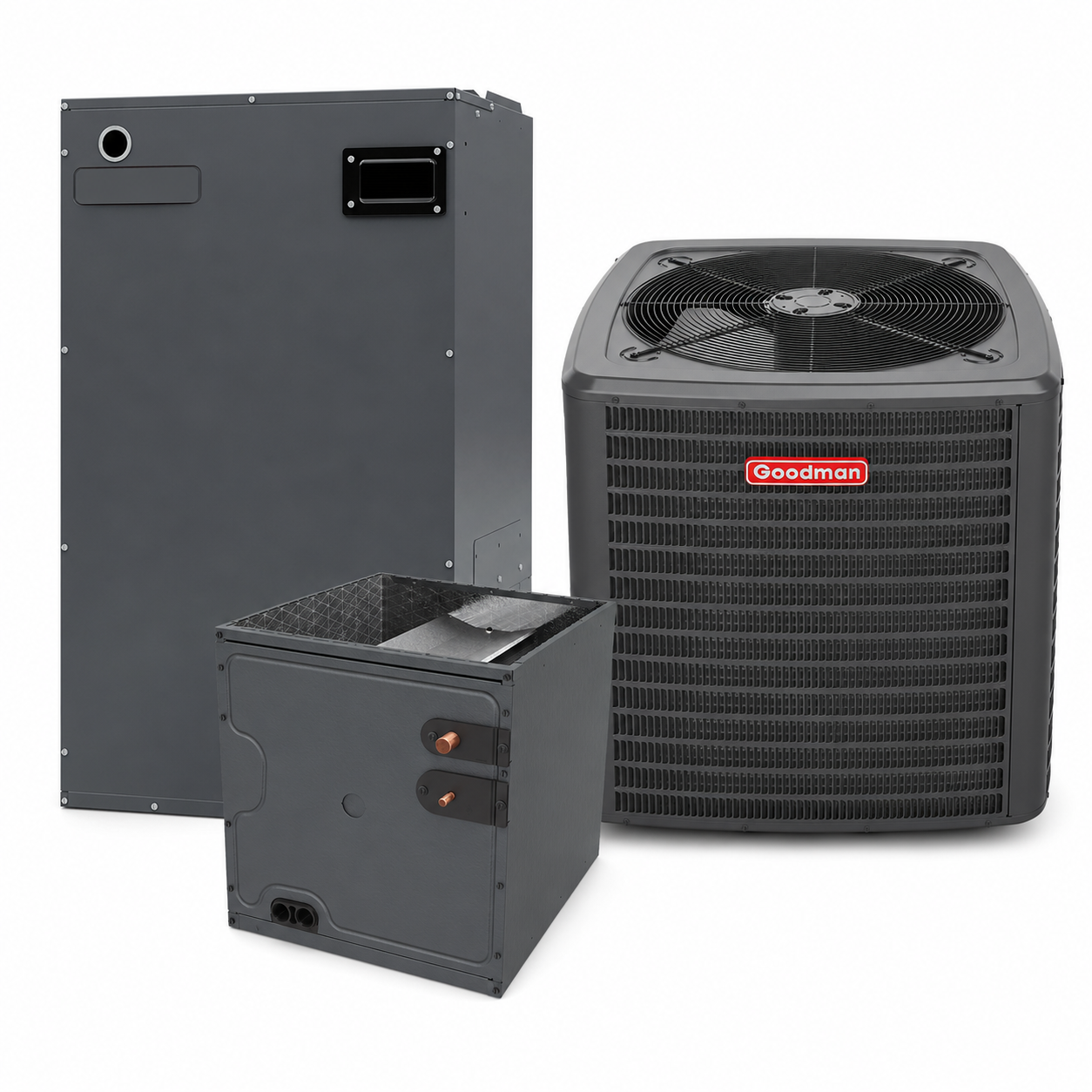

Goodman 2.5 Ton 14.3 SEER2 Electric Furnace and Air Conditioner System - Upflow/Downflow - 21"

SKU: GLXS4MA3010 + CAPTA3026C3 + MBVB16CP1X00

System highlights
AC Type
AC & Electrical Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
30000 BTU VO (2.5 TON)
Indoor Unit
30000 BTU (2.5 TON)
Voltage
208-240V, 208-230V
Looking For
AC & Electrical Furnace System
SEER2 Rating
15.2
Airflow Direction
Upflow, Downflow
Blower Motor
Variable Speed ECM
Maximum CFM
1600
Burner Stages
Two Stages
Coil Style
A-Coil
Cabinet Width (in)
21
Goodman 2.5 Ton 21" Width Upflow/Downflow Cased Evaporator Coil - TXV - R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$4,372.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 2.5 Ton 14.3 SEER2 Electric Furnace and Air Conditioner System - Upflow/Downflow - 21"

Product Overview

Goodman 2.5 Ton 14.3 SEER2 Air Conditioner Condenser Multi-Family R32 GLXS4MA3010

Experience next-generation cooling performance with this high-efficiency R32 air conditioning unit. Engineered to meet the 2025 refrigerant standards and built for durability, this unit combines energy-saving technology with rugged construction, making it ideal for both residential and light commercial applications. With a scroll compressor, enhanced coil design, and hurricane-compliant build, it's the reliable solution for hot climates and coastal regions.

Key Features

  • Energy-Efficient Scroll Compressor – Delivers reliable, quiet performance with improved energy savings.
  • Factory-Installed Filter Drier – Protects the system from moisture and contaminants, extending the lifespan.
  • Pre-Charged for 15 Feet of Tubing – Saves installation time and ensures optimal refrigerant levels out of the box.
  • 5mm Copper Tubing with Enhanced Aluminum Fin Coil – Maximizes heat transfer for faster and more efficient cooling.
  • Service Valves with Sweat Connections & Easy-Access Gauge Ports – Simplifies maintenance and diagnostics.
  • Enclosed Contactor with Ground Lug Connection – Increases safety and longevity of electrical components.
  • High-Pressure Safety Switch – Offers added protection and system reliability.
  • Top & Side Maintenance Access – Improves serviceability and reduces maintenance time.
  • Single-Panel Control Access – Provides room for field-installed accessories and simplifies servicing.
  • AHRI Certified & ETL Listed – Meets industry standards for performance, safety, and reliability.
  • Heavy-Gauge Galvanized Steel Cabinet – Built to withstand the elements with corrosion-resistant protection.
  • UL 60335-2-40 Compliant Removable Grille-Style Top – Ensures safe, efficient operation and easy coil access.
  • Architectural Gray Powder-Coated Finish – Rated for 500-hour salt-spray durability—ideal for coastal areas.
  • Steel Louver Coil Guard – Protects the coil without restricting airflow.
  • Venturi Design for Enhanced Airflow Velocity – Promotes efficient system operation and improved cooling.
  • Hurricane-Ready Construction – Meets 2023 Florida Building Code for hurricane-type winds when properly anchored.
  • R32 Refrigerant System – Eco-friendly and compliant with upcoming 2025 refrigerant transition regulations.

This R32 air conditioner with a scroll compressor is your go-to solution for efficient, durable, and code-compliant cooling. Whether you're upgrading your system or installing new, this unit is designed to perform under pressure—literally.

Goodman 2.5 Ton 14.3 SEER2 Air Conditioner Condenser Multi-Family R32 GLXS4MA3010

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

  • All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
  • Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
  • Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
  • R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
  • 10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

Variable-Speed Air Handler with ComfortBridge Technology – MBVB Series

Upgrade your home’s comfort with the MBVB Series Variable-Speed Air Handler, featuring advanced ComfortBridge Technology. Engineered for efficiency and reliability, this air handler delivers precise temperature control and enhanced airflow for a consistently comfortable environment. With its sleek design and cutting-edge technology, the MBVB Series ensures energy savings while keeping your home cozy year-round.

Perfect for modern homes seeking superior performance and innovative climate solutions.

Features

  • Vertical or Horizontal Installation: Flexible design to fit any space requirement.
  • Variable-Speed Motor: Ensures efficient, quiet, and consistent airflow.
  • Field-Installed Heat Strips: Customizable heating options for added comfort.
  • Blower Section Usable as Electric Heater: Versatile functionality to meet your heating needs.

Product Features (GLXS4MA3010)

  • Removable grille-style top design compliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Cabinet Features (GLXS4MA3010)

  • High-Efficiency Scroll Compressor
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • 5mm diameter copper tube/enhanced aluminum fin coil
  • Service valves with sweat connections and easy-to-access gauge ports
  • Enclosed contactor with lug connection
  • Ground lug connection
  • High-pressure switch
  • AHRI Certified
  • ETL Listed

Technical Specifications - GLXS4MA3010

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXS4M
series name GLXS4M
model efficiency 14.3 SEER2
family description ENERGY-Efficienct Multi-Family R-32 Split System Air Conditioner, Up to 15.2 SEER2, 1½ To 3 Tons
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051692114
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cooling capacity nominal 30000 Btu/H
eer2 hsvtc 11.7
energy star certified No
seer 2 hsvtc 14.3
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
max overcurrent protection 25 A
min circuit amps 15.349999999999998 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 11.52 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 29 in
dimensions unit height 29 in
dimensions unit width 35-3/4 in
sound pressure high cooling 70 dBA
weight unit 70 lb
cooling capacity rated 28400 Btu/H
tonnage 2.5
additional refrigerant charge oz ft 0.55 lb
factory std refrigerant charge 64 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.50 in
dimensions case height 38.50 in
dimensions case width 30.00 in
dimensions distribution unit depth 30.5 in
dimensions distribution unit height 38.5 in
dimensions distribution unit width 30 in
dimensions pallet depth 30.50 in
dimensions pallet height 38.50 in
dimensions pallet width 60.00 in
dimensions shipping unit depth 30.50 in
dimensions shipping unit height 38.50 in
dimensions shipping unit width 30.00 in
distribution shipping volume unit 35227.5 in³
shipping volume unit 35227.500 in³
truck factor 0.0000
volume case 35227.500 in³
volume distribution shipping unit 35227.5 in³
weight case 179.000 lb
weight distribution shipping unit 179 lb
weight shipping unit 179.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Features (CAPTA3026C3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valves for cooling and heat pump applications
  • Standardized copper suction tube stub length
  • Check flowrator for cooling and heat pump applications
  • Vertical application
  • 21" depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pan featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL Listed

Technical Specifications - CAPTA3026C3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPTA_3
series name CAPTA AlumaFin7™
family description CAPTA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051688391
item stocking unit of measure uom EA
pallet qty 8
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us Yes
cabinet finish Painted
cased vs uncased Cased
dimensions unit depth 21 in
dimensions unit height 26 in
dimensions unit width 21 in
expansion device TXV
tonnage 2.5
tonnage range 2.0;2.5
condensate drain outlet 3/4 in
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.25 in
dimensions case height 28.50 in
dimensions case width 23.50 in
dimensions distribution unit depth 26.25 in
dimensions distribution unit height 28.5 in
dimensions distribution unit width 23.5 in
dimensions pallet depth 54.00 in
dimensions pallet height 61.50 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.25 in
dimensions shipping unit height 28.50 in
dimensions shipping unit width 23.50 in
distribution shipping volume unit 17580.9375 in³
shipping volume unit 17580.937 in³
truck factor 0.0000
volume case 17580.937 in³
volume distribution shipping unit 17580.9375 in³
weight case 57.000 lb
weight distribution shipping unit 57 lb
weight shipping unit 57.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (MBVB16CP1X00)

  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridge™ technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
  • Advanced configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications;10. 3 kW – 21 kW electric heat kits
  • Blower section usable as electric heater
  • Compatible with both R410A and R32 (use integration kit)

Cabinet Features (MBVB16CP1X00)

  • Horizontal or vertical configuration capabilities;2. 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193

Technical Specifications - MBVB16CP1X00

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family MBVB
series name Modular Blower
communication feature Yes
communication feature type ComfortBridge Technology compatible
export control classification number eccn EAR99
universal product code upc 663051692909
item stocking unit of measure uom EA
pallet qty 8
country of origin Mexico
us hts code 8414.59.6560
canadian hts code 8414.59.00.99
produced in us No
indoor blower fla 5.2 A
max overcurrent protection 15/15 A
max voltage 253 V
min voltage 197 V
power frequency 60 Hz
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions unit depth 21 in
dimensions unit height 30 in
dimensions unit width 21 in
motor speed type Fixed Speed ECM
blower motor horsepower 0.75 metric hp
tonnage range 1.5;5
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 32.75 in
dimensions case width 23.50 in
dimensions distribution unit depth 25.5 in
dimensions distribution unit height 32.75 in
dimensions distribution unit width 24.5 in
dimensions pallet depth 54.00 in
dimensions pallet height 70.00 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 32.75 in
dimensions shipping unit width 23.50 in
distribution shipping volume unit 20460.5625 in³
shipping volume unit 20010.250 in³
truck factor 0.0000
volume case 20010.250 in³
volume distribution shipping unit 20460.5625 in³
weight case 72.090 lb
weight distribution shipping unit 72.09 lb
weight shipping unit 72.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
