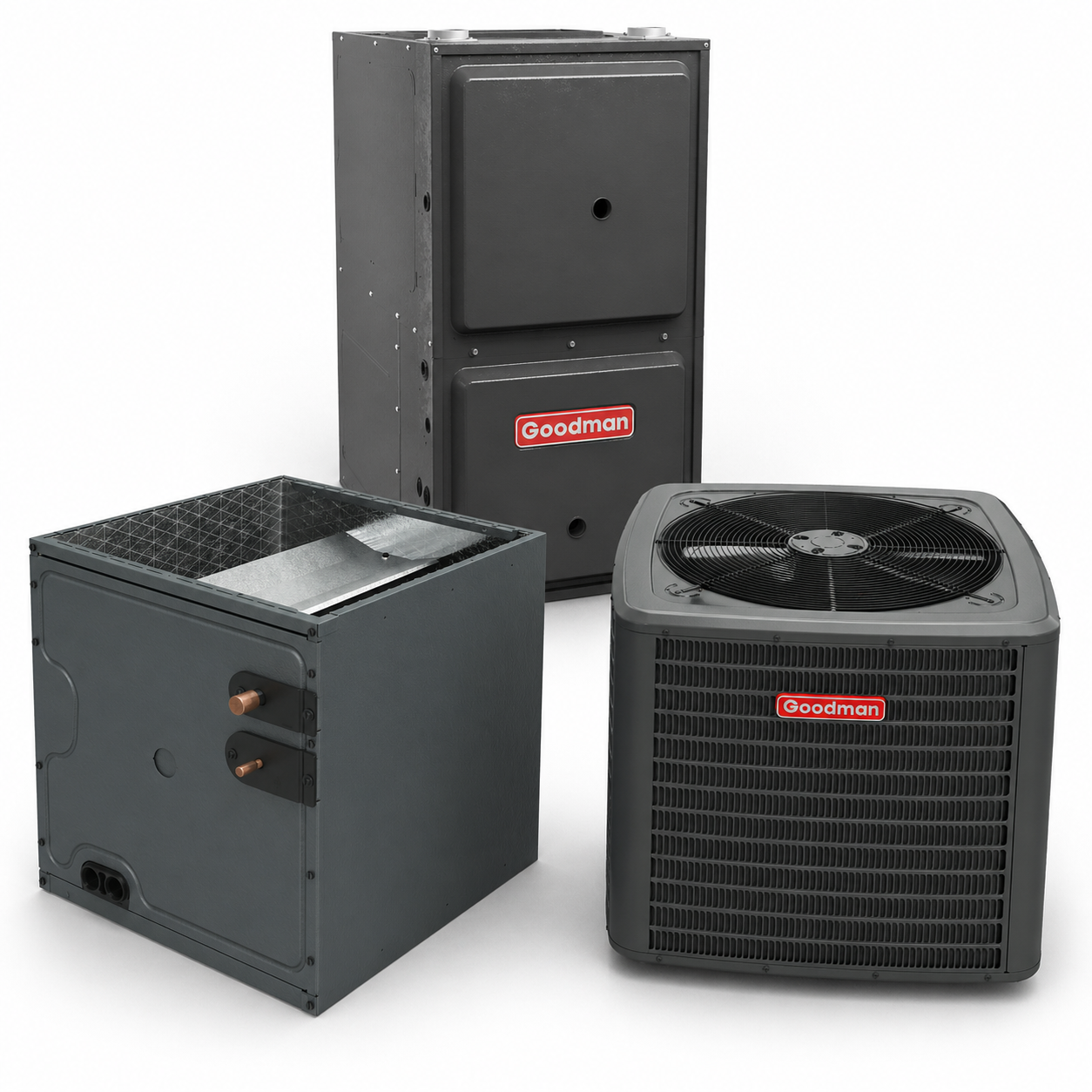

Goodman 2.5 Ton 14.3 SEER2 96% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

OVERVIEW

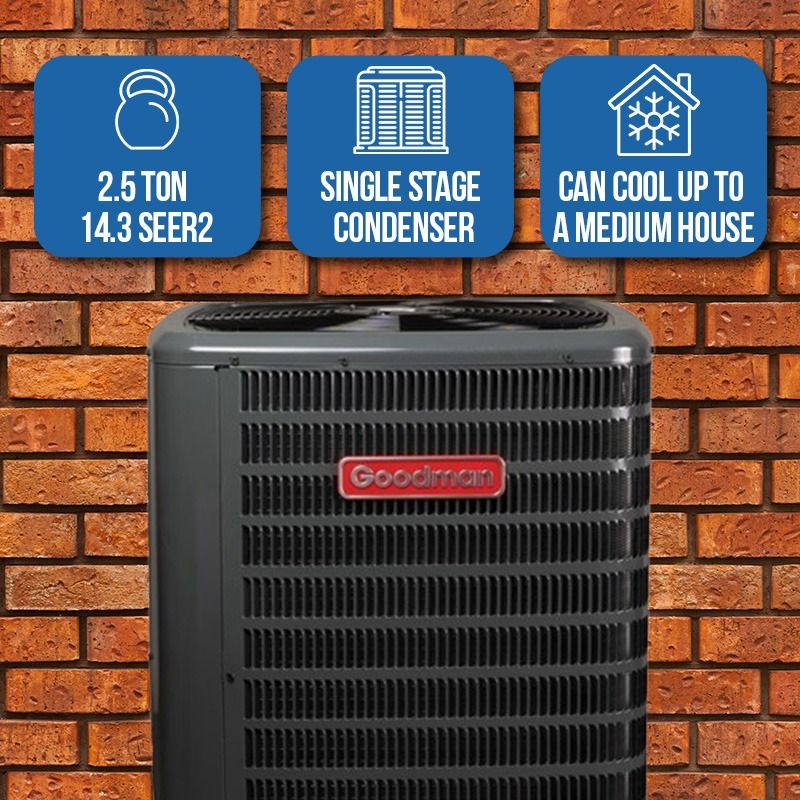

The Goodman brand has been focused on providing efficiency and comfort where it matters most while still being an inexpensive brand. With its superior components and a standard efficiency, the Goodman GLXS4BA3010 air conditioner condenser is a popular choice for homeowners around the United States.

QUICK FACTS

• Ideal size to cover a small to medium house in ideal climates
• 2.5 ton, 14.3 SEER2 AC-only condenser
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Fully charged for up to 15' of line set
• Low sound output
• Factory-installed filter drier

2.5 Ton

The GLXS4BA3010 Goodman condenser is a 2.5 ton unit, meaning that it can cover up to a small home in an ideal climate. In some unit bundles, the required AC coil may be larger than this condenser in tonnage. This is intentional, as it maintains the unit's efficiency.

14.3 SEER2

The GLXS4BA3010 AC-only conditioner can be up to 14.3 SEER2 in efficiency when paired with the proper equipment. As the standard efficiency on the market for all states, this unit is average in efficiency. Every SEER2 point is 5-7% more efficient than the one lower than it, saving you money the higher the SEER2 rating of the unit. Please note that this product is regulated by DOE Efficiency Standards.

Warranty

The GLXS4BA3010 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The GLXS4BA3010 Goodman AC condenser cabinet has a baked-on painted finish and is made of a galvanized-steel, making it approved for up to 500 hours of salt-spray and compliant with the 2010 Florida building code integrity requirements for hurricane-type winds when properly anchored. Moreover, the unit is equipped from the factory with a filter dryer that lowers general wear-and-tear on the unit. The GLXS4BA3010 provides peace of mind thanks to its durability and reliability enhancements.

Installation and Maintenance

The Goodman GLXS4BA3010 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.

Comfort in Mind

The Goodman brand always has its customer's comfort in mind. The GLXS4BA3010 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.

Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

OVERVIEW

The GR9S960603BU Goodman gas furnace features high-quality construction and efficient operation at a great value. The GR9S960603BU single-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GR9S960603BU .

QUICK FACTS

• This furnace is ideal to heat a smaller house (depending on climate)
• 60,000 BTU 96% efficient natural gas furnace
• Requires plastic/PVC flue venting
• Complies with Clean Air Act New Refrigerant Requirements
• Can be used in the upflow or horizontal orientation
• Innovative design for electrical efficiency, safety, and lower sound output

Ultra-Low NOx Compliant

In California, many counties have a lower NOx emission requirement than the rest of the United States. The GR9S960603BU Goodman gas furnace is California Ultra-Low NOx compliant. With a built-in low emission filter and special venting system, this Goodman gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home.

Ultra-Low NOx furnaces are required for gas furnace installations in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare. If you have any questions, please contact us.

60,000 BTU

The GR9S960603BU Goodman gas furnace is 60,000 BTU's. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 57,600 BTU's (60,000 X 96% AFUE) per hour. In ideal climate conditions, this 60,000 BTU furnace is usually used to heat a small house.

96% Efficiency Rating

The GR9S960603BU Goodman gas furnace is 96% efficient, and the standard furnace efficiency on the market today. This means that 96% of the gas going into the furnace is used to heat your home and the remaining 4% is lost out of the flue venting. Please note that all 96% furnaces must be vented using plastic/PVC flue venting, while anything higher than 90% efficient must be vented using plastic/PVC venting.

Single Stage Furnace

The GR9S960603BU Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace's burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

Natural Gas Furnace

From the factory, the GR9S960603BU, as well as other ultra-low NOx furnaces, runs on natural gas. These types of furnaces are only available in natural gas configurations. If you need a propane furnace, you will need to order the standard NOx version of this furnace and add a propane conversion kit to it. The standard NOx version can be found here: GR9S960603BN

9-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GR9S960603BU utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today's Goodman furnaces feature many different connection options to reduce installation. The GR9S960603BU model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

Please note that this furnace requires a drain kit if installed horizontally. Upflow configurations do not require the kit.
