Goodman

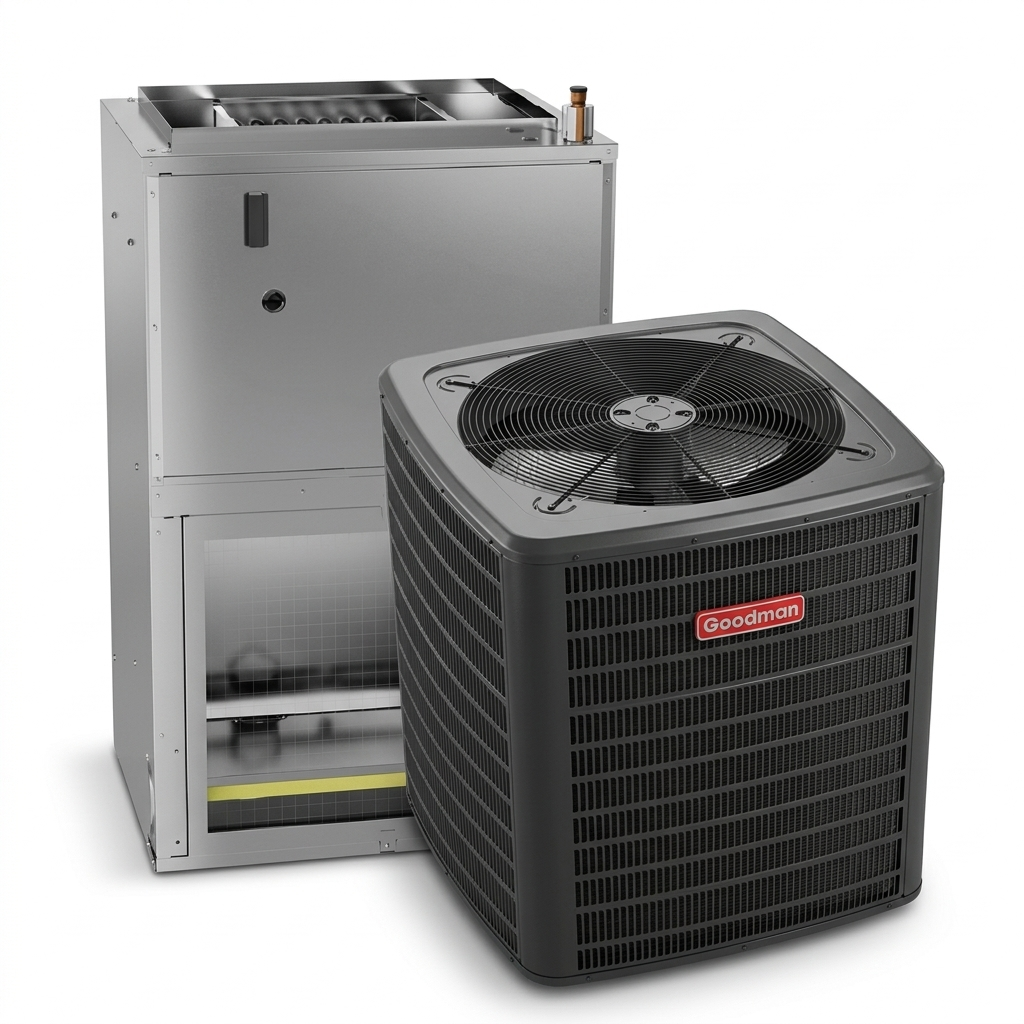

Goodman 18,000 BTU 14.5 SEER2 High Efficiency Wall Mounted Air Handler Unit Ducted Heat Pump Split System w/ 3kW Heat R32 230V

SKU: AWST18SU1303 + GLZS4MA1810

System highlights
AC Type
Stud Mount Air Handler Heat Pump System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
18000 BTU VO (1.5 TON)
Indoor Unit
18000 BTU (1.5 TON)
Voltage
208-230V, 208-240V
Looking For
Ducted
SEER2 Rating
14.5
Airflow Direction
Upflow
Electric Heat
3 Kilowatt
Goodman 1.5 Ton Wall Mounted Air Handler w/ 3kW Heat - R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$3,245.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 18,000 BTU 14.5 SEER2 High Efficiency Wall Mounted Air Handler Unit Ducted Heat Pump Split System w/ 3kW Heat R32 230V

Product Overview

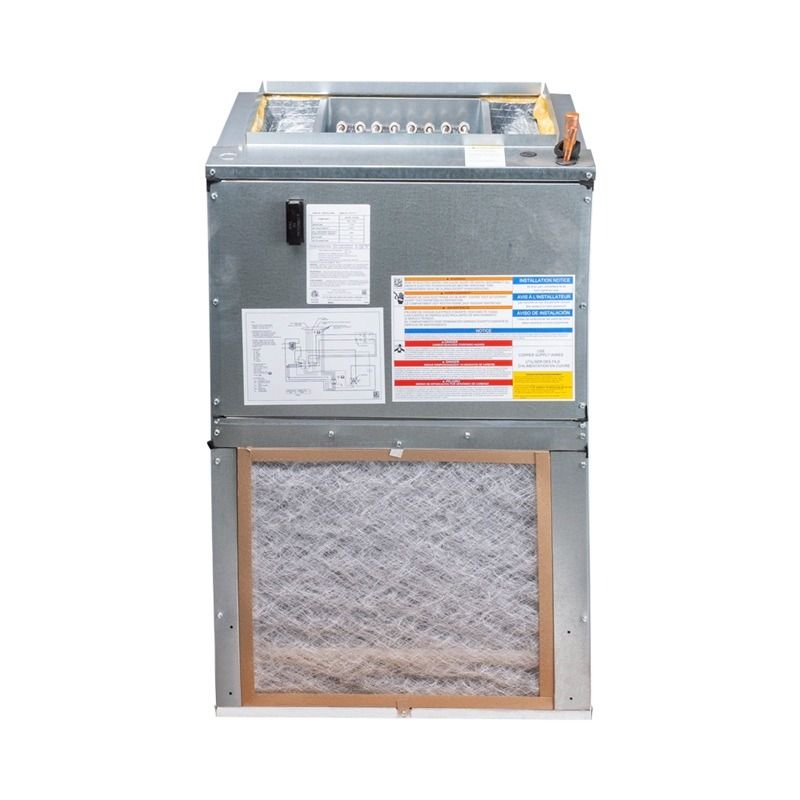

The Goodman AWST wall-mounted air handler is a space-saving alternative to traditional air handlers. Designed to be stud-mounted to a wall or installed in tight recessed spaces, this air handler comes built with a fully insulated, galvanized-steel cabinet for added durability. These air handlers are excellent options for any multi-tenant buildings, such as apartments, condos, and townhomes. With the AWST air handler, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.

Features

  • Suitable for use with R32 refrigerant
  • Equipped with a fully adjustable TXV for cooling-only and heat pump operation
  • Direct-drive, multi-speed motor allows air volume variation for heating and cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Factory-installed pull-type disconnect
  • Aluminum tube coils on all models
  • AHRI Certified
  • ETL Listed
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2.5- and 3-ton units) - front return only
  • Small chassis (1.5- and 2-ton units) - front or bottom return
  • Wall-hanging bracket provided

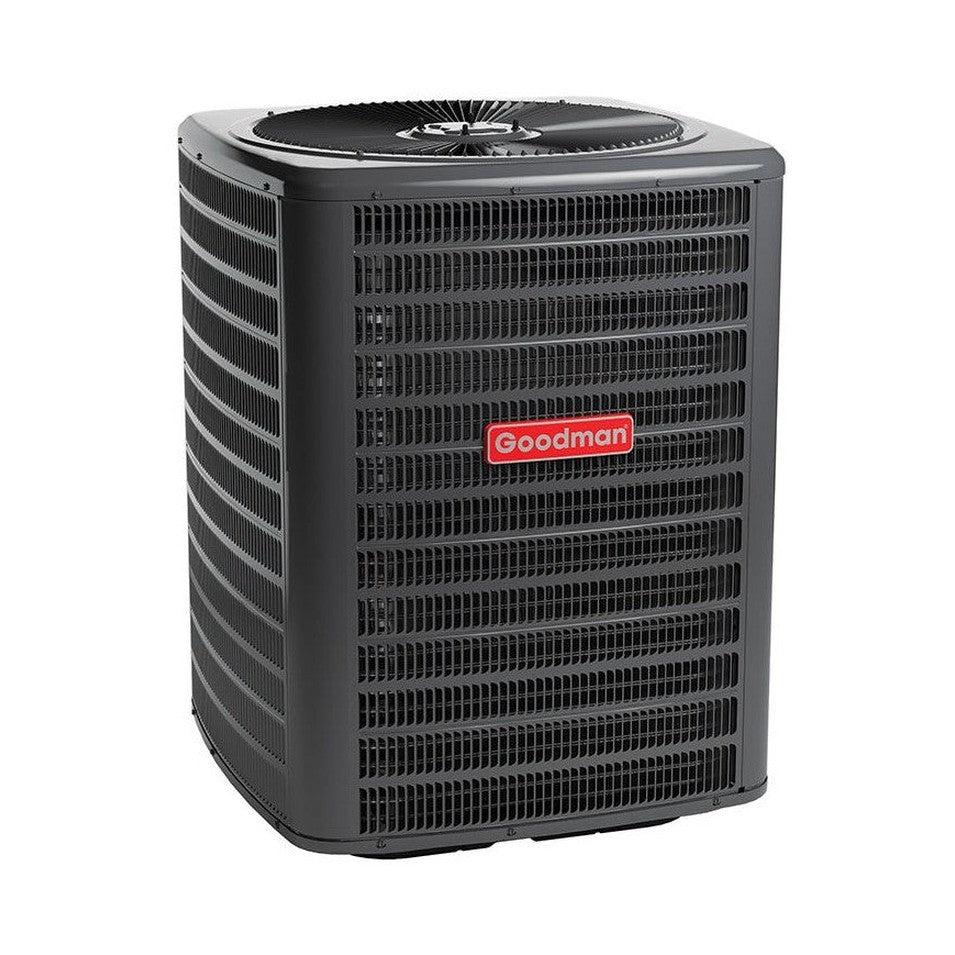

Goodman 1.5 Ton 14.3 SEER2 Heat Pump Split Condenser Multi-Family R32

The unit features a high-efficiency scroll compressor with Smart-Shift technology for quiet defrosting. It includes an enhanced aluminum fin coil, a single-speed PSC fan motor, and factory-installed components such as a bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler. It also has high- and low-pressure switches, service valves with easy gauge access, and is fully charged for 15 feet of tubing. Additional features include a contactor with a lug connection, ground lug connection, extended-life capacitors, and it is AHRI Certified and ETL Listed.

The unit features a removable grille-style top design that complies with UL 60335-2-40 standards. It is protected by a steel louver coil guard and housed in a heavy-gauge galvanized-steel cabinet with an attractive Architectural Gray powder-paint finish, approved for 500-hour salt-spray exposure. The design includes top and side maintenance access. When properly anchored, the unit meets the 2023 Florida Building Code requirements for hurricane-type winds.

  • High-efficiency scroll compressor
  • R32 Freon,  meets the 2025 refrigerant change guidelines
  • Smart-Shift technology for quiet defrost
  • Enhanced aluminum fin coil with 5 mm (1.5T-3.5 Ton) and 7 mm diameter tubes (4.0-5.0 Ton)
  • Single-speed PSC condenser fan motor
  • Factory-installed bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler
  • High- and low-pressure switches
  • Service valves with easy gauge access
  • Fully charged for 15 feet of tubing
  • Contactor with lug connection and ground lug
  • Extended-life capacitors
  • AHRI Certified; ETL Listed
  • Removable grille-style top (UL 60335-2-40 compliant)
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet with Architectural Gray powder-paint finish (500-hour salt-spray approved)
  • Top and side maintenance access
  • Meets 2023 Florida Building Code for hurricane-type winds when properly anchored

Goodman 1.5 Ton 14.3 SEER2 Heat Pump Split Condenser Multi-Family R32

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Product Benefits (AWST18SU1303)

  • All Aluminum Coil
  • Improved Reliability and Quality
  • Factory TXV Installed for Quicker Install
  • More Efficient Refrigerant Metering

Product Features (AWST18SU1303)

  • AWST Models: Equipped wit a fully adjustable TXV
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Aluminum tubing coils on all models
  • Factory-installed pull-type disconnect
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • AHRI Certified and ETL Listed
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

Cabinet Features (AWST18SU1303)

  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Built-in filter rack (filter included)
  • Large chassis (2-1/2 and 3 ton units), front return only
  • Small chassis (1-1/2 and 2 ton units), front or bottom return
  • Wall-hanging bracket provided

Technical Specifications - AWST18SU1303

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family AWST_32
series name AWST
family description Wall-Mount Air Handler 1½ to 3 Tons
installation type Ducted Wall Mounted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051683624
item stocking unit of measure uom EA
pallet qty 6
country of origin Mexico
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cooling capacity nominal 18000 Btu/H
produced in us No
indoor blower fla 2.6 A
max overcurrent protection 20/20 A
max voltage 253 V
min circuit amps 16.8/18.9 A
min voltage 197 V
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 6 in
dimensions evap wheel diameter 10 in
dimensions evap wheel width 6 in
dimensions unit depth 13-1/8 in
dimensions unit height 36 in
dimensions unit width 20-3/13 in
evap coil face area ft 1.8
evap motor rpm 1050 r/min
expansion device TXV
motor speed type Multi Speed ECM
number of speeds 5
weight unit 84 lb
blower motor horsepower 1/3 metric hp
tonnage 1.5
tonnage range 1.5;3
factory std refrigerant charge 0.5 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 17.00 in
dimensions case height 39.00 in
dimensions case width 21.50 in
dimensions distribution unit depth 17 in
dimensions distribution unit height 39 in
dimensions distribution unit width 21.5 in
dimensions pallet depth 52.00 in
dimensions pallet height 44.00 in
dimensions pallet width 46.00 in
dimensions shipping unit depth 17.00 in
dimensions shipping unit height 39.00 in
dimensions shipping unit width 21.50 in
distribution shipping volume unit 14254.5 in³
shipping volume unit 14254.500 in³
truck factor 0.0000
volume case 14254.500 in³
volume distribution shipping unit 14254.5 in³
weight case 80.000 lb
weight distribution shipping unit 80 lb
weight shipping unit 80.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GLZS4MA1810)

  • Meets the 2023 M1 Test Standards

Product Features (GLZS4MA1810)

  • High-efficiency compressor
  • SmartShift® technology to ensure quiet reliable defrost
  • Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
  • Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
  • Single-speed PSC condenser fan motor
  • Factory-installed bi-flow liquid-line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • High- and low-pressure switches
  • Service valves with sweat connections and easy access to gauge ports
  • Fully charged for 15’ of tubing length
  • Fully enclosed contractor with lug connection
  • Ground lug connection
  • Capacitors with extended life
  • AHRI Certified
  • ETL Listed

Cabinet Features (GLZS4MA1810)

  • Removable grille-style top design compliant with UL 60335-2-40
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available).

Technical Specifications - GLZS4MA1810

product category Unitary
product class pim Split Heat Pump
system family Unitary Split System
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLZS4M
series name GLZSM4
model efficiency 14.3 SEER2
family description Energy-Efficient Multi-Family R-32 Split System Heat Pump, up to 15.2 SEER2 and 7.8 HSPF2, 1-1/2 to 3 Tons
installation type Ducted
communication feature No
export control classification number eccn EAR99
iso certified Yes
product notes R32 Outdoor
universal product code upc 663051689695
item stocking unit of measure uom EA
pallet qty 2
eer2 hsvtc 12.5
energy star certified No
heating capacity nominal 18000 Btu/H
hspf 2 hsvtc 7.8
seer 2 hsvtc 15.2
produced in us No
cooling operation range std max 125 °F
cooling operation range std min 55 °F
heating operation range std max 70 °F
heating operation range std min -20 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
rated heating condition ambient db 47 °F
rated heating condition ambient wb 43 °F
max overcurrent protection 15 A
max voltage 253 V
min circuit amps 11.4 A
min voltage 197 V
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 8.3 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 29 in
dimensions unit height 32.5 in
dimensions unit width 29 in
expansion device TXV
sound pressure high cooling 69 dBA
weight unit 160 lb
cooling capacity rated 18000 Btu/H
heating capacity rated 17400 Btu/H
additional refrigerant charge oz ft 0.55 lb
factory std refrigerant charge 71 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 3/4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.50 in
dimensions case height 34.50 in
dimensions case width 30.00 in
dimensions distribution unit depth 30.5 in
dimensions distribution unit height 34.5 in
dimensions distribution unit width 30 in
dimensions pallet depth 30.50 in
dimensions pallet height 34.50 in
dimensions pallet width 60.00 in
dimensions shipping unit depth 30.50 in
dimensions shipping unit height 34.50 in
dimensions shipping unit width 30.00 in
distribution shipping volume unit 31567.5 in³
shipping volume unit 31567.500 in³
truck factor 0.0000
volume case 31567.500 in³
volume distribution shipping unit 31567.5 in³
weight case 181.000 lb
weight distribution shipping unit 181 lb
weight shipping unit 181.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
