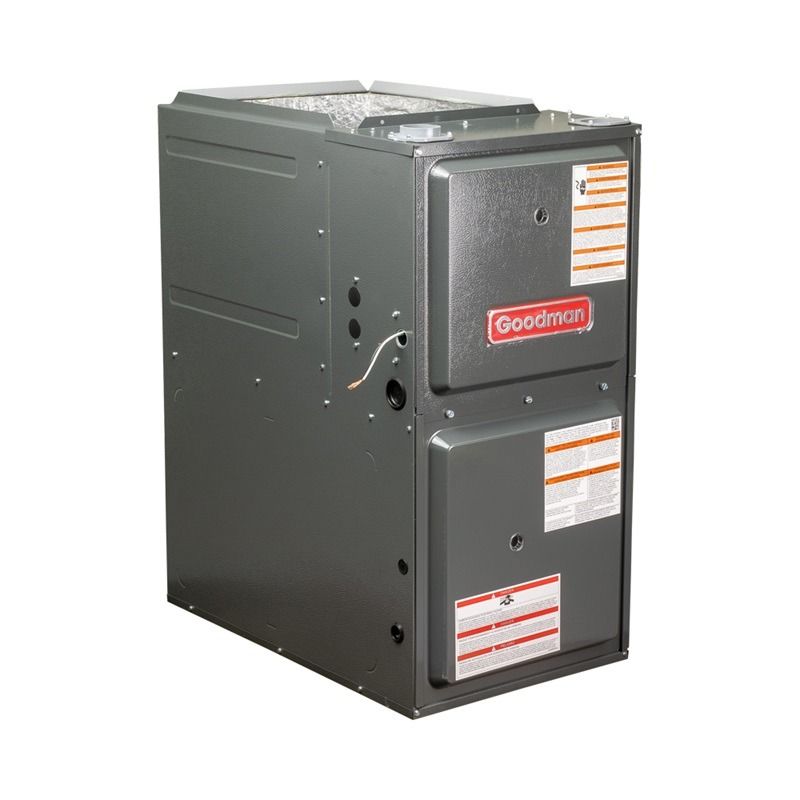

Goodman 120,000 BTU 96% AFUE Single Stage Gas Furnace | 24.5" Width | Upflow / Horizontal

OVERVIEW

The GR9S961205DN Goodman gas furnace features high-quality construction and efficient operation at a great value. The GR9S961205DN single-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GR9S961205DN.

QUICK FACTS

• This furnace is ideal to heat a large house (depending on climate)
• 120,000 BTU 96% efficient natural gas furnace
• Requires plastic/PVC flue venting
• Complies with Clean Air Act New Refrigerant Requirements
• Can be used in the upflow or horizontal orientation
• Can be converted to an LP furnace with a conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output

120,000 BTU

The GR9S961205DN Goodman gas furnace is 120,000 BTU's, which is the largest Goodman furnace size currently available. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 115,200 BTU's (120,000 X 96% AFUE) per hour. In ideal climate conditions, this 120,000 BTU furnace is usually used to heat a large house.

96% Efficiency Rating

The GR9S961205DN Goodman gas furnace is 96% efficient, which is one of the highest efficiencies for gas furnaces on the market today. This efficiency means that 96% of the gas going into the furnace is used to heat your home, while the remaining 4% is lost to the furnace operation itself. Please note that all furnaces that are 90% efficient and above require plastic/PVC flue venting, while 80% efficient furnaces require plastic/PVC flue venting.

Single Stage Furnace

The GR9S961205DN Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace's burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

Natural Gas or LP Furnace

From the factory, the GR9S961205DN runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

9-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GR9S961205DN utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today's Goodman furnaces feature many different connection options to reduce installation. The GR9S961205DN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

Please note that this furnace requires a if installed horizontally. Upflow configurations do not require the kit.
