Goodman 1.5 Ton Evaporator Coil Uncased TXV 16.5" Cabinet Upflow/Downflow
Product Overview

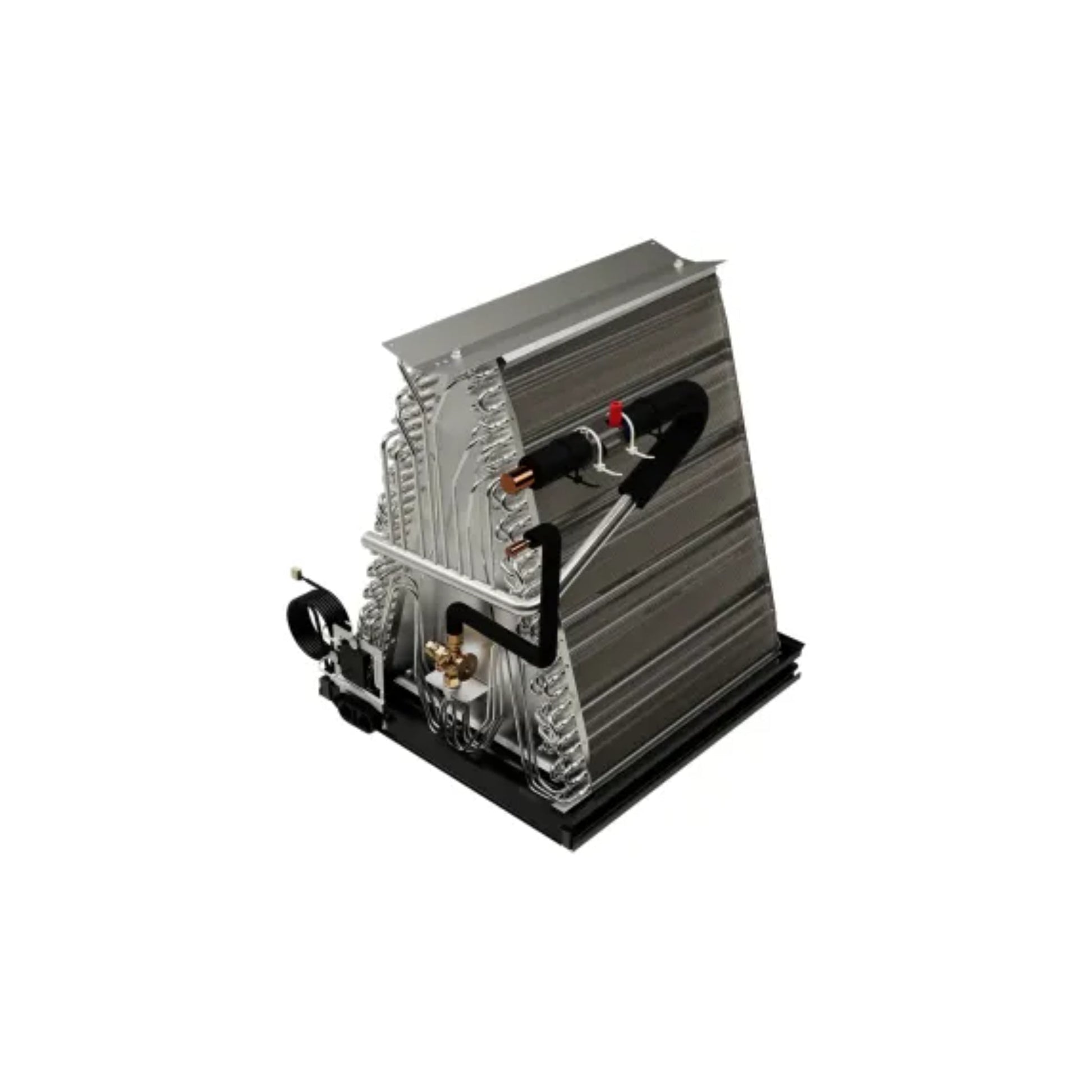

Goodman 1.5 Ton Evaporator Coil Uncased TXV 16.5" Cabinet Upflow/Downflow CAUTA1818B3
The Goodman CAUTA1818B3 is a 1.5-ton uncased A coil evaporator designed for both upflow and downflow installations in residential and light commercial HVAC systems. Built with durable all-aluminum construction, this coil delivers efficient cooling performance and reliable corrosion resistance. It comes equipped with a factory-installed thermal expansion valve (TXV) for R-32 refrigerant systems, providing optimal refrigerant control. The compact size and uncased design allow flexible installation in limited spaces, while the included rust-resistant thermoplastic drain pan and foil-faced insulation enhance system efficiency and longevity.
Key Features
- 1.5 Ton Cooling Capacity (18,000 BTU)
- Uncased A Coil Design for Flexible Installations
- Factory-Installed TXV Optimized for R-32 Refrigerant
- All-Aluminum Coil Enhances Durability and Corrosion Resistance
- Rust-Resistant Thermoplastic Drain Pan with UV Protection
- Foil-Faced Internal Insulation Reduces Cabinet Condensation
- Low Water Retention Design with Secondary Drain Connections
- Drain Pan Rails Allow Easy Coil Removal and Repositioning
- Standardized Copper Suction Tube Stub Length
- AHRI Certified and ETL Listed for Performance and Safety
This compact, energy-efficient evaporator coil is ideal for small residential systems or light commercial units where space is limited and performance matters.
Goodman 1.5 Ton Evaporator Coil Uncased TXV 16.5" Cabinet Upflow/Downflow CAUTA1818B3
| Warranty Type | Parts |
| Standard Warranty | 5 Years |
| Registered Warranty | 10 Years |
Product Features
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valve for cooling applications
- Standardized copper suction tube stub length
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease withoutcompromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
Technical Specifications - CAUTA1818B3
| sku | CAUTA1818B3 |
|---|---|
| manufacturer | Corporate |
| product category | Unitary |
| product class | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAUTA_32 |
| series name | CAUTA |
| short description | CAUTA Evaporator Coil, Upflow/Downflow, 1.5 Ton, R-32 |
| family description | CAUTA Uncased Coil |
| product description | 1.5T Uncased R-32 Coil with TXV |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 3/4 in |
| tonnage | 1.5 |
| height | 15 in |
| width | 16-1/2 in |
| depth | 21.3 in |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Coil |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051729292 |
| item stocking unit of measure uom | EA |
| pallet qty | 12 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| produced in us | Yes |
| cabinet finish | Unpainted |
| cased vs uncased | Uncased |
| dimensions unit depth | 21.3 in |
| dimensions unit height | 15 in |
| dimensions unit width | 16-1/2 in |
| expansion device | TXV |
| tonnage range | 1.5 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.25 in |
| dimensions case height | 20.50 in |
| dimensions case width | 20.00 in |
| dimensions distribution unit depth | 26.25 in |
| dimensions distribution unit height | 20.5 in |
| dimensions distribution unit width | 20 in |
| dimensions pallet depth | 54.00 in |
| dimensions pallet height | 66.00 in |
| dimensions pallet width | 41.00 in |
| dimensions shipping unit depth | 26.25 in |
| dimensions shipping unit height | 20.50 in |
| dimensions shipping unit width | 20.00 in |
| distribution shipping volume unit | 10762.5 in³ |
| shipping volume unit | 10762.500 in³ |
| truck factor | 0.0000 |
| volume case | 10762.500 in³ |
| volume distribution shipping unit | 10762.5 in³ |
| weight case | 24.000 lb |
| weight distribution shipping unit | 24 lb |
| weight shipping unit | 24.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
