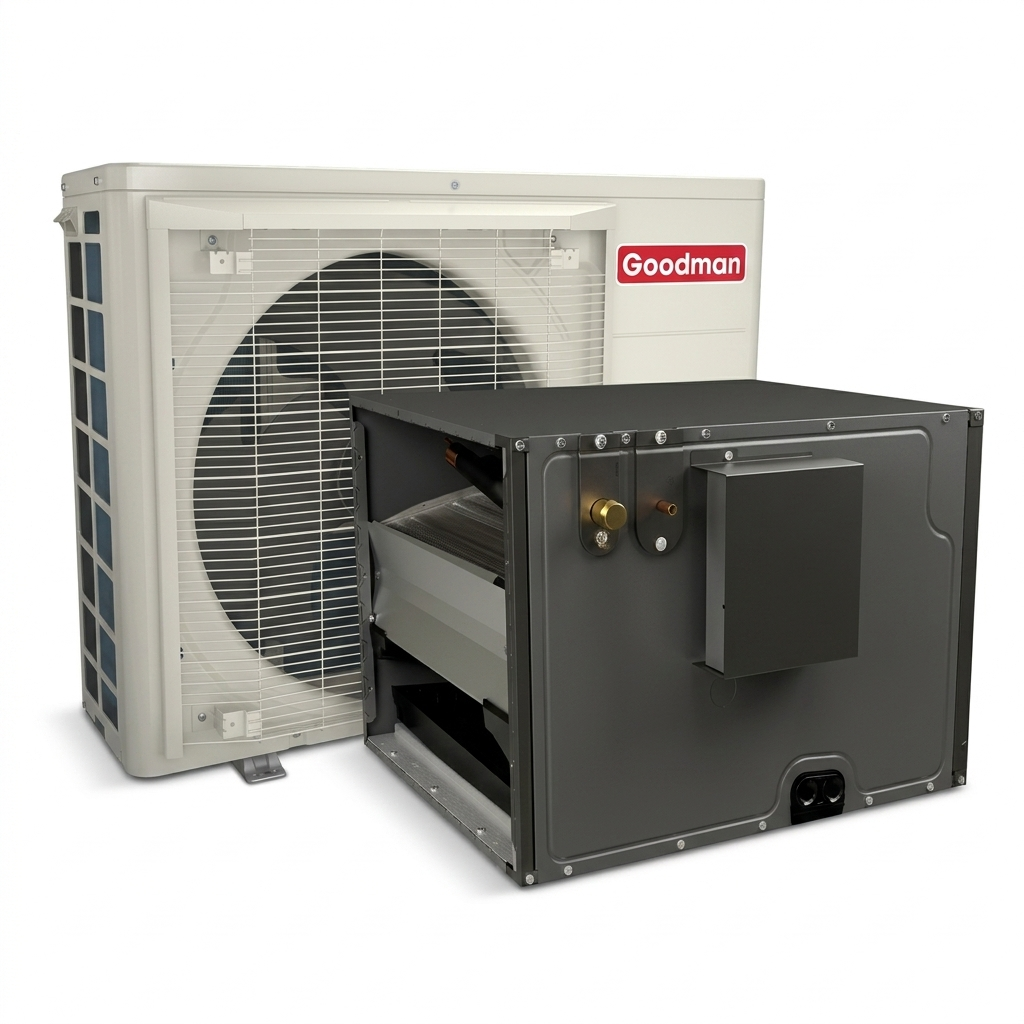

Goodman 1.5 Ton 19.0 SEER2 Central Heat Pump with 25' inch Upflow/Downflow Cased Coil | Inverter - R32
Product Overview
Goodman 2 Ton Evaporator Coil 17.5" Cabinet Horizontal With EEV Expansion CHPEA2422B3
Our all-aluminum evaporator coil is engineered for superior durability, efficiency, and compatibility with modern refrigerants, making it an ideal choice for cooling and heat pump applications. The optimized design ensures reliability and performance over the long term, offering seamless integration with various systems, including Daikin communicating equipment.
Key Features:
- All-Aluminum Construction: Provides enhanced durability and corrosion resistance.
- R-32 Refrigerant Optimization: Specifically designed for use with R-32 refrigerant, including circuits and manifolds.
- R-32 Sensor: Built to match the lifespan of the coil for longer-lasting performance.
-
CHPEA Models:
- Factory-installed Electronic Expansion Valve (EEV) for precise refrigerant flow control.
- Daikin One+ Smart Thermostat Compatibility: Works seamlessly with Daikin communicating equipment.
- Suitable for both Cooling and Heat Pump Applications.
- Fault Recall: Access the six most recent fault codes for easier troubleshooting.
-
CAPFA Models:
- Optimized Metering Devices (Piston) for accurate refrigerant flow.
- Standardized Copper Suction Tube Stub Length for easy installation.
- Design Flexibility: Available in both Vertical and Horizontal Models for various installation needs.
- Space-Saving Design: 21" Depth for easier attic access and installation.
- Single Front Access Panel on CHPEA models for simple maintenance.
- Foil-Faced Insulation: Reduces cabinet condensation and enhances energy efficiency.
- Durable Galvanized Finish: Leather grain-embossed finish for a high-quality look and resistance to wear.
- Rust-Resistant Drain Pans: Thermoplastic construction with low water-retention design.
- UV-Resistant Drain Pan: Built to withstand environmental exposure and extend the life of your system.
- Secondary Drain Connections: Included for easy drainage management.
- AHRI Certified and ETL Listed: Ensures compliance with industry standards for quality and safety.
Our evaporator coils are designed to meet the needs of modern systems, delivering consistent performance and ease of maintenance. Whether you're upgrading an existing setup or installing a new system, this product is built to deliver lasting value.
Goodman 2 Ton Evaporator Coil 17.5" Cabinet Horizontal With EEV Expansion CHPEA2422B3
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty |
10 years |
Goodman 1.5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA1810
The Goodman GZV6SA1810 is a high-efficiency 1.5-ton side discharge heat pump condenser engineered for compact installations, quiet operation, and outstanding energy performance. Featuring a variable-speed inverter compressor and optimized for R-32 refrigerant, this unit delivers precise temperature control while meeting modern efficiency standards. With ENERGY STAR® certification, it is an ideal choice for homeowners seeking maximum efficiency in limited outdoor spaces.
Key Features
- Variable-Speed Inverter Compressor for Superior Comfort and Energy Savings
- Quiet Digitally Commutated Fan Motor
- High-Density Compressor Sound Blanket for Reduced Operating Noise
- Advanced Proprietary Control Algorithmic Logic
- Non-Communicating System Configuration
- Diagnostic Indicator Lights with Fault Code Storage
- AHRI Certified and ETL Listed
- Meets 2023 M1 Test Standards
- ENERGY STAR® Certified
Cabinet Features
- Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Side Design
- Custom Ivory White Powder-Paint Finish
- High-Corrosion ZAM® Unpainted Steel Bottom Frame and Legs
- 500-Hour Salt Spray Tested for Long-Term Corrosion Resistance
- Wire Fan Discharge Grille
- Top and Side Maintenance Access Panels
- Meets 2023 Florida Building Code Unit Integrity Requirements When Properly Anchored
This 1.5-ton condenser is ideal for smaller homes or zones requiring ultra-efficient performance, quiet operation, and compact side-discharge installation.
Goodman 1.5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA1810
| Warranty Type | Parts | Compressor |
| Manufacturer Warranty | 10 Years | Limited Lifetime |
Product Benefits (CHPEA2422B3)
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features (CHPEA2422B3)
- All-Aluminum evaporator coilOptimized for use with R-32 refrigerant including circuits and manifoldsR-32 sensor designed for the life span of the coilFactory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faultsStandardized copper suction tube stub length21" depth for easier attic accessFoil-faced insulation covers the internal casing to reduce cabinet condensation Galvanized, leather grain-embossed finish Rust resistant, thermoplastic drain pans featuring a low water-retention design DecaBDE-free thermoplastic drain pan with secondary drain connections Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity UV-resistant drain pan AHRI certified
- ETL listed
Cabinet Features (CHPEA2422B3)
- 21" depth for easier attic access
- Single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
Technical Specifications - CHPEA2422B3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CHPEA |
| series name | CHPEA |
| model efficiency | 17 SEER |
| family description | Cased Horizontal "A" with Internal EEV |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051736962 |
| item stocking unit of measure uom | EA |
| pallet qty | 12 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 24000 Btu/H |
| produced in us | Yes |
| cabinet finish | Galvanized, leather grain-embossed finish, Painted |
| cased vs uncased | Cased |
| dimensions unit depth | 21 in |
| dimensions unit height | 18 in |
| dimensions unit width | 25 in |
| expansion device | EEV |
| indoor orifice size | 0.157 in |
| weight unit | 55 lb |
| tonnage | 2 |
| tonnage range | 1.5;2 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 3/4 in |
| pipe size liquid | 1/4 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.00 in |
| dimensions case height | 21.00 in |
| dimensions case width | 25.00 in |
| dimensions distribution unit depth | 26 in |
| dimensions distribution unit height | 21 in |
| dimensions distribution unit width | 25 in |
| dimensions pallet depth | 54.00 in |
| dimensions pallet height | 67.50 in |
| dimensions pallet width | 50.00 in |
| dimensions shipping unit depth | 26.00 in |
| dimensions shipping unit height | 21.00 in |
| dimensions shipping unit width | 25.00 in |
| distribution shipping volume unit | 13650 in³ |
| shipping volume unit | 13650.000 in³ |
| truck factor | 0.0000 |
| volume case | 13650.000 in³ |
| volume distribution shipping unit | 13650 in³ |
| weight case | 57.000 lb |
| weight distribution shipping unit | 52.09 lb |
| weight shipping unit | 57.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
Product Benefits (GZV6SA1810)
- Meets the 2023 M1 Test Standards
Product Features (GZV6SA1810)
- Variable-speed swing compressors
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman GTST connected thermostat and other Goodman communicating equipment
- Propietary control algorithmic logic
- In communicating mode, only two lowvoltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segment LED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
- Field-selectable boost mode increases compressor speed during unusually high loads
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easy access to gauge ports
- AHRI Certified
Cabinet Features (GZV6SA1810)
- Heavy-gauge galvanized steel cabinet with grille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion (ZAM®), unpainted steel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GZV6SA1810
| product category | Unitary |
|---|---|
| product class pim | Split Heat Pump |
| system family | Unitary Split System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GZV6SA |
| series name | GSV6S |
| model efficiency | 16.2 SEER2 |
| family description | High-Effciency, Communication, Split System Heat Pump Up to 16.2 SEER2 & 8.5 HSPF2 |
| installation type | Ducted |
| communication feature | Yes |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| iso certified | Yes |
| product notes | R32 Outdoor |
| universal product code upc | 663051747067 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | Mexico |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cop47 hsvtc | 3.2 |
| eer2 hsvtc | 12 |
| energy star certified | Yes |
| heating capacity nominal | 18000 Btu/H |
| hspf 2 hsvtc | 8.8 |
| seer 2 hsvtc | 19 |
| produced in us | No |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| heating operation range std max | 70 °F |
| heating operation range std min | -10 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| max overcurrent protection | 15 A |
| min circuit amps | 12.8 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| rated load amps | 8.1 A |
| compressor stages | Variable |
| compressor type | Inverter |
| dimensions unit depth | 13.75 in |
| dimensions unit height | 27.375 in |
| dimensions unit width | 36-5/8 in |
| expansion device | EEV |
| sound pressure high cooling | 61 dBA |
| weight unit | 122 lb |
| cooling capacity rated | 17100 Btu/H |
| heating capacity rated | 17400 Btu/H |
| tonnage | 1.5 |
| factory std refrigerant charge | 74 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 3/4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 17.50 in |
| dimensions case height | 30.00 in |
| dimensions case width | 39.00 in |
| dimensions distribution unit depth | 17.5 in |
| dimensions distribution unit height | 30 in |
| dimensions distribution unit width | 39 in |
| dimensions pallet depth | 35.50 in |
| dimensions pallet height | 64.50 in |
| dimensions pallet width | 39.00 in |
| dimensions shipping unit depth | 17.50 in |
| dimensions shipping unit height | 30.00 in |
| dimensions shipping unit width | 39.00 in |
| distribution shipping volume unit | 20475 in³ |
| shipping volume unit | 20475.000 in³ |
| truck factor | 0.0000 |
| volume case | 20475.000 in³ |
| volume distribution shipping unit | 20475 in³ |
| weight case | 136.090 lb |
| weight distribution shipping unit | 136.09 lb |
| weight shipping unit | 136.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Submittals
Leaflets & Manuals
- CHPEA Evaporator Coil, Horizontal A, 2 Ton, R-32
- CHPEA Evaporator Coil, Horizontal A, 2 Ton, R-32
- CHPEA Evaporator Coil, Horizontal A, 2 Ton, R-32
- CHPEA Evaporator Coil, Horizontal A, 2 Ton, R-32
- Goodman Split Heat Pump 16.2 SEER2, Variable
- Goodman Split Heat Pump 16.2 SEER2, Variable
- Goodman Split Heat Pump 16.2 SEER2, Variable
