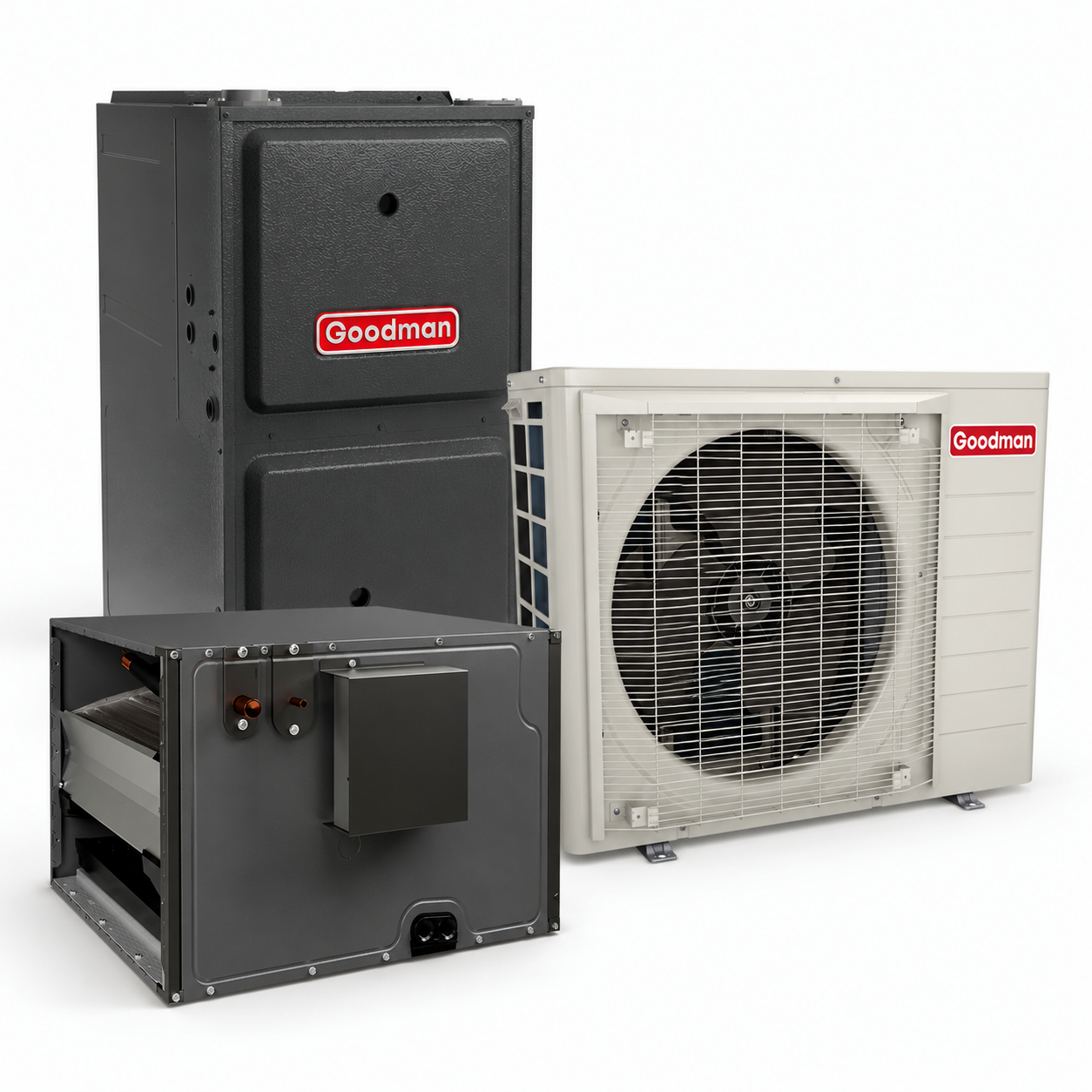

Goodman 1.5 Ton 18.5 SEER2 96% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal
Product Overview
Goodman 2 Ton Evaporator Coil 17.5" Cabinet Horizontal With EEV Expansion CHPEA2422B3
Our all-aluminum evaporator coil is engineered for superior durability, efficiency, and compatibility with modern refrigerants, making it an ideal choice for cooling and heat pump applications. The optimized design ensures reliability and performance over the long term, offering seamless integration with various systems, including Daikin communicating equipment.
Key Features:
- All-Aluminum Construction: Provides enhanced durability and corrosion resistance.
- R-32 Refrigerant Optimization: Specifically designed for use with R-32 refrigerant, including circuits and manifolds.
- R-32 Sensor: Built to match the lifespan of the coil for longer-lasting performance.
-
CHPEA Models:
- Factory-installed Electronic Expansion Valve (EEV) for precise refrigerant flow control.
- Daikin One+ Smart Thermostat Compatibility: Works seamlessly with Daikin communicating equipment.
- Suitable for both Cooling and Heat Pump Applications.
- Fault Recall: Access the six most recent fault codes for easier troubleshooting.
-
CAPFA Models:
- Optimized Metering Devices (Piston) for accurate refrigerant flow.
- Standardized Copper Suction Tube Stub Length for easy installation.
- Design Flexibility: Available in both Vertical and Horizontal Models for various installation needs.
- Space-Saving Design: 21" Depth for easier attic access and installation.
- Single Front Access Panel on CHPEA models for simple maintenance.
- Foil-Faced Insulation: Reduces cabinet condensation and enhances energy efficiency.
- Durable Galvanized Finish: Leather grain-embossed finish for a high-quality look and resistance to wear.
- Rust-Resistant Drain Pans: Thermoplastic construction with low water-retention design.
- UV-Resistant Drain Pan: Built to withstand environmental exposure and extend the life of your system.
- Secondary Drain Connections: Included for easy drainage management.
- AHRI Certified and ETL Listed: Ensures compliance with industry standards for quality and safety.
Our evaporator coils are designed to meet the needs of modern systems, delivering consistent performance and ease of maintenance. Whether you're upgrading an existing setup or installing a new system, this product is built to deliver lasting value.
Goodman 2 Ton Evaporator Coil 17.5" Cabinet Horizontal With EEV Expansion CHPEA2422B3
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty |
10 years |

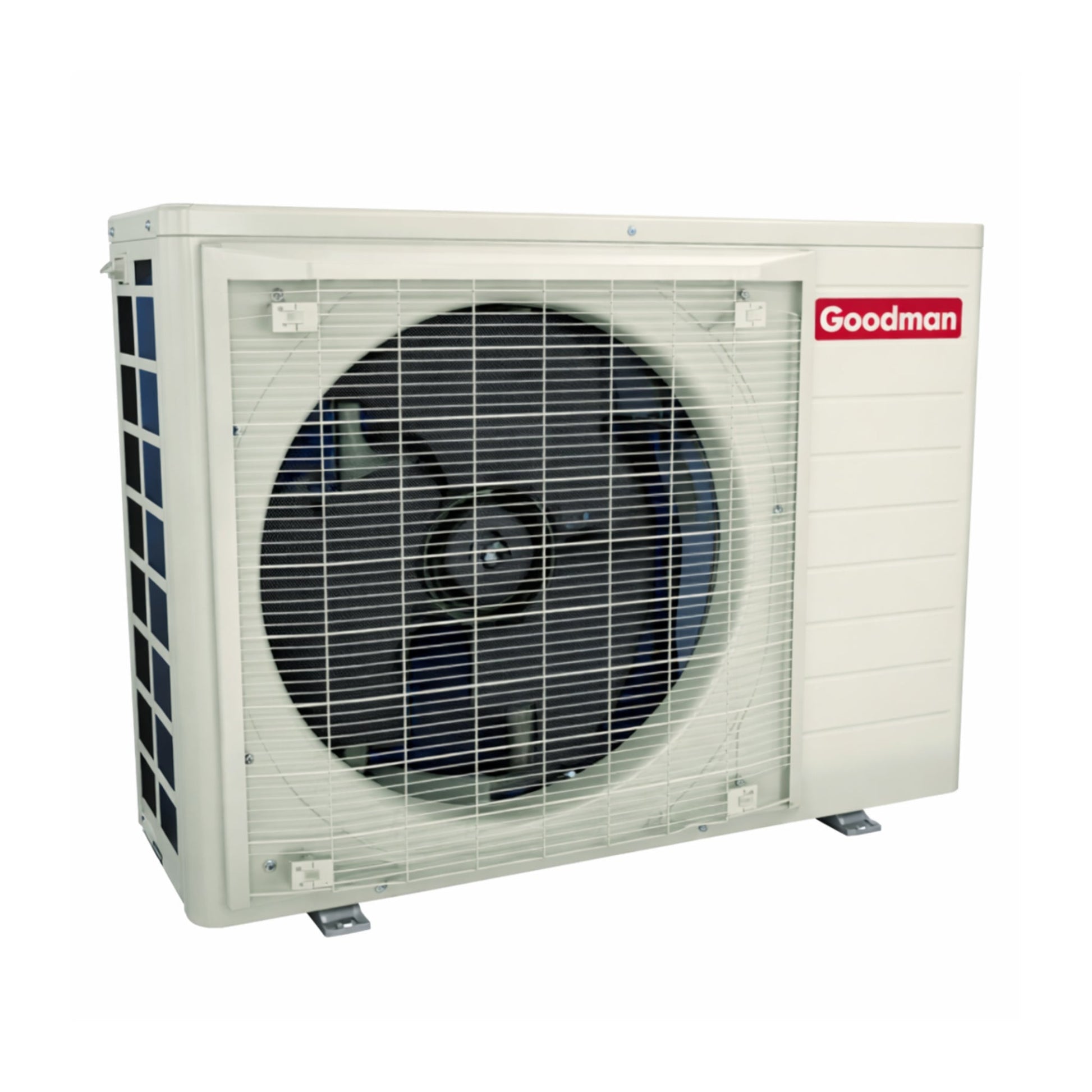

Goodman 1.5 Ton 17.2 SEER2 AC Inverter Condenser Side Discharge Cooling R32 GXV6SA1810
This high-performance Goodman outdoor air conditioning unit is designed to deliver exceptional energy efficiency, quiet operation, and advanced system intelligence. Equipped with variable-speed swing compressor technology and proprietary control logic, it provides precise temperature control, reduced energy usage, and reliable comfort for residential and light commercial HVAC applications.
Standard Features
- Variable-speed swing compressors for improved energy efficiency and consistent cooling performance
- Quiet digitally commutated (ECM) fan motor for low-noise operation and efficient airflow
- High-density compressor sound blanket for enhanced sound reduction
- Compatible with Goodman connected thermostats and other Goodman communicating HVAC equipment
- Proprietary control algorithmic logic for optimized system performance and reliability
- Communicating mode requires only two low-voltage wires to the outdoor unit for simplified installation
- Diagnostic indicator lights with seven-segment LED display and onboard fault code storage
- Proprietary inside intelligence technology for advanced diagnostics and service troubleshooting
- Quiet Mode operation with up to three selectable sound levels, as low as 45 dBA
- Field-selectable boost mode increases compressor speed during unusually high cooling loads
- Field-installed bi-flow filter drier for enhanced refrigerant system protection
- Integrated coil and ambient temperature sensors for accurate system monitoring
- Suction pressure transducer for improved compressor protection and performance tracking
- Sweat connection service valves with easy access to gauge ports for streamlined maintenance
- AHRI Certified and ETL Listed for verified performance, efficiency, and safety compliance
Cabinet & Durability Features
- Heavy-gauge galvanized steel cabinet with grille-style side panels for sound control
- Custom ivory white powder-coated finish for long-lasting durability and corrosion resistance
- High corrosion-resistant ZAM® unpainted steel bottom frame and legs for coastal and harsh environments
- 500-hour salt spray tested to ensure superior corrosion protection
- Wire fan discharge grille for added safety and structural integrity
- Top and side maintenance access panels for easier installation and serviceability
- When properly anchored, meets 2023 Florida Building Code unit integrity requirements for hurricane-type winds
- Optional anchor bracket kits available for high-wind and severe weather installations
Goodman 1.5 Ton 17.2 SEER2 AC Inverter Condenser Side Discharge Cooling R32 GXV6SA1810
| Warranty Type | Parts | Compressor |
| Manufacturer Warranty | 10 Years | Limited Lifetime |
OVERVIEW
With a 96% efficiency rating, a variable-speed blower motor, and Single stage gas valves, the GRVS960603BU is part of Goodman's top-tier furnace series. If you're looking to reduce your gas bill, the GRVS960603BU is an excellent choice, offering one of the best efficiency levels available on the market.
QUICK FACTS
- Ideal to heat a small to medium house (in an ideal climate)
- 60,000 BTU 96% AFUE modulating variable speed natural gas furnace
- Requires plastic/PVC flue venting
- Can be installed in the upflow or horizontal orientation
- Innovative design for electrical efficiency, safety, and lower sound output
Ultra-Low NOx Compliant
In California, many counties have a lower NOx emission requirement than the rest of the United States. The GRVS960603BU Goodman gas furnace is California Ultra-Low NOx compliant. With a built-in low emission filter and special venting system, this Goodman gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home.
Ultra-Low NOx furnaces are required for gas furnace installations in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare. If you have any questions, please contact us.
60,000 BTU
With an input of 60,000 BTU’s and an efficiency of 96%, the GRVS960603BU has an output of 57,600 BTU’s. This is calculated by taking 60,000 BTU’s times the efficiency of 96%. As such, the GRVS960603BU Goodman gas furnace is designed to be able to cover up to a small to medium house in ideal climate conditions.
96% AFUE
With one of the highest efficiencies possible with today’s technology, Goodman saves you a lot of money in utility bills for the lifetime of the unit. The GRVS960603BU gas furnace is 96% efficient, meaning that a whopping 96% of the gas going into the furnace is used to heat your home, and only 4% of the fuel going into the furnace is lost out of the exhaust. Thanks to its efficiency, the GRVS960603BU is a condensing furnace, meaning that it requires plastic or PVC pipe flue venting.
Single Stage Furnace
The GRVS960603BU Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace's burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.
Warranty
The Goodman brand allows you to protect your investment with a 10 year parts and hassle free replacement warranty. To provide a longer peace-of-mind, Goodman now offers a phenomenal lifetime heat exchanger warranty. Please note that all Goodman warranties require installation that follows your state and local codes, and the unit must be registered online post-installation on the manufacturer’s website.
Durability and Reliability
Not stopping at an enhanced functionality, Goodman designed the GRVS960603BU with a thermally insulated, heavy-gauge cabinet, providing enhanced protection and lowers air leakage to less than 2% to maximize heat transfer and efficiency, as well as to lower the sound output from normal operation. Made of silicon nitride, the ignitor on the GRVS960603BU is more durable and efficient than a pilot light. The heat exchanger on this furnace is made of aluminized steel, resulting in a product that balances reliability, durability, and efficiency in one durable cabinet.
Installation and Maintenance
For a furnace of such prestige, the installation and maintenance may seem daunting, however Goodman has made everything easy for you and your contractor, from the beginning and throughout the unit’s life. To allow for installation in more situations, the GRVS960603BU gas furnace can be installed in the upflow or horizontal orientations. Moreover, the GRVS960603BU is ComfortNet communicating system compatible, providing more advanced diagnostics, automated maintenance alerts, and enhancing furnace performance when implemented. All of these features allow you to keep more money in your pocket and provides a peace of mind throughout the life of your unit, all while still providing the best comfort that Goodman has to offer with this top of the line furnace.
Product Benefits (CHPEA2422B3)
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features (CHPEA2422B3)
- All-Aluminum evaporator coilOptimized for use with R-32 refrigerant including circuits and manifoldsR-32 sensor designed for the life span of the coilFactory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faultsStandardized copper suction tube stub length21" depth for easier attic accessFoil-faced insulation covers the internal casing to reduce cabinet condensation Galvanized, leather grain-embossed finish Rust resistant, thermoplastic drain pans featuring a low water-retention design DecaBDE-free thermoplastic drain pan with secondary drain connections Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity UV-resistant drain pan AHRI certified
- ETL listed
Cabinet Features (CHPEA2422B3)
- 21" depth for easier attic access
- Single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
Technical Specifications - CHPEA2422B3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CHPEA |
| series name | CHPEA |
| model efficiency | 17 SEER |
| family description | Cased Horizontal "A" with Internal EEV |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051736962 |
| item stocking unit of measure uom | EA |
| pallet qty | 12 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 24000 Btu/H |
| produced in us | Yes |
| cabinet finish | Galvanized, leather grain-embossed finish, Painted |
| cased vs uncased | Cased |
| dimensions unit depth | 21 in |
| dimensions unit height | 18 in |
| dimensions unit width | 25 in |
| expansion device | EEV |
| indoor orifice size | 0.157 in |
| weight unit | 55 lb |
| tonnage | 2 |
| tonnage range | 1.5;2 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 3/4 in |
| pipe size liquid | 1/4 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.00 in |
| dimensions case height | 21.00 in |
| dimensions case width | 25.00 in |
| dimensions distribution unit depth | 26 in |
| dimensions distribution unit height | 21 in |
| dimensions distribution unit width | 25 in |
| dimensions pallet depth | 54.00 in |
| dimensions pallet height | 67.50 in |
| dimensions pallet width | 50.00 in |
| dimensions shipping unit depth | 26.00 in |
| dimensions shipping unit height | 21.00 in |
| dimensions shipping unit width | 25.00 in |
| distribution shipping volume unit | 13650 in³ |
| shipping volume unit | 13650.000 in³ |
| truck factor | 0.0000 |
| volume case | 13650.000 in³ |
| volume distribution shipping unit | 13650 in³ |
| weight case | 57.000 lb |
| weight distribution shipping unit | 52.09 lb |
| weight shipping unit | 57.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
Product Features (GXV6SA1810)
- Variable-speed swing compressors
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman connected thermostat and other Goodman communicating equipment
- Propietary control algorithmic logic
- In communicating mode, only two low-voltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segmentLED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode- provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45 dBA)
- Field-selectable boost mode increases compressor speed during unusually high loads
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easy access to gauge ports
- AHRI Certified
Cabinet Features (GXV6SA1810)
- Heavy-gauge galvanized steel cabinet with grille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion-resistant (ZAM®), unpainted steel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GXV6SA1810
| product category | Unitary |
|---|---|
| product class pim | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GXV6SA |
| series name | GXV6SA |
| model efficiency | 16.2 SEER2 |
| communication feature | Yes |
| communication feature type | ComfortNet Compatible |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051747029 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| eer2 hsvtc | 12 |
| energy star certified | No |
| seer 2 hsvtc | 19 |
| produced in us | No |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| fan compressor drive input | 8.1 A |
| max overcurrent protection | 15 A |
| min circuit amps | 12.8 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| compressor stages | Variable |
| compressor type | Inverter |
| dimensions unit depth | 13.75 in |
| dimensions unit height | 27.375 in |
| dimensions unit width | 36-5/8 in |
| expansion device | EEV |
| sound pressure high cooling | 61 dBA |
| weight unit | 119 lb |
| cooling capacity rated | 17100 Btu/H |
| tonnage | 1.5 |
| factory std refrigerant charge | 74 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 3/4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 17.50 in |
| dimensions case height | 30.00 in |
| dimensions case width | 39.00 in |
| dimensions distribution unit depth | 17.5 in |
| dimensions distribution unit height | 30 in |
| dimensions distribution unit width | 39 in |
| dimensions pallet depth | 35.50 in |
| dimensions pallet height | 64.50 in |
| dimensions pallet width | 39.00 in |
| dimensions shipping unit depth | 17.50 in |
| dimensions shipping unit height | 30.00 in |
| dimensions shipping unit width | 39.00 in |
| distribution shipping volume unit | 20475 in³ |
| shipping volume unit | 20475.000 in³ |
| truck factor | 0.0000 |
| volume case | 20475.000 in³ |
| volume distribution shipping unit | 20475 in³ |
| weight case | 136.090 lb |
| weight distribution shipping unit | 136.09 lb |
| weight shipping unit | 136.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Benefits (GRVS960603BU)
- Heavy-duty stainless-steel tubular heat exchanger
- Efficient and quiet variable-speed Blower
- Integrated communicating ComfortBridge™ technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
- Stainless-steel sloped secondary heat exchanger
- Silicon Nitride igniter
- Dual 7-segment display
- Color-coded low-voltage terminals
- Single-Stage gas valve
- All models comply with California 14 ng/J
- AHRI Certified, ETL Listed
- Energy Star
- Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifier
Product Features (GRVS960603BU)
- Heavy-duty stainless-steel tubular heat exchanger
- Single-stage gas valve
- Durable Silicon Nitride igniter
- Self-diagnostic control board with constant memory fault code history output to a LED
- All models comply with California 14 ng/J
- ultra Low NOx emissions standard
- For installation in California’s South Coast Air
- Quality Management District (SCAQMD) only.
Cabinet Features (GRVS960603BU)
- Multi-position installation: upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (Qleak) less than or equal to 2%
- Fully insulated heat exchanger and blower section
- Bottom or side return air applications
- Heavy-gage steel cabinet with durable finish
Technical Specifications - GRVS960603BU
| product category | Unitary |
|---|---|
| product class pim | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GRVS96_U |
| series name | GRVS96 |
| model efficiency | 0.96 |
| family description | ComfortBridge™-Compatible Single-Stage, Variable-Speed ECM Gas Furnace 96% AFUE |
| installation type | Ducted |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051695962 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| afue | 96 % |
| cooling capacity nominal | 36000 Btu/H |
| installation configuration | Upflow/Horizontal |
| produced in us | No |
| temperature rise range high fire | 30-60 °F |
| max overcurrent protection | 15 A |
| min circuit amps | 8.1 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 120 V |
| air flow rate high heating | 1254 ft³/min |
| dimensions blower diameter | 11 in |
| dimensions blower width | 8 in |
| dimensions unit depth | 28-7/8 in |
| dimensions unit height | 34-1/2 in |
| heat exchanger type | Gas |
| motor speed type | Variable Speed ECM |
| nox burner type | Ultra-Low NOx |
| blower motor horsepower | 1/2 metric hp |
| high fire output capacity | 57600 |
| gas valve type | Single Stage |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 38.50 in |
| dimensions case width | 18.50 in |
| dimensions distribution unit depth | 1 in |
| dimensions distribution unit height | 1 in |
| dimensions distribution unit width | 1 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 38.50 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 38.50 in |
| dimensions shipping unit width | 18.50 in |
| distribution shipping volume unit | 1 in³ |
| shipping volume unit | 21367.500 in³ |
| truck factor | 0.0000 |
| volume case | 21367.500 in³ |
| volume distribution shipping unit | 1 in³ |
| weight case | 119.000 lb |
| weight distribution shipping unit | 1 lb |
| weight shipping unit | 119.000 lb |
| registered parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered unit replacement warranty residential | HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
Submittals
Leaflets & Manuals
- CHPEA Evaporator Coil, Horizontal A, 2 Ton, R-32
- CHPEA Evaporator Coil, Horizontal A, 2 Ton, R-32
- CHPEA Evaporator Coil, Horizontal A, 2 Ton, R-32
- CHPEA Evaporator Coil, Horizontal A, 2 Ton, R-32
- Goodman Split Air Conditioner 16.2 SEER2, Variable
- Goodman Split Air Conditioner 16.2 SEER2, Variable
- Goodman Split Air Conditioner 16.2 SEER2, Variable
- Goodman 96% AFUE Gas Furnace Variable Speed ECM, Single Stage
