Goodman

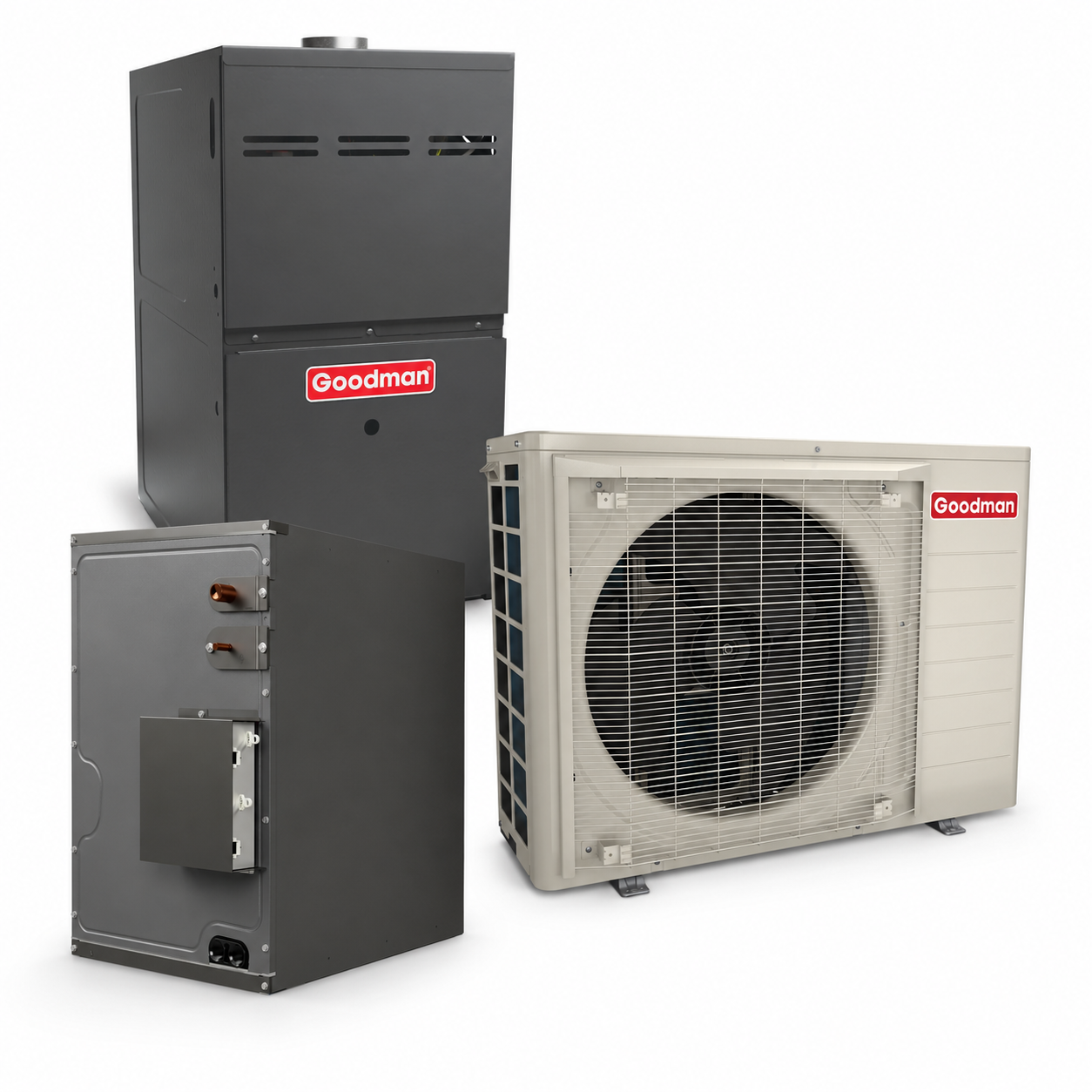

Goodman 1.5 Ton 18.5 SEER2 80% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

SKU: CAPEA2418B3 + GXV6SA1810 + GRVS800604BU

System highlights
AC Type
AC & Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
18000 BTU VO (1.5 TON)
Indoor Unit
24000 BTU (2.0 TON)
Looking For
AC & Furnace System
SEER2 Rating
18.5
Airflow Direction
Upflow, Horizontal
Blower Motor
Variable Speed - ECM
Maximum CFM
1600
Fuel Type
Natural Gas, Propane
Burner Stages
Single Stage
Coil Style
A-Coil
Furnace Heating BTU
60,000 BTU (5.00 Ton)
Furnace Efficiency
80% AFUE
Cabinet Width (in)
17 1/2
Goodman 2 Ton Evaporator Coil 17.5" Cabinet EEV Expansion Upflow/Downflow (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$5,652.00
Shipping calculated at checkout.
Quantity
View full details
Goodman
Goodman 1.5 Ton 18.5 SEER2 80% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

Product Overview


Goodman 2 Ton Evaporator Coil 17.5" Cabinet EEV Expansion Upflow/Downflow CAPEA2418B3

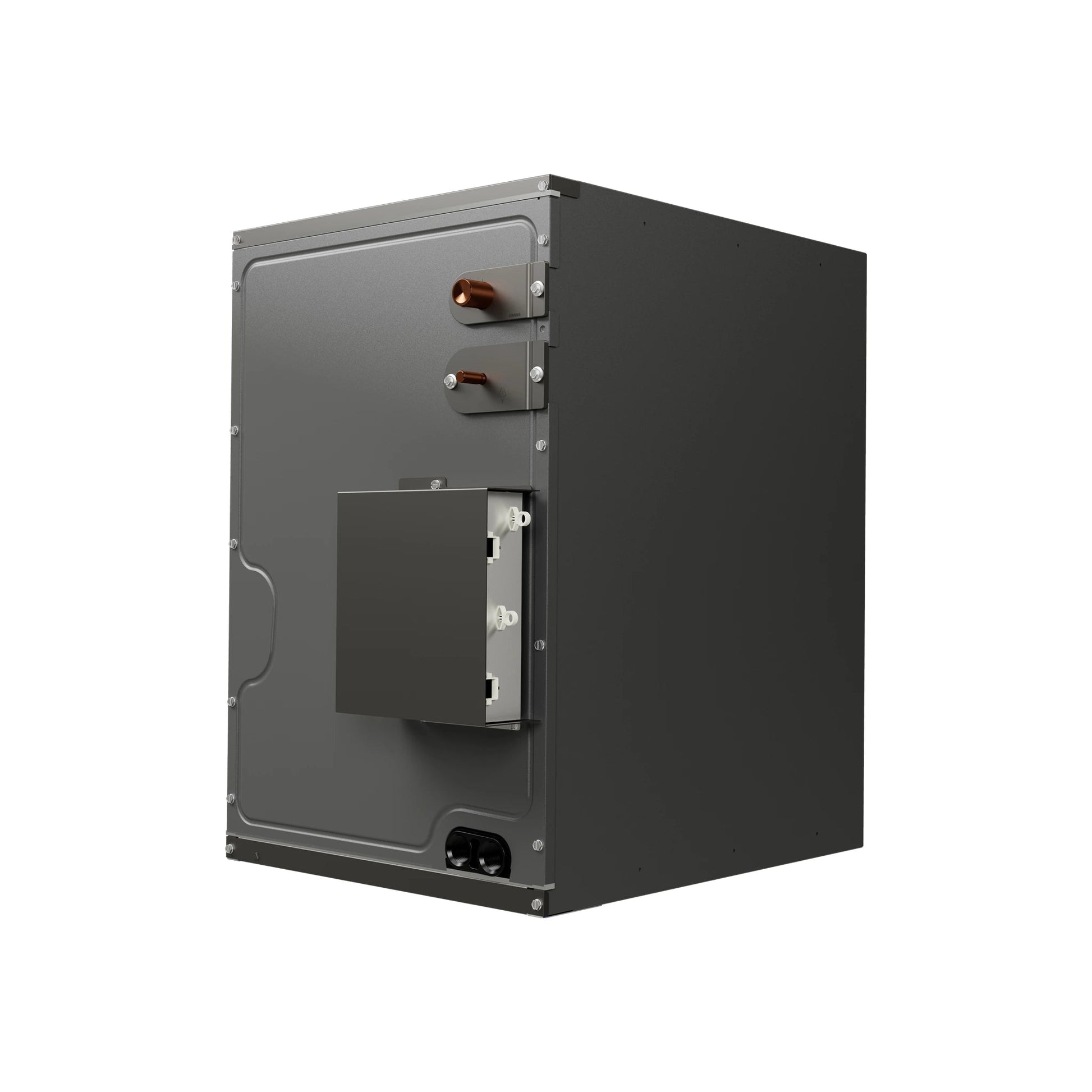

The Goodman CAPEA2418B3 is a versatile cased evaporator coil engineered for both upflow and downflow installations. Designed for modern R-32 refrigerant systems, this indoor coil features a factory-installed Electronic Expansion Valve (EEV) for enhanced refrigerant control and compatibility with advanced communicating HVAC systems. With a compact 21" depth, it's ideal for tight attic spaces and applications requiring flexible installation without sacrificing performance or efficiency.

Product Features:

  • All-Aluminum Evaporator Coil – Built for durability and optimal heat transfer, reducing corrosion and increasing coil longevity.
  • R-32 Refrigerant Optimization – Engineered with specialized circuits and manifolds to maximize performance with environmentally friendly R-32 refrigerant.
  • Integrated R-32 Sensor – Designed to last the life of the coil and ensure optimal refrigerant management throughout system operation.
  • Factory-Installed Electronic Expansion Valve (EEV) – Provides precision refrigerant control and supports compatibility with Daikin One+ smart thermostats and Daikin communicating equipment.
  • Upflow & Downflow Configuration – Offers flexible installation options in a wide range of home HVAC setups.
  • Seven-Millimeter Coil Tubing – Improves overall system efficiency and performance in both cooling and heat pump applications.
  • Fault Recall Memory – Stores the six most recent system faults for simplified diagnostics and service.
  • Standardized Copper Suction Tube Stub Length – Ensures easier installation across different system configurations.
  • 21-Inch Depth – Compact design allows for easier access during attic or tight-space installations.
  • Foil-Faced Internal Insulation – Helps reduce cabinet condensation, improves efficiency, and protects internal components.
  • Galvanized, Leather Grain-Embossed Finish – Rugged exterior provides lasting protection and resists wear and corrosion.
  • Rust-Resistant Thermoplastic Drain Pan – Low water-retention design helps prevent microbial growth and corrosion over time.
  • DecaBDE-Free, UV-Resistant Drain Pan – Environmentally conscious and built for long-term UV exposure without degradation.
  • Drain Pan Rails – Allow for easy removal and repositioning of the coil without compromising structural integrity.
  • AHRI Certified & ETL Listed – Meets strict efficiency and safety standards for trusted performance and compliance.

Advanced Control & Compatibility:

With its built-in electronic expansion valve (EEV), the CAPEA2418B3 supports advanced system communication and control, making it an ideal match for Daikin One+ smart thermostats and other Daikin communicating HVAC equipment. This advanced compatibility ensures better system performance, precision diagnostics, and maximum energy efficiency.


Goodman 2 Ton Evaporator Coil 17.5" Cabinet EEV Expansion Upflow/Downflow CAPEA2418B3

Warranty Type Parts
Standard Warranty 5 Years
Registered Warranty 10 Years

Goodman 1.5 Ton 17.2 SEER2 AC Inverter Condenser Side Discharge Cooling R32 GXV6SA1810

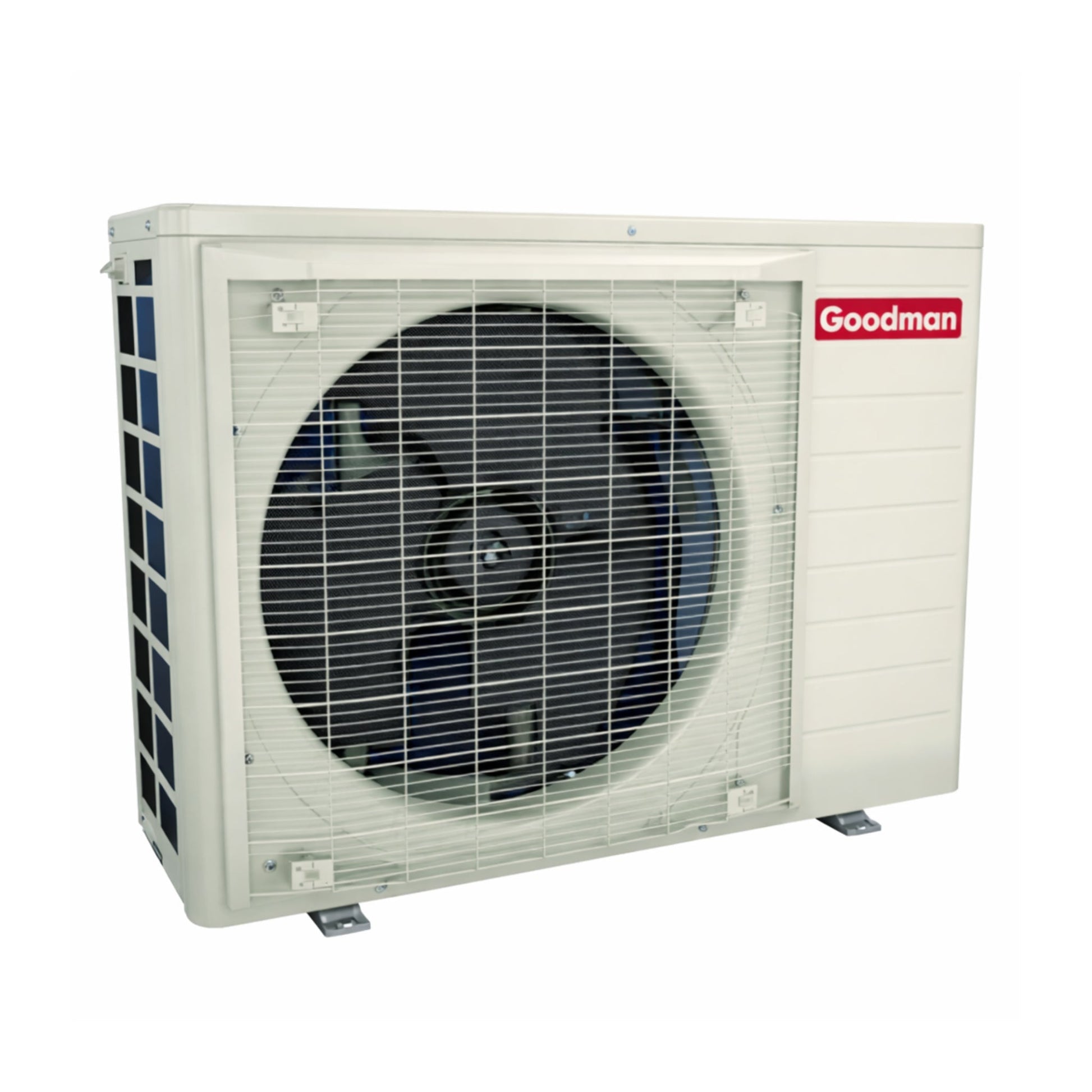

This high-performance Goodman outdoor air conditioning unit is designed to deliver exceptional energy efficiency, quiet operation, and advanced system intelligence. Equipped with variable-speed swing compressor technology and proprietary control logic, it provides precise temperature control, reduced energy usage, and reliable comfort for residential and light commercial HVAC applications.

Standard Features

  • Variable-speed swing compressors for improved energy efficiency and consistent cooling performance
  • Quiet digitally commutated (ECM) fan motor for low-noise operation and efficient airflow
  • High-density compressor sound blanket for enhanced sound reduction
  • Compatible with Goodman connected thermostats and other Goodman communicating HVAC equipment
  • Proprietary control algorithmic logic for optimized system performance and reliability
  • Communicating mode requires only two low-voltage wires to the outdoor unit for simplified installation
  • Diagnostic indicator lights with seven-segment LED display and onboard fault code storage
  • Proprietary inside intelligence technology for advanced diagnostics and service troubleshooting
  • Quiet Mode operation with up to three selectable sound levels, as low as 45 dBA
  • Field-selectable boost mode increases compressor speed during unusually high cooling loads
  • Field-installed bi-flow filter drier for enhanced refrigerant system protection
  • Integrated coil and ambient temperature sensors for accurate system monitoring
  • Suction pressure transducer for improved compressor protection and performance tracking
  • Sweat connection service valves with easy access to gauge ports for streamlined maintenance
  • AHRI Certified and ETL Listed for verified performance, efficiency, and safety compliance

Cabinet & Durability Features

  • Heavy-gauge galvanized steel cabinet with grille-style side panels for sound control
  • Custom ivory white powder-coated finish for long-lasting durability and corrosion resistance
  • High corrosion-resistant ZAM® unpainted steel bottom frame and legs for coastal and harsh environments
  • 500-hour salt spray tested to ensure superior corrosion protection
  • Wire fan discharge grille for added safety and structural integrity
  • Top and side maintenance access panels for easier installation and serviceability
  • When properly anchored, meets 2023 Florida Building Code unit integrity requirements for hurricane-type winds
  • Optional anchor bracket kits available for high-wind and severe weather installations

Goodman 1.5 Ton 17.2 SEER2 AC Inverter Condenser Side Discharge Cooling R32 GXV6SA1810

Warranty Type Parts Compressor
Manufacturer Warranty 10 Years Limited Lifetime

OVERVIEW

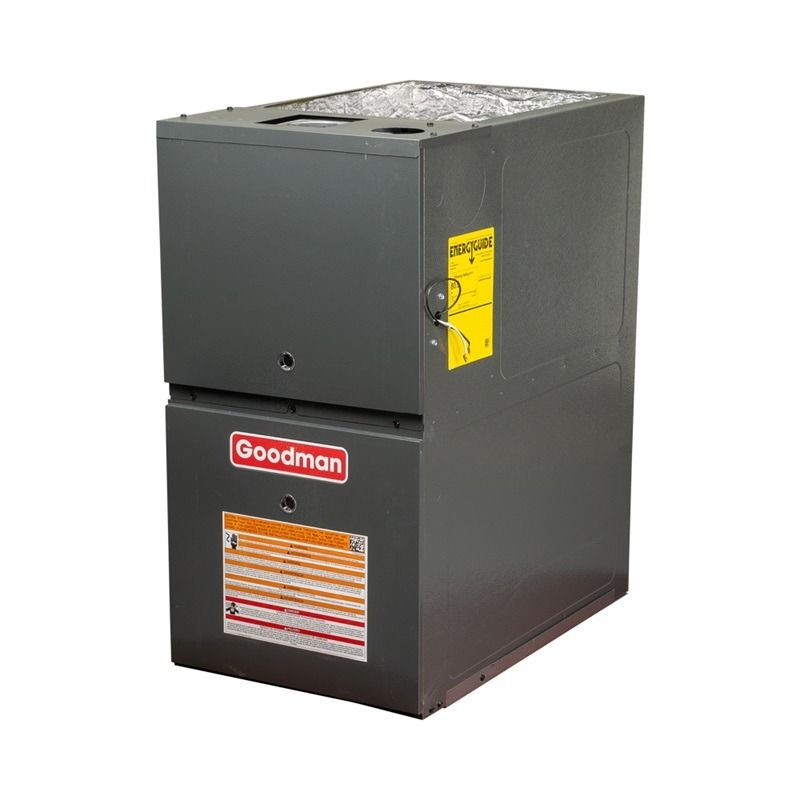

The GRVS800604BU Goodman gas furnace features high-quality construction and efficient operation at a great value. The GRVS800604BU single-stage, multi-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GRVS800604BU.

QUICK FACTS

  • This furnace is ideal to heat a medium-sized house (depending on climate)
  • 60,000 BTU 80% efficient natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Innovative design for electrical efficiency, safety, and lower sound output

60,000 BTU

The GRVS800604BU Goodman gas furnace is 60,000 BTU’s. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 48,000 BTU’s (60,000 X 80% AFUE) per hour. In ideal climate conditions, this 60,000 BTU furnace is usually used to heat a small house.

80% Efficiency Rating

The GRVS800604BU Goodman gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/pvc venting.

Ultra-low NOx furnaces are only available in natural gas configurations. If you need a propane furnace, you will need to order the regular version of this furnace and add a propane conversion kit to it. You can find the regular version here: GR9S800604BN

.

Single Stage Furnace

The GRVS800604BU Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace’s burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

Multi-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GRVS800604BU utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today’s Goodman furnaces feature many different connection options to reduce installation. The GRVS800604BU model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

Product Benefits (CAPEA2418B3)

  • Factory-installed electronic expansion valve (EEV) for precise refrigerant control

Product Features (CAPEA2418B3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
  • Standardized copper suction tube stub length
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Cabinet Features (CAPEA2418B3)

  • Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish

Technical Specifications - CAPEA2418B3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPEA_32
series name CAPEA
model efficiency 17 SEER
family description CAPEA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051731424
item stocking unit of measure uom EA
pallet qty 12
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
cooling capacity nominal 24000 Btu/H
produced in us Yes
cabinet finish Painted
dimensions unit depth 21 in
dimensions unit height 18 in
dimensions unit width 17.5 in
expansion device EEV
indoor orifice size 0.157 in
weight unit 43 lb
condensate drain outlet 3/4 in
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.25 in
dimensions case height 20.50 in
dimensions case width 20.00 in
dimensions distribution unit depth 26.25 in
dimensions distribution unit height 20.5 in
dimensions distribution unit width 20 in
dimensions pallet depth 54.00 in
dimensions pallet height 66.00 in
dimensions pallet width 41.00 in
dimensions shipping unit depth 26.25 in
dimensions shipping unit height 20.50 in
dimensions shipping unit width 20.00 in
distribution shipping volume unit 10762.5 in³
shipping volume unit 10762.500 in³
truck factor 0.0000
volume case 10762.500 in³
volume distribution shipping unit 10762.5 in³
weight case 45.000 lb
weight distribution shipping unit 34.09 lb
weight shipping unit 45.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (GXV6SA1810)

  • Variable-speed swing compressors
  • Quiet digitally commutated fan motor
  • High-density compressor sound blanket
  • Compatible with Goodman connected thermostat and other Goodman communicating equipment
  • Propietary control algorithmic logic
  • In communicating mode, only two low-voltage wires to outdoor unit required
  • Diagnostic indicator lights, seven-segmentLED display, and fault code storage
  • Propietary Inside intelligence for diagnostics
  • Quiet-mode- provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45 dBA)
  • Field-selectable boost mode increases compressor speed during unusually high loads
  • Field-installed bi-flow filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer
  • Sweat connection service valves with easy access to gauge ports

Cabinet Features (GXV6SA1810)

  • Heavy-gauge galvanized steel cabinet with grille-style sound control side design
  • Custom Ivory white powder-paint finish
  • High corrosion-resistant (ZAM®), unpainted steel bottom frame and legs
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Top and side maintenance access
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GXV6SA1810

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GXV6SA
series name GXV6SA
model efficiency 16.2 SEER2
communication feature Yes
communication feature type ComfortNet Compatible
export control classification number eccn EAR99
universal product code upc 663051747029
item stocking unit of measure uom EA
pallet qty 4
eer2 hsvtc 12
energy star certified No
seer 2 hsvtc 19
produced in us No
cooling operation range std max 115 °F
cooling operation range std min 0 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
fan compressor drive input 8.1 A
max overcurrent protection 15 A
min circuit amps 12.8 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
compressor stages Variable
compressor type Inverter
dimensions unit depth 13.75 in
dimensions unit height 27.375 in
dimensions unit width 36-5/8 in
expansion device EEV
sound pressure high cooling 61 dBA
weight unit 119 lb
cooling capacity rated 17100 Btu/H
tonnage 1.5
factory std refrigerant charge 74 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 100 ft
standard line set length vertical 90 ft
valve size suction o d 3/4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 17.50 in
dimensions case height 30.00 in
dimensions case width 39.00 in
dimensions distribution unit depth 17.5 in
dimensions distribution unit height 30 in
dimensions distribution unit width 39 in
dimensions pallet depth 35.50 in
dimensions pallet height 64.50 in
dimensions pallet width 39.00 in
dimensions shipping unit depth 17.50 in
dimensions shipping unit height 30.00 in
dimensions shipping unit width 39.00 in
distribution shipping volume unit 20475 in³
shipping volume unit 20475.000 in³
truck factor 0.0000
volume case 20475.000 in³
volume distribution shipping unit 20475 in³
weight case 136.090 lb
weight distribution shipping unit 136.09 lb
weight shipping unit 136.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GRVS800604BU)

  • Heavy-duty stainless-steel tubular heat exchanger 2. Efficientnd quiet variable-speed Blower3. Integrated communicating ComfortBridge™ technology4. Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication5. Silicon Nitride igniter6. Dual 7-segment display7. Color-coded low-voltage terminals8. Single-Stage gas valve9.ll models comply with California 14 ng/J10.HRI Certified, ETL Listed

Product Features (GRVS800604BU)

  • Heavy-duty stainless-steel tubular heat exchangerSingle-stage gas valveDurable Silicon Nitride igniter Self-diagnostic control board with constantmemory fault code history output to LEDAll models comply with California 14 ng/Jultra Low NOx emissions standardFor installation in California’s South CoastirQuality Management District (SCAQMD) only.AHRI Certified

Cabinet Features (GRVS800604BU)

  • Multi-position installation: upflow, horizontal left or right2. Convenient left or right connection for gasnd electrical service5. Cabinetir leakage (Qleak) less than or equal to 2%6. Bottom or side returnirpplications7. Heavy-gage steel cabinet with durable finish

Technical Specifications - GRVS800604BU

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GRVS80_U
series name GRVS80
family description ComfortBridge™-Compatible Single-Stage, Variable-Speed ECM Gas Furnace 80% AFUE
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051695160
item stocking unit of measure uom EA
pallet qty 4
afue 80 %
cooling capacity nominal 48000 Btu/H
energy star certified No
installation configuration Upflow/Horizontal
produced in us No
temperature rise range high fire 20-50 °F
temperature rise range low fire 50 °F
current type AC
max overcurrent protection 15 A
min circuit amps 11.6 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1760 ft³/min
air flow rate low heating 1067 ft³/min
ansi certifed Yes
blower motor rpm 1200 r/min
dimensions blower diameter 8 in
dimensions blower width 10 in
dimensions unit depth 28 in
dimensions unit height 33-3/8 in
dimensions unit width 17-1/2 in
etl listed Yes
external static pressure rated 0.5
filter quantity 1
filter size min 16x25
heat exchanger type Gas
minimum clearances to combustible materials 1 ft
motor speed type Variable Speed ECM
nox burner type Ultra-Low NOx
number of burners 1
weight unit 112 lb
blower motor horsepower 3/4 metric hp
high fire input capacity 60000 Btu
high fire output capacity 48000
low fire input capacity na
low fire output capacity na
gas valve type Single Stage
vent diameter 4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 35.50 in
dimensions case width 18.50 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 35.5 in
dimensions distribution unit width 18.5 in
dimensions pallet depth 60.00 in
dimensions pallet height 35.50 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 35.50 in
dimensions shipping unit width 18.50 in
distribution shipping volume unit 19702.5 in³
shipping volume unit 19702.500 in³
truck factor 0.0000
volume case 19702.500 in³
volume distribution shipping unit 19702.5 in³
weight case 107.000 lb
weight distribution shipping unit 107 lb
weight shipping unit 107.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered unit replacement warranty residential HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
