Goodman

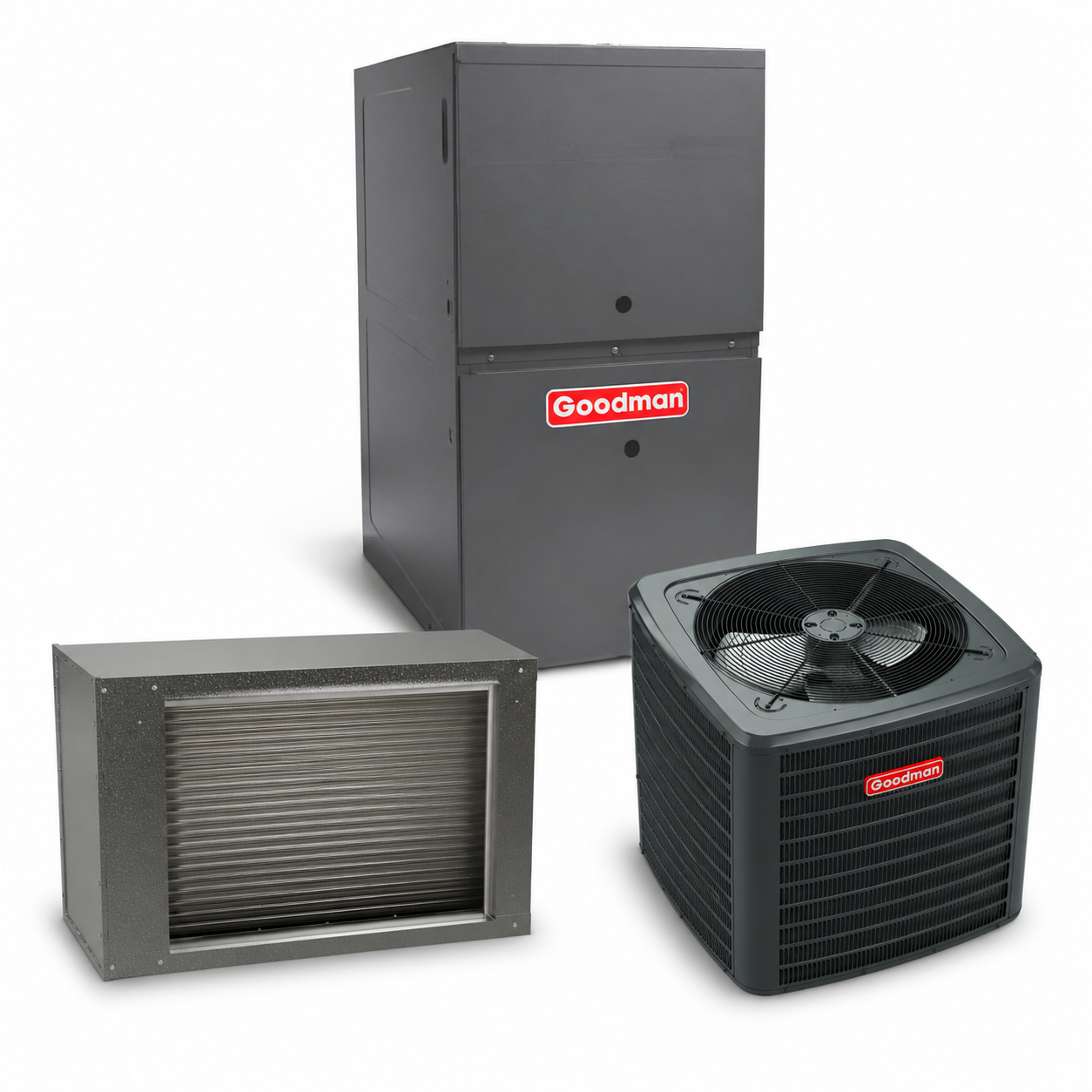

Goodman 1.5 Ton 14.7 SEER2 80% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Downflow/Horizontal

SKU: CSCT3012M3 + GLXS4BA1810 + GD9S800603AX

System highlights
AC Type
AC & Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
18000 BTU VO (1.5 TON)
Indoor Unit
30000 BTU (2.5 TON)
Looking For
AC & Furnace System
SEER2 Rating
14.5
Airflow Direction
Downflow, Horizontal
Blower Motor
9-Speed - ECM
Maximum CFM
1400
Fuel Type
Natural Gas, Propane
Burner Stages
Single Stage
Coil Style
Slab Coil
Furnace Heating BTU
60,000 BTU (5.00 Ton)
Furnace Efficiency
80% AFUE
Cabinet Width (in)
25
! Cabinet might need adjustment for sizing.
Goodman 2.5 Ton Cased Evaporator Coil TVX 33.5" Cabinet Horizontal Slab R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$4,001.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 1.5 Ton 14.7 SEER2 80% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Downflow/Horizontal

Product Overview

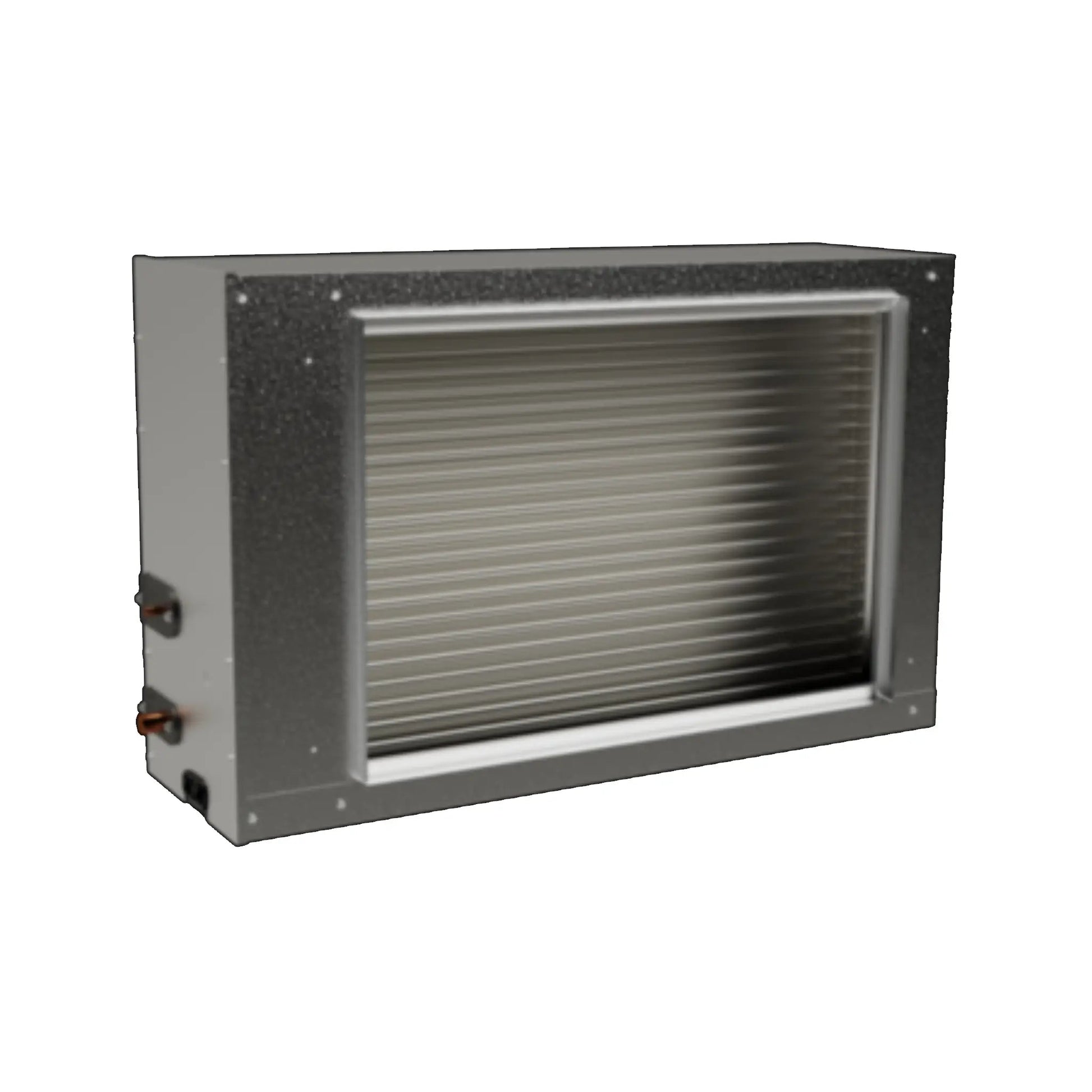

Goodman 2.5 Ton Cased Evaporator Coil TVX 33.5" Cabinet Horizontal Slab R32 CSCT3012M3

The Goodman CSCT3012M3 is an ideal evaporator coil for medium-sized homes, delivering dependable and efficient cooling performance. With a durable all-aluminum construction and full compatibility with R-32 refrigerant, this unit is both long-lasting and environmentally conscious—making it a smart solution for modern HVAC systems.

Features and Benefits:

  • Nominal Capacity: 2–2.5 tons – Suitable for medium-sized residential applications.
  • Dimensions: 33½" W x 12" D x 25" H – Compact size allows flexible installation.
  • Service Valve: ⅜" Liquid, ⅞" Suction – Standard connection sizes for quick setup.
  • All-Aluminum Evaporator Coil: Provides long-lasting durability and efficient heat transfer, reducing corrosion risks.
  • Optimized for R-32 Refrigerant: Delivers energy-efficient cooling while supporting low-GWP refrigerant compliance.
  • Factory-Installed Thermal Expansion Valve (TXV): Enhances performance and cooling accuracy.
  • UV-Resistant Drain Pan: Helps prevent mold and mildew growth, promoting cleaner and healthier indoor air quality.

This coil is a dependable upgrade or replacement component for HVAC systems using R-32 refrigerant, combining compact design with performance-enhancing features for long-term value.

Goodman 2.5 Ton Cased Evaporator Coil TVX 33.5" Cabinet Horizontal Slab R32 CSCT3012M3

Warranty Type Commercial Multi-Family Residential
Standard Parts Warranty 5 years 5 years 5 years
Registered Parts Warranty 5 years 10 years 10 years

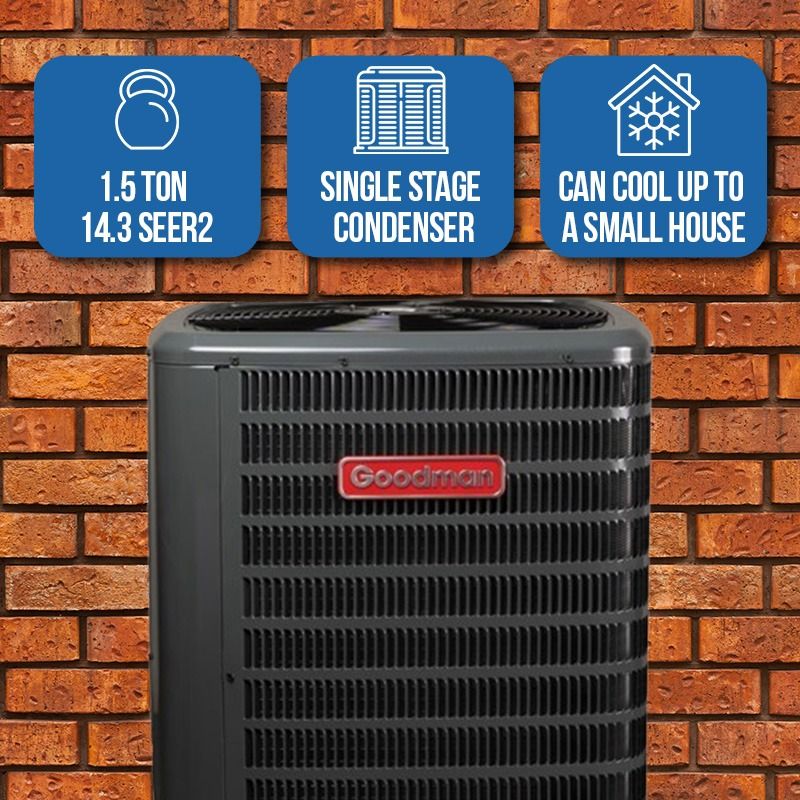

OVERVIEW

The Goodman brand has been focused on providing efficiency and comfort where it matters most while still being an inexpensive brand. With its superior components and a standard efficiency, the Goodman GLXS4BA1810 air conditioner condenser is a popular choice for homeowners around the United States.

QUICK FACTS

  • Ideal size to cover a small house in ideal climates
  • 1.5 ton, 14.3 SEER2 AC-only condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier

1.5 Ton

The GLXS4BA1810 Goodman condenser is a 1.5 ton unit, meaning that it can cover up to a small home in an ideal climate. In some unit bundles, the required AC coil may be larger than this condenser in tonnage. This is intentional, as it maintains the unit's efficiency.

14.3 SEER2

The GLXS4BA1810 AC-only conditioner can be up to 14.3 SEER2 in efficiency when paired with the proper equipment. As the standard efficiency on the market for all states, this unit is average in efficiency. Every SEER2 point is 5-7% more efficient than the one lower than it, saving you money the higher the SEER2 rating of the unit. Please note that this product is regulated by DOE Efficiency Standards.

Warranty

The GLXS4BA1810 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The GLXS4BA1810 Goodman AC condenser cabinet has a baked-on painted finish and is made of a galvanized-steel, making it approved for up to 500 hours of salt-spray and compliant with the 2010 Florida building code integrity requirements for hurricane-type winds when properly anchored. Moreover, the unit is equipped from the factory with a filter dryer that lowers general wear-and-tear on the unit. The GLXS4BA1810 provides peace of mind thanks to its durability and reliability enhancements.

Installation and Maintenance

The Goodman GLXS4BA1810 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.

Comfort in Mind

The Goodman brand always has its customer's comfort in mind. The GLXS4BA1810 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.

Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

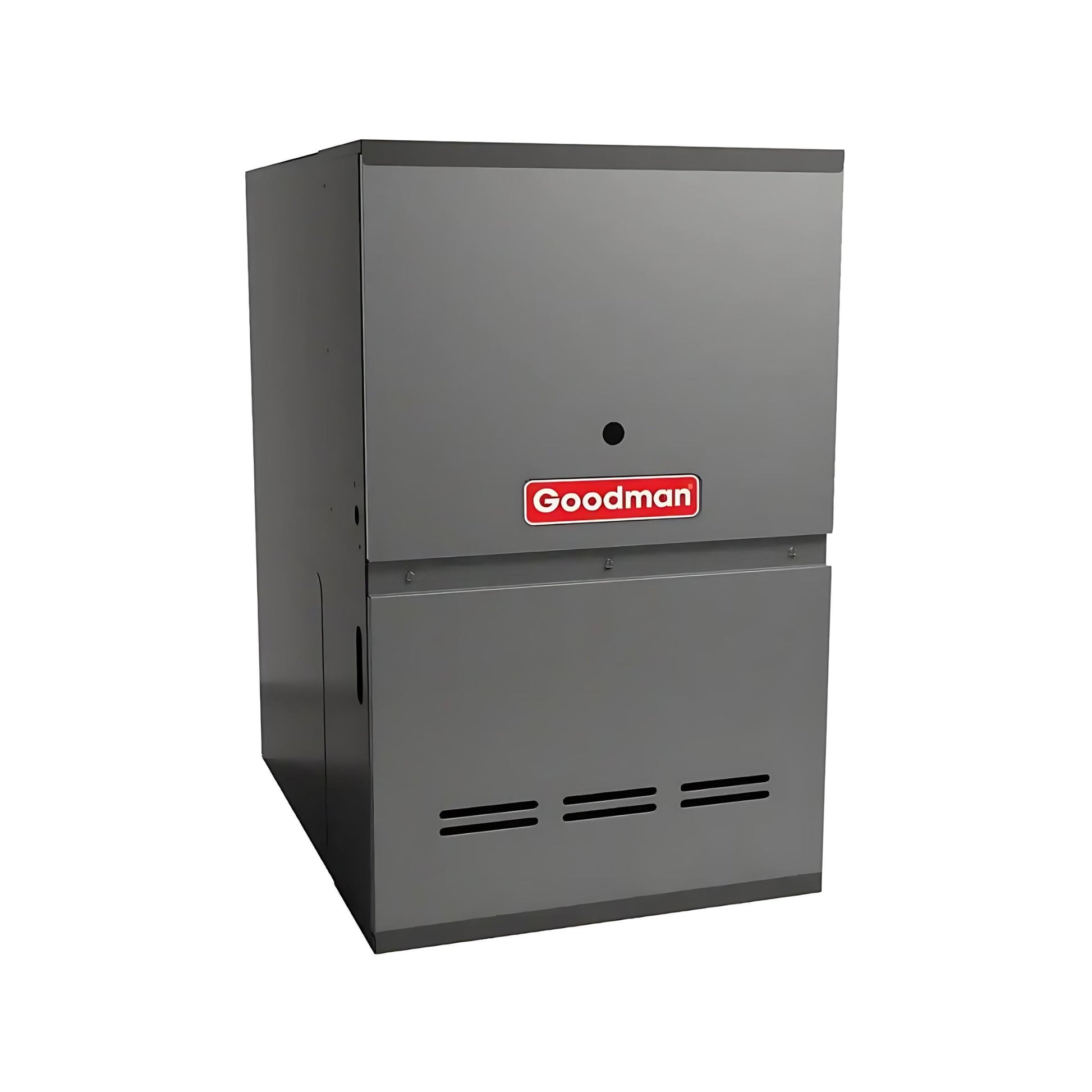

Goodman R32 80% AFUE Gas Furnace 60K BTU 14"W Low NOx Downflow/Horizontal GD9S800603AX

The Goodman GD9S800603AX is a reliable, high-efficiency furnace offering 60,000 BTU heating capacity and 80% AFUE. Its Low NOx emissions design makes it ideal for homes in California counties with stricter air quality regulations. With a 9-speed ECM blower motor, heavy-gauge steel cabinet, and smart diagnostic controls, this unit delivers dependable performance, quiet operation, and energy savings — all in a compact, flexible installation package.

Key Features

  • 60,000 BTU Heating Capacity – Ideal for Small to Medium Homes
  • 80% AFUE Efficiency – Requires Metal Flue Venting
  • Low NOx Compliant – Meets California Emissions Standards (Exclusions Apply)
  • 9-Speed ECM Blower Motor – Enhances Electrical Efficiency & Airflow Control
  • Single-Stage Gas Valve – Operates at 100% Output When Active
  • Heavy-Gauge Steel Cabinet – Reduces Noise & Heat Loss
  • Hot Surface Ignitor – Reliable and Durable Startup Mechanism
  • Self-Diagnostic Control Board – Simplifies Maintenance and Troubleshooting
  • Flexible Installation – Downflow or Horizontal (Left or Right) Configurations
  • Color-Coded Low Voltage Terminals – Eases and Speeds Up Installation

Important California Compliance Note

This model meets California Low NOx requirements, but it cannot be installed in the following counties: Los Angeles, Fresno, San Joaquin, Kern, Kings, Madera, Merced, Orange, Riverside, San Bernardino, Stanislaus, and Tulare.
These areas require Ultra-Low NOx models. Contact us if you need help finding compliant alternatives.

Goodman R32 80% AFUE Gas Furnace 60K BTU 14"W Low NOx Downflow/Horizontal GD9S800603AX

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Product Features (CSCT3012M3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valves for cooling applications
  • Compact and versatile - right or left horizontal position
  • Copper sweat connections
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Cabinet Features (CSCT3012M3)

  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Compact and versatile - right or left horizontal position
  • Copper sweat connections

Technical Specifications - CSCT3012M3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CSCT
series name CSCT
family description CSCT Horizontal Slab
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051736795
item stocking unit of measure uom EA
pallet qty 8
country of origin Mexico
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us No
cased vs uncased Cased
dimensions unit width 25-1/2 in
expansion device TXV
tonnage 2.5
tonnage range 2.5
condensate drain outlet 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 14.00 in
dimensions case height 25.50 in
dimensions case width 35.50 in
dimensions pallet depth 56.00 in
dimensions pallet height 56.00 in
dimensions pallet width 43.00 in
dimensions shipping unit depth 14.00 in
dimensions shipping unit height 25.50 in
dimensions shipping unit width 35.50 in
shipping volume unit 12673.500 in³
truck factor 0.0000
volume case 12673.500 in³
weight case 52.090 lb
weight shipping unit 52.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (GLXS4BA1810)

  • Energy-Efficienct Compressor
  • Fully charged for 15' of tubing length
  • Copper tube/ enhanced aluminum fin coil-5mm diameter
  • Factory-installed filter drier
  • Sweat connection service valves with easy access to gauge ports
  • Enclosed contactor with lug connection
  • High-pressure switch
  • Capacitors with extended life

Cabinet Features (GLXS4BA1810)

  • Removable grille-style top designcompliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLXS4BA1810

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXS4B
series name GLXS4B
model efficiency 14.3 SEER2
family description Energy-Efficient Classic R-32 Split System Air Conditioner, 14.3 SEER2, 1½ To 5 Tons
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051691605
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8085
canadian hts code 8415.90.90.00
cooling capacity nominal 18000 Btu/H
eer2 hsvtc 11.7
energy star certified No
seer 2 hsvtc 14.3
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
max overcurrent protection 15 A
min circuit amps 10.9 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 6.4639999999999995 A
compressor stages Single Stage
compressor type Rotary
dimensions unit depth 26 in
dimensions unit height 27 in
dimensions unit width 26 in
sound pressure high cooling 74 dBA
weight unit 69 lb
cooling capacity rated 18000 Btu/H
tonnage 1.5
additional refrigerant charge oz ft 0.55 lb
factory std refrigerant charge 53 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 3/4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 27.50 in
dimensions case height 29.50 in
dimensions case width 27.50 in
dimensions distribution unit depth 27.5 in
dimensions distribution unit height 29.5 in
dimensions distribution unit width 27.5 in
dimensions pallet depth 27.50 in
dimensions pallet height 29.50 in
dimensions pallet width 55.00 in
dimensions shipping unit depth 27.50 in
dimensions shipping unit height 29.50 in
dimensions shipping unit width 27.50 in
distribution shipping volume unit 22309.375 in³
shipping volume unit 22309.375 in³
truck factor 0.0000
volume case 22309.375 in³
volume distribution shipping unit 22309.375 in³
weight case 132.000 lb
weight distribution shipping unit 132 lb
weight shipping unit 132.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GD9S800603AX)

  • Higher reliabilitynd quality
  • Durablend long igniter life
  • Provisions for electronicir cleanernd humidifier
  • Energy Efficientnd quiet circulation
  • Self-diagnostic control board with constant memory
  • Simple installationnd setup
  • Quietnd simple operation

Product Features (GD9S800603AX)

  • Heavy-duty stainless-steel tubular heat exchanger
  • "Silicon Nitride igniter"
  • Color-coded low-voltage terminals
  • Multi-speed ECM blower motor with continuous fan speed
  • Fault code LED Output
  • Single-Stage gas Valve
  • Single-speed inducer draft blower

Technical Specifications - GD9S800603AX

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GD9S80
model efficiency 0.80
family description Single-Stage Multi-Speed ECM Gas Furnace 80% AFUE
installation type Ducted
export control classification number eccn EAR99
universal product code upc 663051684751
item stocking unit of measure uom EA
pallet qty 6
afue 80 %
cooling capacity nominal 36000 Btu/H
installation configuration Downflow/Horizontal
produced in us No
temperature rise range high fire 30-60 °F
max overcurrent protection 15 A
min circuit amps 8.7 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1200 ft³/min
dimensions blower diameter 10 in
dimensions blower width 6 in
dimensions unit depth 28 in
dimensions unit height 33-3/8 in
dimensions unit width 14 in
etl listed Yes
heat exchanger type Gas
motor speed type Nine Speed ECM
nox burner type Low NOx
number of burners 3
weight unit 94 lb
blower motor horsepower 1/2 metric hp
high fire input capacity 60000 Btu
high fire output capacity 48,000
gas valve type Single Stage
vent diameter 4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 35.50 in
dimensions case width 15.00 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 35.5 in
dimensions distribution unit width 15 in
dimensions pallet depth 60.00 in
dimensions pallet height 35.50 in
dimensions pallet width 45.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 35.50 in
dimensions shipping unit width 15.00 in
distribution shipping volume unit 15975 in³
shipping volume unit 15975.000 in³
truck factor 0.0000
volume case 15975.000 in³
volume distribution shipping unit 15975 in³
weight case 96.000 lb
weight distribution shipping unit 96 lb
weight shipping unit 96.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered parts warranty residential HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
