Goodman

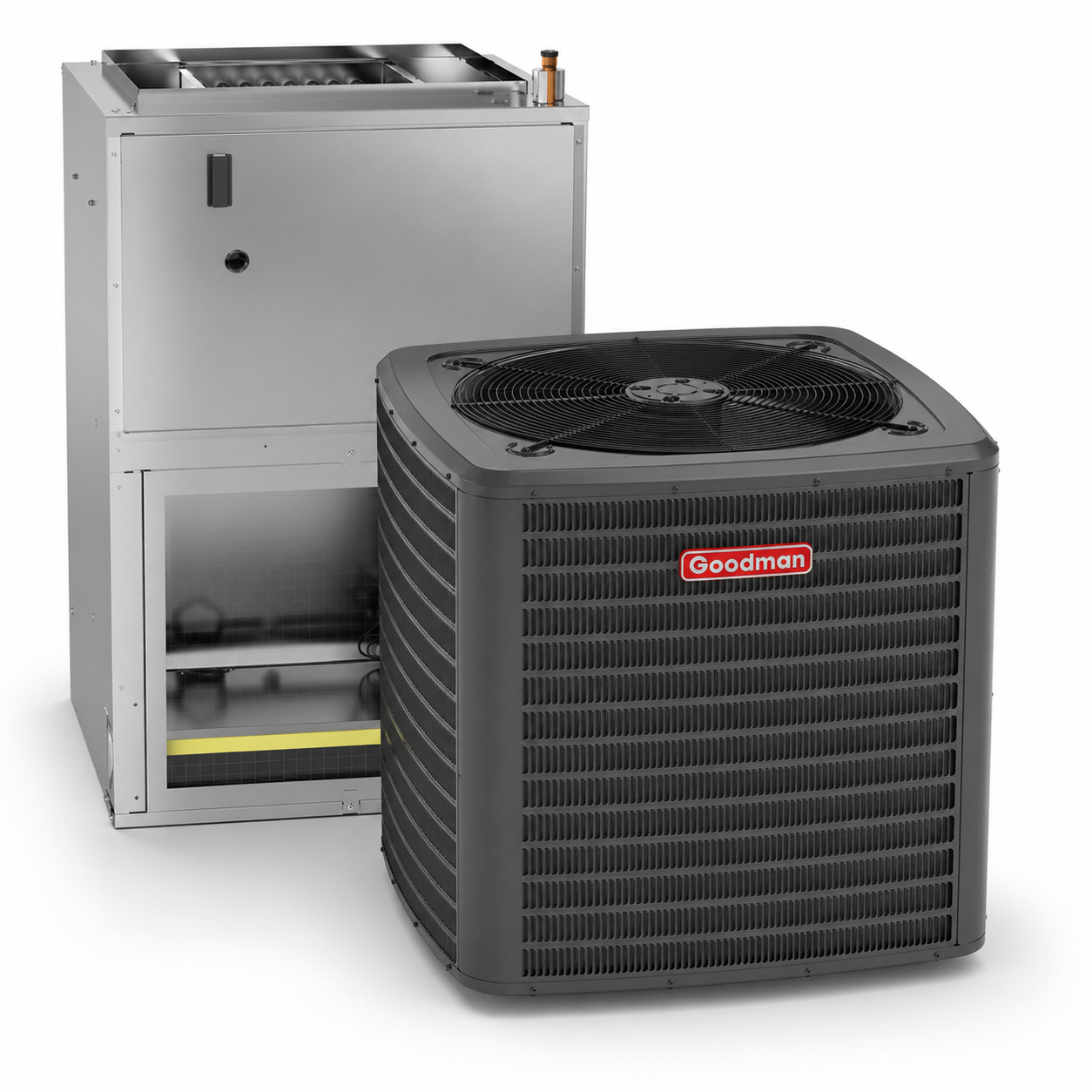

Goodman 1.5 Ton 14.5 SEER2 R32 Air Conditioner Split System w/ 5kW Heat - Wall Mounted

SKU: AWST18SU1305 + GLXS4MA1810

System highlights
AC Type
Stud Mount Air Handler AC System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
18000 BTU VO (1.5 TON)
Indoor Unit
18000 BTU (1.5 TON)
Voltage
208-230V, 208-240V
Looking For
Ducted
SEER2 Rating
14.5
Airflow Direction
Upflow
Electric Heat
5 Kilowatt
Goodman 1.5 Ton Wall Mounted Air Handler w/ 5kW Heat - R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$2,825.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 1.5 Ton 14.5 SEER2 R32 Air Conditioner Split System w/ 5kW Heat - Wall Mounted

Product Overview

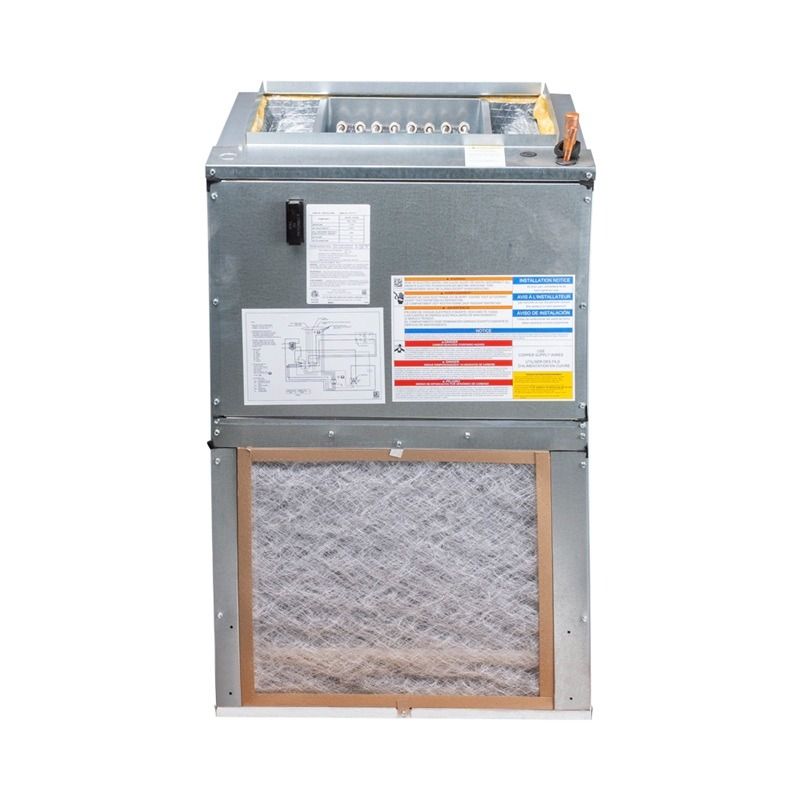

The Goodman AWST wall-mounted air handler is a space-saving alternative to traditional air handlers. Designed to be stud-mounted to a wall or installed in tight recessed spaces, this air handler comes built with a fully insulated, galvanized-steel cabinet for added durability. These air handlers are excellent options for any multi-tenant buildings, such as apartments, condos, and townhomes. With the AWST air handler, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.

Features

  • Suitable for use with R32 refrigerant
  • Equipped with a fully adjustable TXV for cooling-only and heat pump operation
  • Direct-drive, multi-speed motor allows air volume variation for heating and cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Factory-installed pull-type disconnect
  • Aluminum tube coils on all models
  • AHRI Certified
  • ETL Listed
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2.5- and 3-ton units) - front return only
  • Small chassis (1.5- and 2-ton units) - front or bottom return
  • Wall-hanging bracket provided

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA1810

The Goodman 1.5 Ton AC Condenser GLXS4MA1810 is designed for multi-family applications, offering reliable cooling performance with an efficiency rating of 14.3 SEER2. With a cooling capacity of 18,000 BTUs, this single-stage unit operates on R32 refrigerant, making it environmentally friendly and energy-efficient. It is built for 208/230V, 1-phase power supply, ensuring compatibility with various residential settings. Durable construction and advanced technology make this condenser an excellent choice for keeping indoor spaces comfortable and cool all summer long.

Key Features

  • High-Efficiency Scroll Compressor – Delivers reliable cooling performance and energy savings
  • Factory-Installed Filter Drier – Helps protect the refrigeration system from moisture and debris
  • Fully Charged for 15’ of Tubing Length – Simplifies installation with pre-charged refrigerant
  • 5mm Diameter Copper Tube / Enhanced Aluminum Fin Coil – Maximizes heat transfer and durability
  • Service Valves with Sweat Connections – Easy-to-access gauge ports simplify servicing and diagnostics
  • Enclosed Contactor with Lug Connection – Safeguards internal electrical components for longer system life
  • Ground Lug Connection – Simplifies safe system grounding during installation
  • High-Pressure Switch – Enhances safety by monitoring abnormal system pressures
  • AHRI Certified – Verified for performance and efficiency by the Air-Conditioning, Heating, and Refrigeration Institute
  • ETL Listed – Tested and certified for safety by Intertek (ETL)

Cabinet Features

  • Removable Grille-Style Top Design – Complies with UL 60335-2-40 and allows easier access for coil maintenance
  • Heavy-Gauge Galvanized-Steel Cabinet – Built to withstand weather and wear over time
  • Architectural Gray Powder-Paint Finish – Durable finish tested with 500-hour salt-spray for corrosion resistance
  • Steel Louver Coil Guard – Provides physical protection for the coil without restricting airflow
  • Single-Panel Access to Controls – Designed with room for field-installed accessories
  • Florida Building Code Compliant – Meets 2023 wind integrity standards for hurricane zones when properly anchored (anchor bracket kits available)

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA1810

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Product Benefits (AWST18SU1305)

  • All Aluminum Coil
  • Improved Reliability and Quality
  • Factory TXV Installed for Quicker Install
  • More Efficient Refrigerant Metering

Product Features (AWST18SU1305)

  • AWST Models: Equipped wit a fully adjustable TXV
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Aluminum tubing coils on all models
  • Factory-installed pull-type disconnect
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • AHRI Certified and ETL Listed
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

Cabinet Features (AWST18SU1305)

  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Built-in filter rack (filter included)
  • Large chassis (2-1/2 and 3 ton units), front return only
  • Small chassis (1-1/2 and 2 ton units), front or bottom return
  • Wall-hanging bracket provided

Technical Specifications - AWST18SU1305

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family AWST_32
series name AWST
family description Wall-Mount Air Handler 1½ to 3 Tons
installation type Ducted Wall Mounted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051683631
item stocking unit of measure uom EA
pallet qty 6
country of origin Mexico
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cooling capacity nominal 18000 Btu/H
produced in us No
indoor blower fla 2.6 A
max overcurrent protection 25/30 A
max voltage 253 V
min circuit amps 24.9/28.3 A
min voltage 197 V
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 6 in
dimensions evap wheel diameter 10 in
dimensions evap wheel width 6 in
dimensions unit depth 13-1/8 in
dimensions unit height 36 in
dimensions unit width 20-3/13 in
evap coil face area ft 1.8
evap motor rpm 1050 r/min
expansion device TXV
motor speed type Multi Speed ECM
number of speeds 5
weight unit 84 lb
blower motor horsepower 1/3 metric hp
tonnage 1.5
tonnage range 1.5;3
factory std refrigerant charge 0.5 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 17.00 in
dimensions case height 39.00 in
dimensions case width 21.50 in
dimensions distribution unit depth 17 in
dimensions distribution unit height 39 in
dimensions distribution unit width 21.5 in
dimensions pallet depth 52.00 in
dimensions pallet height 44.00 in
dimensions pallet width 46.00 in
dimensions shipping unit depth 17.00 in
dimensions shipping unit height 39.00 in
dimensions shipping unit width 21.50 in
distribution shipping volume unit 14254.5 in³
shipping volume unit 14254.500 in³
truck factor 0.0000
volume case 14254.500 in³
volume distribution shipping unit 14254.5 in³
weight case 80.000 lb
weight distribution shipping unit 80 lb
weight shipping unit 80.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Features (GLXS4MA1810)

  • High-Efficiency Scroll Compressor
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • 5mm diameter copper tube/enhanced aluminum fin coil
  • Service valves with sweat connectionsand easy-to-access gauge ports
  • Enclosed contactor with lug connection
  • Ground lug connection
  • High-pressure switch
  • AHRI Certified
  • ETL Listed

Cabinet Features (GLXS4MA1810)

  • Removable grille style top style grilldesign compatible with UL 60335-2-40
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approva
  • Steel louver coil guard
  • Single-panel access to controls with spaceprovided for field-installed accessories
  • When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLXS4MA1810

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXS4M
series name GLXS4M
model efficiency 14.3 SEER2
family description ENERGY-Efficienct Multi-Family R-32 Split System Air Conditioner, Up to 15.2 SEER2, 1½ To 3 Tons
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051692091
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cooling capacity nominal 18000 Btu/H
eer2 hsvtc 11.7
energy star certified No
seer 2 hsvtc 14.3
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
max overcurrent protection 15 A
min circuit amps 11.1 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 8.32 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 26 in
dimensions unit height 26 in
dimensions unit width 27 in
sound pressure high cooling 73 dBA
weight unit 73 lb
cooling capacity rated 17600 Btu/H
tonnage 1.5
additional refrigerant charge oz ft 0.55 lb
factory std refrigerant charge 54 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 3/4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 27.50 in
dimensions case height 29.50 in
dimensions case width 27.50 in
dimensions distribution unit depth 27.5 in
dimensions distribution unit height 29.5 in
dimensions distribution unit width 27.5 in
dimensions pallet depth 27.50 in
dimensions pallet height 29.50 in
dimensions pallet width 55.00 in
dimensions shipping unit depth 27.50 in
dimensions shipping unit height 29.50 in
dimensions shipping unit width 27.50 in
distribution shipping volume unit 22309.375 in³
shipping volume unit 22309.375 in³
truck factor 0.0000
volume case 22309.375 in³
volume distribution shipping unit 22309.375 in³
weight case 140.000 lb
weight distribution shipping unit 140 lb
weight shipping unit 140.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
