Goodman

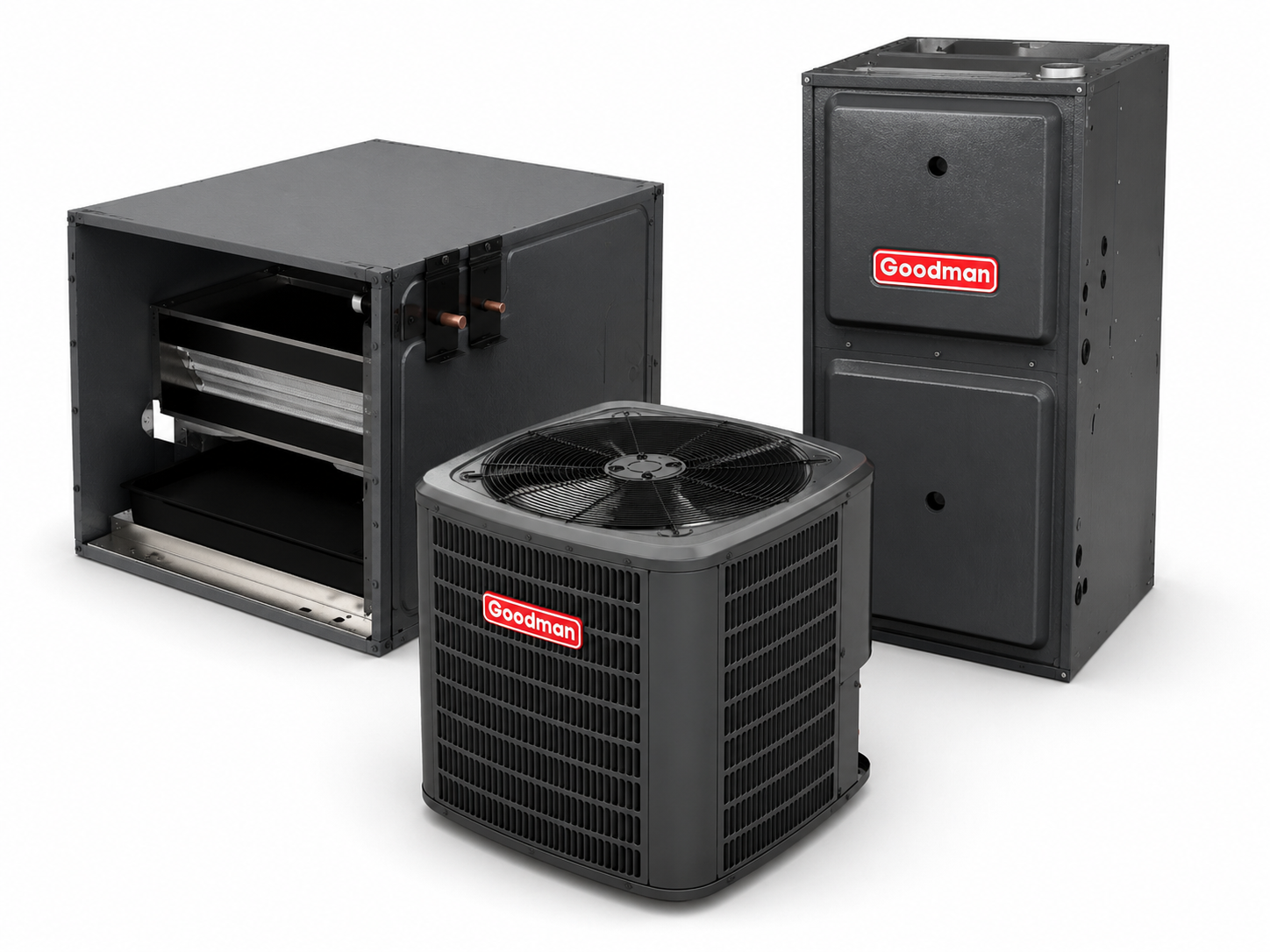

Goodman 1.5 Ton 14.5 SEER2 96% AFUE 30,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

SKU: CAPTA1818A3 + GLXS4MA1810 + GR9T960303AN

System highlights
AC Type
AC & Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
18000 BTU VO (1.5 TON)
Indoor Unit
18000 BTU (1.5 TON)
Looking For
AC & Furnace System
SEER2 Rating
14.5
Airflow Direction
Upflow, Horizontal
Blower Motor
9-Speed - ECM
Maximum CFM
1200
Fuel Type
Natural Gas, Propane
Burner Stages
Two Stages
Coil Style
A-Coil
Furnace Heating BTU
30,000 BTU (2.50 Ton)
Furnace Efficiency
96% AFUE
Cabinet Width (in)
14
Goodman 1.5 Ton 14" Width Upflow/Downflow Cased Evaporator Coil - TXV - R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$4,698.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 1.5 Ton 14.5 SEER2 96% AFUE 30,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

Product Overview

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

  • All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
  • Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
  • Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
  • R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
  • 10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA1810

The Goodman 1.5 Ton AC Condenser GLXS4MA1810 is designed for multi-family applications, offering reliable cooling performance with an efficiency rating of 14.3 SEER2. With a cooling capacity of 18,000 BTUs, this single-stage unit operates on R32 refrigerant, making it environmentally friendly and energy-efficient. It is built for 208/230V, 1-phase power supply, ensuring compatibility with various residential settings. Durable construction and advanced technology make this condenser an excellent choice for keeping indoor spaces comfortable and cool all summer long.

Key Features

  • High-Efficiency Scroll Compressor – Delivers reliable cooling performance and energy savings
  • Factory-Installed Filter Drier – Helps protect the refrigeration system from moisture and debris
  • Fully Charged for 15’ of Tubing Length – Simplifies installation with pre-charged refrigerant
  • 5mm Diameter Copper Tube / Enhanced Aluminum Fin Coil – Maximizes heat transfer and durability
  • Service Valves with Sweat Connections – Easy-to-access gauge ports simplify servicing and diagnostics
  • Enclosed Contactor with Lug Connection – Safeguards internal electrical components for longer system life
  • Ground Lug Connection – Simplifies safe system grounding during installation
  • High-Pressure Switch – Enhances safety by monitoring abnormal system pressures
  • AHRI Certified – Verified for performance and efficiency by the Air-Conditioning, Heating, and Refrigeration Institute
  • ETL Listed – Tested and certified for safety by Intertek (ETL)

Cabinet Features

  • Removable Grille-Style Top Design – Complies with UL 60335-2-40 and allows easier access for coil maintenance
  • Heavy-Gauge Galvanized-Steel Cabinet – Built to withstand weather and wear over time
  • Architectural Gray Powder-Paint Finish – Durable finish tested with 500-hour salt-spray for corrosion resistance
  • Steel Louver Coil Guard – Provides physical protection for the coil without restricting airflow
  • Single-Panel Access to Controls – Designed with room for field-installed accessories
  • Florida Building Code Compliant – Meets 2023 wind integrity standards for hurricane zones when properly anchored (anchor bracket kits available)

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA1810

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

OVERVIEW

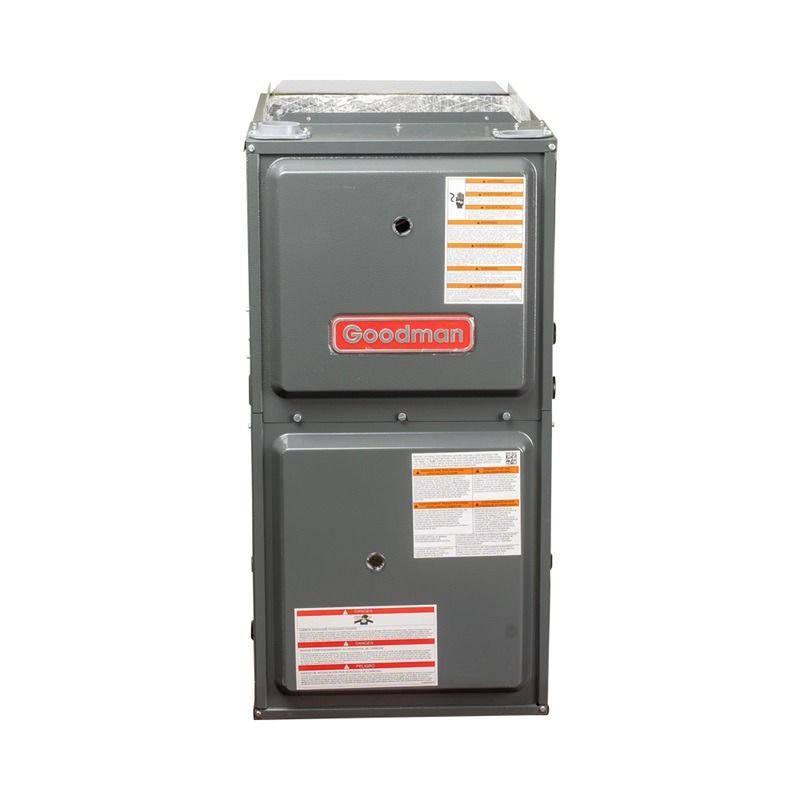

The GR9T960303AN Goodman gas furnace features high-quality construction and efficient operation at a great value. The GR9T960303AN two-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GR9T960303AN.

QUICK FACTS

  • This furnace is ideal to heat a smaller house (depending on climate)
  • 30,000 BTU 96% efficient natural gas furnace
  • Requires plastic/PVC flue venting
  • Complies with Clean Air Act New Refrigerant Requirements
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

30,000 BTU

The GR9T960303AN Goodman gas furnace is 30,000 BTU's, which is the smallest Goodman furnace size currently available. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 28,800 BTU's (30,000 X 96% AFUE) per hour. In ideal climate conditions, this 30,000 BTU furnace is usually used to heat a small house.

96% Efficiency Rating

The GR9T960303AN Goodman gas furnace is 96% efficient, and the standard furnace efficiency on the market today. This means that 96% of the gas going into the furnace is used to heat your home and the remaining 4% is lost out of the flue venting. Please note that all 96% furnaces must be vented using plastic/PVC flue venting, while anything higher than 90% efficient must be vented using plastic/pvc venting.

Natural Gas or LP Furnace

From the factory, the GR9T960303AN runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

9-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GR9T960303AN utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today's Goodman furnaces feature many different connection options to reduce installation. The GR9T960303AN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

Please note that this furnace requires a drain kit if installed horizontally. Upflow configurations do not require the kit.

Product Features (CAPTA1818A3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valves for cooling and heat pump applications
  • Standardized copper suction tube stub length
  • Check flowrator for cooling and heat pump applications
  • Vertical application
  • 21" depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pan featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL Listed

Technical Specifications - CAPTA1818A3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPTA_3
series name CAPTA AlumaFin7™
family description CAPTA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051688308
item stocking unit of measure uom EA
pallet qty 12
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us Yes
cabinet finish Painted
cased vs uncased Cased
dimensions unit depth 21 in
dimensions unit height 18 in
dimensions unit width 14 in
expansion device TXV
tonnage 1.5
tonnage range 1.5
condensate drain outlet 3/4 in
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 20.50 in
dimensions case width 16.25 in
dimensions distribution unit depth 26 in
dimensions distribution unit height 20.5 in
dimensions distribution unit width 16.25 in
dimensions pallet depth 54.00 in
dimensions pallet height 45.50 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 20.50 in
dimensions shipping unit width 16.25 in
distribution shipping volume unit 8661.25 in³
shipping volume unit 8661.250 in³
truck factor 0.0000
volume case 8661.250 in³
volume distribution shipping unit 8661.25 in³
weight case 36.000 lb
weight distribution shipping unit 36 lb
weight shipping unit 36.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (GLXS4MA1810)

  • High-Efficiency Scroll Compressor
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • 5mm diameter copper tube/enhanced aluminum fin coil
  • Service valves with sweat connectionsand easy-to-access gauge ports
  • Enclosed contactor with lug connection
  • Ground lug connection
  • High-pressure switch

Cabinet Features (GLXS4MA1810)

  • Removable grille style top style grilldesign compatible with UL 60335-2-40
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approva
  • Steel louver coil guard
  • Single-panel access to controls with spaceprovided for field-installed accessories
  • When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLXS4MA1810

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXS4M
series name GLXS4M
model efficiency 14.3 SEER2
family description ENERGY-Efficienct Multi-Family R-32 Split System Air Conditioner, Up to 15.2 SEER2, 1½ To 3 Tons
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051692091
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cooling capacity nominal 18000 Btu/H
eer2 hsvtc 11.7
energy star certified No
seer 2 hsvtc 14.3
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
max overcurrent protection 15 A
min circuit amps 11.1 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 8.32 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 26 in
dimensions unit height 26 in
dimensions unit width 27 in
sound pressure high cooling 73 dBA
weight unit 73 lb
cooling capacity rated 17600 Btu/H
tonnage 1.5
additional refrigerant charge oz ft 0.55 lb
factory std refrigerant charge 54 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 3/4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 27.50 in
dimensions case height 29.50 in
dimensions case width 27.50 in
dimensions distribution unit depth 27.5 in
dimensions distribution unit height 29.5 in
dimensions distribution unit width 27.5 in
dimensions pallet depth 27.50 in
dimensions pallet height 29.50 in
dimensions pallet width 55.00 in
dimensions shipping unit depth 27.50 in
dimensions shipping unit height 29.50 in
dimensions shipping unit width 27.50 in
distribution shipping volume unit 22309.375 in³
shipping volume unit 22309.375 in³
truck factor 0.0000
volume case 22309.375 in³
volume distribution shipping unit 22309.375 in³
weight case 140.000 lb
weight distribution shipping unit 140 lb
weight shipping unit 140.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GR9T960303AN)

  • "1. High reliability and quality2. Faster condensate water drainage and no unit water leakage3. Durable and long igniter life4. Provisions for electronic air cleaner and humidifier5. Quiet and Economical heating6. Energy Efficient and quiet circulation7. Lower NOx emission8. Self-diagnostic control board with constant memory9. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.10. Tax Credit11. Operates on two-stage or single-stage thermostats12. Easy Connection for EAC and Humidifier"

Product Features (GR9T960303AN)

  • "1. Heavy-duty aluminized-steel tubular heat exchanger2. Stainless-steel sloped secondary heat exchanger3. Silicon Nitride igniter4. Color-coded low-voltage terminals5. Two-Stage gas valve6. Multi-speed ECM blower motor with continuous fan speed7. All models comply with California 40 ng/J8. Fault code LED Output9. AHRI Certified - ETL Listed10. Energy Star11. Two-stage gas valve12. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers"

Cabinet Features (GR9T960303AN)

  • "1. Multi-position installation: upflow, horizontal left or right2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)3. Easy to install top venting with optional side vent4. Convenient left or right connection for gas and electrical service5. Cabinet air leakage (Qleak) less than or equal to 2%6. Fully insulated heat exchanger and blower section7. Bottom or side return air applications8. Heavy-gage steel cabinet with durable finish"

Technical Specifications - GR9T960303AN

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GR9T96
series name GR9T96
model efficiency 0.96
family description Two-Stage Multi-Speed ECM Gas Furnace up to 96% AFUE
installation type Ducted
export control classification number eccn EAR99
universal product code upc 663051686694
item stocking unit of measure uom EA
pallet qty 6
country of origin USA
us hts code 7322.90.0015
canadian hts code 7322.90.10.21
afue 96 %
cooling capacity nominal 36000 Btu/H
installation configuration Upflow/Horizontal
produced in us Yes
temperature rise range high fire 15-45 °F
temperature rise range low fire 15-45 °F
max overcurrent protection 15 A
min circuit amps 7.8 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 883 ft³/min
air flow rate low heating 708 ft³/min
dimensions blower diameter 11 in
dimensions blower width 6 in
dimensions unit depth 28-7/8 in
dimensions unit height 34-1/2 in
dimensions unit width 14 in
heat exchanger type Gas
motor speed type Multi Speed ECM
nox burner type Low NOx
weight unit 106 lb
blower motor horsepower 0.5 metric hp
high fire input capacity 30000 Btu
high fire output capacity 29100
low fire input capacity 21000
low fire output capacity 20370
gas valve type Two Stage
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 38.50 in
dimensions case width 15.00 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 38.5 in
dimensions distribution unit width 15 in
dimensions pallet depth 60.00 in
dimensions pallet height 38.50 in
dimensions pallet width 45.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 38.50 in
dimensions shipping unit width 15.00 in
distribution shipping volume unit 17325 in³
shipping volume unit 17325.000 in³
truck factor 0.0000
volume case 17325.000 in³
volume distribution shipping unit 17325 in³
weight case 150.000 lb
weight distribution shipping unit 150 lb
weight shipping unit 150.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered parts warranty residential HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered unit replacement warranty residential HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
