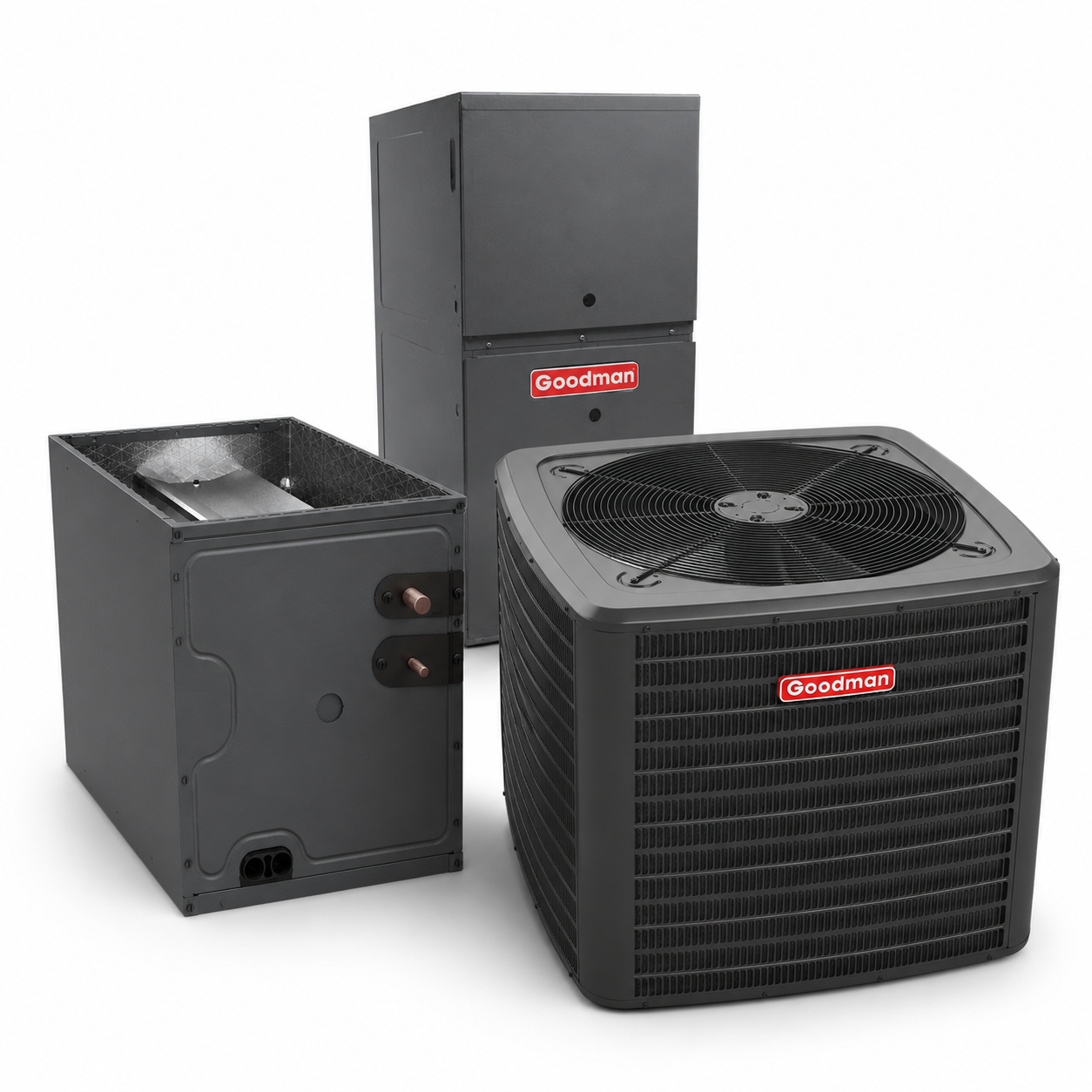

Goodman 1.5 Ton 14.5 SEER2 80% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Downflow/Horizontal

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

• All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
• Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
• Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
• Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
• R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
• 10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

OVERVIEW

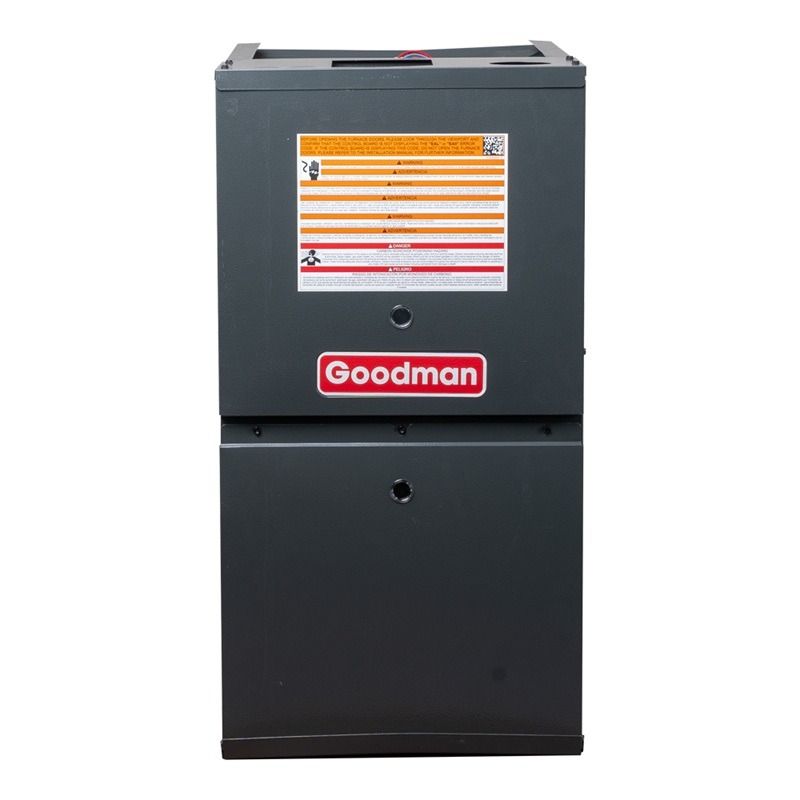

The GDVT800803BX gas furnace is from one of the top-of-the-line series by Goodman. Considered one of the best of the best, this furnace has a two stage burner and a variable speed blower motor. With the best durability and reliability that Goodman 80% efficient furnaces have to offer, and a lower emissions output to match the low NOx compliance regulations in California, we are proud to offer you the Goodman GDVT800803BX gas furnace.

QUICK FACTS

• This furnace is ideal to heat a medium-size house (in average climate conditions)
• 80,000 BTU 80% AFUE two stage variable speed natural gas furnace
• Low NOx Compliant
• Requires metal flue venting
• Can be used in the downflow or horizontal orientation
• Can be converted to propane with an LP conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output

Low NOx Compliant

In California, many counties have a lower NOx emission requirement than the rest of the United States. The GDVT800803BX Goodman gas furnace is California Low NOx compliant. With a built-in low emission filter, this Goodman gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home. Please note that this furnace cannot be installed in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare. In these counties you are required to purchase an Ultra Low NOx furnace. If you have any questions, please contact us.

80,000 BTU

At an input of 80,000 BTU’s, the GDVT800803BX Goodman gas furnace is suitable for up to a medium-size house in an average climate. The output of this furnace is 64,000 BTU’s, which is calculated by the input times the 80% efficiency rating.

80% Efficiency Rating

With the industry standard efficiency of 80% AFUE, the GDVT800803BX Goodman gas furnace uses 80% of the fuel going into the furnace to heat your home and the remaining 20% of the fuel going into it is used up in normal furnace operations and is lost out of the flue venting. The GMVC80603BX requires metal flue venting like any 80% efficient furnace, while anything 90% and above would require plastic or PVC venting.

Two Stage Variable Speed Furnace

The GDVT800803BX is equipped with two stages, allowing for an adjusted heat output to better suit your home’s comfort needs. The integrated variable speed blower on the furnace allows for an exact airflow output based on the requirements for your home as calculated by the control board and thermostat, keeping your home at a more constant temperature and increasing efficiency overall.

Goodman Furnace Warranty

Goodman’s 10 year parts, 10 year unit replacement, and it's phenomenal lifetime heat exchange warranties.

Durability and Reliability

The tubular heat exchanger on the GDVT800803BX is heavy-duty for constant use in the winter. Made of aluminized steel, Goodman heat exchangers provide fast and efficient heat transfer rates, all the while increasing the furnace’s dependability and reliability. The heavy-duty exterior of the unit protects all of the unit’s internal mechanisms and the secure cabinet lowers air leakage and sound output in comparison to its competitors, all providing enhanced comfort that lasts a long time.

Installation

The GDVT800803BX furnace runs natively on natural gas. When you use Goodman’s associated LP conversion kit (found here at an additional cost), this furnace can use propane instead when the installation calls for it. This Goodman furnace is also able to be installed in the downflow or horizontal positions, allowing for a broader application potential.
