Goodman

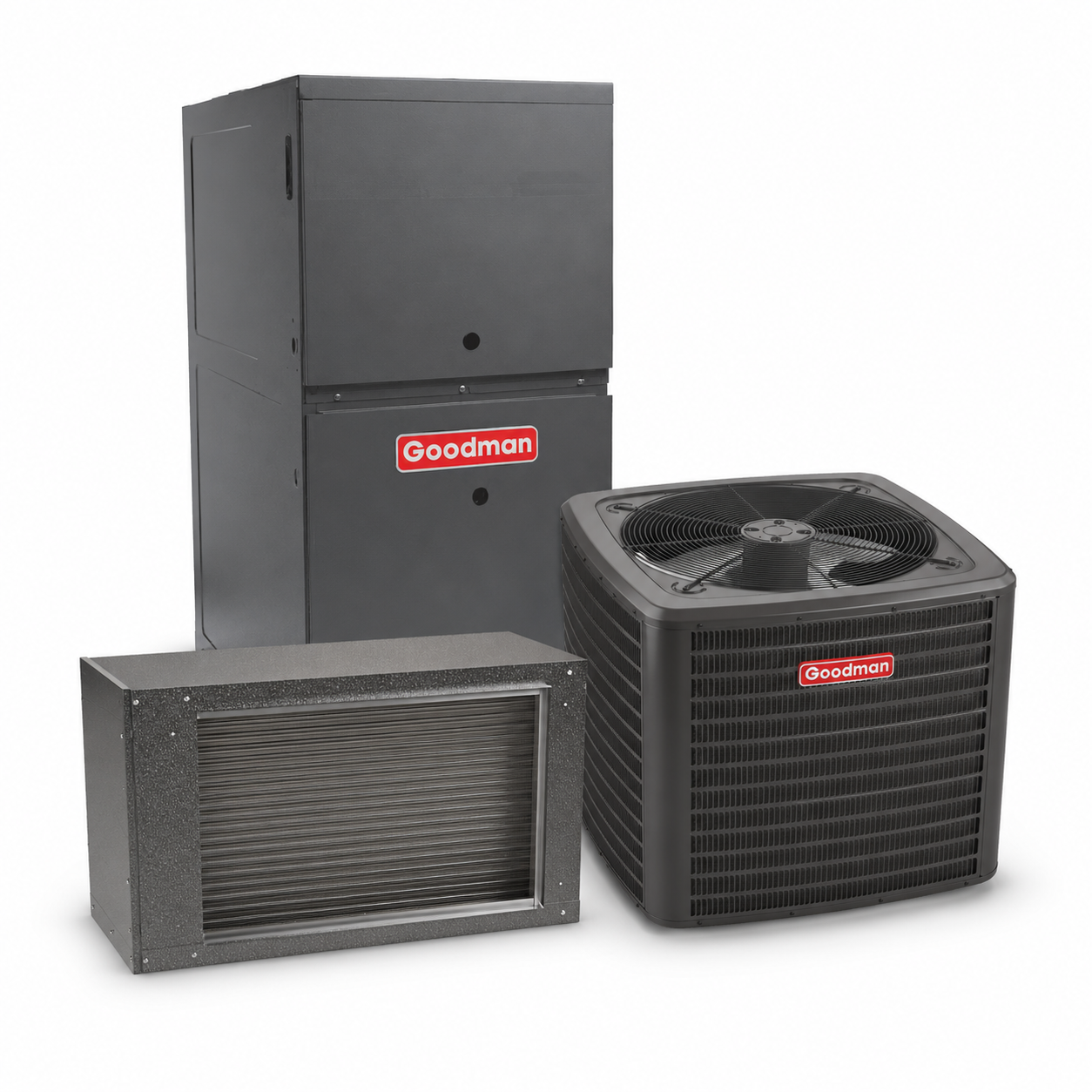

Goodman 1.5 Ton 14.5 SEER2 80% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

SKU: CSCT2412S3 + GLXS5BA1810 + GRVT800604BN

System highlights
AC Type
AC & Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
18000 BTU VO (1.5 TON)
Indoor Unit
24000 BTU (2.0 TON)
Looking For
AC & Furnace System
SEER2 Rating
14.5
Airflow Direction
Upflow, Horizontal
Blower Motor
Variable Speed - ECM
Maximum CFM
1600
Fuel Type
Natural Gas, Propane
Burner Stages
Two Stages
Coil Style
Slab Coil
Furnace Heating BTU
60,000 BTU (5.00 Ton)
Furnace Efficiency
80% AFUE
Cabinet Width (in)
25
! Cabinet might need adjustment for sizing.
Goodman 2 Ton Cased Evaporator Coil TVX 25.5" Cabinet Horizontal Slab R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$5,126.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 1.5 Ton 14.5 SEER2 80% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

Product Overview

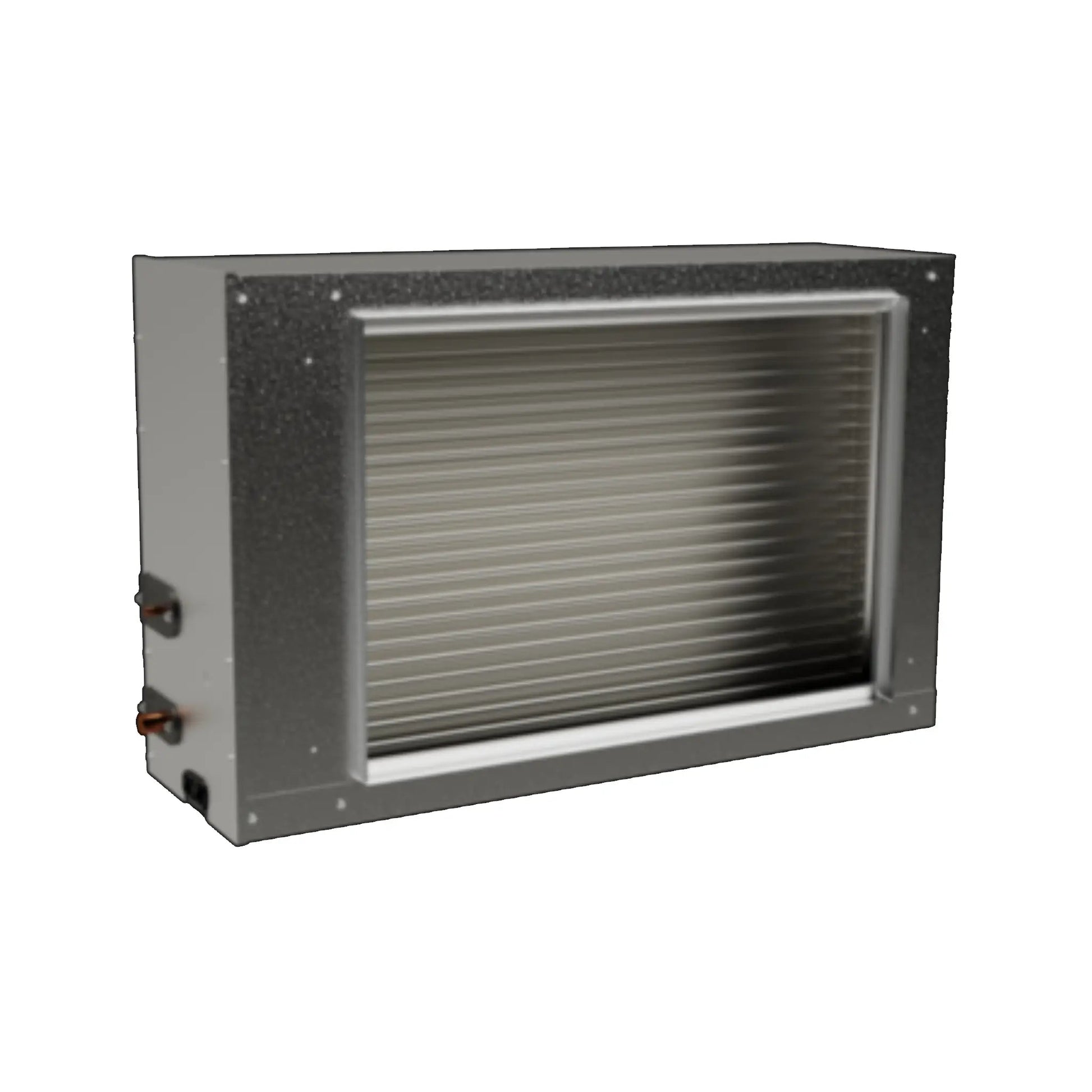

Goodman 2 Ton Cased Evaporator Coil TVX 25.5" Cabinet Horizontal Slab R32 CSCT2412S3

The Goodman CSCT2412S3 is a high-performance cased slab evaporator coil engineered for horizontal airflow applications. Built with durable all-aluminum construction, this coil is optimized for use with R-32 refrigerant and features a factory-installed internal thermostatic expansion valve (TXV). Each unit is factory pressure-tested to ensure reliable performance and quality assurance. Whether used in retrofit or new system installations, the CSCT2412S3 delivers consistent, efficient heat transfer for residential or light commercial HVAC systems.

Key Features:

  • Cased slab coil – Designed specifically for horizontal airflow applications.
  • All-aluminum construction – Offers enhanced corrosion resistance and extended service life.
  • Internal thermostatic expansion valve (TXV) – Factory-installed for optimized cooling performance.
  • Optimized for R-32 refrigerant – Engineered to meet low-GWP system requirements.
  • Pressure-tested at the factory – Ensures leak-free performance and dependable operation.
  • All-Aluminum Evaporator Coil – Improves system longevity and resists corrosion in various environments.
  • R-32 Refrigerant Optimization – Includes circuits and manifolds designed for efficient refrigerant flow.
  • Integrated R-32 Sensor – Built to match the coil’s lifespan for enhanced refrigerant management.
  • Factory-Installed Thermal Expansion Valve – Increases cooling efficiency in compatible HVAC systems.
  • Compact and Versatile Design – Installs easily in right or left horizontal positions for flexible applications.
  • Copper Sweat Connections – Allow for secure, leak-resistant connections during installation.
  • Rust-Resistant Thermoplastic Drain Pan – Features a low water-retention layout to manage condensation effectively.
  • DecaBDE-Free Drain Pan – Environmentally compliant with integrated secondary drain connections.
  • UV-Resistant Drain Pan – Offers long-term protection from environmental wear and degradation.
  • AHRI Certified – Verified performance for energy efficiency and operational reliability.
  • ETL Listed – Meets North American safety standards with third-party certification.
  • Foil-Faced Internal Insulation – Reduces cabinet condensation and supports energy efficiency.
  • Compact, Multi-Position Design – Compatible with right or left horizontal installations.
  • Copper Sweat Connections – Simplify system integration with durable, secure fittings.

The Goodman CSCT2412S3 is a dependable, forward-compatible coil solution for HVAC professionals installing R-32 refrigerant systems in residential or light commercial environments.

Goodman 2 Ton Cased Evaporator Coil TVX 25.5" Cabinet Horizontal Slab R32 CSCT2412S3

Warranty Type Commercial Multi-Family Residential
Standard Parts Warranty 5 years 5 years 5 years
Registered Parts Warranty 5 years 12 years 12 years

OVERVIEW

Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GLXS5BA1810 is no exception, with its durability, reliability, and one of the highest efficiencies available.

QUICK FACTS

  • Ideal size to cover a smaller house in ideal climates
  • 1.5 ton, 15.2 SEER2 AC-only condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier

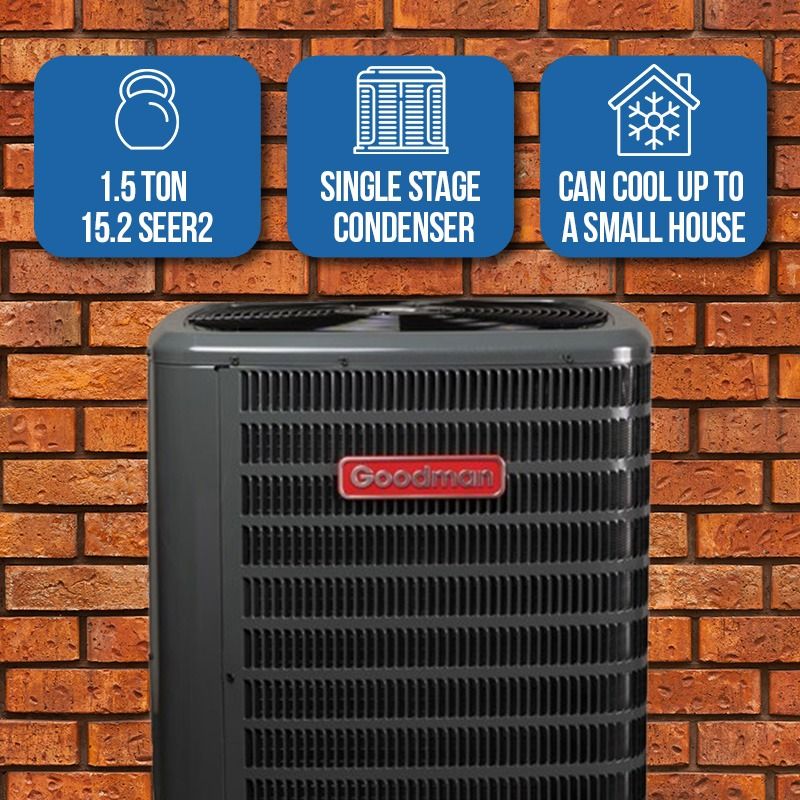

1.5 Ton

The GLXS5BA1810 AC-only condenser is 1.5 tons, normally enough to cover up to a smaller house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.

15.2 SEER2

The GLXS5BA1810 condenser is designed to be up to 15.2 SEER2 in ideal system configurations. Considered a high-efficiency, 15.2 SEER2 is around 12% more efficient than a 14.3 SEER2 system, saving you a lot of money in energy bills. 15.2 SEER2 efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.

Warranty

The GLXS5BA1810 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The cabinet of Goodman's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the GLXS5BA1810 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.

Installation and Maintenance

For easier maintenance, Goodman designed the GLXS5BA1810's cabinet with two maintenance access panels - one on the top and one on the side. For easier installation, the GLXS5BA1810 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.

Comfort in Mind

Superior comfort has always been the primary goal for Goodman. The GLXS5BA1810 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.

Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.

OVERVIEW

The GRVT800604BN gas furnace is from one of the top-of-the-line series by Goodman. Considered one of the best of the best, this furnace has a two stage burner and a variable speed blower motor. With the best durability and reliability that Goodman 80% efficient furnaces have to offer, we are proud to offer you the Goodman GRVT800604BN gas furnace.

QUICK FACTS

  • This furnace is ideal to heat a small to medium house (in average climate conditions)
  • 60,000 BTU 80% AFUE two stage variable speed natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

60,000 BTU

At an input of 60,000 BTU’s, the GRVT800604BN Goodman gas furnace is suitable for up to a small to medium house in an average climate. The output of this furnace is 48,000 BTU’s, which is calculated by the input times the 80% efficiency rating.

80% Efficiency Rating

With the industry standard efficiency of 80% AFUE, the GRVT800604BN Goodman gas furnace uses 80% of the fuel going into the furnace to heat your home and the remaining 20% of the fuel going into it is used up in normal furnace operations and is lost out of the flue venting. The GRVT800604BN requires metal flue venting like any 80% efficient furnace, while anything 90% and above would require plastic or PVC venting.

Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. If you have any questions, please contact us.

Two Stage Variable Speed Furnace

The GRVT800604BN is equipped with two stages, allowing for an adjusted heat output to better suit your home’s comfort needs. The integrated variable speed blower on the furnace allows for an exact airflow output based on the requirements for your home as calculated by the control board and thermostat, keeping your home at a more constant temperature and increasing efficiency overall.

Warranty

The GRVT800604BN comes standard with Goodman’s 10 year parts warranty and its phenomenal lifetime heat exchanger warranty. In order to maintain this warranty, the installation must follow your state and local codes and the unit must be registered online through the manufacturer.

Durability and Reliability

The tubular heat exchanger on the GRVT800604BN is heavy-duty for constant use in the winter. Made of aluminized steel, Goodman heat exchangers provide fast and efficient heat transfer rates, all the while increasing the furnace’s dependability and reliability. The heavy-duty exterior of the unit protects all of the unit’s internal mechanisms and the secure cabinet lowers air leakage and sound output in comparison to its competitors, all providing enhanced comfort that lasts a long time.

Installation

The GRVT800604BN furnace runs natively on natural gas. When you use Goodman’s associated LP conversion kit (found here at an additional cost), this furnace can use propane instead when the installation calls for it. This Goodman furnace is also able to be installed in the upflow or horizontal positions, allowing for a broader application potential.

Product Features (CSCT2412S3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valves for cooling applications
  • Compact and versatile - right or left horizontal position
  • Copper sweat connections
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Cabinet Features (CSCT2412S3)

  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Compact and versatile - right or left horizontal position
  • Copper sweat connections

Technical Specifications - CSCT2412S3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CSCT
series name CSCT
family description CSCT Horizontal Slab
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051750678
item stocking unit of measure uom EA
pallet qty 12
country of origin Mexico
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us No
cabinet finish Painted
cased vs uncased Cased
dimensions unit depth 12 in
dimensions unit height 25 in
dimensions unit width 25-1/2 in
expansion device TXV
weight unit 35 lb
tonnage range 2
condensate drain outlet 3/4 in
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 14.00 in
dimensions case height 25.50 in
dimensions case width 28.00 in
dimensions distribution unit depth 14 in
dimensions distribution unit height 25.5 in
dimensions distribution unit width 28 in
dimensions pallet depth 56.00 in
dimensions pallet height 56.00 in
dimensions pallet width 43.00 in
dimensions shipping unit depth 14.00 in
dimensions shipping unit height 25.50 in
dimensions shipping unit width 28.00 in
distribution shipping volume unit 9996 in³
shipping volume unit 9996.000 in³
truck factor 0.0000
volume case 9996.000 in³
volume distribution shipping unit 9996 in³
weight case 48.090 lb
weight distribution shipping unit 48.09 lb
weight shipping unit 48.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (GLXS5BA1810)

  • High-efficiency scroll compressor
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
  • Service valves with sweat connectionsand easy-to-access gauge ports
  • Enclosed contactor with lug connection
  • Ground lug connection
  • High-pressure switch

Cabinet Features (GLXS5BA1810)

  • Removable grille-style top designcompliant with UL 60335-2-40
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
  • Steel louver coil guard
  • Single-panel access to controls with spaceprovided for field-installed accessories
  • When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLXS5BA1810

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXS5
series name GLXS5B
model efficiency 15.2 SEER2
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051735460
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
produced in us Yes
cooling operation range std max 115 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 72 °F
rated cooling condition room db 80 °F
rated cooling condition room wb 67 °F
compressor rla 8.3 A
max overcurrent protection 15 A
min circuit amps 11.1 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 26 in
dimensions unit height 27 in
dimensions unit width 26 in
sound pressure high cooling 72.6 dBA
tonnage 1.5
factory std refrigerant charge 54 oz
pipe size gas 3/4 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 79 ft
standard line set length vertical 50 ft
valve size liquid o d 3/8 in
valve size suction o d 3/4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 27.50 in
dimensions case height 29.50 in
dimensions case width 27.50 in
dimensions distribution unit depth 27.5 in
dimensions distribution unit height 29.5 in
dimensions distribution unit width 27.5 in
dimensions pallet depth 27.50 in
dimensions pallet height 29.50 in
dimensions pallet width 55.00 in
dimensions shipping unit depth 27.50 in
dimensions shipping unit height 29.50 in
dimensions shipping unit width 27.50 in
distribution shipping volume unit 22309.375 in³
shipping volume unit 22309.375 in³
truck factor 0.0000
volume case 22309.375 in³
volume distribution shipping unit 22309.375 in³
weight case 137.000 lb
weight distribution shipping unit 137 lb
weight shipping unit 137.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GRVT800604BN)

  • High reliabilitynd quality;2.irflow system gently ramps up or downccording to heating or cooling demandnd provides better comfort
  • Capable of using non communicating single-stage thermostats
  • Durablend long igniter life
  • Quietnd Economical heating
  • Operates on single-stage thermostats

Product Features (GRVT800604BN)

  • Heavy-dutyluminized-steel tubular heat exchanger
  • Efficientnd quiet variable-speed Blower
  • ComfortBridge™ Communicating System compatible
  • Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication
  • Silicon Nitride igniter
  • Two-Stage gas valve

Cabinet Features (GRVT800604BN)

  • Multi-position installation: upflow, horizontal left or right
  • Convenient left or right connection for gasnd electrical service
  • Cabinetir leakage (Qleak) less than or equal to 2%
  • Fully insulated heat exchangernd blower section
  • Bottom or side returnirpplications
  • Heavy-gage steel cabinet with durable finish

Technical Specifications - GRVT800604BN

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GRVT80
series name GRVT80
model efficiency 0.80
family description Two-Stage, Variable-Speed ECM Gas Furnace 80% AFUE
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051703216
item stocking unit of measure uom EA
pallet qty 4
afue 80 %
cooling capacity nominal 48000 Btu/H
energy star certified No
installation configuration Upflow/Horizontal
produced in us No
temperature rise range high fire 20-50 °F
temperature rise range low fire 20-50 °F
current type AC
max overcurrent protection 15 A
min circuit amps 10.6 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1760 ft³/min
air flow rate low heating 890 ft³/min
ansi certifed Yes
blower motor rpm 1200 r/min
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions unit depth 28 in
dimensions unit height 33-3/8 in
dimensions unit width 17-1/2 in
etl listed Yes
external static pressure rated 0.5
filter quantity 1
filter size min 16X25
heat exchanger type Gas
minimum clearances to combustible materials 1 ft
motor speed type Variable Speed ECM
nox burner type Non NOx Rated
number of burners 3
weight unit 107 lb
blower motor horsepower 3/4 metric hp
high fire input capacity 60000 Btu
high fire output capacity 48,000
low fire input capacity 42,000
low fire output capacity 33,600
gas valve type Two Stage
vent diameter 4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 35.50 in
dimensions case width 18.50 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 35.5 in
dimensions distribution unit width 18.5 in
dimensions pallet depth 60.00 in
dimensions pallet height 35.50 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 35.50 in
dimensions shipping unit width 18.50 in
distribution shipping volume unit 19702.5 in³
shipping volume unit 19702.500 in³
truck factor 0.0000
volume case 19702.500 in³
volume distribution shipping unit 19702.5 in³
weight case 106.000 lb
weight distribution shipping unit 110.09 lb
weight shipping unit 106.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered unit replacement warranty residential HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
