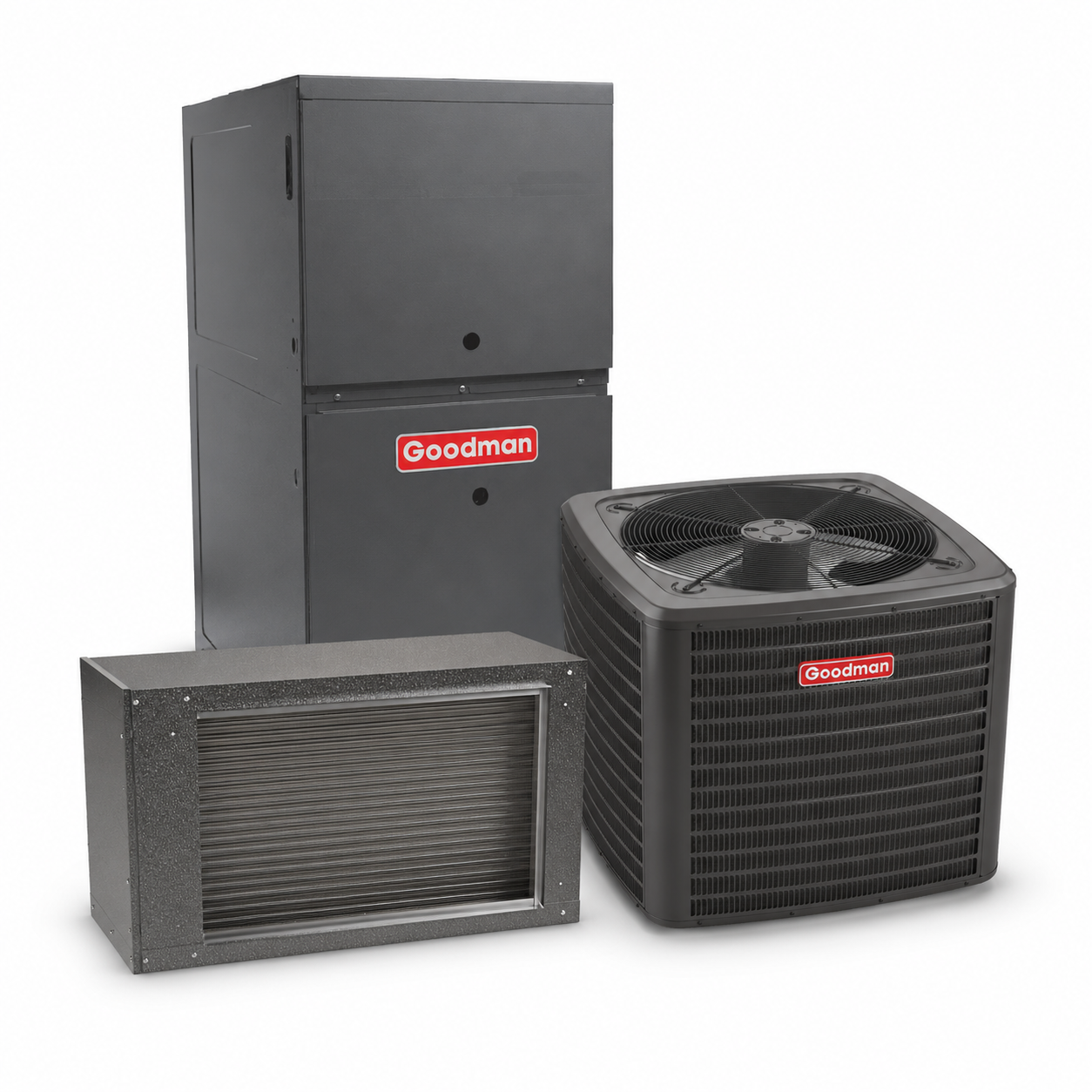

Goodman 1.5 Ton 14.5 SEER2 80% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Downflow/Horizontal
Product Overview
Goodman 2.5 Ton Cased Evaporator Coil TVX 33.5" Cabinet Horizontal Slab R32 CSCT3012M3
The Goodman CSCT3012M3 is an ideal evaporator coil for medium-sized homes, delivering dependable and efficient cooling performance. With a durable all-aluminum construction and full compatibility with R-32 refrigerant, this unit is both long-lasting and environmentally conscious—making it a smart solution for modern HVAC systems.
Features and Benefits:
- Nominal Capacity: 2–2.5 tons – Suitable for medium-sized residential applications.
- Dimensions: 33½" W x 12" D x 25" H – Compact size allows flexible installation.
- Service Valve: ⅜" Liquid, ⅞" Suction – Standard connection sizes for quick setup.
- All-Aluminum Evaporator Coil: Provides long-lasting durability and efficient heat transfer, reducing corrosion risks.
- Optimized for R-32 Refrigerant: Delivers energy-efficient cooling while supporting low-GWP refrigerant compliance.
- Factory-Installed Thermal Expansion Valve (TXV): Enhances performance and cooling accuracy.
- UV-Resistant Drain Pan: Helps prevent mold and mildew growth, promoting cleaner and healthier indoor air quality.
This coil is a dependable upgrade or replacement component for HVAC systems using R-32 refrigerant, combining compact design with performance-enhancing features for long-term value.
Goodman 2.5 Ton Cased Evaporator Coil TVX 33.5" Cabinet Horizontal Slab R32 CSCT3012M3
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 5 years | 10 years | 10 years |
OVERVIEW
Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GLXS5BA1810 is no exception, with its durability, reliability, and one of the highest efficiencies available.
QUICK FACTS
- Ideal size to cover a smaller house in ideal climates
- 1.5 ton, 15.2 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
1.5 Ton
The GLXS5BA1810 AC-only condenser is 1.5 tons, normally enough to cover up to a smaller house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.
15.2 SEER2
The GLXS5BA1810 condenser is designed to be up to 15.2 SEER2 in ideal system configurations. Considered a high-efficiency, 15.2 SEER2 is around 12% more efficient than a 14.3 SEER2 system, saving you a lot of money in energy bills. 15.2 SEER2 efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.
Warranty
The GLXS5BA1810 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The cabinet of Goodman's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the GLXS5BA1810 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.
Installation and Maintenance
For easier maintenance, Goodman designed the GLXS5BA1810's cabinet with two maintenance access panels - one on the top and one on the side. For easier installation, the GLXS5BA1810 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.
Comfort in Mind
Superior comfort has always been the primary goal for Goodman. The GLXS5BA1810 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.
Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.

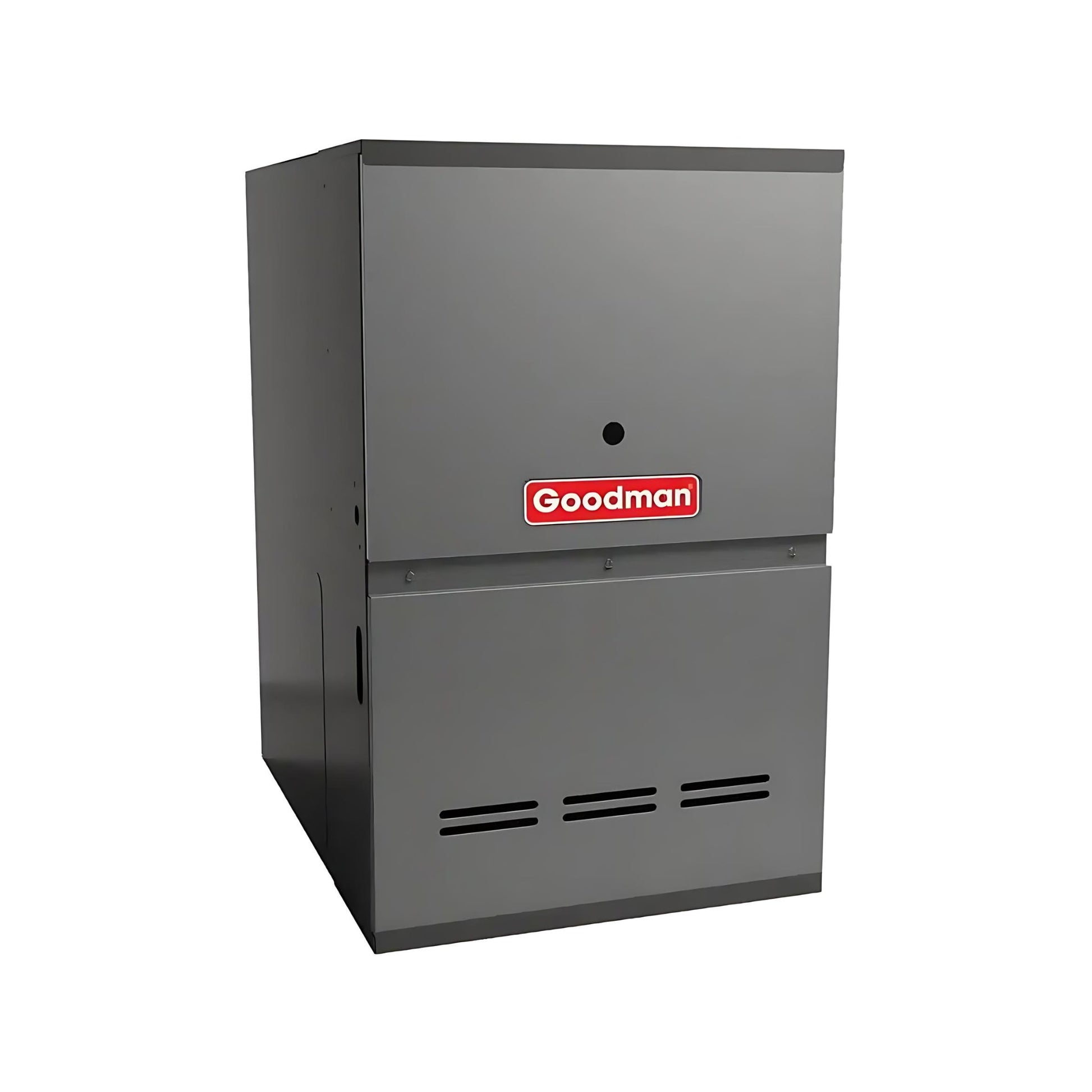

Goodman R32 80% AFUE Gas Furnace 60K BTU 14"W Low NOx Downflow/Horizontal GD9S800603AX
The Goodman GD9S800603AX is a reliable, high-efficiency furnace offering 60,000 BTU heating capacity and 80% AFUE. Its Low NOx emissions design makes it ideal for homes in California counties with stricter air quality regulations. With a 9-speed ECM blower motor, heavy-gauge steel cabinet, and smart diagnostic controls, this unit delivers dependable performance, quiet operation, and energy savings — all in a compact, flexible installation package.
Key Features
- 60,000 BTU Heating Capacity – Ideal for Small to Medium Homes
- 80% AFUE Efficiency – Requires Metal Flue Venting
- Low NOx Compliant – Meets California Emissions Standards (Exclusions Apply)
- 9-Speed ECM Blower Motor – Enhances Electrical Efficiency & Airflow Control
- Single-Stage Gas Valve – Operates at 100% Output When Active
- Heavy-Gauge Steel Cabinet – Reduces Noise & Heat Loss
- Hot Surface Ignitor – Reliable and Durable Startup Mechanism
- Self-Diagnostic Control Board – Simplifies Maintenance and Troubleshooting
- Flexible Installation – Downflow or Horizontal (Left or Right) Configurations
- Color-Coded Low Voltage Terminals – Eases and Speeds Up Installation
Important California Compliance Note
This model meets California Low NOx requirements, but it cannot be installed in the following counties: Los Angeles, Fresno, San Joaquin, Kern, Kings, Madera, Merced, Orange, Riverside, San Bernardino, Stanislaus, and Tulare.
These areas require Ultra-Low NOx models. Contact us if you need help finding compliant alternatives.
Goodman R32 80% AFUE Gas Furnace 60K BTU 14"W Low NOx Downflow/Horizontal GD9S800603AX
| Warranty Type | Residential | Multi-Family | Commercial |
| Standard Warranty | 5 year parts | 5 year parts | 5 year parts |
| Registered Warranty | 10 year parts | 10 year parts | 5 year parts |
Product Features (CSCT3012M3)
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling applications
- Compact and versatile - right or left horizontal position
- Copper sweat connections
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- UV-resistant drain pan
- AHRI certified
- ETL listed
Cabinet Features (CSCT3012M3)
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Compact and versatile - right or left horizontal position
- Copper sweat connections
Technical Specifications - CSCT3012M3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CSCT |
| series name | CSCT |
| family description | CSCT Horizontal Slab |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051736795 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| country of origin | Mexico |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| produced in us | No |
| cased vs uncased | Cased |
| dimensions unit width | 25-1/2 in |
| expansion device | TXV |
| tonnage | 2.5 |
| tonnage range | 2.5 |
| condensate drain outlet | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 14.00 in |
| dimensions case height | 25.50 in |
| dimensions case width | 35.50 in |
| dimensions pallet depth | 56.00 in |
| dimensions pallet height | 56.00 in |
| dimensions pallet width | 43.00 in |
| dimensions shipping unit depth | 14.00 in |
| dimensions shipping unit height | 25.50 in |
| dimensions shipping unit width | 35.50 in |
| shipping volume unit | 12673.500 in³ |
| truck factor | 0.0000 |
| volume case | 12673.500 in³ |
| weight case | 52.090 lb |
| weight shipping unit | 52.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
Product Features (GLXS5BA1810)
- High-efficiency scroll compressor
- Factory-installed filter drier
- Fully charged for 15’ of tubing length
- Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
- Service valves with sweat connectionsand easy-to-access gauge ports
- Enclosed contactor with lug connection
- Ground lug connection
- High-pressure switch
Cabinet Features (GLXS5BA1810)
- Removable grille-style top designcompliant with UL 60335-2-40
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
- Steel louver coil guard
- Single-panel access to controls with spaceprovided for field-installed accessories
- When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GLXS5BA1810
| product category | Unitary |
|---|---|
| product class pim | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GLXS5 |
| series name | GLXS5B |
| model efficiency | 15.2 SEER2 |
| communication feature | No |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051735460 |
| item stocking unit of measure uom | EA |
| pallet qty | 2 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 55 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 72 °F |
| rated cooling condition room db | 80 °F |
| rated cooling condition room wb | 67 °F |
| compressor rla | 8.3 A |
| max overcurrent protection | 15 A |
| min circuit amps | 11.1 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| compressor stages | Single Stage |
| compressor type | Scroll |
| dimensions unit depth | 26 in |
| dimensions unit height | 27 in |
| dimensions unit width | 26 in |
| sound pressure high cooling | 72.6 dBA |
| tonnage | 1.5 |
| factory std refrigerant charge | 54 oz |
| pipe size gas | 3/4 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 79 ft |
| standard line set length vertical | 50 ft |
| valve size liquid o d | 3/8 in |
| valve size suction o d | 3/4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 27.50 in |
| dimensions case height | 29.50 in |
| dimensions case width | 27.50 in |
| dimensions distribution unit depth | 27.5 in |
| dimensions distribution unit height | 29.5 in |
| dimensions distribution unit width | 27.5 in |
| dimensions pallet depth | 27.50 in |
| dimensions pallet height | 29.50 in |
| dimensions pallet width | 55.00 in |
| dimensions shipping unit depth | 27.50 in |
| dimensions shipping unit height | 29.50 in |
| dimensions shipping unit width | 27.50 in |
| distribution shipping volume unit | 22309.375 in³ |
| shipping volume unit | 22309.375 in³ |
| truck factor | 0.0000 |
| volume case | 22309.375 in³ |
| volume distribution shipping unit | 22309.375 in³ |
| weight case | 137.000 lb |
| weight distribution shipping unit | 137 lb |
| weight shipping unit | 137.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Benefits (GD9S800603AX)
- Higher reliabilitynd quality
- Durablend long igniter life
- Provisions for electronicir cleanernd humidifier
- Energy Efficientnd quiet circulation
- Self-diagnostic control board with constant memory
- Simple installationnd setup
- Quietnd simple operation
Product Features (GD9S800603AX)
- Heavy-duty stainless-steel tubular heat exchanger
- "Silicon Nitride igniter"
- Color-coded low-voltage terminals
- Multi-speed ECM blower motor with continuous fan speed
- Fault code LED Output
- Single-Stage gas Valve
- Single-speed inducer draft blower
Technical Specifications - GD9S800603AX
| product category | Unitary |
|---|---|
| product class pim | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GD9S80 |
| model efficiency | 0.80 |
| family description | Single-Stage Multi-Speed ECM Gas Furnace 80% AFUE |
| installation type | Ducted |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051684751 |
| item stocking unit of measure uom | EA |
| pallet qty | 6 |
| afue | 80 % |
| cooling capacity nominal | 36000 Btu/H |
| installation configuration | Downflow/Horizontal |
| produced in us | No |
| temperature rise range high fire | 30-60 °F |
| max overcurrent protection | 15 A |
| min circuit amps | 8.7 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 115 V |
| air flow rate high heating | 1200 ft³/min |
| dimensions blower diameter | 10 in |
| dimensions blower width | 6 in |
| dimensions unit depth | 28 in |
| dimensions unit height | 33-3/8 in |
| dimensions unit width | 14 in |
| etl listed | Yes |
| heat exchanger type | Gas |
| motor speed type | Nine Speed ECM |
| nox burner type | Low NOx |
| number of burners | 3 |
| weight unit | 94 lb |
| blower motor horsepower | 1/2 metric hp |
| high fire input capacity | 60000 Btu |
| high fire output capacity | 48,000 |
| gas valve type | Single Stage |
| vent diameter | 4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 35.50 in |
| dimensions case width | 15.00 in |
| dimensions distribution unit depth | 30 in |
| dimensions distribution unit height | 35.5 in |
| dimensions distribution unit width | 15 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 35.50 in |
| dimensions pallet width | 45.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 35.50 in |
| dimensions shipping unit width | 15.00 in |
| distribution shipping volume unit | 15975 in³ |
| shipping volume unit | 15975.000 in³ |
| truck factor | 0.0000 |
| volume case | 15975.000 in³ |
| volume distribution shipping unit | 15975 in³ |
| weight case | 96.000 lb |
| weight distribution shipping unit | 96 lb |
| weight shipping unit | 96.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
Leaflets & Manuals
