Goodman

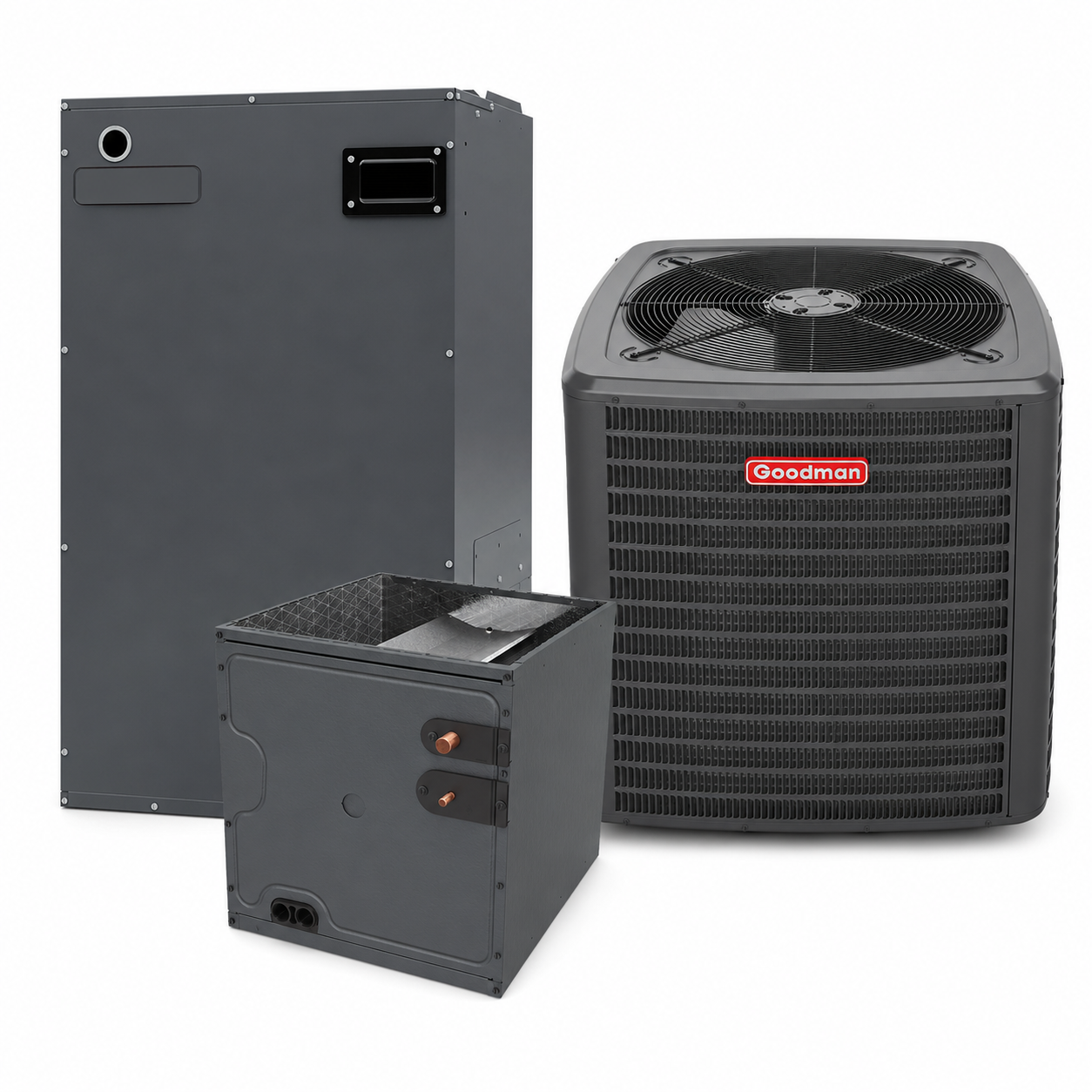

Goodman 1.5 Ton 14.3 SEER2 Electric Furnace and Air Conditioner System - Upflow/Downflow - 14"

SKU: GLXS4MA1810 + CAPTA2422A3 + MBVB12BP1X00

System highlights
AC Type
AC & Electrical Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
18000 BTU VO (1.5 TON)
Indoor Unit
24000 BTU (2.0 TON)
Voltage
208-240V, 208-230V
Looking For
AC & Electrical Furnace System
SEER2 Rating
15.2
Airflow Direction
Upflow, Downflow
Blower Motor
Variable Speed ECM
Maximum CFM
1200
Burner Stages
Two Stages
Coil Style
A-Coil
Cabinet Width (in)
14
Goodman 2 Ton 14" Width Upflow/Downflow Cased Evaporator Coil - TXV - R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$3,921.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 1.5 Ton 14.3 SEER2 Electric Furnace and Air Conditioner System - Upflow/Downflow - 14"

Product Overview

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA1810

The Goodman 1.5 Ton AC Condenser GLXS4MA1810 is designed for multi-family applications, offering reliable cooling performance with an efficiency rating of 14.3 SEER2. With a cooling capacity of 18,000 BTUs, this single-stage unit operates on R32 refrigerant, making it environmentally friendly and energy-efficient. It is built for 208/230V, 1-phase power supply, ensuring compatibility with various residential settings. Durable construction and advanced technology make this condenser an excellent choice for keeping indoor spaces comfortable and cool all summer long.

Key Features

  • High-Efficiency Scroll Compressor – Delivers reliable cooling performance and energy savings
  • Factory-Installed Filter Drier – Helps protect the refrigeration system from moisture and debris
  • Fully Charged for 15’ of Tubing Length – Simplifies installation with pre-charged refrigerant
  • 5mm Diameter Copper Tube / Enhanced Aluminum Fin Coil – Maximizes heat transfer and durability
  • Service Valves with Sweat Connections – Easy-to-access gauge ports simplify servicing and diagnostics
  • Enclosed Contactor with Lug Connection – Safeguards internal electrical components for longer system life
  • Ground Lug Connection – Simplifies safe system grounding during installation
  • High-Pressure Switch – Enhances safety by monitoring abnormal system pressures
  • AHRI Certified – Verified for performance and efficiency by the Air-Conditioning, Heating, and Refrigeration Institute
  • ETL Listed – Tested and certified for safety by Intertek (ETL)

Cabinet Features

  • Removable Grille-Style Top Design – Complies with UL 60335-2-40 and allows easier access for coil maintenance
  • Heavy-Gauge Galvanized-Steel Cabinet – Built to withstand weather and wear over time
  • Architectural Gray Powder-Paint Finish – Durable finish tested with 500-hour salt-spray for corrosion resistance
  • Steel Louver Coil Guard – Provides physical protection for the coil without restricting airflow
  • Single-Panel Access to Controls – Designed with room for field-installed accessories
  • Florida Building Code Compliant – Meets 2023 wind integrity standards for hurricane zones when properly anchored (anchor bracket kits available)

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA1810

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

  • All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
  • Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
  • Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
  • R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
  • 10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

Variable-Speed Air Handler with ComfortBridge Technology – MBVB Series

Upgrade your home’s comfort with the MBVB Series Variable-Speed Air Handler, featuring advanced ComfortBridge Technology. Engineered for efficiency and reliability, this air handler delivers precise temperature control and enhanced airflow for a consistently comfortable environment. With its sleek design and cutting-edge technology, the MBVB Series ensures energy savings while keeping your home cozy year-round.

Perfect for modern homes seeking superior performance and innovative climate solutions.

Features

  • Vertical or Horizontal Installation: Flexible design to fit any space requirement.
  • Variable-Speed Motor: Ensures efficient, quiet, and consistent airflow.
  • Field-Installed Heat Strips: Customizable heating options for added comfort.
  • Blower Section Usable as Electric Heater: Versatile functionality to meet your heating needs.

Product Features (GLXS4MA1810)

  • High-Efficiency Scroll Compressor
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • 5mm diameter copper tube/enhanced aluminum fin coil
  • Service valves with sweat connectionsand easy-to-access gauge ports
  • Enclosed contactor with lug connection
  • Ground lug connection
  • High-pressure switch
  • AHRI Certified
  • ETL Listed

Cabinet Features (GLXS4MA1810)

  • Removable grille style top style grilldesign compatible with UL 60335-2-40
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approva
  • Steel louver coil guard
  • Single-panel access to controls with spaceprovided for field-installed accessories
  • When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLXS4MA1810

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXS4M
series name GLXS4M
model efficiency 14.3 SEER2
family description ENERGY-Efficienct Multi-Family R-32 Split System Air Conditioner, Up to 15.2 SEER2, 1½ To 3 Tons
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051692091
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cooling capacity nominal 18000 Btu/H
eer2 hsvtc 11.7
energy star certified No
seer 2 hsvtc 14.3
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
max overcurrent protection 15 A
min circuit amps 11.1 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 8.32 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 26 in
dimensions unit height 26 in
dimensions unit width 27 in
sound pressure high cooling 73 dBA
weight unit 73 lb
cooling capacity rated 17600 Btu/H
tonnage 1.5
additional refrigerant charge oz ft 0.55 lb
factory std refrigerant charge 54 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 3/4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 27.50 in
dimensions case height 29.50 in
dimensions case width 27.50 in
dimensions distribution unit depth 27.5 in
dimensions distribution unit height 29.5 in
dimensions distribution unit width 27.5 in
dimensions pallet depth 27.50 in
dimensions pallet height 29.50 in
dimensions pallet width 55.00 in
dimensions shipping unit depth 27.50 in
dimensions shipping unit height 29.50 in
dimensions shipping unit width 27.50 in
distribution shipping volume unit 22309.375 in³
shipping volume unit 22309.375 in³
truck factor 0.0000
volume case 22309.375 in³
volume distribution shipping unit 22309.375 in³
weight case 140.000 lb
weight distribution shipping unit 140 lb
weight shipping unit 140.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Features (CAPTA2422A3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valves for cooling and heat pump applications
  • Standardized copper suction tube stub length
  • Check flowrator for cooling and heat pump applications
  • Vertical application
  • 21" depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pan featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan

Technical Specifications - CAPTA2422A3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPTA_3
series name CAPTA AlumaFin7™
family description CAPTA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051688322
item stocking unit of measure uom EA
pallet qty 12
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us Yes
cabinet finish Painted
cased vs uncased Cased
dimensions unit depth 21 in
dimensions unit height 22 in
dimensions unit width 14 in
expansion device TXV
tonnage 2.0
tonnage range 1.5;2
condensate drain outlet 3/4 in
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 24.75 in
dimensions case width 16.25 in
dimensions distribution unit depth 26 in
dimensions distribution unit height 24.75 in
dimensions distribution unit width 16.25 in
dimensions pallet depth 54.00 in
dimensions pallet height 54.00 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 24.75 in
dimensions shipping unit width 16.25 in
distribution shipping volume unit 10456.875 in³
shipping volume unit 10456.875 in³
truck factor 0.0000
volume case 10456.875 in³
volume distribution shipping unit 10456.875 in³
weight case 43.000 lb
weight distribution shipping unit 43 lb
weight shipping unit 43.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (MBVB12BP1X00)

  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridge™ technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
  • Advanced configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications;10. 3 kW – 21 kW electric heat kits
  • Blower section usable as electric heater
  • Compatible with both R410A and R32 (use integration kit)

Cabinet Features (MBVB12BP1X00)

  • Horizontal or vertical configuration capabilities;2. 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193

Technical Specifications - MBVB12BP1X00

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family MBVB
series name Modular Blower
communication feature Yes
communication feature type ComfortBridge Technology compatible
export control classification number eccn EAR99
universal product code upc 663051692886
item stocking unit of measure uom EA
pallet qty 8
country of origin Mexico
us hts code 8414.59.6560
canadian hts code 8414.59.00.92
produced in us No
indoor blower fla 3.9 A
max overcurrent protection 15/15 A
max voltage 253 V
min voltage 197 V
power frequency 60 Hz
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions unit depth 21 in
dimensions unit height 26 in
dimensions unit width 17-1/2 in
motor speed type Fixed Speed ECM
blower motor horsepower 0.5 metric hp
tonnage range 1.5;5
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 29.00 in
dimensions case width 20.00 in
dimensions distribution unit depth 26 in
dimensions distribution unit height 29 in
dimensions distribution unit width 20 in
dimensions pallet depth 54.00 in
dimensions pallet height 62.50 in
dimensions pallet width 41.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 29.00 in
dimensions shipping unit width 20.00 in
distribution shipping volume unit 15080 in³
shipping volume unit 15080.000 in³
truck factor 0.0000
volume case 15080.000 in³
volume distribution shipping unit 15080 in³
weight case 69.000 lb
weight distribution shipping unit 69 lb
weight shipping unit 69.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
