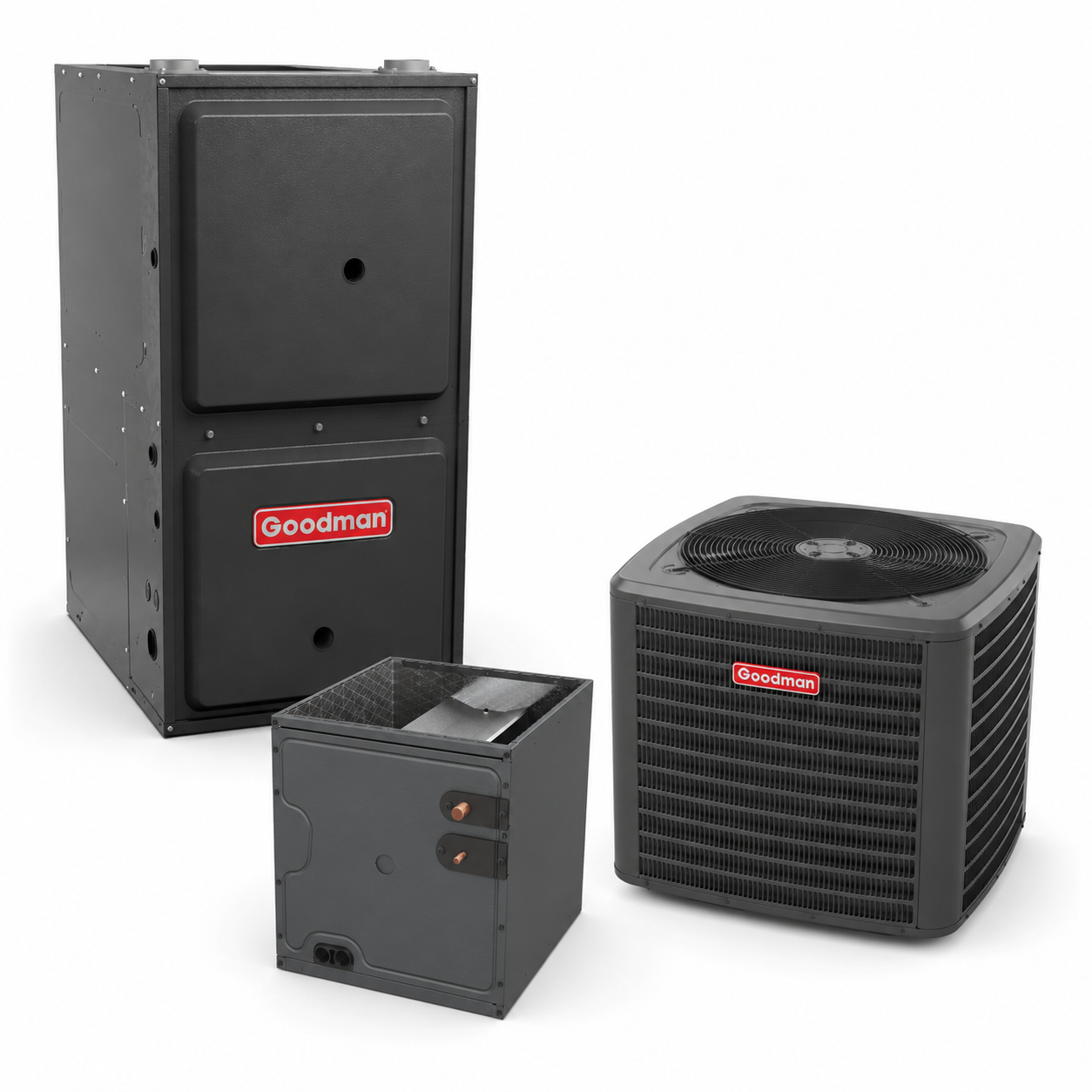

Goodman 1.5 Ton 13.4 SEER2 96% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Downflow/Horizontal

OVERVIEW

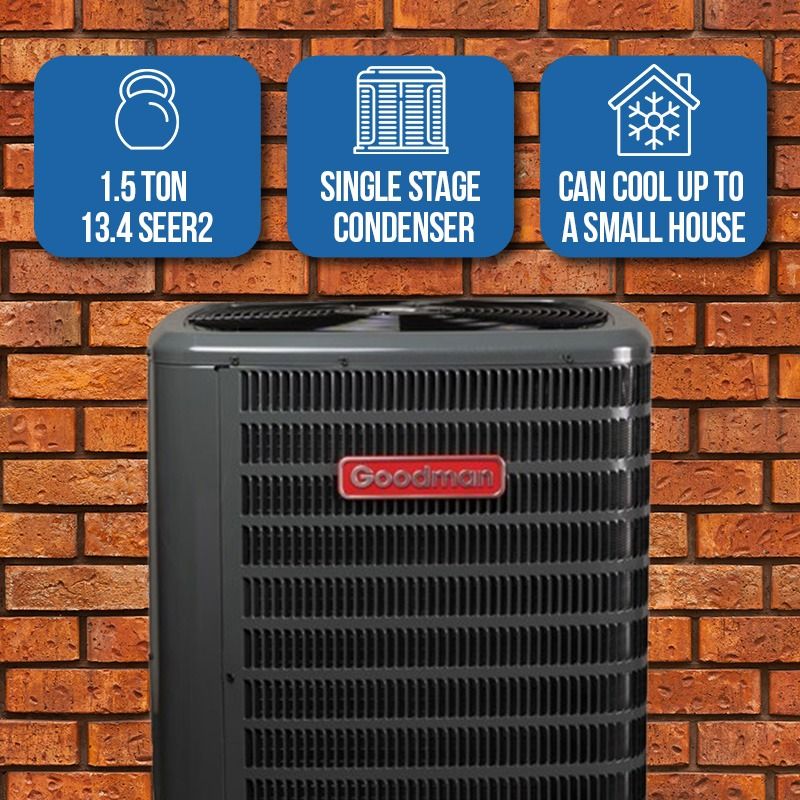

The Goodman GLXS3BN1810 is a cooling-only condenser unit. Providing a 13.4 SEER2 efficiency with a single stage, reciprocating compressor, the GLXS3BN1810 is an inexpensive condenser to cool your home when paired with an AC coil.

QUICK FACTS

• Ideal size to cover a small house
• 1.5 ton, 13.4 SEER2 AC-only condenser
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Low sound output
• Fully charged for up to 15' of line set
• Factory-installed filter drier

1.5 ton

The GLXS3BN1810 condenser is a 1.5 ton AC only unit. In an ideal climate situation, the GLXS3BN1810 can usually cover a small house. For this unit to function, an indoor air handler or coil is required, and this unit is cooling only with no heating capacity on its own.

13.4 SEER2

The Goodman GLXS3BN1810 AC condenser is designed to be 13.4 SEER2. This is the lowest efficiency on the market today, making it an inexpensive option for northern states. Please note that this product is regulated by DOE Efficiency Standards.

Due to efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.

Warranty

The GLXS3BN1810A condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

With an enhanced copper tube and aluminum fin coil, the GLXS3BN1810 is designed to prevent coil degradation. With the baked-on powder-paint finish, the condenser's heavy-gauge galvanized-steel cabinet is approved for up to 500 hours of salt-spray. The factory-installed filter dryer lowers general wear-and-tear on the unit. All of these features provide you with a durable, reliable condenser to be used whenever you need to cool your home.

Installation and Maintenance

The Goodman GLXS3BN1810 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.

Comfort in Mind

The Goodman brand always has its customer's comfort in mind. The GLXS3BN1810 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.

Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.

OVERVIEW

If you're looking to reduce your energy bill and improve the comfort of your home, look no further than Goodman's GD9S960603BN. This gas furnace features efficient operation and high-quality construction to provide your home with reliable, affordable heating. The GD9S960603BN single-stage, 9-speed furnace is a great value designed for many applications.

QUICK FACTS

• This furnace is ideal to heat a small to medium house (depending on climate)
• 60,000 BTU 96% efficient natural gas furnace
• Requires plastic/pvc flue venting
• Complies with Clean Air Act New Refrigerant Requirements
• Can be used in the downflow or horizontal orientation
• Can be converted to an LP furnace with a conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output

60,000 BTU

The GD9S960603BN Goodman gas furnace is suitable in output for a small to medium house in ideal climate conditions. The 60,000 BTU count is the input per hour of the furnace, and the output is 57,600 BTU's (60,000 x 96% AFUE) per hour.

96% Efficiency Rating

The GD9S960603BN Goodman gas furnace has a 96% efficiency rating. This means that only 4% of the fuel going into the furnace is used up in normal furnace operations and not used to heat your home. The remaining 96% of the inputted fuel is used to heat your home. 96% efficient furnaces is one of the highest efficiencies of natural gas furnaces available for purchase with today's technology. Please note that 96% efficient furnaces such as this one require plastic/pvc flue venting, and 80% efficient furnaces require metal flue venting.

Single Stage Furnace

A single stage furnace operates using the same amount of energy every time is turns on. The GD9S960603BN Goodman gas furnace operates using only one heat output. This furnace will operate at 100% output whenever it is operating.

Natural Gas or LP Furnace

From the factory, the GD9S960603BN runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

9-Speed ECM Blower Motor

The GD9S960603BN utilizes a 9-speed ECM motor, which is more efficient than older PSC blower motors, saving you money in electric bills.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

Instead of a standing pilot light, the GD9S960603BN has a newer, more efficient hot surface igniter. Hot surface igniters are much more efficient and safer than standard standing pilot lights.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely runs into any operation-based problems. However, if the furnace does need maintenance or warranty work, the control board has a set of sensors that will identify any basic problems in the furnace's basic operation.

Heavy Gauge Steel Cabinet

The GD9S960603BN Goodman gas furnace has a durable outer cabinet. The heavy-gauge steel used in the furnace's design allows for a more protected interior, and less air leakage from the furnace's operation, resulting in a more quiet operation while still decreasing operation costs.

Ease of Installation

From enhanced operation to efficiency, the Goodman gas furnaces have a lot to offer. However, Goodman's features don't stop at quality of unit. The GD9S960603BN allows for a significantly more streamlined installation process with its universal design, consisting of its ability to be installed in either downflow or horizontal configurations, lowering labor costs.
