Quietflex | Flex Duct | SKU 1680

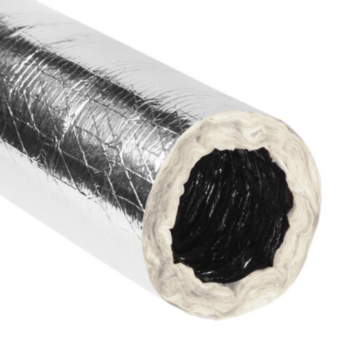

Flexible Duct, Air Rip-Stop, 16 in Dia, 25 ft LG, R6, Round
Product Description
The Quietflex Flexible Duct, Air Rip-Stop, 16 in Dia, 25 ft LG, R6, Round is an HVAC replacement part. It is used for flex duct service and replacement work. Key details include 10 in wc Positive, 0.5 in wc Negative, -20 to 180 ������F Continuous, -20 to 200 ������F Intermittent, R6 Insulation, 6000 fpm Max, Polyester Vapor Barrier, Fiberglass Insulation, Silver Jacket, Round, ASTM C518, Meets ETL, HUD/FHA, NFPA, UL 181.
Document links are included below. Order by part number 1680 and compare it with the label on your existing component before purchasing.
Technical Specifications - 1680
| Part Number | 1680 |
|---|---|
| Full SKU | MHVC-RES-PDSR-1680 |
| Brand | Quietflex |
| Part Type | Flex Duct |
| Category | Ductwork Accessories |
| Catalog Detail | 10 in wc Positive, 0.5 in wc Negative, -20 to 180 ������F Continuous, -20 to 200 ������F Intermittent, R6 Insulation, 6000 fpm Max, Polyester Vapor Barrier, Fiberglass Insulation, Silver Jacket, Round, ASTM C518, Meets ETL, HUD/FHA, NFPA, UL 181 |
| Country of Origin | USA |
| Unit Height | 31 in |
| Unit Width | 29.09375 in |
| Unit Depth | 31 in |
| Unit Weight | 29.1 lb |
