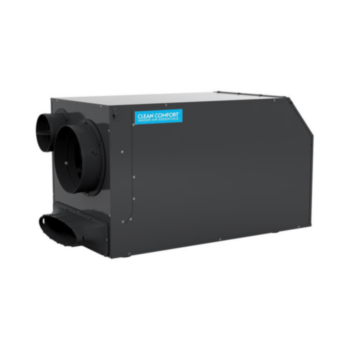

Goodman | Dehumidifiers | SKU DV155
Dehumidifier, Ventilating, 3500 ft2, 155 Pints/day, 10 in
Product Description
The Goodman Dehumidifier, Ventilating, 3500 ft2, 155 Pints/day, 10 in is an HVAC replacement part. It is used for dehumidifiers service and replacement work. Key details include 3500 ft2 Coverage Area, 155 Pints/day Tank Capacity, 120 VAC, 1 PH, 60 Hz, 10 in Duct Connection, Ducted/Stand Alone Mounting, 20.25 in WD, 21.75 in HT, 38 in DP, 56 to 95 degF, Meets ETL.
Document links are included below. Order by part number DV155 and compare it with the label on your existing component before purchasing.
Technical Specifications - DV155
| Part Number | DV155 |
|---|---|
| Full SKU | MHVC-RES-PAQF-DV155 |
| Brand | Goodman |
| Part Type | Dehumidifiers |
| Category | Air Quality and Filters |
| Catalog Detail | 3500 ft2 Coverage Area, 155 Pints/day Tank Capacity, 120 VAC, 1 PH, 60 Hz, 10 in Duct Connection, Ducted/Stand Alone Mounting, 20.25 in WD, 21.75 in HT, 38 in DP, 56 to 95 degF, Meets ETL |
| Country of Origin | USA |
| Width | 20¼" (51.4 cm) 24" (61 cm) |
| Height | 21¾" (55.2 cm) 28¼" (71.8 cm) |
| Depth | 38" (96.5 cm) 42" (107 cm) |
| Weight | 140 lbs (64 kg) 160 lbs (73 kg) |
| Power | 920 Watts @ 80°F/60% RH |
| Supply Voltage | 110-120 Volt - 1 Phase - 60 Hz |
| Current Draw | 8.0 Amps |
| Operating Temp. | 56 °F (13 °C) Min, 95°F (35 °C) Max |
Documents & Downloads
