Daikin

Daikin Hyper Heat Aurora 4-Zone Ductless Mini Split AC & Heat Pump 36000 BTU (7K+7K+7K+15K), Wall Mount Units, 230V - R32

SKU: 4MXT36AVJU9 + 3X CTXV07AVJU9 + FTXV15AVJU9

AC Type

Wall Mount

Refrigerant Type

R32

Brand

Daikin

Outdoor Unit

36000 BTU VO (3.0 TON)

Indoor Unit

7000 BTU (0.58 TON), 15000 BTU (1.25 TON)

Voltage

208-230V

Looking For

Wall Mount, Pre-Made Kits

Cooling Area (sq.ft.)

150-250, 550-750

Series

Aurora, Hyper

SEER2 Rating

20.0

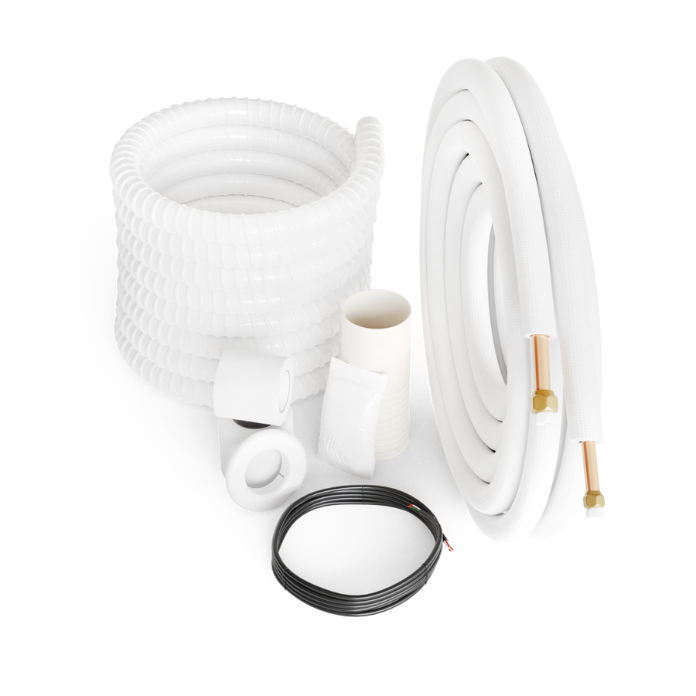

Title No installation 16FT 25FT 50FT

Price

$8,286.00

Shipping calculated at checkout.

View full details

Daikin

Daikin Hyper Heat Aurora 4-Zone Ductless Mini Split AC & Heat Pump 36000 BTU (7K+7K+7K+15K), Wall Mount Units, 230V - R32

Product Overview

This Daikin 4 zone-Zone Aurora,Hyper System offers maximum efficiency and is built for the most extreme hot or cold climates. 4MXT36AVJU9 + 3X CTXV07AVJU9 + FTXV15AVJU9 is the perfect solution for year-round heating and cooling in up to 4 zone spaces.

Multi-Zone comfort: One outdoor unit connects up to five separate fan coils individually controlled
Variable Speed Inverter Compressor
Cooling Range 14° - 115° F
Continuous heating operation as low as -13F° (-25°C)
Quick and easy installation
Precision temperature control for individual rooms
Space-saving design
Quiet operation
Intelligent Defrost Mode

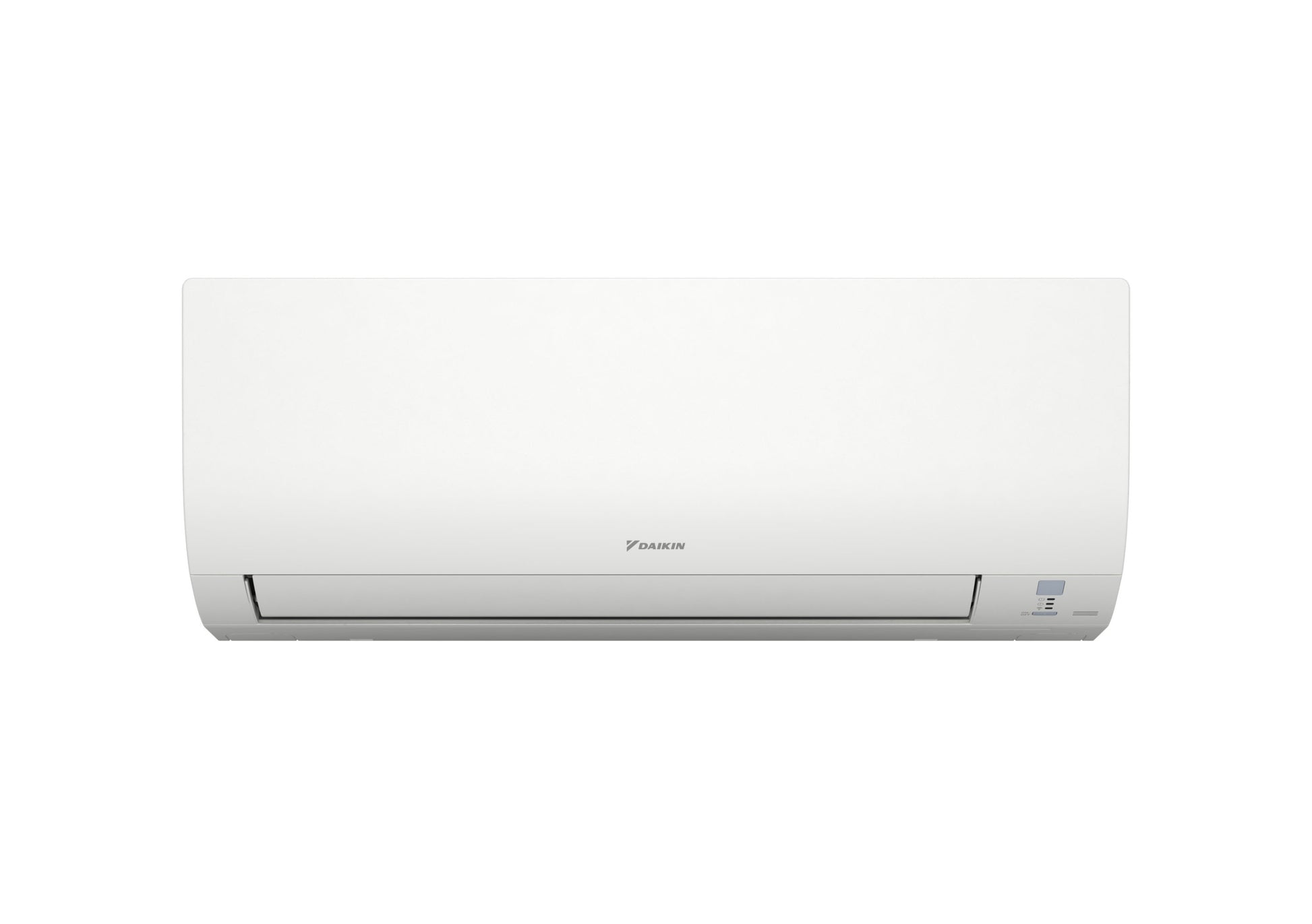

Daikin 7,000 BTU Multi-Zone Wall Mount Air Handler - R32 | 230V

The Daikin 7,000 BTU Multi-Zone Wall Mount Air Handler is a versatile and energy-efficient solution for single zone and multi zone heating and cooling systems. Designed to pair with up to 4-ton heat pumps, this unit delivers up to 20.6 SEER2, 12 EER2, and 9.7 HSPF2, ensuring exceptional energy savings and reliable performance for both residential and light commercial applications.

Key Features:

Flexible Multi-Zone Operation:

Supports 2, 3, 4, and 5-zone multi-port systems for tailored comfort
Operates efficiently within a wide range of conditions:
- MXM Heating: 5Â°F to 60Â°F
- MXT Heating: -13Â°F to 60Â°F
- Cooling: 14Â°F to 115Â°F
Delivers 100% heating capacity at 5Â°F (MXT Enhanced Capacity only)
Delivers 100% cooling capacity at 104Â°F (MXT Capacity only)

Exceptional Energy Efficiency and Performance:

Delivers up to 20.6 SEER2, 12 EER2, and 9.7 HSPF2 for superior energy efficiency
Precharged for up to 131 ft of liquid line, streamlining installation

Advanced Technology:

Self-diagnostics with a digital display for easy maintenance and troubleshooting
Features Auto Restart to resume operation seamlessly after power outages
Includes Auto Changeover for effortless transition between heating and cooling

Quiet and Durable Design:

Indoor sound pressure as low as 24 dB(A) for whisper-quiet operation
Outdoor sound pressure as low as 52 dB(A), ensuring minimal noise
Anti-corrosion treatment on the heat exchanger enhances durability and extends lifespan

User-Friendly Features:

Operates with outdoor unit quiet mode for reduced noise levels

Warranty Coverage:

Limited 12-Year Parts Warranty ensures reliable long-term performance
Extended 12-Year Labor Warranty provides comprehensive coverage

The Daikin 7,000 BTU Multi-Zone Wall Mount Air Handler combines energy efficiency, advanced technology, and a quiet design to provide superior comfort and reliability. Perfect for multi-zone systems, it delivers optimal performance in all seasons, making it an excellent choice for year-round comfort.

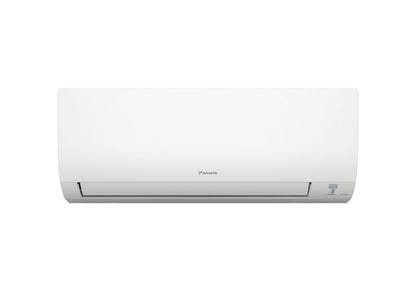

Daikin Aurora 15,000 BTU Wall Mount Air Handler - R32 | 230V

The Daikin Aurora 15,000 BTU Wall Mount Air Handler is a versatile and energy-efficient solution for single zone and multi zone heating and cooling systems. Featuring advanced R32 refrigerant, built-in WiFi, and robust heat pump technology, this unit ensures reliable comfort in both extreme heat and cold while maintaining quiet operation and exceptional energy efficiency.

Key Features:

Exceptional Heating & Cooling Performance:

Supports 0.75 Ton to 2 Ton Heat Pump Systems
Achieves up to 21 SEER2 and up to 10.5 HSPF2 for superior energy efficiency
Capable of:
- 100% heating capacity at 5Â°F
- 100% cooling capacity at 104Â°F
Operates across a wide temperature range:
- Heating: -13Â°F to 64.4Â°F
- Cooling: 50Â°F to 114.8Â°F

Advanced Technology:

Built-in WiFi (wall mount unit only) for seamless remote control and connectivity
Self-diagnostics with a digital display for simplified maintenance and troubleshooting
Multiple modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
Equipped with Auto Fan Speed Control to ensure consistent and optimized airflow

Durable and Quiet Design:

Anti-Corrosion Treatment on the heat exchanger for enhanced durability and extended lifespan
Quiet operation for both indoor and outdoor units, minimizing noise disruptions

Flexible Installation and Operation:

Precharged for up to 49 ft of liquid line, simplifying installation
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
Low ambient cooling capability down to 5Â°F with field setting and air adjustment grille

User-Friendly Features:

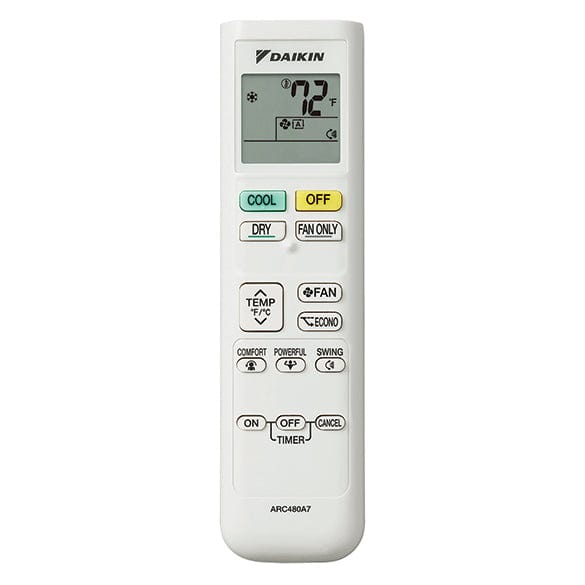

Includes a Wireless Backlit IR Remote Controller for convenient operation
Features Auto Restart functionality, resuming operation automatically after power interruptions

Warranty Coverage:

Limited 12-Year Parts Warranty ensures long-term reliability
Extended 12-Year Labor Warranty provides comprehensive protection

The Daikin Aurora 15,000 BTU Wall Mount Air Handler is the perfect combination of energy efficiency, advanced technology, and reliable performance. Ideal for single zone and multi zone systems, it delivers year-round comfort in extreme temperatures, making it a superior choice for residential and light commercial applications.

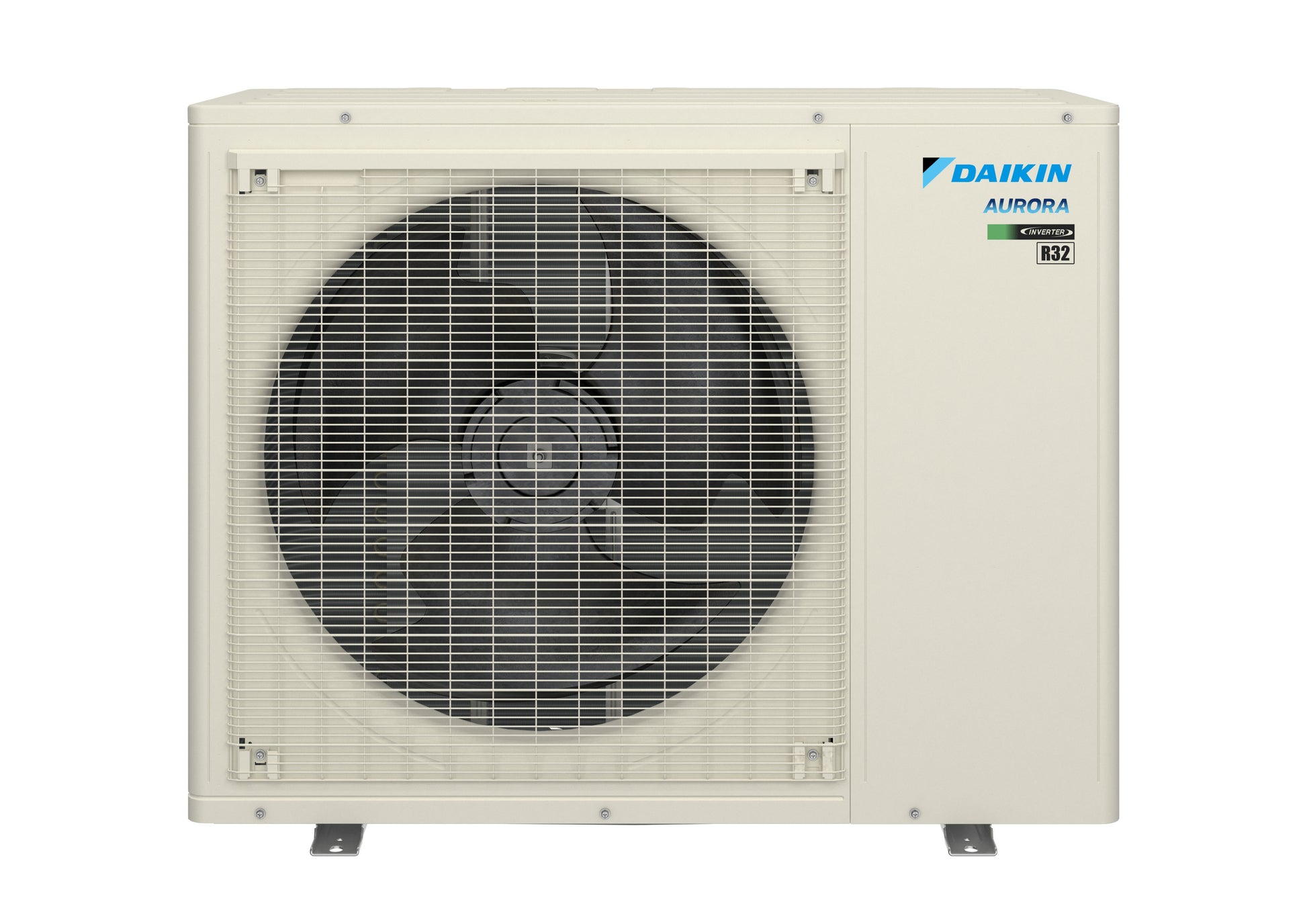

Technical Specifications — 4MXT36AVJU9

sku	4MXT36AVJU9
manufacturer	Daikin
product category	Ductless Mini-Splits
product class	Multi-Split Heat Pump
system family	Multi-Split
function category	Heat Pump
product type	Equipment
unit type	Outdoor
product family	4MXT_AVJU9
series name	Multi Split Heat Pump Outdoor
short description	Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump
product description	3.0-Ton R-32, 4 port aurora multi od
cooling btu	34,400
heating btu	33,200
seer2	20
decibel level (dba)	55 dBA
refrigerant	R-32
compressor type	Swing
liquid line	1/4 in
suction line	3/8 in
electrical	208-230 V \| 60 Hz \| 1 Ph
max breaker size	40 A
min. breaker size	37.5 A
tonnage	3
btu/tonnage	34,400 BTU/3 Ton
min/max outdoor temp for heating	-13 °F to 75.2 °F
min/max outdoor temp for cooling	14 °F to 114.8 °F
zone compatibility	Multi Zone
height	34-1/4 in
width	43-5/16 in
depth	18-1/8 in
weight	216 lb
safety information	Proposition 65 Label: Yes
ahri reference number	217747240

Technical Specifications — CTXV07AVJU9

sku	CTXV07AVJU9
manufacturer	Daikin
product category	Ductless Mini-Splits
product class	Multi-Split Fan Coil
system family	Multi-Split
function category	Cooling Only
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	CTXV_AVJU9
series name	Multi-Split Fan Coil Indoor R-32
short description	Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil
family description	0.5 Ton Wall Mounted Unit
product description	1/2 Ton Wall Mounted Unit - R-32
decibel level (dba)	40 dBA
refrigerant	R-32
liquid line	1/4 in
suction line	3/8 in
electrical	208-230 V \| 60 Hz \| 1 Ph
tonnage	0.5
zone compatibility	Multi Zone
height	11-1/4 in
width	30-5/16 in
depth	8-3/4 in
weight	19 lb
warranty	ALL PARTS - 12 YEARS PARTS
safety information	Proposition 65 Label: Yes

Technical Specifications — FTXV15AVJU9

sku	FTXV15AVJU9
manufacturer	Daikin
product category	Ductless Mini-Splits
product class	Multi-Split Fan Coil
system family	Multi-Split
function category	Cooling Only
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	FTXV_AVJU9
series name	Multi-Split Fan Coil Indoor
short description	Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil
family description	R-32 0.75 - 2.0 Ton Wall Mounted Unit
product description	1.25 Ton Wall Mount R-32
decibel level (dba)	45 dBA
refrigerant	R-32
liquid line	1/4 in
suction line	1/2 in
electrical	208-230 V \| 60 Hz \| 1 Ph
tonnage	1.25
zone compatibility	Multi Zone
height	11-5/8 in
width	39 in
depth	10-3/8 in
weight	27 lb
warranty	ALL PARTS - 12 YEARS PARTS
safety information	Proposition 65 Label: Yes
