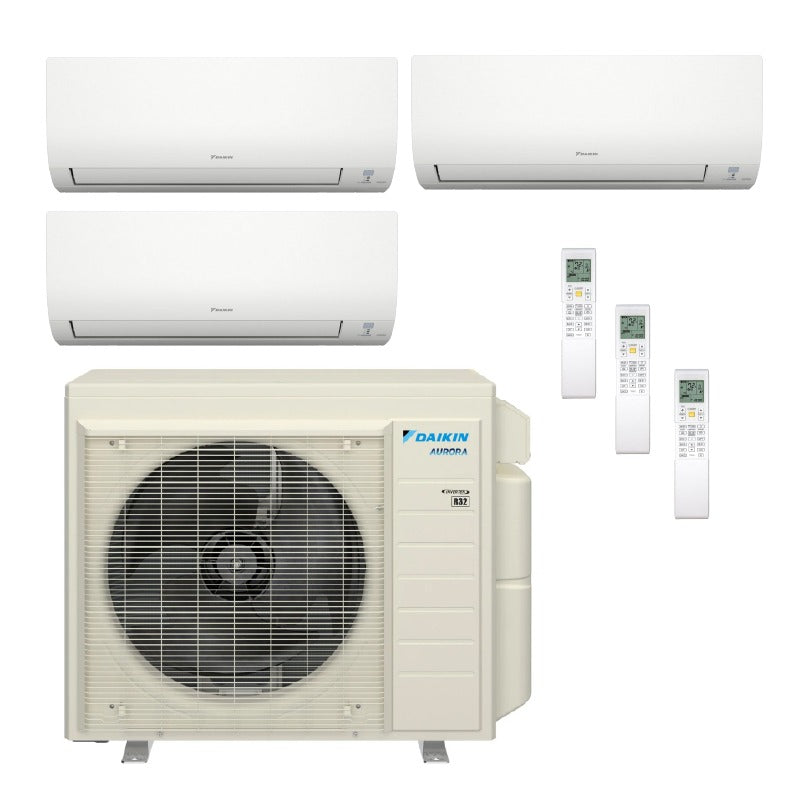

Daikin Hyper Heat Aurora 3-Zone Ductless Mini Split AC & Heat Pump 360

Product Overview

This Daikin 3 zone-Zone Aurora,Hyper System offers maximum efficiency and is built for the most extreme hot or cold climates. 4MXT36AVJU9 + 2X FTXV12AVJU9 + FTXV18AVJU9 is the perfect solution for year-round heating and cooling in up to 3 zone spaces.

Multi-Zone comfort: One outdoor unit connects up to five separate fan coils individually controlled
Variable Speed Inverter Compressor
Cooling Range 14° - 115° F
Continuous heating operation as low as -13F° (-25°C)
Quick and easy installation
Precision temperature control for individual rooms
Space-saving design
Quiet operation
Intelligent Defrost Mode

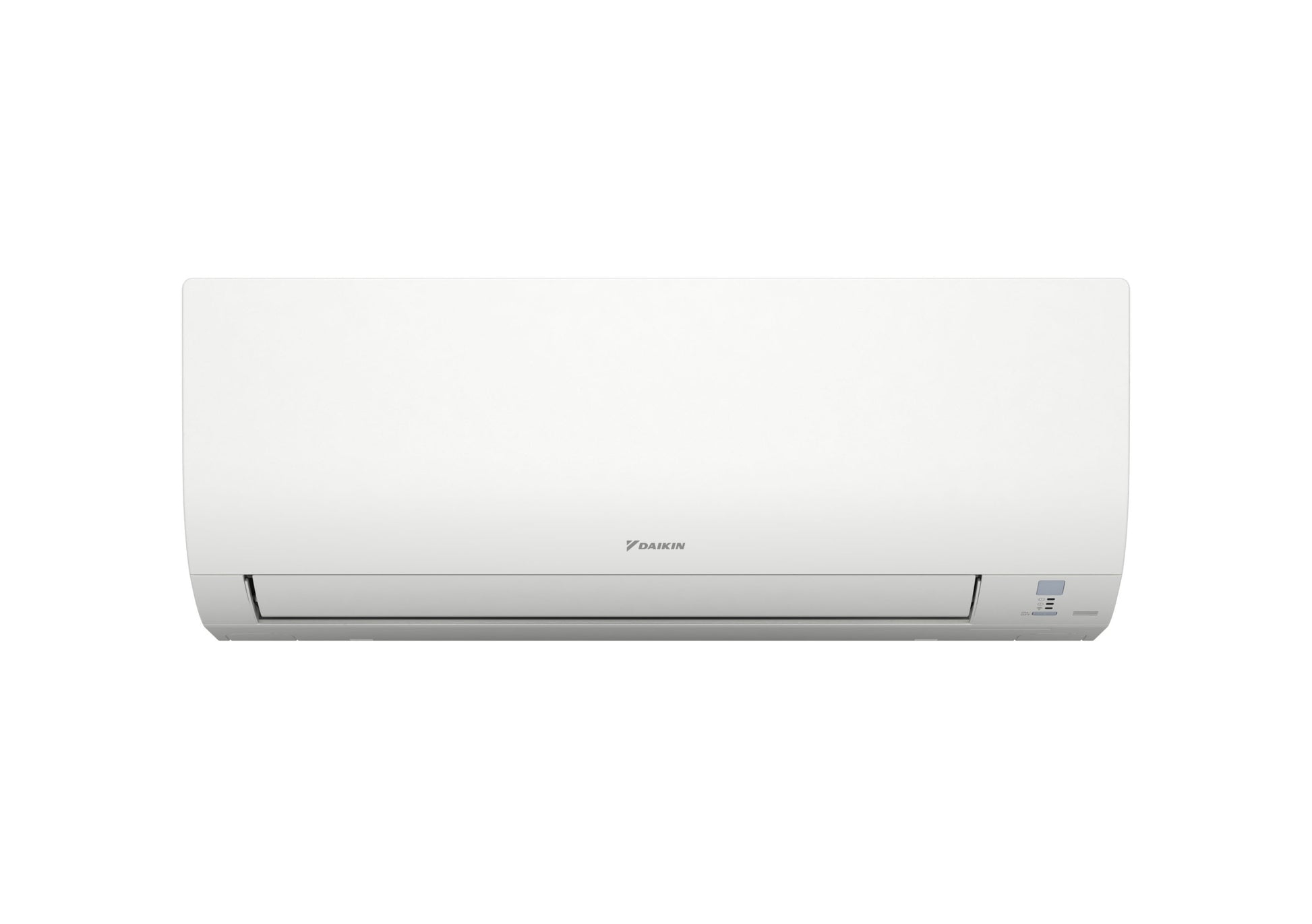

Daikin Aurora 12,000 BTU Wall Mount Air Handler - R32 | 230V

The Daikin Aurora 12,000 BTU Wall Mount Air Handler is a versatile, energy-efficient heating and cooling solution for single zone and multi zone applications. Featuring advanced R32 refrigerant, built-in WiFi, and a robust heat pump, this unit delivers reliable comfort even in extreme temperatures while ensuring quiet operation and superior energy savings.

Key Features:

Superior Heating & Cooling Performance:

Supports 0.75 Ton to 2 Ton Heat Pump Systems
Delivers up to 21 SEER2 and up to 10.5 HSPF2 for outstanding energy efficiency
Maintains:
- 100% heating capacity at 5Â°F
- 100% cooling capacity at 104Â°F
Operates effectively within a wide temperature range:
- Heating: -13Â°F to 64.4Â°F
- Cooling: 50Â°F to 114.8Â°F

Advanced Technology:

Built-in WiFi (wall mount unit only) for seamless connectivity and remote control
Self-diagnostics with a digital display for easy maintenance and troubleshooting
Multiple operation modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
Equipped with Auto Fan Speed Control to ensure consistent and optimized airflow

Durable and Quiet Design:

Anti-Corrosion Treatment on the heat exchanger enhances durability and extends lifespan
Offers quiet operation for both indoor and outdoor units, minimizing noise disruptions

Flexible Installation and Operation:

Precharged for up to 49 ft of liquid line, simplifying installation
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
Low ambient cooling capability down to 5Â°F with field setting and air adjustment grille

User-Friendly Features:

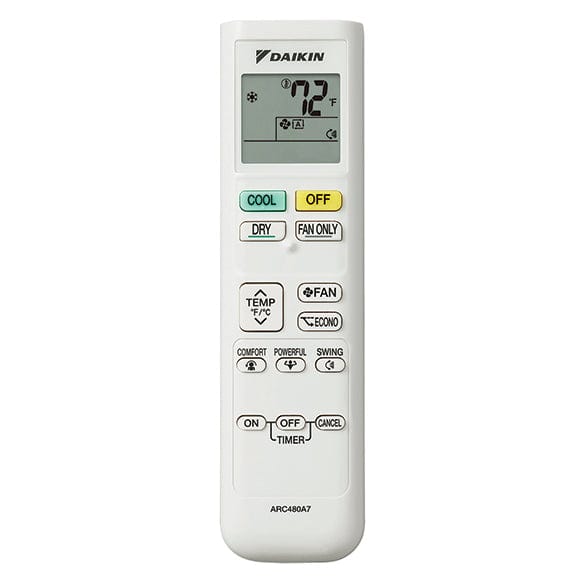

Comes with a Wireless Backlit IR Remote Controller for convenient operation
Includes Auto Restart functionality to resume operation automatically after power interruptions

Warranty Coverage:

Limited 12-Year Parts Warranty for reliable performance
Extended 12-Year Labor Warranty for comprehensive protection

The Daikin Aurora 12,000 BTU Wall Mount Air Handler combines advanced features, durable design, and exceptional energy efficiency. Designed for single zone and multi zone systems, it ensures year-round comfort in extreme temperatures, making it an ideal choice for both residential and light commercial applications.

Daikin Aurora 18,000 BTU Wall Mount Air Handler - R32 | 230V

The Daikin Aurora 18,000 BTU Wall Mount Air Handler is a high-performance, energy-efficient solution for single zone and multi zone heating and cooling applications. Featuring advanced R32 refrigerant, built-in WiFi, and robust heat pump technology, this unit ensures reliable comfort in extreme temperatures while maintaining quiet operation and exceptional energy efficiency.

Key Features:

Exceptional Heating & Cooling Performance:

Supports 0.75 Ton to 2 Ton Heat Pump Systems
Delivers up to 21 SEER2 and up to 10.5 HSPF2 for superior energy efficiency
Capable of:
- 100% heating capacity at 5Â°F
- 100% cooling capacity at 104Â°F
Operates within a wide temperature range:
- Heating: -13Â°F to 64.4Â°F
- Cooling: 50Â°F to 114.8Â°F

Advanced Technology:

Built-in WiFi (wall mount unit only) for seamless remote control and connectivity
Self-diagnostics with a digital display for simplified maintenance and troubleshooting
Multiple modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
Equipped with Auto Fan Speed Control to ensure consistent and optimized airflow

Durable and Quiet Design:

Anti-Corrosion Treatment on the heat exchanger enhances durability and extends lifespan
Quiet operation for both indoor and outdoor units minimizes noise disruptions

Flexible Installation and Operation:

Precharged for up to 49 ft of liquid line, simplifying installation
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
Low ambient cooling capability down to 5Â°F with field setting and air adjustment grille

User-Friendly Features:

Includes a Wireless Backlit IR Remote Controller for convenient operation
Features Auto Restart functionality to resume operation automatically after power interruptions

Warranty Coverage:

Limited 12-Year Parts Warranty ensures long-term reliability
Extended 12-Year Labor Warranty provides comprehensive protection

The Daikin Aurora 18,000 BTU Wall Mount Air Handler is the perfect combination of energy efficiency, advanced technology, and reliable performance. Ideal for single zone and multi zone systems, it delivers year-round comfort in extreme temperatures, making it a superior choice for residential and light commercial applications.

Technical Specifications — 4MXT36AVJU9

sku	4MXT36AVJU9
manufacturer	Daikin
product category	Ductless Mini-Splits
product class	Multi-Split Heat Pump
system family	Multi-Split
function category	Heat Pump
product type	Equipment
unit type	Outdoor
product family	4MXT_AVJU9
series name	Multi Split Heat Pump Outdoor
short description	Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump
product description	3.0-Ton R-32, 4 port aurora multi od
cooling btu	34,400
heating btu	33,200
seer2	20
decibel level (dba)	55 dBA
refrigerant	R-32
compressor type	Swing
liquid line	1/4 in
suction line	3/8 in
electrical	208-230 V \| 60 Hz \| 1 Ph
max breaker size	40 A
min. breaker size	37.5 A
tonnage	3
btu/tonnage	34,400 BTU/3 Ton
min/max outdoor temp for heating	-13 °F to 75.2 °F
min/max outdoor temp for cooling	14 °F to 114.8 °F
zone compatibility	Multi Zone
height	34-1/4 in
width	43-5/16 in
depth	18-1/8 in
weight	216 lb
safety information	Proposition 65 Label: Yes
ahri reference number	217747240

Technical Specifications — FTXV12AVJU9

sku	FTXV12AVJU9
manufacturer	Daikin
product category	Ductless Mini-Splits
product class	Multi-Split Fan Coil
system family	Multi-Split
function category	Cooling Only
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	FTXV_AVJU9
series name	Multi-Split Fan Coil Indoor
short description	Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil
family description	R-32 0.75 - 2.0 Ton Wall Mounted Unit
product description	1 Ton Wall Mount R-32
decibel level (dba)	45 dBA
refrigerant	R-32
liquid line	1/4 in
suction line	3/8 in
electrical	208-230 V \| 60 Hz \| 1 Ph
tonnage	1
zone compatibility	Multi Zone
height	11-1/4 in
width	30-5/16 in
depth	8-3/4 in
weight	19 lb
warranty	ALL PARTS - 12 YEARS PARTS
safety information	Proposition 65 Label: Yes

Technical Specifications — FTXV18AVJU9

sku	FTXV18AVJU9
manufacturer	Daikin
product category	Ductless Mini-Splits
product class	Multi-Split Fan Coil
system family	Multi-Split
function category	Cooling Only
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	FTXV_AVJU9
series name	Multi-Split Fan Coil Indoor
short description	Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil
family description	R-32 0.75 - 2.0 Ton Wall Mounted Unit
product description	1.5 Ton Wall Mount - R-32
decibel level (dba)	48 dBA
refrigerant	R-32
liquid line	1/4 in
suction line	1/2 in
electrical	208-230 V \| 60 Hz \| 1 Ph
zone compatibility	Multi Zone
height	11-5/8 in
width	39 in
depth	10-3/8 in
weight	27 lb
warranty	ALL PARTS - 12 YEARS PARTS
safety information	Proposition 65 Label: Yes
