Product Overview

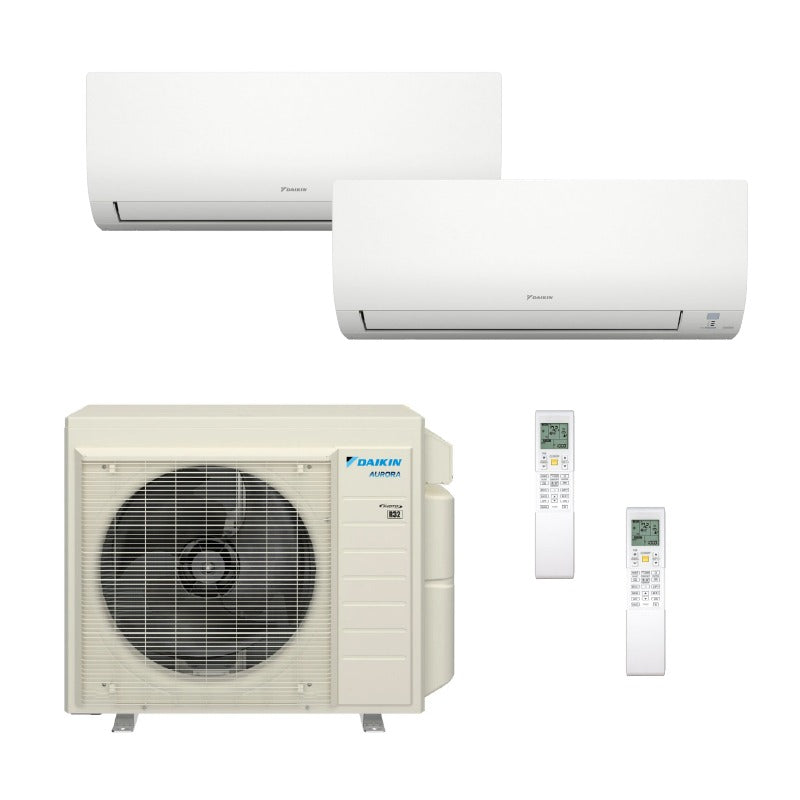

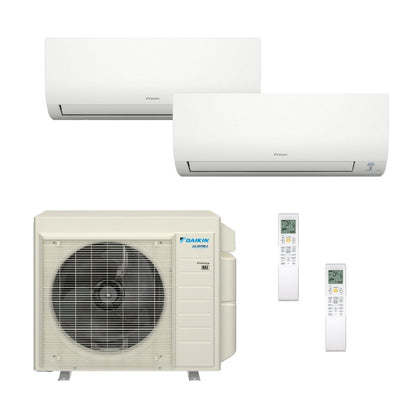

This Daikin 2 zone-Zone Aurora,Hyper System offers maximum efficiency and is built for the most extreme hot or cold climates. 4MXTH36AVJU9 + FTXV12AVJU9 + FTXV24AVJU9 is the perfect solution for year-round heating and cooling in up to 2 zone spaces.
- Multi-Zone comfort: One outdoor unit connects up to five separate fan coils individually controlled
- Variable Speed Inverter Compressor
- Cooling Range 14° - 115° F
- Continuous heating operation as low as -13F° (-25°C)
- Quick and easy installation
- Precision temperature control for individual rooms
- Space-saving design
- Quiet operation
- Intelligent Defrost Mode

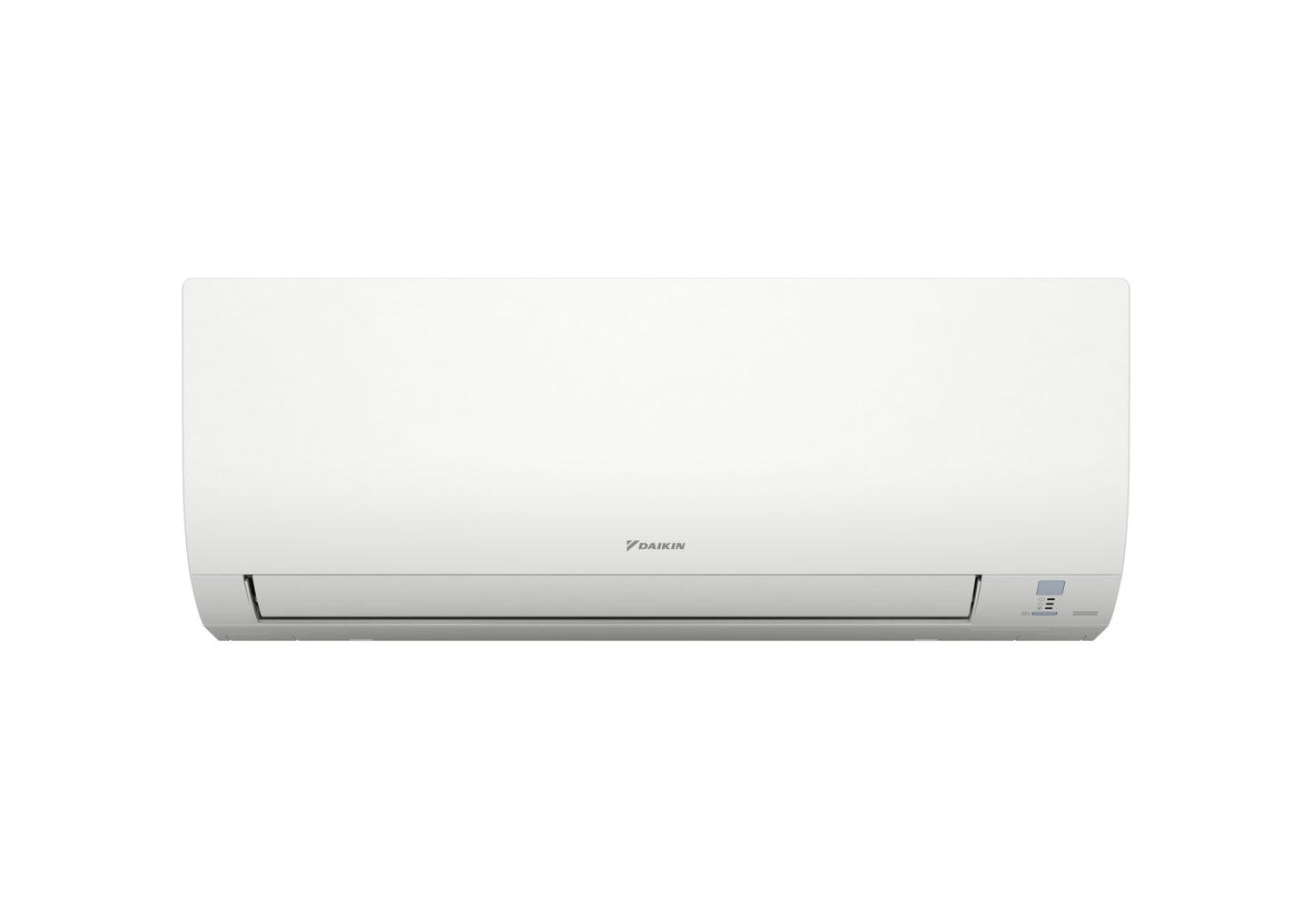

Daikin Aurora 12,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Aurora 12,000 BTU Wall Mount Air Handler is a versatile, energy-efficient heating and cooling solution for single zone and multi zone applications. Featuring advanced R32 refrigerant, built-in WiFi, and a robust heat pump, this unit delivers reliable comfort even in extreme temperatures while ensuring quiet operation and superior energy savings.
Key Features:
Superior Heating & Cooling Performance:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 21 SEER2 and up to 10.5 HSPF2 for outstanding energy efficiency
- Maintains:
- 100% heating capacity at 5°F
- 100% cooling capacity at 104°F
- Operates effectively within a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Built-in WiFi (wall mount unit only) for seamless connectivity and remote control
- Self-diagnostics with a digital display for easy maintenance and troubleshooting
- Multiple operation modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
- Equipped with Auto Fan Speed Control to ensure consistent and optimized airflow
Durable and Quiet Design:
- Anti-Corrosion Treatment on the heat exchanger enhances durability and extends lifespan
- Offers quiet operation for both indoor and outdoor units, minimizing noise disruptions
Flexible Installation and Operation:
- Precharged for up to 49 ft of liquid line, simplifying installation
-
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
- Low ambient cooling capability down to 5°F with field setting and air adjustment grille
User-Friendly Features:

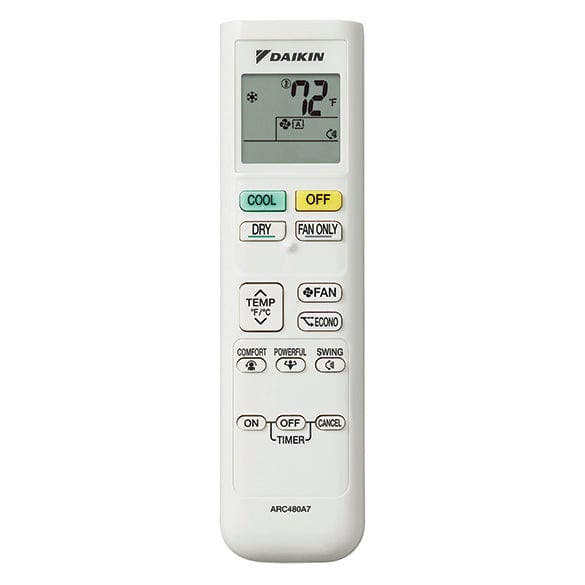

- Comes with a Wireless Backlit IR Remote Controller for convenient operation
- Includes Auto Restart functionality to resume operation automatically after power interruptions
Warranty Coverage:
- Limited 12-Year Parts Warranty for reliable performance
- Extended 12-Year Labor Warranty for comprehensive protection
The Daikin Aurora 12,000 BTU Wall Mount Air Handler combines advanced features, durable design, and exceptional energy efficiency. Designed for single zone and multi zone systems, it ensures year-round comfort in extreme temperatures, making it an ideal choice for both residential and light commercial applications.
Daikin Aurora 24,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Aurora 24,000 BTU Wall Mount Air Handler is a powerful and energy-efficient heating and cooling solution designed for single zone and multi zone systems. Featuring advanced R32 refrigerant, built-in WiFi, and a durable heat pump, this unit delivers consistent and reliable comfort even in extreme conditions, all while maintaining quiet operation and superior energy efficiency.
Key Features:
Superior Heating & Cooling Performance:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 21 SEER2 and up to 10.5 HSPF2 for exceptional energy efficiency
- Capable of:
- 100% heating capacity at 5°F
- 100% cooling capacity at 104°F
- Operates within a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Built-in WiFi (wall mount unit only) for seamless connectivity and remote control
- Self-diagnostics with a digital display for simplified maintenance and troubleshooting
- Multiple operation modes, including Econo Mode, Dry Function, and Powerful Mode, for personalized comfort
- Equipped with Auto Fan Speed Control for consistent and optimized airflow
Durable and Quiet Design:
- Anti-Corrosion Treatment on the heat exchanger enhances durability and ensures long-term performance
- Quiet operation for both indoor and outdoor units minimizes noise for a peaceful environment
Flexible Installation and Operation:
- Precharged for up to 49 ft of liquid line, simplifying installation
-
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
- Low ambient cooling capability down to 5°F with field setting and air adjustment grille
User-Friendly Features:
- Includes a Wireless Backlit IR Remote Controller for convenient operation
- Features Auto Restart functionality to resume operation automatically after power interruptions
Warranty Coverage:
- Limited 12-Year Parts Warranty ensures long-term reliability
The Daikin Aurora 24,000 BTU Wall Mount Air Handler combines advanced technology, durable construction, and superior energy efficiency. Designed for single zone and multi zone systems, it provides reliable year-round comfort in extreme temperatures, making it an excellent choice for residential and light commercial applications.

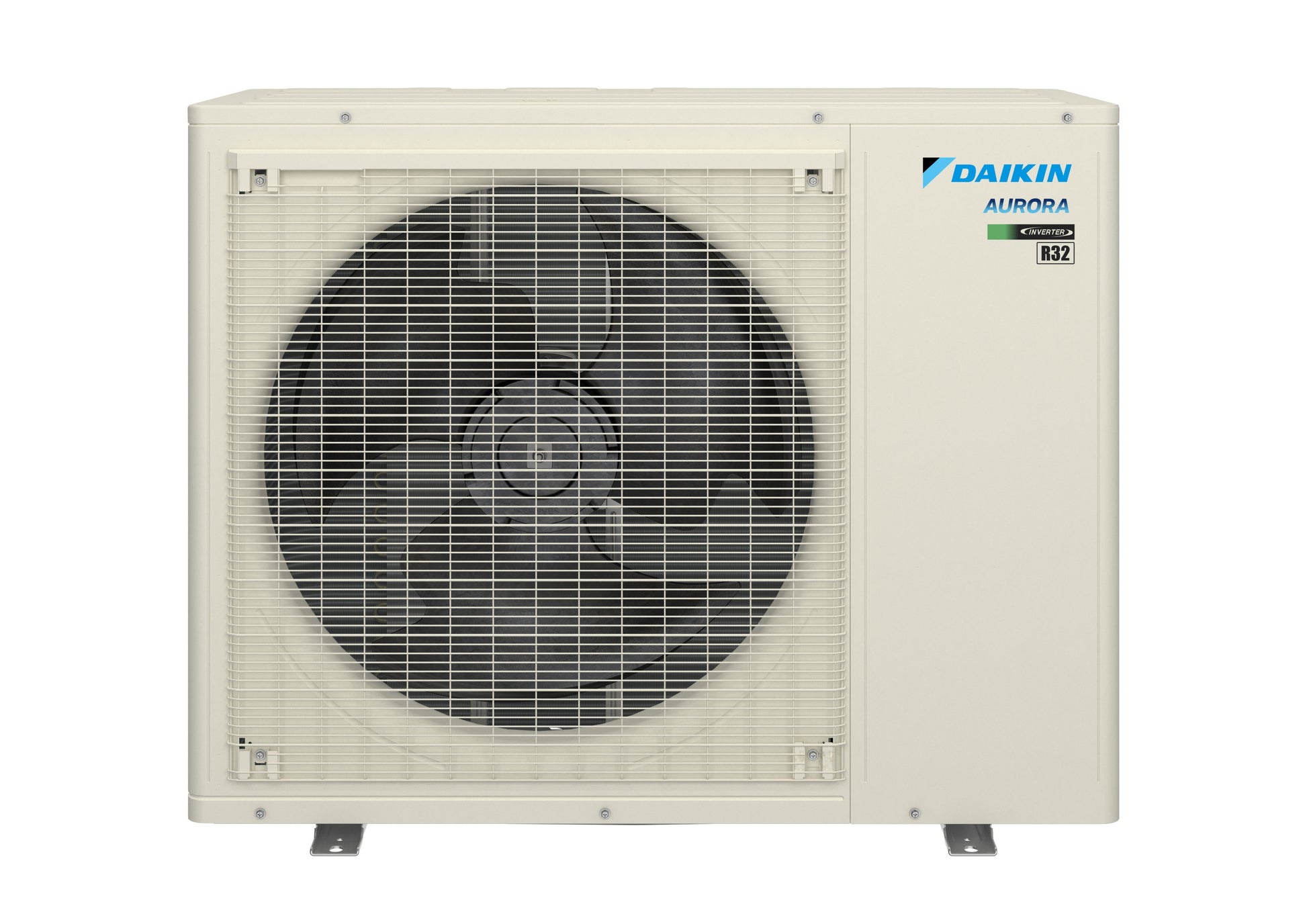

Technical Specifications — 4MXTH36AVJU9
| sku | 4MXTH36AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Heat Pump |
| system family | Multi-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| product family | 4MXTH_AVJU9 |
| series name | Multi Split Heat Pump Outdoor |
| short description | Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump |
| product description | 3.0 Ton R32, 4 port aurora multi dph 36k |
| cooling btu | 34,400 |
| heating btu | 33,200 |
| seer2 | 20 |
| decibel level (dba) | 55 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 40 A |
| min. breaker size | 38.3 A |
| tonnage | 3 |
| btu/tonnage | 34,400 BTU/3 Ton |
| min/max outdoor temp for cooling | -13 °F to 14 °F |
| zone compatibility | Multi Zone |
| height | 34-1/4 in |
| width | 46-7/8 in |
| depth | 18-1/8 in |
| weight | 218 lb |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 217747241 |
Technical Specifications — FTXV12AVJU9
| sku | FTXV12AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Fan Coil |
| system family | Multi-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXV_AVJU9 |
| series name | Multi-Split Fan Coil Indoor |
| short description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description | 1 Ton Wall Mount R-32 |
| decibel level (dba) | 45 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| tonnage | 1 |
| zone compatibility | Multi Zone |
| height | 11-1/4 in |
| width | 30-5/16 in |
| depth | 8-3/4 in |
| weight | 19 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — FTXV24AVJU9
| sku | FTXV24AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Fan Coil |
| system family | Multi-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXV_AVJU9 |
| series name | Multi-Split Fan Coil Indoor |
| short description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description | 2.0 Ton Wall Mount - R-32 |
| decibel level (dba) | 52 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| zone compatibility | Multi Zone |
| height | 11-5/8 in |
| width | 39 in |
| depth | 10-3/8 in |
| weight | 27 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-EDUS122402A_MXM-A_MXT-A_MXT
- Engineering Data Manual (English) - EM-EDUS122404A_MXT-A_MXTH-A
- Installation Manual (English) - IM-01_EN_3P795496-1
- Installation Manual (French) - IM-02_FR_3P795496-1
- Installation Manual (Spanish) - IM-03_ES_3P795496-1
- Installation Manual (English) - IM-01_EN_3P741458-1G-FTXV09-12
- Installation Manual (English) - IM-IM_3P741458-1C-FTXV09-12
- Operation Manual (English) - OM-OM - 01_EN_CTXVFTXV09-12
- Installation Manual (English) - IM-3P741458-2D-FTXV15-24
- Installation Manual (English) - IM-EN_3P741458-2G FTXV15-24
- Operation Manual (English) - OM-EN_3P741457-2K FTXV15-24
