Product Overview

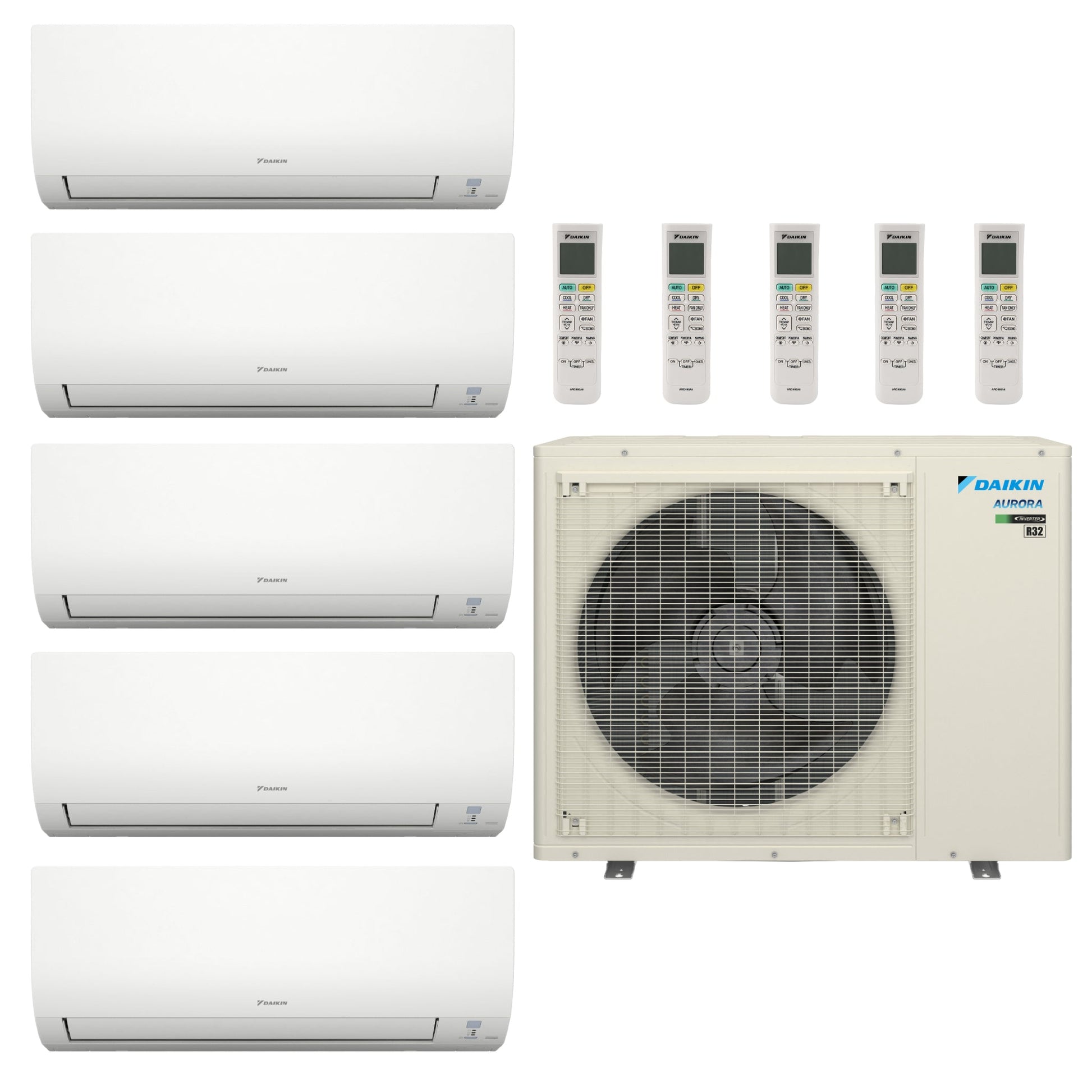

This Daikin 5 zone-Zone Aurora System offers maximum efficiency and is built for the most extreme hot or cold climates. 5MXM48AVJU9 + 2X FTXV09AVJU9 + 2X FTXV12AVJU9 + FTXV18AVJU9 is the perfect solution for year-round heating and cooling in up to 5 zone spaces.
- Single fan, low cabinet height for simple installation without impacted view
- Continuous heating operation as low as 5F° (-15°C) at 70% capacity

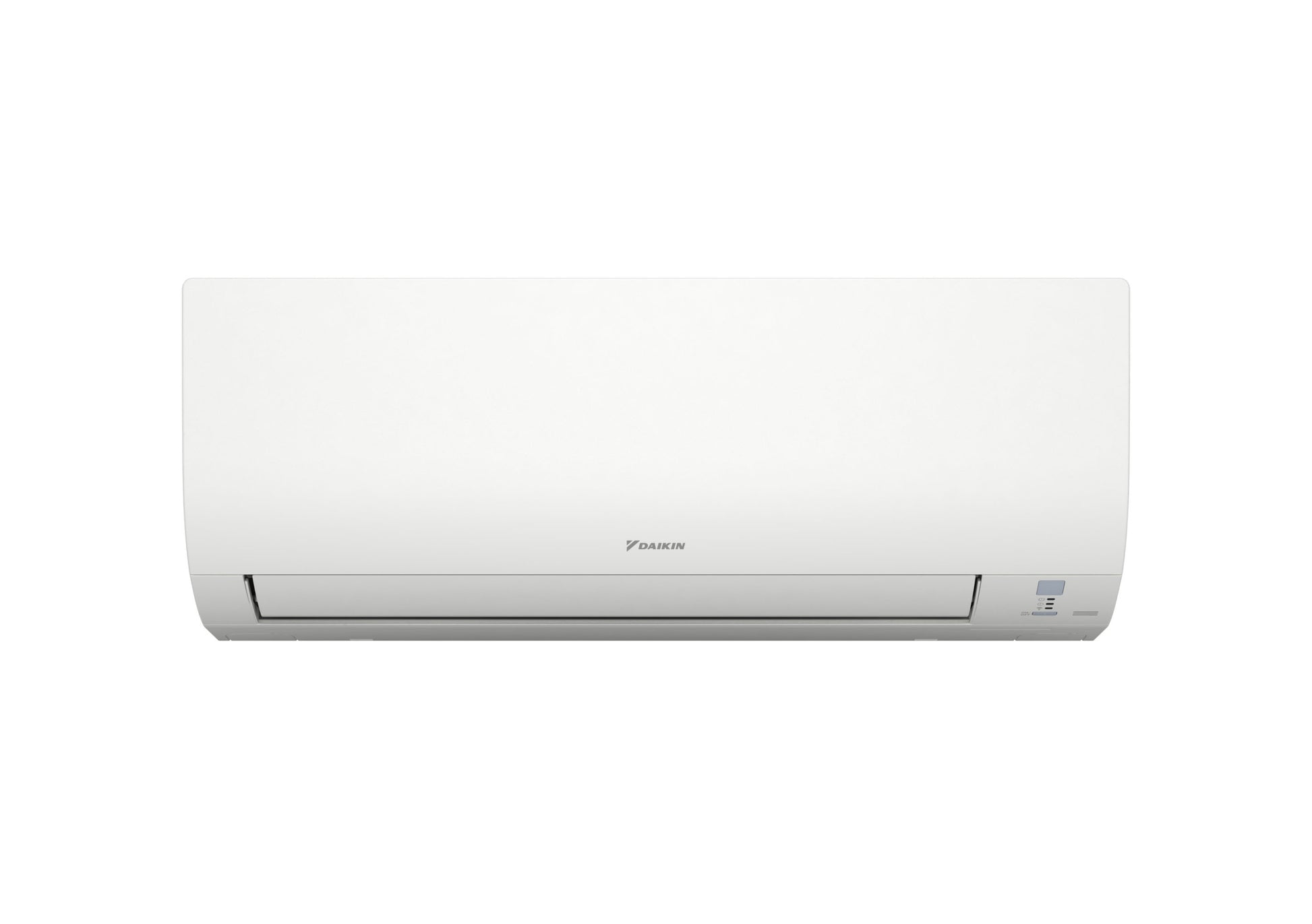

Daikin Aurora 9,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Aurora 9,000 BTU Wall Mount Air Handler is an advanced, energy-efficient heating and cooling solution for single-zone applications. With R32 refrigerant, a powerful heat pump, and built-in WiFi functionality, this unit delivers reliable comfort even in extreme temperatures while maximizing energy efficiency and performance.
Key Features:
Exceptional Heating & Cooling Efficiency:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 21 SEER2 and up to 10.5 HSPF2 for outstanding energy efficiency
- Capable of maintaining:
- 100% heating capacity at 5°F
- 100% cooling capacity at 104°F
- Operates effectively within a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Built-in WiFi (wall mount unit only) for seamless connectivity and remote control
- Features Self Diagnostics with a digital display for simplified maintenance
- Multiple modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
- Equipped with Auto Fan Speed Control for consistent and optimized airflow
Durable and Quiet Design:
- Anti-Corrosion Treatment on the heat exchanger enhances durability and longevity
- Quiet operation for both indoor and outdoor units ensures minimal noise during use
Flexible Installation and Operation:
- Precharged for up to 49 ft of liquid line, streamlining installation
-
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
- Low ambient cooling down to 5°F with field setting and air adjustment grille
User-Friendly Features:

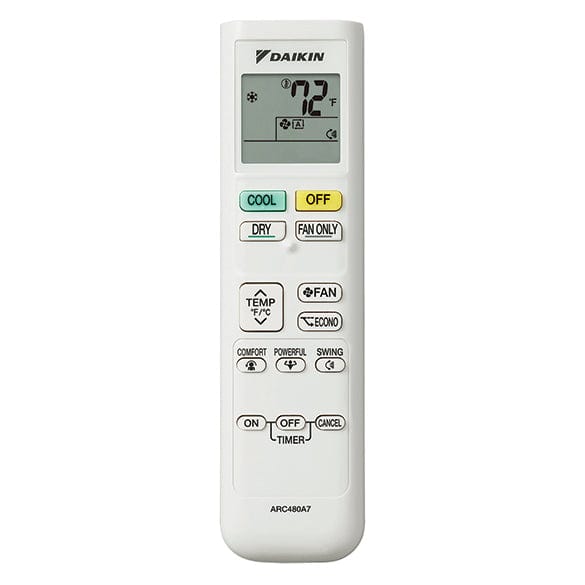

- Includes a Wireless Backlit IR Remote Controller for convenient operation
- Auto Restart functionality resumes operation after power outages
Warranty Coverage:
- Limited 12-Year Parts Warranty ensures reliable performance
The Daikin Aurora 9,000 BTU Wall Mount Air Handler combines advanced technology, durable design, and superior energy efficiency. Perfect for single-zone systems, it delivers year-round comfort even in extreme temperatures, making it an excellent choice for residential and light commercial applications.
Daikin Aurora 12,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Aurora 12,000 BTU Wall Mount Air Handler is a versatile, energy-efficient heating and cooling solution for single zone and multi zone applications. Featuring advanced R32 refrigerant, built-in WiFi, and a robust heat pump, this unit delivers reliable comfort even in extreme temperatures while ensuring quiet operation and superior energy savings.
Key Features:
Superior Heating & Cooling Performance:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 21 SEER2 and up to 10.5 HSPF2 for outstanding energy efficiency
- Maintains:
- 100% heating capacity at 5°F
- 100% cooling capacity at 104°F
- Operates effectively within a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Built-in WiFi (wall mount unit only) for seamless connectivity and remote control
- Self-diagnostics with a digital display for easy maintenance and troubleshooting
- Multiple operation modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
- Equipped with Auto Fan Speed Control to ensure consistent and optimized airflow
Durable and Quiet Design:
- Anti-Corrosion Treatment on the heat exchanger enhances durability and extends lifespan
- Offers quiet operation for both indoor and outdoor units, minimizing noise disruptions
Flexible Installation and Operation:
- Precharged for up to 49 ft of liquid line, simplifying installation
-
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
- Low ambient cooling capability down to 5°F with field setting and air adjustment grille
User-Friendly Features:
- Comes with a Wireless Backlit IR Remote Controller for convenient operation
- Includes Auto Restart functionality to resume operation automatically after power interruptions
Warranty Coverage:
- Limited 12-Year Parts Warranty for reliable performance
- Extended 12-Year Labor Warranty for comprehensive protection
The Daikin Aurora 12,000 BTU Wall Mount Air Handler combines advanced features, durable design, and exceptional energy efficiency. Designed for single zone and multi zone systems, it ensures year-round comfort in extreme temperatures, making it an ideal choice for both residential and light commercial applications.
Daikin Aurora 18,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Aurora 18,000 BTU Wall Mount Air Handler is a high-performance, energy-efficient solution for single zone and multi zone heating and cooling applications. Featuring advanced R32 refrigerant, built-in WiFi, and robust heat pump technology, this unit ensures reliable comfort in extreme temperatures while maintaining quiet operation and exceptional energy efficiency.
Key Features:
Exceptional Heating & Cooling Performance:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 21 SEER2 and up to 10.5 HSPF2 for superior energy efficiency
- Capable of:
- 100% heating capacity at 5°F
- 100% cooling capacity at 104°F
- Operates within a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Built-in WiFi (wall mount unit only) for seamless remote control and connectivity
- Self-diagnostics with a digital display for simplified maintenance and troubleshooting
- Multiple modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
- Equipped with Auto Fan Speed Control to ensure consistent and optimized airflow
Durable and Quiet Design:
- Anti-Corrosion Treatment on the heat exchanger enhances durability and extends lifespan
- Quiet operation for both indoor and outdoor units minimizes noise disruptions
Flexible Installation and Operation:
- Precharged for up to 49 ft of liquid line, simplifying installation
-
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
- Low ambient cooling capability down to 5°F with field setting and air adjustment grille
User-Friendly Features:
- Includes a Wireless Backlit IR Remote Controller for convenient operation
- Features Auto Restart functionality to resume operation automatically after power interruptions
Warranty Coverage:
- Limited 12-Year Parts Warranty ensures long-term reliability
- Extended 12-Year Labor Warranty provides comprehensive protection
The Daikin Aurora 18,000 BTU Wall Mount Air Handler is the perfect combination of energy efficiency, advanced technology, and reliable performance. Ideal for single zone and multi zone systems, it delivers year-round comfort in extreme temperatures, making it a superior choice for residential and light commercial applications.

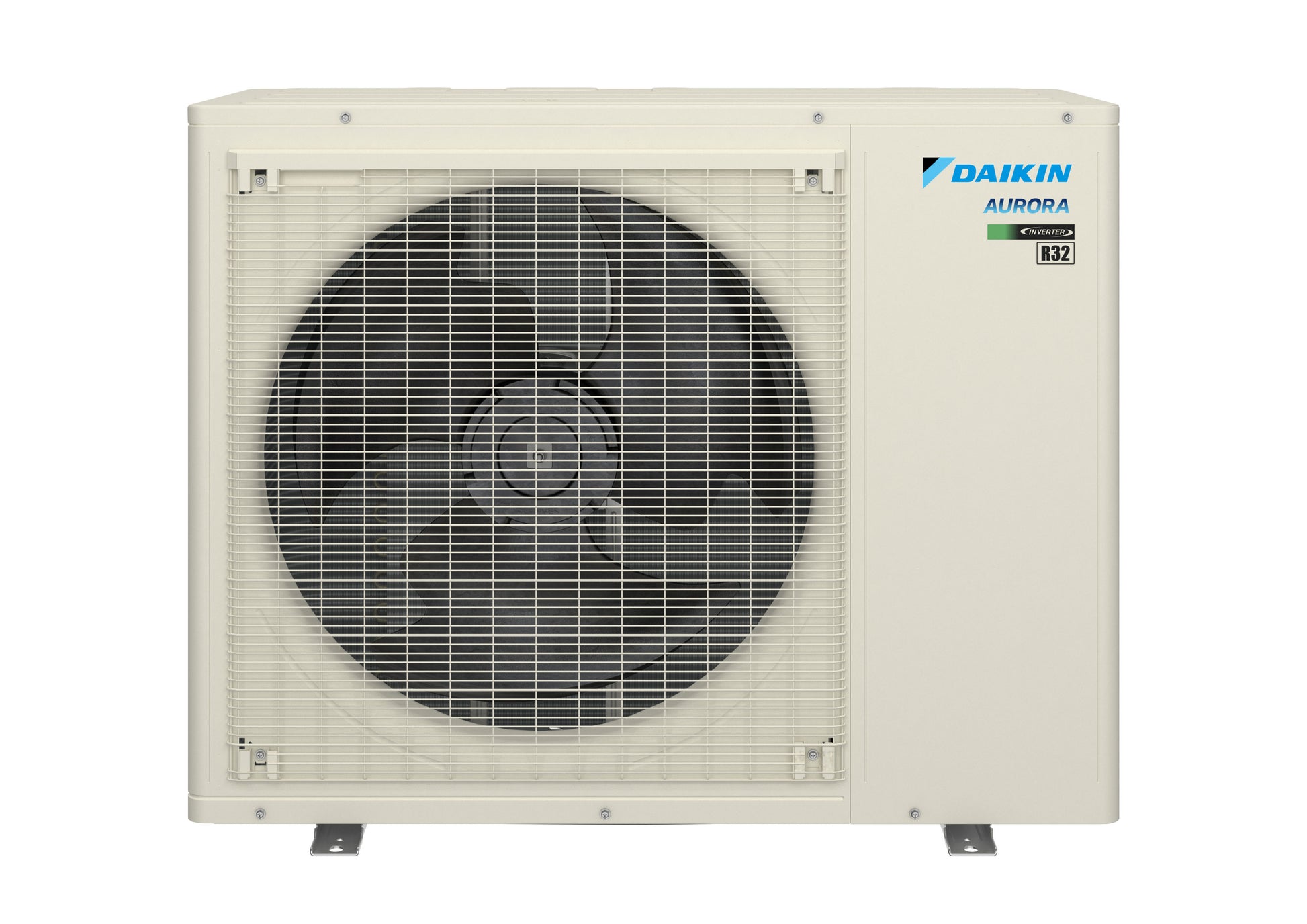

Technical Specifications — 5MXM48AVJU9
| sku | 5MXM48AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Heat Pump |
| system family | Multi-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| product family | 5MXM_AVJU9 |
| series name | Multi Split Heat Pump Outdoor |
| short description | Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump |
| product description | R-32 Standard Multi - 5 Port Heat Pump, Ductless ODU 4 Ton |
| cooling btu | 46,000 |
| heating btu | 48,500 |
| seer2 | 20 |
| decibel level (dba) | 55 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 40 A |
| min. breaker size | 38.1 A |
| tonnage | 4 |
| btu/tonnage | 46,000 BTU/4 Ton |
| min/max outdoor temp for heating | 5 °F to 75 °F |
| min/max outdoor temp for cooling | 14 °F to 114.8 °F |
| zone compatibility | Multi Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 219 lb |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — FTXV09AVJU9
| sku | FTXV09AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Fan Coil |
| system family | Multi-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXV_AVJU9 |
| series name | Multi-Split Fan Coil Indoor |
| short description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description | 3/4 Ton Wall Mount R-32 |
| decibel level (dba) | 43 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| tonnage | 0.75 |
| zone compatibility | Multi Zone |
| height | 11-1/4 in |
| width | 30-5/16 in |
| depth | 8-3/4 in |
| weight | 19 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — FTXV12AVJU9
| sku | FTXV12AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Fan Coil |
| system family | Multi-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXV_AVJU9 |
| series name | Multi-Split Fan Coil Indoor |
| short description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description | 1 Ton Wall Mount R-32 |
| decibel level (dba) | 45 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| tonnage | 1 |
| zone compatibility | Multi Zone |
| height | 11-1/4 in |
| width | 30-5/16 in |
| depth | 8-3/4 in |
| weight | 19 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — FTXV18AVJU9
| sku | FTXV18AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Fan Coil |
| system family | Multi-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXV_AVJU9 |
| series name | Multi-Split Fan Coil Indoor |
| short description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description | 1.5 Ton Wall Mount - R-32 |
| decibel level (dba) | 48 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 1/2 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| zone compatibility | Multi Zone |
| height | 11-5/8 in |
| width | 39 in |
| depth | 10-3/8 in |
| weight | 27 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-EDUS122402A_MXM-A_MXT-A_MXT
- Engineering Data Manual (English) - EM-EDUS122403A_MXM-A
- Installation Manual (English) - IM-01_EN_3P795496-1
- Installation Manual (French) - IM-02_FR_3P795496-1
- Installation Manual (Spanish) - IM-03_ES_3P795496-1
- Installation Manual (English) - IM-01_EN_3P741458-1G-FTXV09-12
- Installation Manual (English) - IM-IM_3P741458-1C-FTXV09-12
- Operation Manual (English) - OM-OM - 01_EN_CTXVFTXV09-12
- Installation Manual (English) - IM-3P741458-2D-FTXV15-24
- Installation Manual (English) - IM-EN_3P741458-2G FTXV15-24
- Operation Manual (English) - OM-EN_3P741457-2K FTXV15-24
