Product Overview

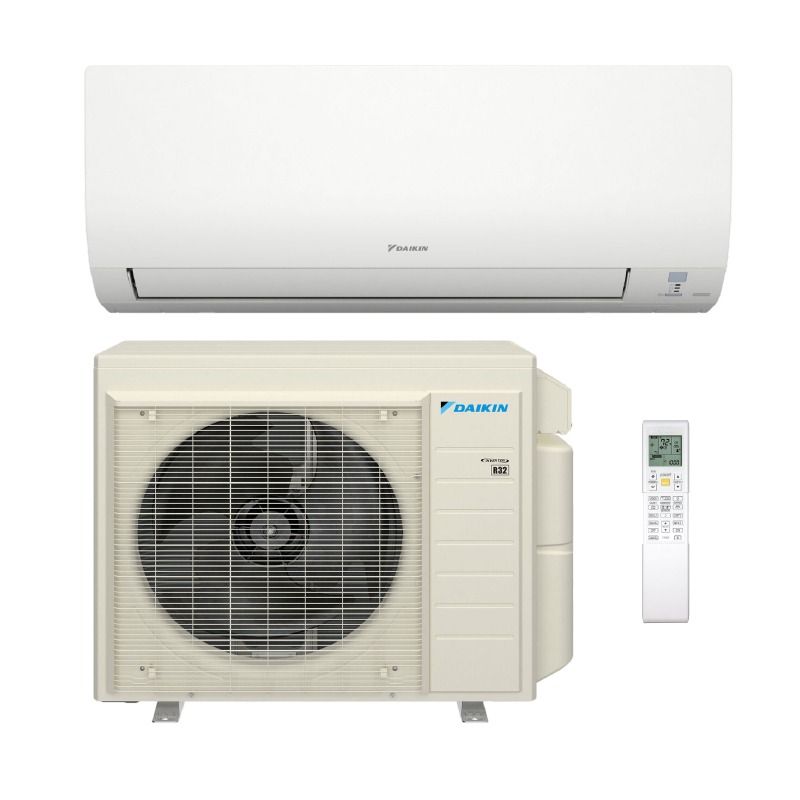

Daikin 9,000 BTU Aurora Single Zone Mini Split Heat Pump Condenser - R32 | 230V
9,000 BTU Daikin Aurora Mini Split Heat Pump Condenser - R32 | 230V
The 9,000 BTU Daikin Aurora Mini Split Heat Pump Condenser delivers powerful, energy-efficient heating and cooling for single-zone wall-mount, floor-mount, and concealed duct systems. With advanced R32 refrigerant and an inverter-driven compressor, this unit ensures superior comfort, energy savings, and year-round performance in even extreme climates.
Key Features:
High-Performance Heating & Cooling:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 21 SEER2 and 10.5 HSPF2 for outstanding efficiency
- Ensures 100% heating capacity at 5°F for cold climates
- Maintains 100% cooling capacity at 104°F for hot weather performance
- Wide temperature operation range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Equipped with Built-in WiFi (Wall Mount Unit Only) for remote control via the Daikin Comfort Control App
- Includes Self Diagnostics with a digital display for easy troubleshooting
- Offers multiple operation modes: Econo Mode, Dry Function, and Powerful Mode
- Provides Auto Fan Speed Control for optimal airflow regulation
Durable and Weather-Resistant Design:
- Features an Anti-Corrosion Treatment on the heat exchanger for long-term durability
- Precharged for up to 49 ft of liquid line for hassle-free installation
- Allows Low Ambient Cooling - with field settings and an air adjustment grille, operation expands to 5°F
Quiet and User-Friendly Operation:
- Designed for Indoor and Outdoor Unit Quiet Operation for a peaceful environment
- Comes with a Wireless Backlit IT Remote Controller for easy adjustments
- Includes Auto Restart after power failures for uninterrupted performance
Flexible Installation Options:
- Max piping for 09/12 MBH: 66' length, 49' height
- Max piping for 15 MBH: 98' length, 66' height
- Max piping for 18/24 MBH: 99' length, 66' height
Warranty Coverage:
- Limited 12-Year Parts Warranty for reliable long-term operation
- Extended 12-Year Labor Warranty for additional protection
The 9,000 BTU Daikin Aurora Mini Split Heat Pump Condenser is a premium solution for those seeking high-efficiency heating and cooling in any climate. With smart technology, durable construction, and whisper-quiet operation, this unit provides year-round comfort with advanced control and reliability.
Daikin 9,000 BTU Aurora Multi Zone Wall Mount Mini Split Air Handler - R32 | 230V
Daikin Aurora 9,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Aurora 9,000 BTU Wall Mount Air Handler is an advanced, energy-efficient heating and cooling solution for single-zone applications. With R32 refrigerant, a powerful heat pump, and built-in WiFi functionality, this unit delivers reliable comfort even in extreme temperatures while maximizing energy efficiency and performance.
Key Features:
Exceptional Heating & Cooling Efficiency:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 21 SEER2 and up to 10.5 HSPF2 for outstanding energy efficiency
- Capable of maintaining:
- 100% heating capacity at 5°F
- 100% cooling capacity at 104°F
- Operates effectively within a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Built-in WiFi (wall mount unit only) for seamless connectivity and remote control
- Features Self Diagnostics with a digital display for simplified maintenance
- Multiple modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
- Equipped with Auto Fan Speed Control for consistent and optimized airflow
Durable and Quiet Design:
- Anti-Corrosion Treatment on the heat exchanger enhances durability and longevity
- Quiet operation for both indoor and outdoor units ensures minimal noise during use
Flexible Installation and Operation:
- Precharged for up to 49 ft of liquid line, streamlining installation
-
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
- Low ambient cooling down to 5°F with field setting and air adjustment grille
User-Friendly Features:
- Includes a Wireless Backlit IR Remote Controller for convenient operation
- Auto Restart functionality resumes operation after power outages
Warranty Coverage:
- Limited 12-Year Parts Warranty ensures reliable performance
The Daikin Aurora 9,000 BTU Wall Mount Air Handler combines advanced technology, durable design, and superior energy efficiency. Perfect for single-zone systems, it delivers year-round comfort even in extreme temperatures, making it an excellent choice for residential and light commercial applications.
Technical Specifications — RXT09AVJU9
| sku | RXT09AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Heat Pump |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RXT_AVJU9 |
| series name | AURORA |
| short description | Series Outdoor Mini-Split Heat Pump, Single Zone |
| family description | 0.75 - 2.0 Ton AURORA R-32 Split Heat Pump Up to 21.0 SEER2 / 10.5 HSPF2 / 12.2 EER2 |
| product description | 21.0 SEER2, Heat Pump, Ductless ODU, 0.75 Ton, Daikin AURORA R-32 |
| cooling btu | 9,000 |
| heating btu | 10,900 |
| decibel level (dba) | 49 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 11.6 A |
| tonnage | 0.75 |
| btu/tonnage | 9,000 BTU/0.75 Ton |
| min/max outdoor temp for heating | -13 °F to 60 °F |
| min/max outdoor temp for cooling | 50 °F to 115 °F |
| zone compatibility | Single Zone |
| height | 21-15/16 in |
| width | 26-9/16 in |
| depth | 11-3/16 in |
| weight | 63 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 215441727 |
Technical Specifications — FTXV09AVJU9
| sku | FTXV09AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Fan Coil |
| system family | Multi-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXV_AVJU9 |
| series name | Multi-Split Fan Coil Indoor |
| short description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description | 3/4 Ton Wall Mount R-32 |
| decibel level (dba) | 43 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| tonnage | 0.75 |
| zone compatibility | Multi Zone |
| height | 11-1/4 in |
| width | 30-5/16 in |
| depth | 8-3/4 in |
| weight | 19 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-EDUS092401 AURORA R32 Pair
- Installation Manual (English) - IM-IM_RXT-09-12_AVJU9
- Installation Manual (English) - IM-RXP09-12-RXV09-12-ENG
- Installation Manual (French) - IM-FR_IM_RXT-09-12_AVJU9
- Installation Manual (Spanish) - IM-03_ES_3P740832-1E
- Engineering Data Manual (English) - EM-EDUS122402A_MXM-A_MXT-A_MXT
- Installation Manual (English) - IM-01_EN_3P741458-1G-FTXV09-12
- Installation Manual (English) - IM-IM_3P741458-1C-FTXV09-12
- Operation Manual (English) - OM-OM - 01_EN_CTXVFTXV09-12
