Product Overview

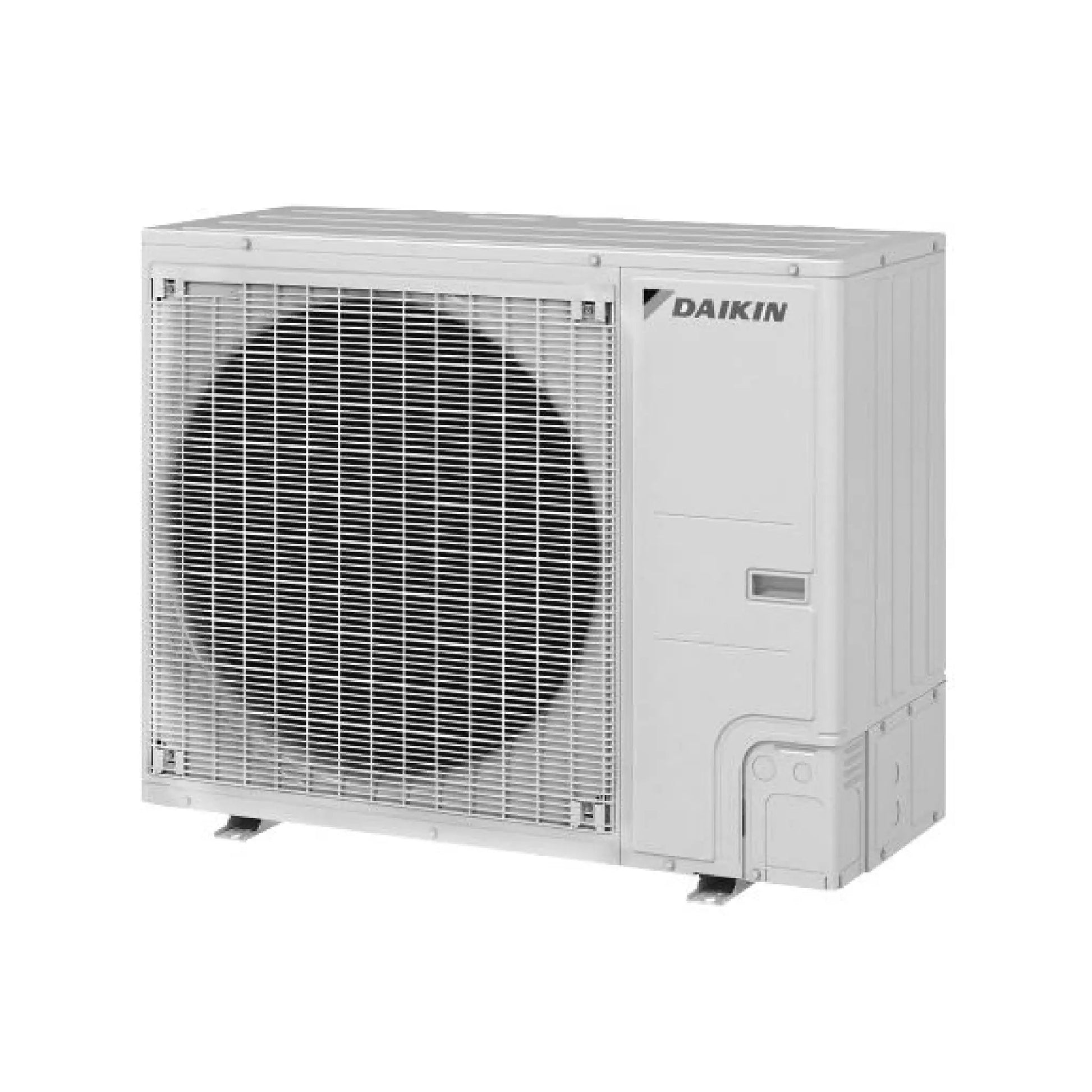

Daikin 48K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA48AAVJU
The Daikin SkyAir 48,000 BTU Single Zone Heat Pump delivers high-capacity comfort for larger residential or commercial spaces. Featuring a 3.5-ton R-32 system, it combines efficient performance with eco-friendly refrigerant technology to maintain year-round comfort while reducing environmental impact.
Key Features
- 3.5 Ton Capacity for Large Spaces – Ideal for bigger rooms or zones requiring consistent, powerful temperature control
- Eco-Friendly R-32 Refrigerant – Provides superior efficiency with reduced environmental impact
- 10-Year Limited Parts & Compressor Warranty – Backed by Daikin’s industry-leading warranty for confidence and reliability
- Optional Drain Pan Heater – Helps prevent freezing in colder climates, ensuring dependable operation all year long
- Quiet, Durable Operation – Engineered for quiet performance and built to withstand tough outdoor conditions
Daikin 48K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA48AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

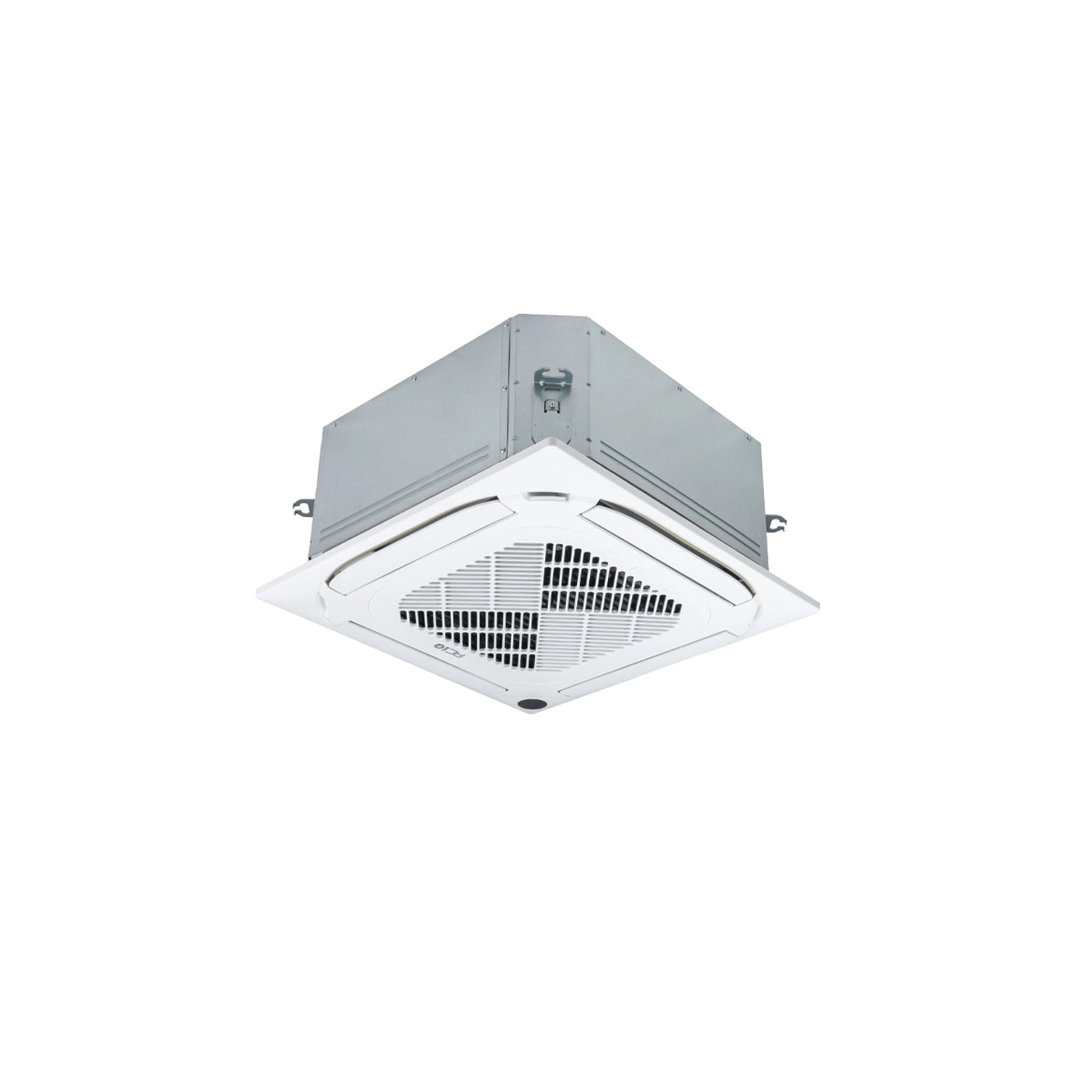

Daikin 48,000 BTU SkyAir Ceiling Cassette Air Handler Mini Split R32 FCA48AAVJU
The Daikin 48,000 BTU SkyAir Ceiling Cassette Air Handler is a high-capacity mini split indoor unit engineered for efficient and quiet ceiling-mounted operation. Designed for use with R-32 refrigerant, this air handler integrates with advanced leak detection, ventilation dampers, and alarm systems to support a safe, controlled indoor environment. Optional high-efficiency and self-cleaning filters improve air quality while minimizing maintenance needs, making it an ideal solution for large residential or commercial applications.
Key Features
- 48,000 BTU Cooling Capacity for Oversized Rooms or Commercial Use
- R-32 Refrigerant for High Efficiency and Environmental Responsibility
- Ceiling Cassette Configuration Optimizes Space
- Compatible with Ventilation and Leak Detection Systems
- Optional Self-Cleaning Filter Panel Available
- High-Efficiency Filtration for Cleaner Air
- Ventilation Connection Kit Supports Flexible Installations
- Max Overcurrent Protection: 15 Amps
- Ideal for High-Capacity Cooling Needs
This ceiling cassette air handler is a reliable choice for areas needing powerful airflow delivery with minimal footprint, advanced safety integration, and low-maintenance filtration options.
Daikin 48,000 BTU SkyAir Ceiling Cassette Air Handler Mini Split R32 FCA48AAVJU
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 10 Years | 10 Years | 10 Years |
Technical Specifications — FCA48AAVJU
| sku | FCA48AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Fan Coil |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Light Commercial |
| product family | FCA_AAVJU |
| series name | FCA |
| short description | SkyAir Indoor Fan Coil |
| family description | 1.5 tp 4.0 Ton SkyAir Ceiling Mounted Round Flow Cassette |
| product description | R32 - 4.0-Ton Roundflow Sensing Cassette Unit |
| decibel level (dba) | 47 dBA |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 1.6 A |
| height | 11-11/32 in |
| width | 33-1/16 in |
| depth | 33-1/16 in |
| weight | 58 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — RZA48AAVJU
| sku | RZA48AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Heat Pump |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Light Commercial |
| product family | RZA_AAVJU |
| short description | SkyAir Heat Pump, Single Zone |
| family description | SkyAir Heat Pump 1.5 to 4.0 Ton |
| product description | R-32 SkyAir 4.0 T Heat Pump Single Zone |
| decibel level (dba) | 56 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 35 A |
| min. breaker size | 34.6 A |
| zone compatibility | Single Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 234 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
