Daikin

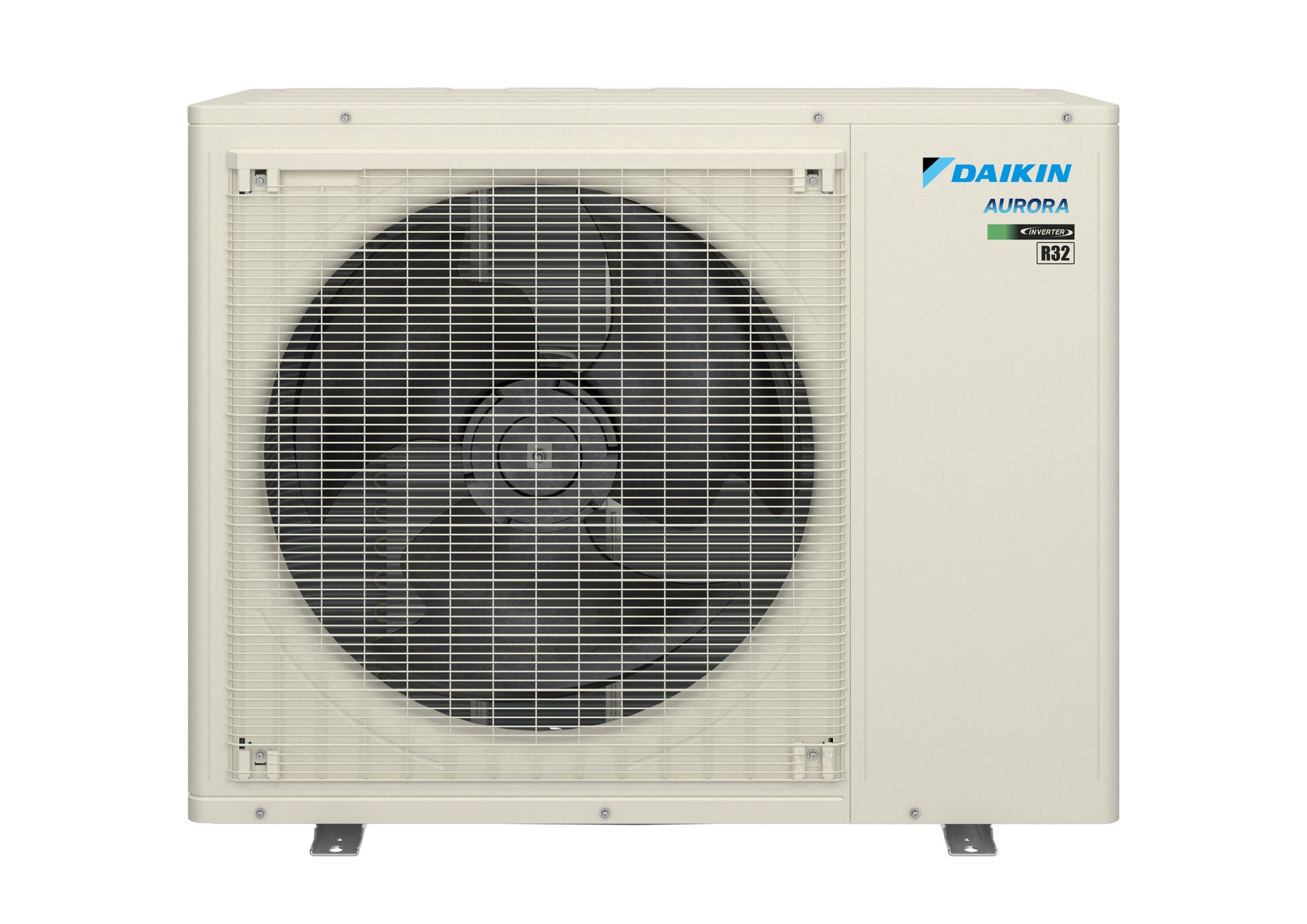

Daikin 40,000 BTU MXM Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V
Product Overview
- Single fan, low cabinet height for simple installation without impacted view
- Continuous heating operation as low as 5F° (-15°C) at 70% capacity
Technical Specifications — 5MXM48AVJU9
| sku | 5MXM48AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Heat Pump |
| system family | Multi-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| product family | 5MXM_AVJU9 |
| series name | Multi Split Heat Pump Outdoor |
| short description | Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump |
| product description | R-32 Standard Multi - 5 Port Heat Pump, Ductless ODU 4 Ton |
| cooling btu | 46,000 |
| heating btu | 48,500 |
| seer2 | 20 |
| decibel level (dba) | 55 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 40 A |
| min. breaker size | 38.1 A |
| tonnage | 4 |
| btu/tonnage | 46,000 BTU/4 Ton |
| min/max outdoor temp for heating | 5 °F to 75 °F |
| min/max outdoor temp for cooling | 14 °F to 114.8 °F |
| zone compatibility | Multi Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 219 lb |
| safety information | Proposition 65 Label: Yes |
