Product Overview

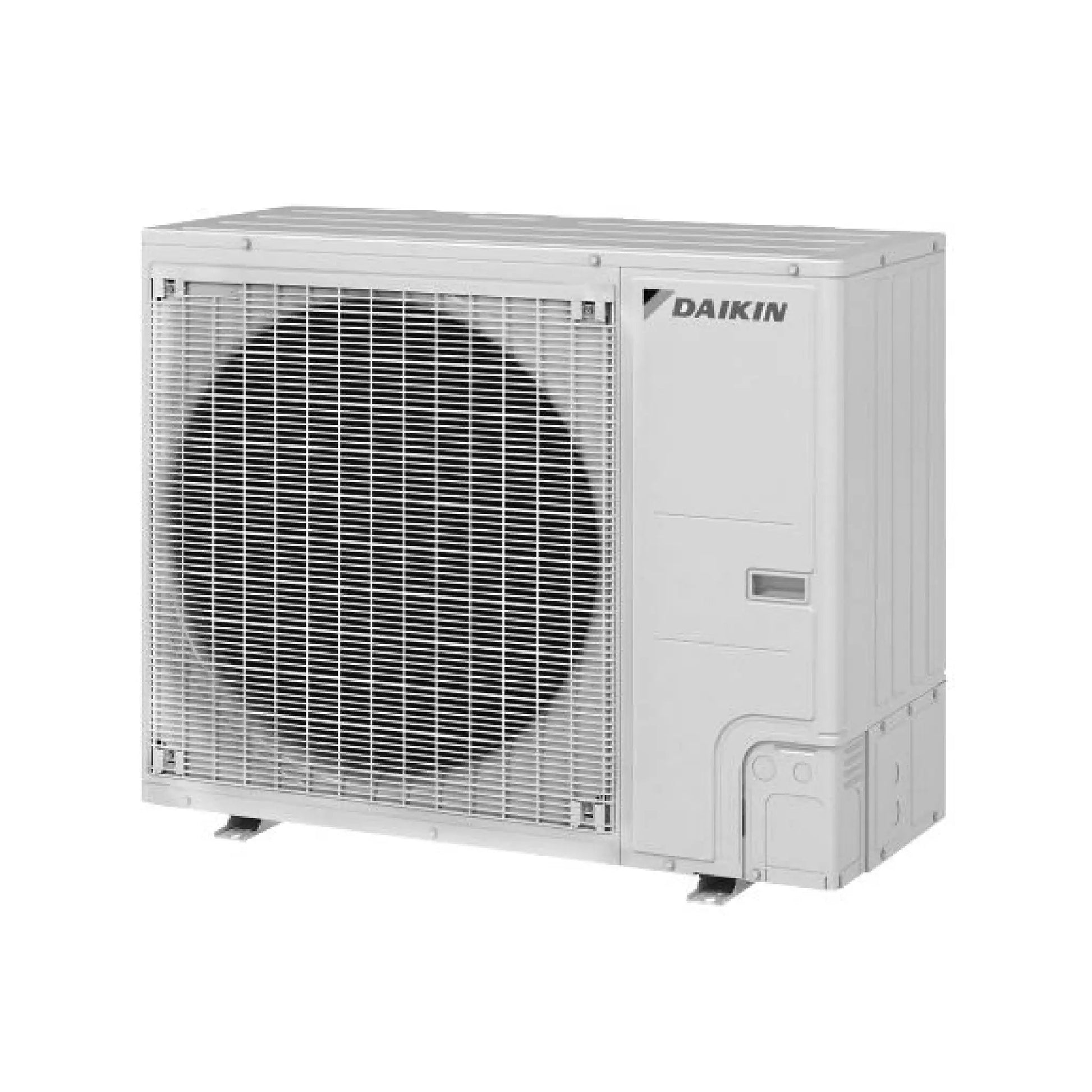

Daikin 36K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA36AAVJU
The Daikin SkyAir 36,000 BTU Single Zone Heat Pump is a high-performance HVAC solution designed for larger residential or light commercial spaces. With a powerful 3.0-ton capacity and eco-friendly R-32 refrigerant, this outdoor unit provides reliable heating and cooling while reducing environmental impact and energy consumption.
Key Features
- 3.0 Ton Capacity for Larger Spaces – Perfect for open layouts or big rooms that require powerful, efficient climate control
- Eco-Friendly R-32 Refrigerant – Delivers enhanced efficiency with lower global warming potential compared to traditional refrigerants
- 10-Year Limited Parts and Compressor Warranty – Supported by Daikin’s industry-leading warranty coverage for long-term reliability
- Optional Drain Pan Heater – Helps prevent freezing in cold climates, ensuring consistent performance year-round
- Quiet, Durable Design – Engineered for silent operation and built to withstand demanding weather conditions and daily use
Daikin 36K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA36AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

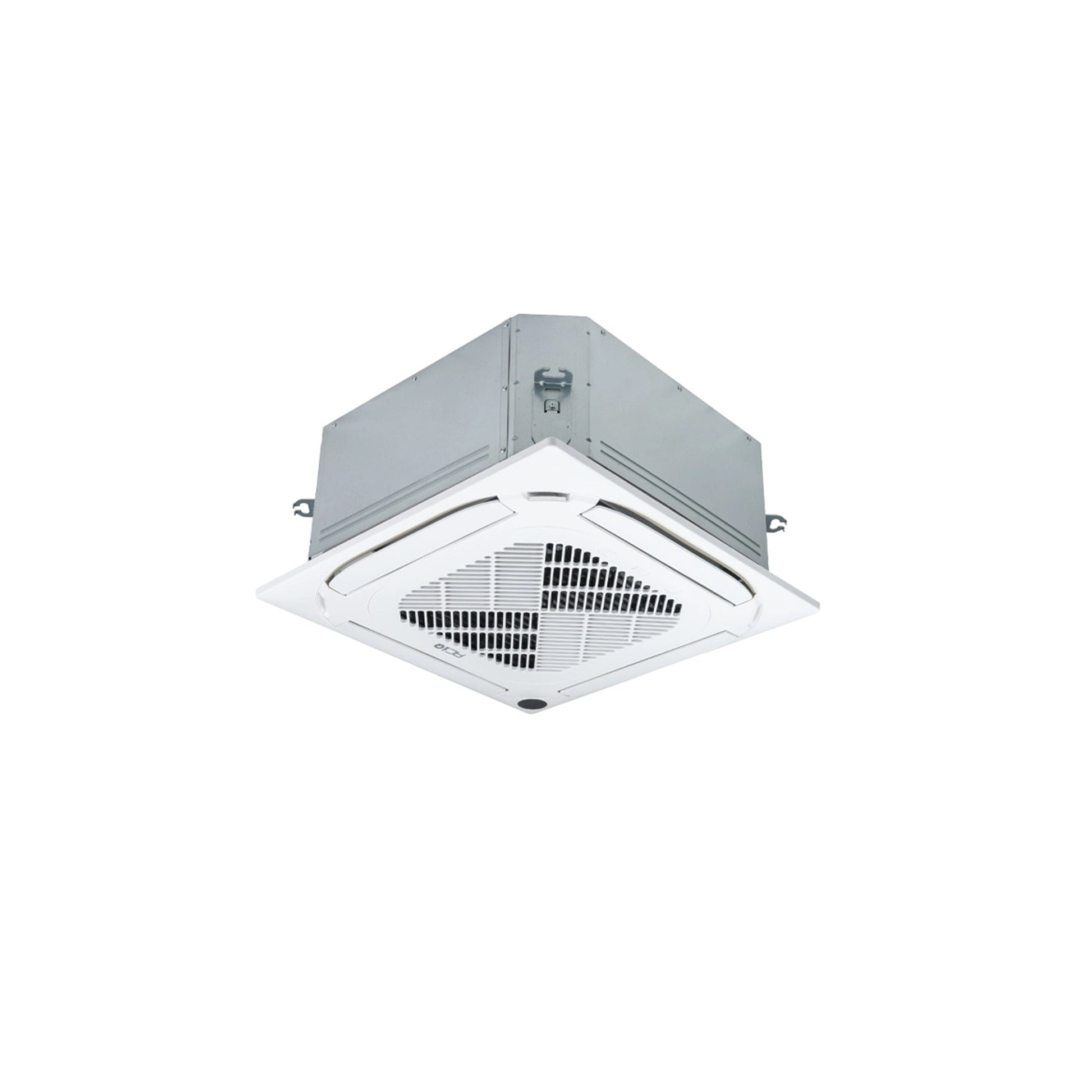

Daikin 36,000 BTU SkyAir Ceiling Cassette Air Handler Mini Split R32 FCA36AAVJU
Designed for powerful performance and energy efficiency, the Daikin 36,000 BTU SkyAir Ceiling Cassette Air Handler offers discreet ceiling-mounted comfort for larger zones. With R-32 refrigerant, this unit features advanced integration with ventilation and leak detection systems for improved safety and indoor air quality. Optional high-efficiency and self-cleaning filters reduce airborne contaminants and minimize ongoing maintenance requirements.
Key Features
- 36,000 BTU Cooling Capacity for Large Rooms or Open Spaces
- Operates with Efficient and Eco-Friendly R-32 Refrigerant
- Ceiling Cassette Configuration for Discreet Installation
- Supports Leak Detection with Ventilation, Dampers, and Alarms
- Optional Self-Cleaning Filter Panel Lowers Maintenance
- High-Efficiency Filter Options Enhance Indoor Air Quality
- Ventilation Connection Kit Compatible
- Compact Unit Design: Just 11-11/32 in Tall
- Great for Residential and Commercial Light Duty Use
This high-capacity unit is ideal for applications that require concealed installation with enhanced ventilation control, minimal upkeep, and reliable year-round performance.
Daikin 36,000 BTU SkyAir Ceiling Cassette Air Handler Mini Split R32 FCA36AAVJU
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 10 years | 10 years | 10 years |
Technical Specifications — FCA36AAVJU
| sku | FCA36AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Fan Coil |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Light Commercial |
| product family | FCA_AAVJU |
| series name | FCA |
| short description | SkyAir Indoor Fan Coil |
| family description | 1.5 tp 4.0 Ton SkyAir Ceiling Mounted Round Flow Cassette |
| product description | R32 - 3.0-Ton Roundflow Sensing Cassette Unit |
| decibel level (dba) | 47 dBA |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 1.6 A |
| height | 11-11/32 in |
| width | 33-1/16 in |
| depth | 33-1/16 in |
| weight | 58 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — RZA36AAVJU
| sku | RZA36AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Heat Pump |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Light Commercial |
| product family | RZA_AAVJU |
| short description | SkyAir Heat Pump, Single Zone |
| family description | SkyAir Heat Pump 1.5 to 4.0 Ton |
| product description | R-32 SkyAir 3.0 T Heat Pump Single Zone |
| decibel level (dba) | 56 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 35 A |
| min. breaker size | 34.6 A |
| zone compatibility | Single Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 234 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
