Daikin
Daikin 30,000 BTU Skyair Single Zone Four-Way Ceiling Cassette Ductless Mini Split Heat Pump System - R32 | 230V
Product Overview

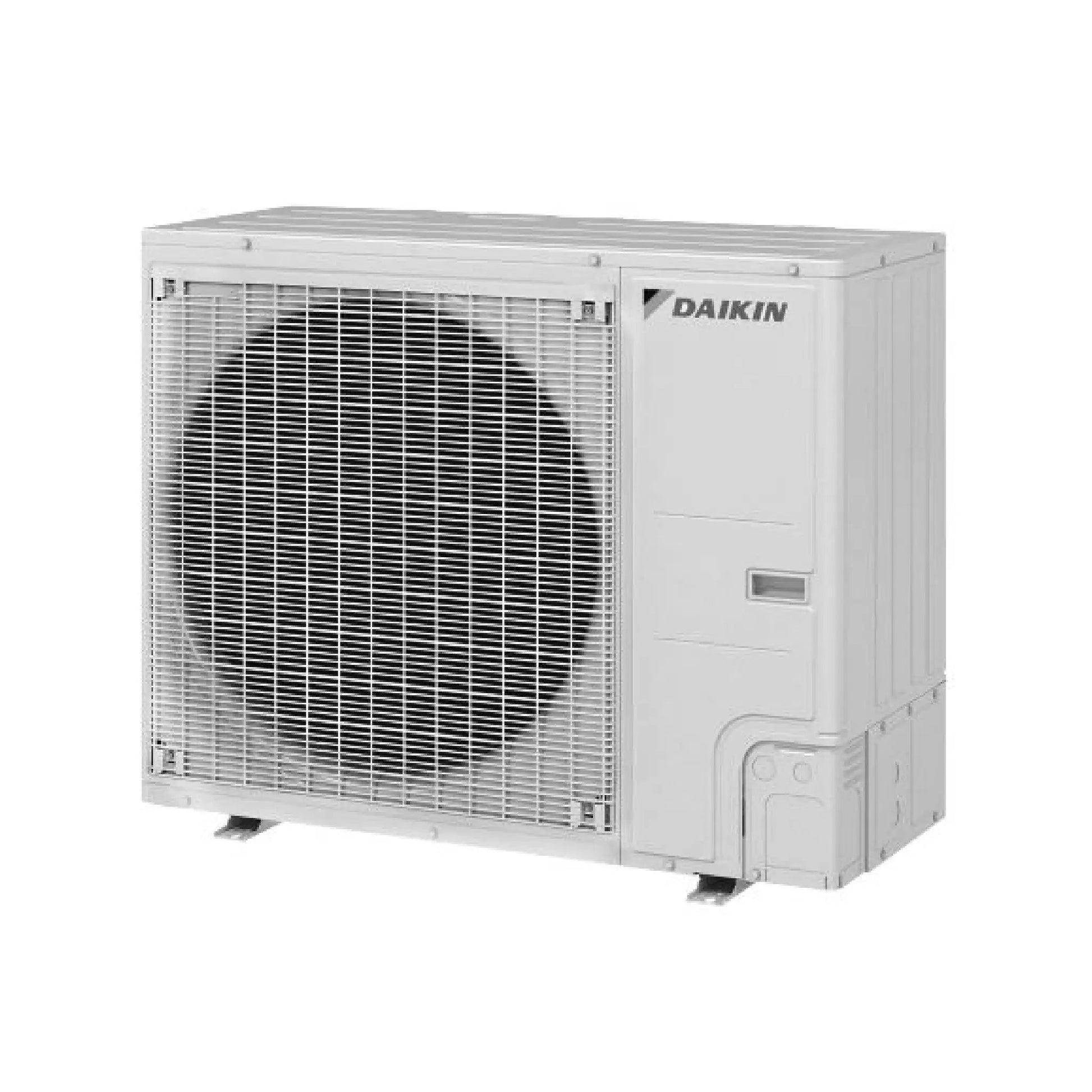

Daikin 30K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA30AAVJU
The Daikin SkyAir 30,000 BTU Single Zone Heat Pump is a high-capacity, energy-efficient system designed to meet the demands of larger spaces. Ideal for both residential and light commercial environments, this 2.5-ton R-32 unit provides reliable heating and cooling with advanced technology for quiet, consistent operation.
Key Features
- High-Capacity, Single Zone Comfort – Ideal for larger rooms or open spaces needing precise, energy-efficient temperature control
- Environmentally Friendly R-32 Refrigerant – Offers lower global warming potential and enhanced system performance
- 10-Year Limited Parts and Compressor Warranty – Supported by Daikin’s leading warranty for peace of mind and long-term protection
- Optional Drain Pan Heater – Prevents freezing in cold weather to maintain uninterrupted operation in winter conditions
- Engineered for Reliability – Built with high-quality components and sound-reducing technology to ensure quiet, dependable performance in any climate
Daikin 30K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA30AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

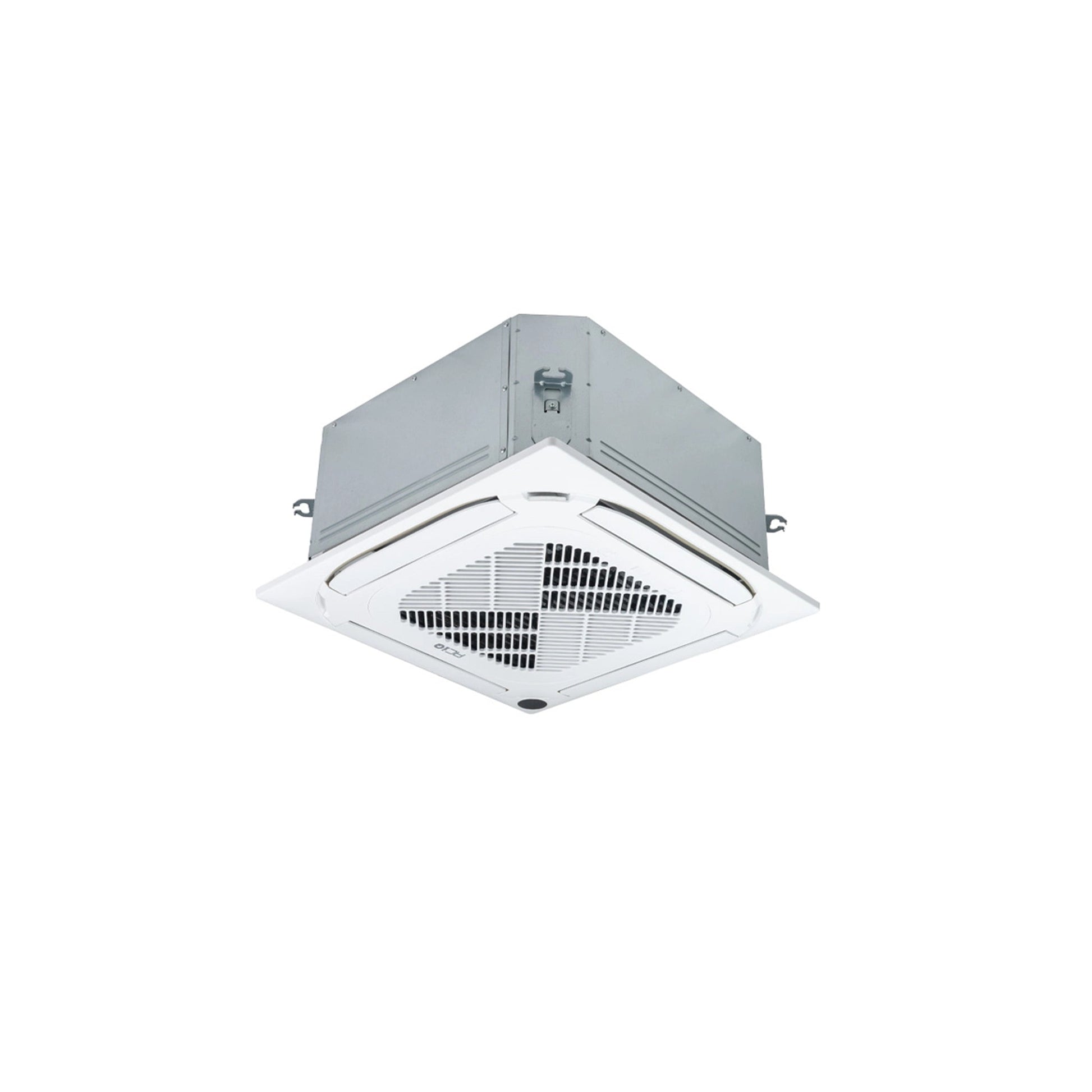

Daikin 30,000 BTU SkyAir Ceiling Cassette Air Handler Mini Split R32 FCA30AAVJU
The Daikin 30,000 BTU SkyAir Ceiling Cassette Air Handler delivers powerful, energy-efficient performance while maintaining a sleek and compact ceiling-mounted design. Compatible with R-32 refrigerant, this unit supports integrated leak detection and ventilation control systems, making it ideal for both residential and light commercial applications. Optional self-cleaning and high-efficiency filters further improve indoor air quality and reduce maintenance costs.
Key Features
- 30,000 BTU Cooling Capacity for Larger Spaces
- Uses Environmentally Friendly R-32 Refrigerant
- Low-Profile Ceiling Cassette Design
- Optional Self-Cleaning Filter for Lower Maintenance
- High-Efficiency Filter Options Available
- Supports Refrigerant Leak Detection Integration
- Ventilation Connection Kit Compatibility
- Max Overcurrent Protection: 15 Amps
- Perfect for Residential or Light Commercial Settings
Designed for flexibility and reliable performance, this air handler fits discreetly into ceiling installations and offers optional filtration and ventilation accessories for enhanced comfort and control.
Daikin 30,000 BTU SkyAir Ceiling Cassette Air Handler Mini Split R32 FCA30AAVJU
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 10 Years | 10 Years | 10 Years |
Technical Specifications — FCA30AAVJU
| sku | FCA30AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Fan Coil |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Light Commercial |
| product family | FCA_AAVJU |
| series name | FCA |
| short description | SkyAir Indoor Fan Coil |
| family description | 1.5 tp 4.0 Ton SkyAir Ceiling Mounted Round Flow Cassette |
| product description | R32 - 2.5-Ton Roundflow Sensing Cassette Unit |
| decibel level (dba) | 42 dBA |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 1.0 A |
| height | 11-11/32 in |
| width | 33-1/16 in |
| depth | 33-1/16 in |
| weight | 58 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — RZA30AAVJU
| sku | RZA30AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Heat Pump |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Light Commercial |
| product family | RZA_AAVJU |
| short description | SkyAir Heat Pump, Single Zone |
| family description | SkyAir Heat Pump 1.5 to 4.0 Ton |
| product description | R-32 SkyAir 2.5 T Heat Pump Single Zone |
| decibel level (dba) | 56 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 35 A |
| min. breaker size | 34.6 A |
| zone compatibility | Single Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 234 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
