Daikin
Daikin 24,000 BTU Skyair Single Zone Four-Way Ceiling Cassette Ductless Mini Split Heat Pump System - R32 | 230V
Product Overview

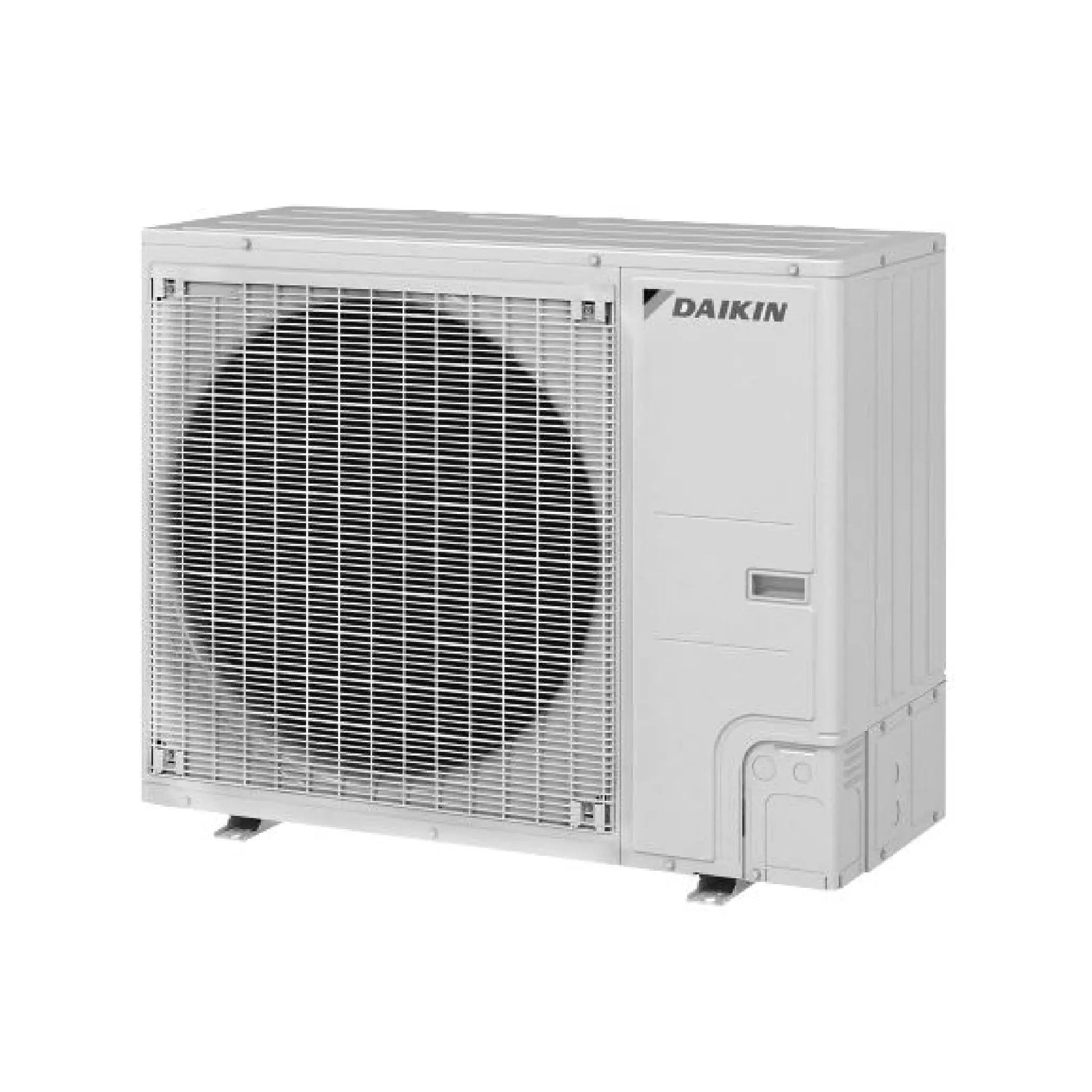

Daikin 24K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA24AAVJU
The Daikin SkyAir 24,000 BTU Single Zone Heat Pump is a powerful and energy-efficient solution for precise temperature control in individual spaces. Designed for both residential and light commercial applications, this 2.0-ton outdoor unit uses advanced R-32 refrigerant to deliver reliable performance with a reduced environmental impact.
Key Features
- High-Efficiency R-32 Refrigerant – Utilizes next-generation R-32 for improved energy efficiency and reduced global warming potential
- Precision Comfort, Single Zone – Ideal for targeted heating and cooling in individual rooms or zones
- 10-Year Limited Parts and Compressor Warranty – Backed by Daikin’s industry-leading support for long-term peace of mind
- Optional Drain Pan Heater – Helps protect the system in colder climates by preventing freezing during low temperatures
- Quiet, Durable Operation – Engineered for low-noise performance and built to withstand harsh weather conditions
Daikin 24K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA24AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

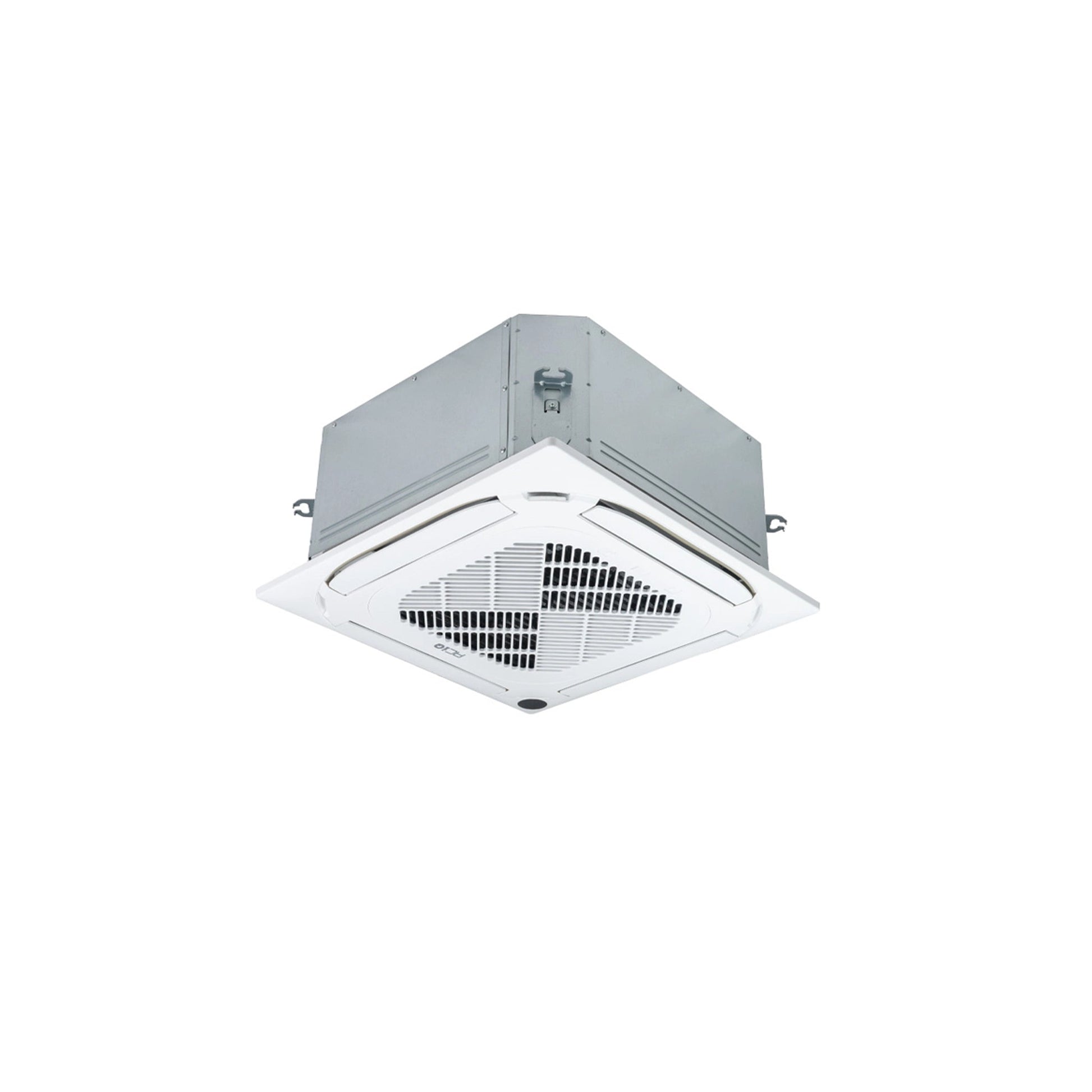

Daikin 24,000 BTU SkyAir Ceiling Cassette Air Handler Mini Split R32 FCA24AAVJU
Engineered for comfort and convenience, the Daikin 24,000 BTU SkyAir Ceiling Cassette Air Handler delivers quiet, efficient performance in a compact, unobtrusive design. This indoor mini split unit uses eco-friendly R-32 refrigerant and offers advanced compatibility with leak detection systems and ventilation control. Ideal for light commercial or residential settings, it supports optional self-cleaning filter panels and high-efficiency filtration upgrades, enhancing indoor air quality and reducing maintenance costs.
Key Features
- 24,000 BTU Capacity for Efficient Cooling
- Compatible with R-32 Refrigerant
- Ceiling Cassette Configuration for Space-Saving Installation
- Optional Self-Cleaning Filter Panel Reduces Maintenance
- High-Efficiency Filter Options Enhance Indoor Air Quality
- Refrigerant Leak Detection Integration for Added Safety
- Ventilation Connection Kit Available
- Compact Design: Just 9-11/16 in Height
- Ideal for Residential and Light Commercial Applications
This air handler is a smart solution for projects requiring discreet, efficient air delivery in ceiling-mounted applications. With optional ventilation and filtration features, it supports healthy, comfortable indoor environments.
Daikin 24,000 BTU SkyAir Ceiling Cassette Air Handler Mini Split R32 FCA24AAVJU
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 10 years | 10 years | 10 years |
Technical Specifications — FCA24AAVJU
| sku | FCA24AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Fan Coil |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Light Commercial |
| product family | FCA_AAVJU |
| series name | FCA |
| short description | SkyAir Indoor Fan Coil |
| family description | 1.5 tp 4.0 Ton SkyAir Ceiling Mounted Round Flow Cassette |
| product description | R32 - 2.0-Ton Roundflow Sensing Cassette Unit |
| decibel level (dba) | 38 dBA |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 0.5 A |
| height | 9-11/16 in |
| width | 33-1/16 in |
| depth | 33-1/16 in |
| weight | 51 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — RZA24AAVJU
| sku | RZA24AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Heat Pump |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Light Commercial |
| product family | RZA_AAVJU |
| short description | SkyAir Heat Pump, Single Zone |
| family description | SkyAir Heat Pump 1.5 to 4.0 Ton |
| product description | R-32 SkyAir 2.0 T Heat Pump Single Zone |
| decibel level (dba) | 56 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 20 A |
| min. breaker size | 19.8 A |
| zone compatibility | Single Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 234 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
