Daikin

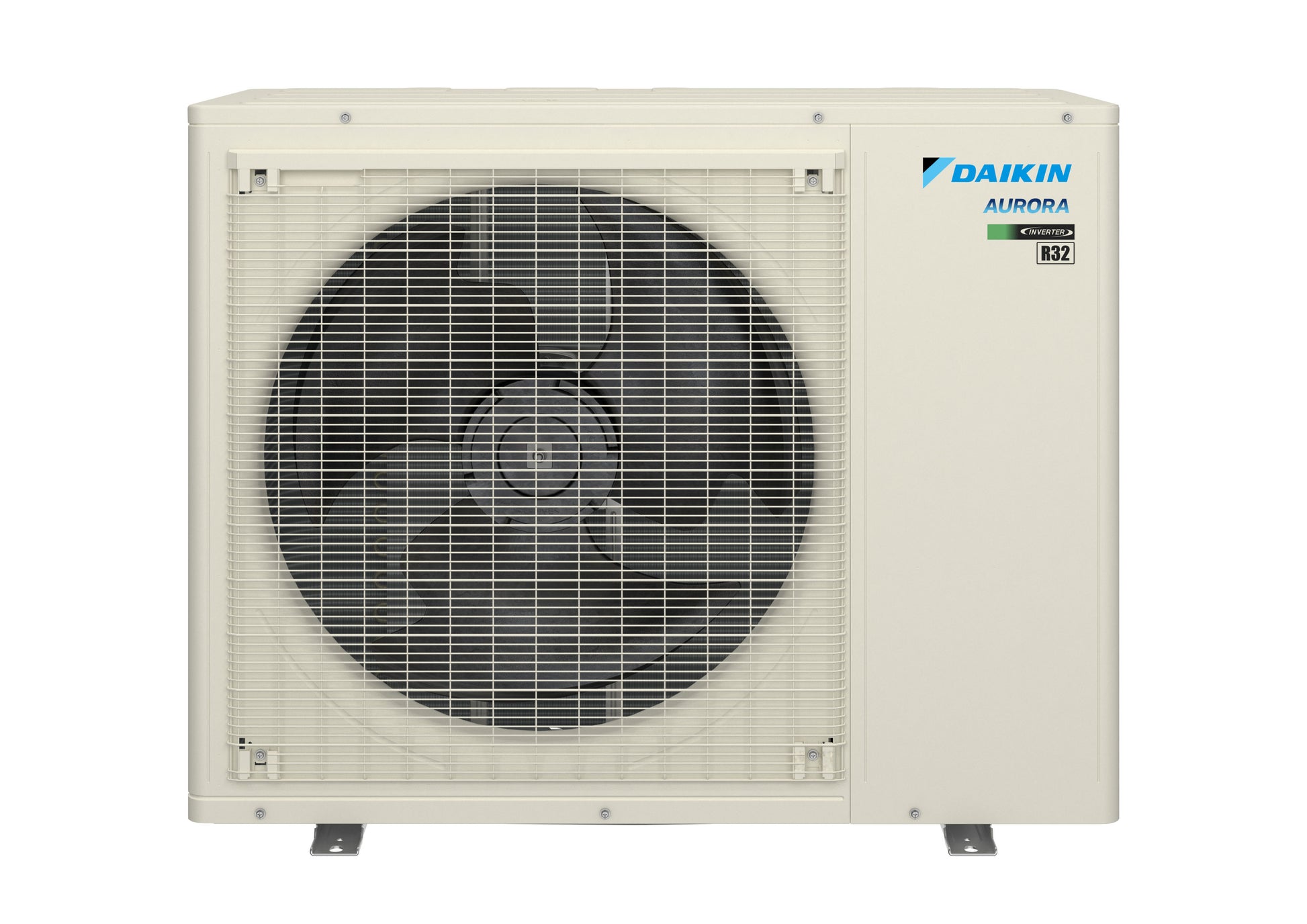

Daikin 24,000 BTU MXM Multi-Zone Mini Split Hyper Heat Pump Condenser - R32 | 230V (with drain pan heater)
Product Overview
- Multi-Zone comfort: One outdoor unit connects up to five separate fan coils individually controlled
- Variable Speed Inverter Compressor
- Cooling Range 14° - 115° F
- Continuous heating operation as low as -13F° (-25°C)
- Quick and easy installation
- Precision temperature control for individual rooms
- Space-saving design
- Quiet operation
- Intelligent Defrost Mode
Technical Specifications — 3MXTH24AVJU9
| sku | 3MXTH24AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Heat Pump |
| system family | Multi-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | 3MXTH_AVJU9 |
| series name | Multi Split Heat Pump Outdoor |
| short description | Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump |
| product description | 2.0-Ton R-32, 3-Port aurora multi dph 24k |
| cooling btu | 24,000 |
| heating btu | 24,000 |
| seer2 | 19 |
| decibel level (dba) | 55 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 35 A |
| min. breaker size | 34.4 A |
| tonnage | 2 |
| btu/tonnage | 24,000 BTU/2 Ton |
| min/max outdoor temp for heating | -13 °F to 75.2 °F |
| min/max outdoor temp for cooling | 14 °F to 114.8 °F |
| zone compatibility | Multi Zone |
| height | 34-1/4 in |
| width | 46-7/8 in |
| depth | 18-1/8 in |
| weight | 215 lb |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 217747239 |
