Daikin
Daikin 18,000 BTU Skyair High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System - R32 | 230V
Product Overview

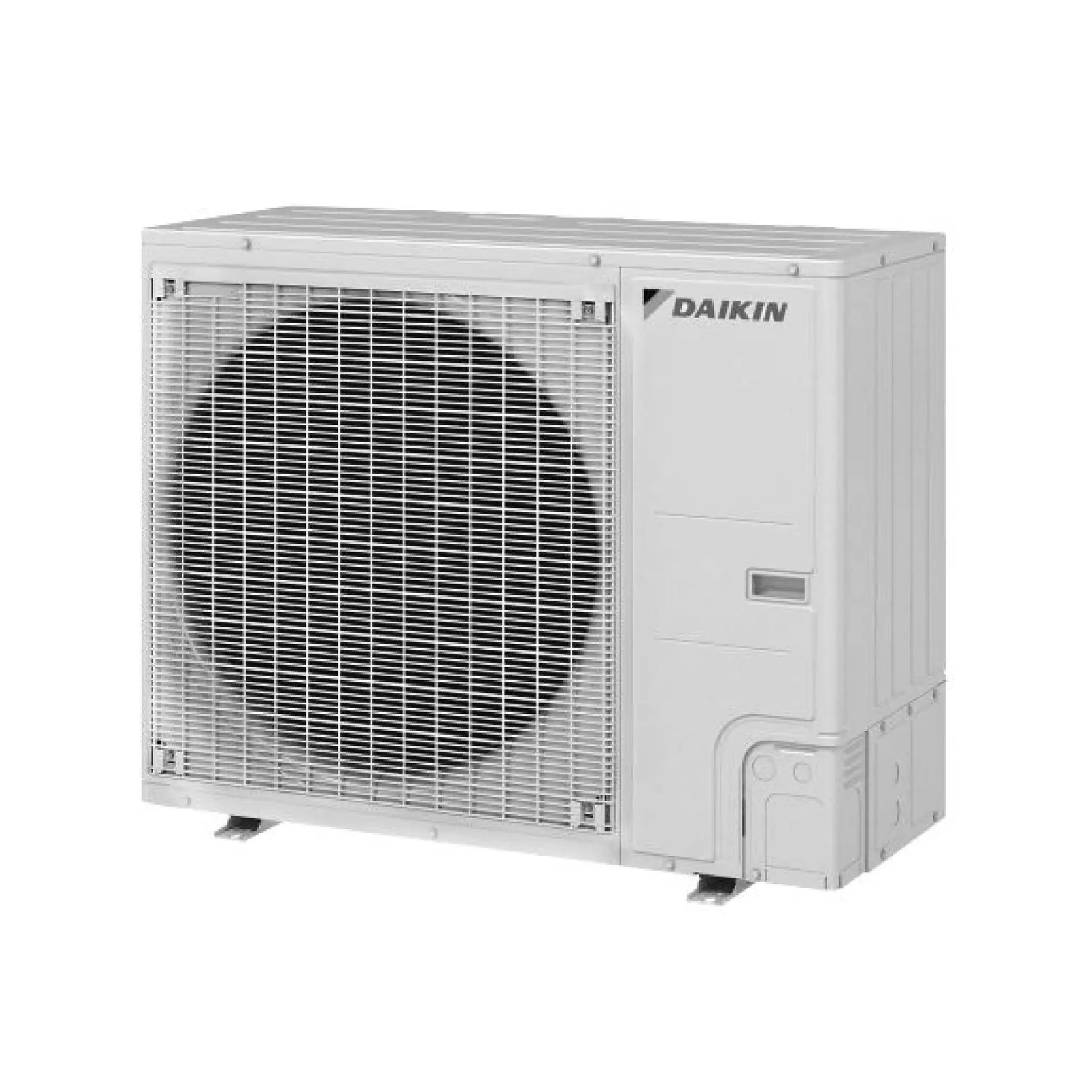

Daikin 18K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA18AAVJU
The Daikin SkyAir Advance 18,000 BTU Outdoor Heat Pump is a high-performance, single-zone HVAC solution designed for year-round comfort and energy efficiency. Built for both light commercial and residential use, this 1.5-ton outdoor unit utilizes R-32 refrigerant to deliver powerful heating and cooling while minimizing environmental impact.
Key Features
- Energy-Efficient R-32 Refrigerant – Offers enhanced performance with lower global warming potential, making it a more environmentally responsible option
- Single Zone, Targeted Comfort – Ideal for cooling or heating individual rooms or areas that require dedicated temperature control
- 10-Year Limited Parts and Compressor Warranty – Provides long-term protection and peace of mind with Daikin's reliable warranty coverage
- Optional Drain Pan Heater – Supports cold-climate operation by preventing drain pan freezing in low temperatures
- Quiet, Durable Design – Built with noise-reduction components and weather-resistant materials for long-lasting, quiet operation in varying conditions
Daikin 18K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA18AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

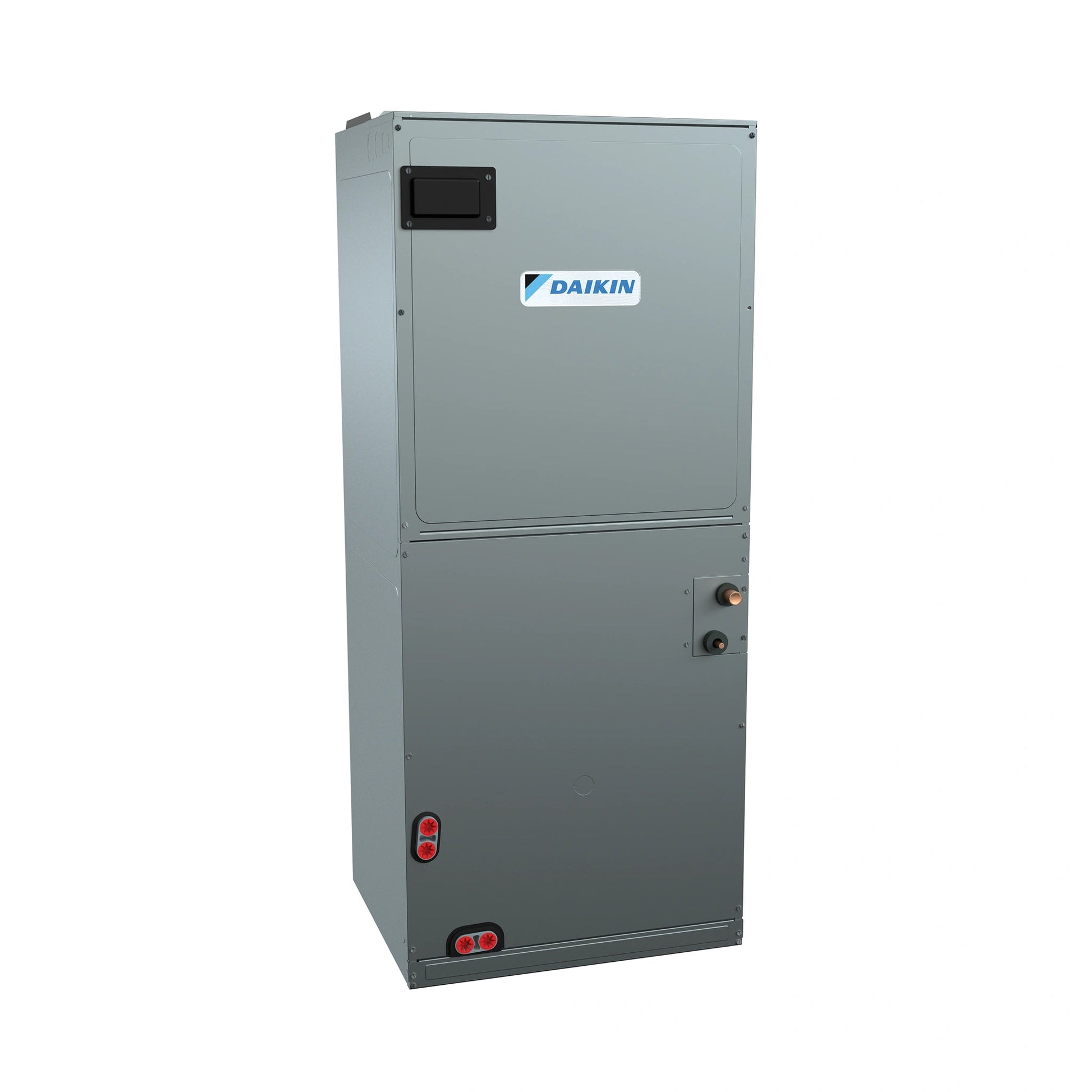

Daikin 18K BTU SkyAir Mini Split Air Handler Multi Position Single Zone R32 FTA18AAVJUA
The Daikin 18K BTU SkyAir Mini Split Air Handler is a high-performance, energy-efficient HVAC solution designed for single-zone applications in residential and light commercial environments. With its flexible multi-position installation, advanced airflow control, and compatibility with eco-friendly R-32 refrigerant, this unit offers superior comfort, reliability, and indoor air quality. Whether for new construction or retrofit projects, it's built to meet today’s demanding indoor climate needs.
Key Product Features:
- All-aluminum coil provides enhanced heat transfer efficiency and long-lasting durability
- Engineered for less than 2% air leakage to maximize energy efficiency and airflow performance
- Supports external static pressure up to 0.9 in. w.g. for advanced ducting flexibility and airflow control
- Optional outside air integration improves indoor air quality and meets ventilation code requirements
- Factory-integrated refrigerant leak detection ensures system safety and reduces maintenance risk
- Factory-installed disconnect option (D-Model) offers faster installation and service convenience
- Anti-corrosion treatment on the heat exchanger extends equipment life in coastal and harsh environments
Daikin 18K BTU SkyAir Mini Split Air Handler Multi Position Single Zone R32 FTA18AAVJUA
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 12 years | 12 years | 12 years |
Technical Specifications — FTA18AAVJUA
| sku | FTA18AAVJUA |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Fan Coil |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Light Commercial |
| product family | FTA_AAVJUA |
| series name | SkyAir FTA Multi Position Air Handler |
| short description | SkyAir Indoor Fan Coil |
| family description | R-32 1.5 - 4 Ton Inverter Multi Position Air Handler |
| product description | Sky-Air R32 1.5 ton Multi-Position Air Handler |
| decibel level (dba) | 44.6 dBA |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 4.9 A |
| height | 45 in |
| width | 17-1/2 in |
| depth | 21 in |
| weight | 115 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — RZA18AAVJU
| sku | RZA18AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Heat Pump |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Light Commercial |
| product family | RZA_AAVJU |
| short description | SkyAir Heat Pump, Single Zone |
| family description | SkyAir Heat Pump 1.5 to 4.0 Ton |
| product description | R-32 SkyAir 1.5 T Heat Pump Single Zone |
| decibel level (dba) | 56 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 20 A |
| min. breaker size | 19.8 A |
| zone compatibility | Single Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 234 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
