Daikin
Daikin 18,000 BTU MXM Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V
Product Overview

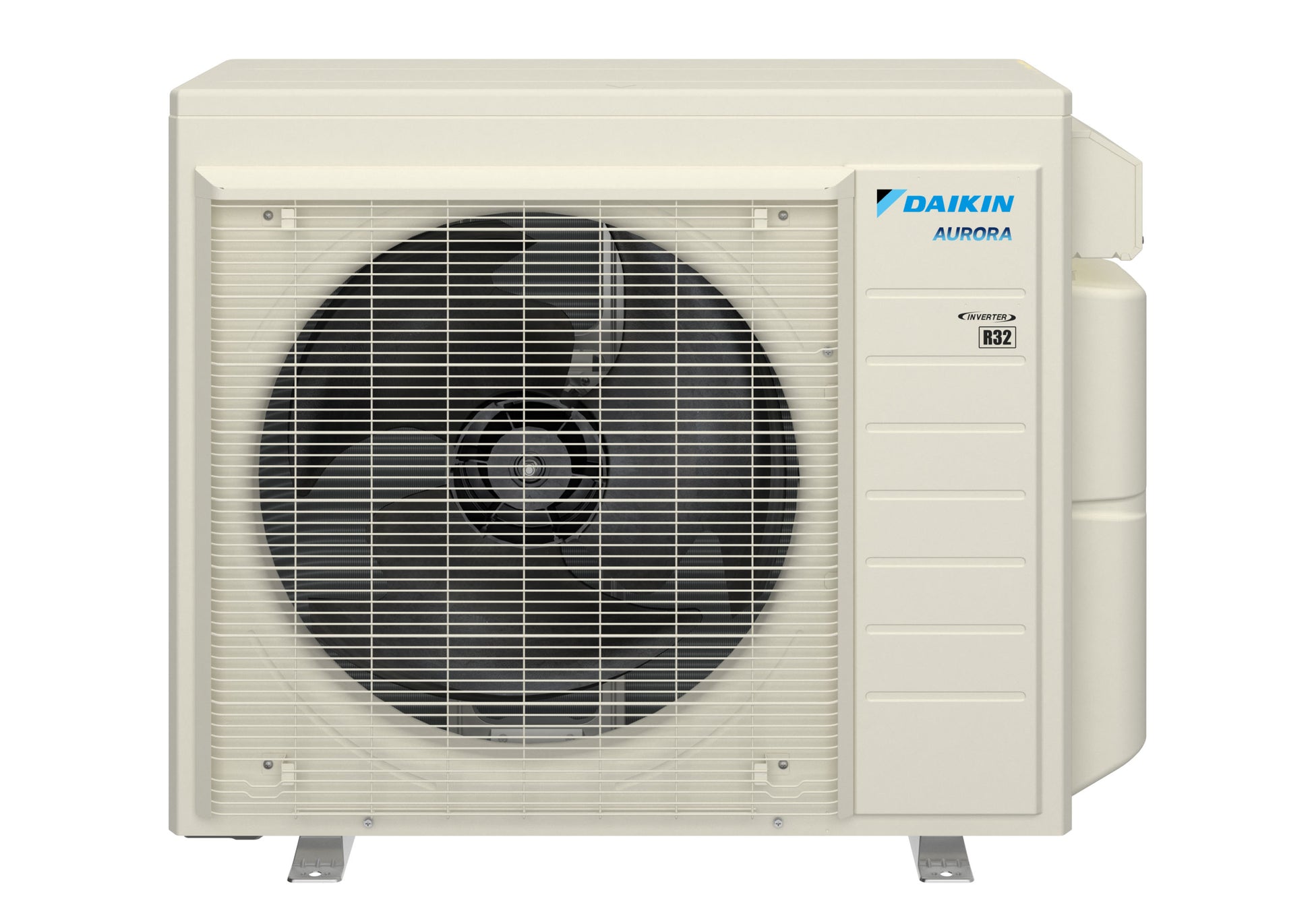

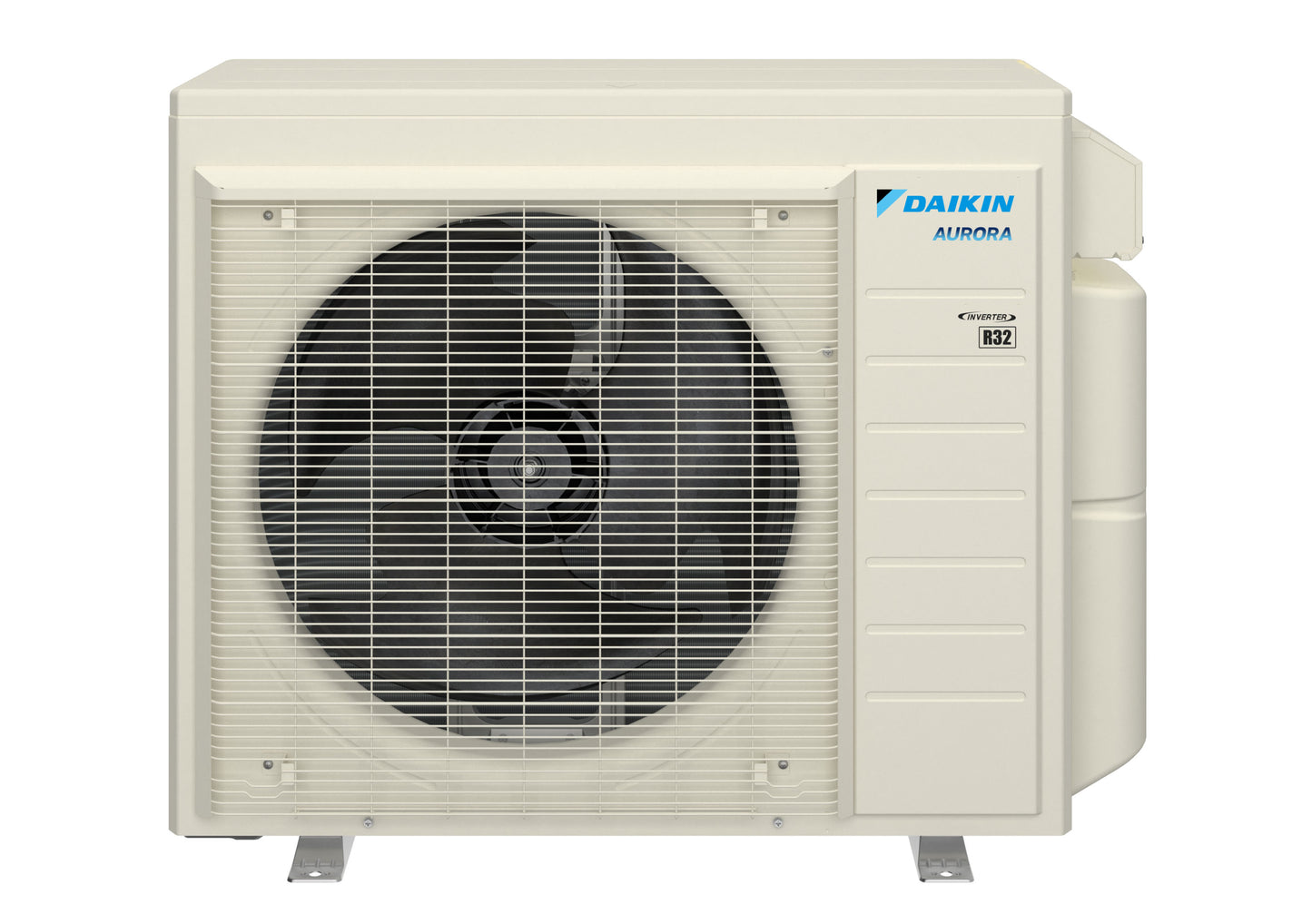

18,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V
The 18,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser is a powerful and energy-efficient solution for multi-zone climate control. Designed to support 2, 3, 4, and 5-zone multi-port configurations, this system provides exceptional heating and cooling performance for homes and businesses. Featuring R32 refrigerant and an inverter-driven compressor, this unit maximizes efficiency while maintaining year-round comfort.
Key Features:
High-Performance Heating & Cooling:
- Supports up to a 4 Ton Heat Pump System for superior climate control
- Delivers up to 20.6 SEER2, 12 EER2, and 9.7 HSPF2 for outstanding energy efficiency
- Provides 100% heating capacity at 5°F (MXT Enhanced Capacity ONLY)
- Ensures 100% cooling capacity at 104°F (MXT Capacity ONLY)
- Wide operating temperature range:
- MXM Heating: 5°F to 60°F
- MXT Heating: -13°F to 60°F
- Cooling: 14°F to 115°F
Multi-Zone Technology:
- Designed for 2, 3, 4, and 5-zone multi-port systems to accommodate multiple indoor units
- Precharged for up to 131 ft of liquid line for faster installation
- Features Auto Changeover mode for seamless transitions between heating and cooling
Smart & Quiet Operation:
- Outdoor sound pressure as low as 52 dB(A) for reduced noise levels
- Indoor sound pressure as low as 24 dB(A) for whisper-quiet operation
- Includes Self Diagnostics with a digital display for quick troubleshooting
- Equipped with Auto Restart after power failure for continuous comfort
Durability & Long-Term Reliability:
- Protected with Anti-Corrosion Treatment on the heat exchanger for longevity
Warranty Coverage:
- Limited 12-Year Parts Warranty for long-lasting performance
- Extended 12-Year Labor Warranty for additional protection
The 18,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser is the perfect choice for homeowners and businesses looking for an advanced, energy-efficient multi-zone climate control solution. With smart inverter technology, ultra-quiet operation, and exceptional durability, this unit ensures reliable comfort and efficiency all year round.
Technical Specifications — 2MXM18AVJU9
| sku | 2MXM18AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Heat Pump |
| system family | Multi-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | 2MXM_AVJU9 |
| series name | MXM Standard Efficiency Multi |
| short description | Daikin MXM Standard Efficiency Multi Series Outdoor Multi-Split Heat Pump |
| family description | 1.5 Ton 2-Port Heat Pump |
| product description | R-32 1.5-Ton, 2-Port Heat Pump, Ductless ODU |
| cooling btu | 17,200 |
| heating btu | 18,500 |
| seer2 | 21 |
| decibel level (dba) | 52 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 20 A |
| min. breaker size | 15.6 A |
| tonnage | 1.5 |
| btu/tonnage | 17,200 BTU/1.5 Ton |
| min/max outdoor temp for heating | 5 °F to 59.9 °F |
| min/max outdoor temp for cooling | 14 °F to 114.8 °F |
| zone compatibility | Multi Zone |
| height | 29-1/2 in |
| width | 34-1/4 in |
| depth | 12-5/8 in |
| weight | 127 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 214837757 |
