Daikin

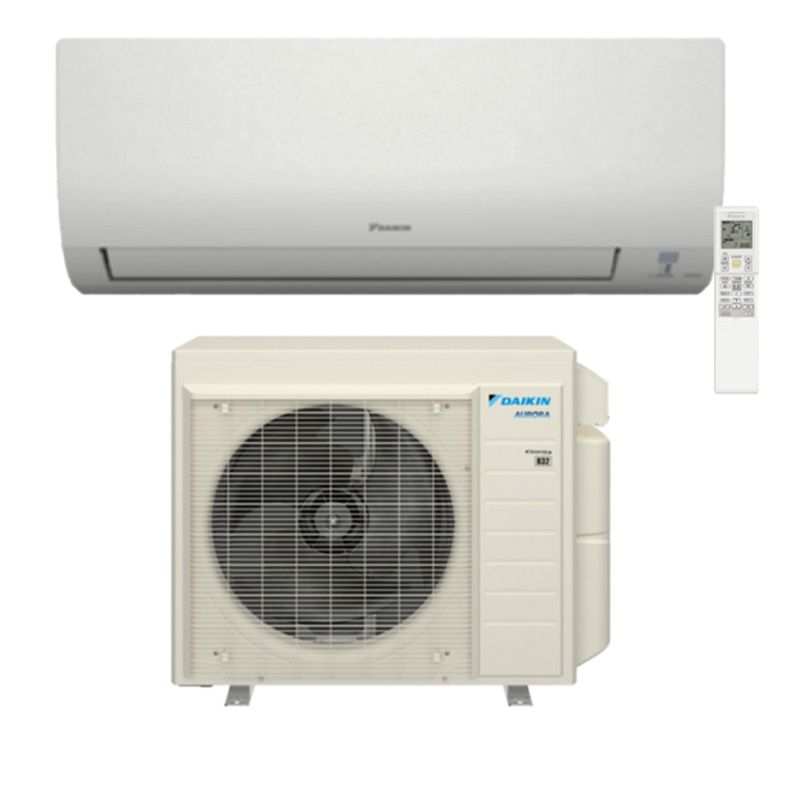

Daikin 18,000 BTU Aurora 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V

SKU: RXT18AVJU9 + FTXV18AVJU9

System highlights
AC Type
Wall Mount
Refrigerant Type
R32
Brand
Daikin
Outdoor Unit
18000 BTU VO (1.5 TON)
Indoor Unit
18000 BTU (1.5 TON)
Voltage
208-230V
Looking For
Wall Mount
Cooling Area (sq.ft.)
550-1000
Series
Aurora
SEER2 Rating
21.0

Price

$3,925.00
Shipping calculated at checkout.
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.
View full details
Daikin
Daikin 18,000 BTU Aurora 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V

Product Overview

Product Details

System Overview

Features

  • Hot start technology
  • Auto-restart (after power failure)
  • IR controller included

Benefits

  • Quiet operation
  • Low ambient cooling operation down to -4°F (-20°C) with field setting and air adjustment grille
  • Operating Range - Cooling (50°F - 114.8°F)
  • Operating Range - Heating (-13°F - 64.4°F)

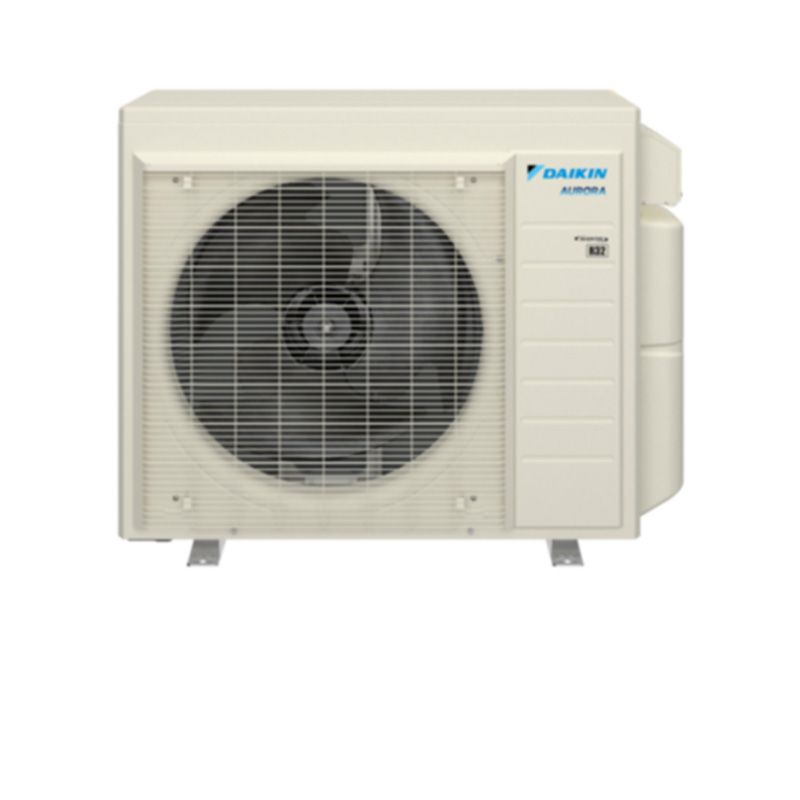

Technical Specifications — RXT18AVJU9

sku RXT18AVJU9
manufacturer Daikin
product category Ductless Mini-Splits
product class Mini-Split Heat Pump
system family Mini-Split
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family RXT_AVJU9
series name AURORA
short description Series Outdoor Mini-Split Heat Pump, Single Zone
family description 0.75 - 2.0 Ton AURORA R-32 Split Heat Pump Up to 21.0 SEER2 / 10.5 HSPF2 / 12.2 EER2
product description 21.0 SEER2, Heat Pump, Ductless ODU, 1.5 Ton, Daikin AURORA R-32
cooling btu 18,000
heating btu 21,600
decibel level (dba) 55 dBA
refrigerant R-32
compressor type Swing
liquid line 1/4 in
suction line 1/2 in
electrical 208-230 V | 60 Hz | 1 Ph
max breaker size 25 A
min. breaker size 21.4 A
tonnage 1.5
btu/tonnage 18,000 BTU/1.5 Ton
min/max outdoor temp for heating -13 °F to 60 °F
min/max outdoor temp for cooling 50 °F to 115 °F
zone compatibility Single Zone
height 29-1/2 in
width 34-1/4 in
depth 12-5/8 in
weight 127 lb
warranty ALL PARTS - 12 YEARS PARTS
safety information Proposition 65 Label: Yes

Technical Specifications — FTXV18AVJU9

sku FTXV18AVJU9
manufacturer Daikin
product category Ductless Mini-Splits
product class Multi-Split Fan Coil
system family Multi-Split
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family FTXV_AVJU9
series name Multi-Split Fan Coil Indoor
short description Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil
family description R-32 0.75 - 2.0 Ton Wall Mounted Unit
product description 1.5 Ton Wall Mount - R-32
decibel level (dba) 48 dBA
refrigerant R-32
liquid line 1/4 in
suction line 1/2 in
electrical 208-230 V | 60 Hz | 1 Ph
zone compatibility Multi Zone
height 11-5/8 in
width 39 in
depth 10-3/8 in
weight 27 lb
warranty ALL PARTS - 12 YEARS PARTS
safety information Proposition 65 Label: Yes
