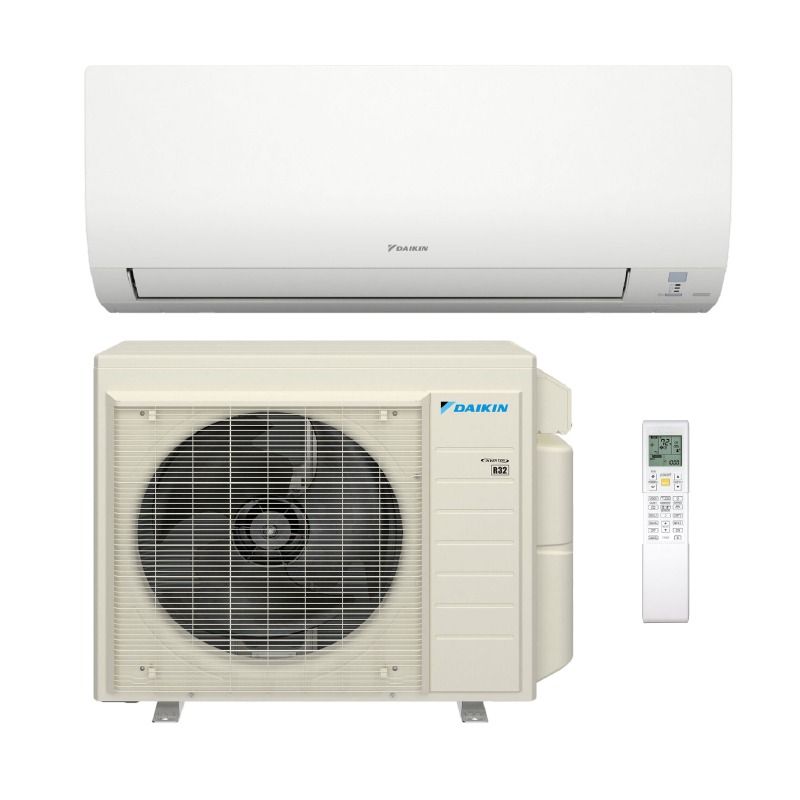

Daikin 12,000 BTU Aurora 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V

SKU: RXT12AVJU9 + FTXV12AVJU9

System highlights
AC Type
Wall Mount
Refrigerant Type
R32
Brand
Daikin
Outdoor Unit
12000 BTU VO (1.0 TON)
Indoor Unit
12000 BTU (1.0 TON)
Voltage
208-230V
Looking For
Wall Mount
Cooling Area (sq.ft.)
400-550
Series
Aurora
SEER2 Rating
21.0

Price

$2,449.00
Shipping calculated at checkout.
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.
View full details
Daikin
Daikin 12,000 BTU Aurora 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V

Product Overview

Daikin 12,000 BTU Aurora Single Zone Mini Split Heat Pump Condenser - R32 | 230V

12,000 BTU Daikin Aurora Mini Split Heat Pump Condenser - R32 | 230V

The 12,000 BTU Daikin Aurora Mini Split Heat Pump Condenser delivers high-performance heating and cooling with advanced energy efficiency. Featuring R32 refrigerant and an inverter-driven compressor, this system ensures optimal comfort, low energy consumption, and whisper-quiet operation. Ideal for single-zone wall-mount, floor-mount, and concealed duct systems, it provides reliable climate control in extreme weather conditions.

Key Features:

Superior Heating & Cooling Performance:

  • Supports 0.75 Ton to 2 Ton Heat Pump Systems
  • Delivers up to 21 SEER2 and 10.5 HSPF2 for exceptional energy efficiency
  • Maintains 100% heating capacity at 5°F for extreme cold climates
  • Provides 100% cooling capacity at 104°F for consistent summer performance
  • Operating temperature range:
    • Heating: -13°F to 64.4°F
    • Cooling: 50°F to 114.8°F

Advanced Technology:

  • Features Built-in WiFi (Wall Mount Unit Only) for remote control via the Daikin Comfort Control App
  • Equipped with Self Diagnostics and a digital display for easy troubleshooting
  • Offers multiple operation modes: Econo Mode, Dry Function, and Powerful Mode
  • Provides Auto Fan Speed Control for consistent airflow management

Durable and Weather-Resistant Construction:

  • Precharged for up to 49 ft of liquid line for easier installation
  • Includes Anti-Corrosion Treatment on the heat exchanger for enhanced longevity
  • Allows Low Ambient Cooling - with field settings and an air adjustment grille, operation extends down to 5°F

Quiet and User-Friendly Design:

  • Ensures Indoor and Outdoor Unit Quiet Operation for minimal noise disturbance
  • Includes a Wireless Backlit IT Remote Controller for easy control and adjustments
  • Provides Auto Restart after power failures for continuous operation

Flexible Installation Options:

  • Max piping for 09/12 MBH: 66' length, 49' height
  • Max piping for 15 MBH: 98' length, 66' height
  • Max piping for 18/24 MBH: 99' length, 66' height

Warranty Coverage:

  • Limited 12-Year Parts Warranty for long-term reliability
  • Extended 12-Year Labor Warranty for added peace of mind

The 12,000 BTU Daikin Aurora Mini Split Heat Pump Condenser is designed for those who need high-efficiency, reliable heating and cooling in any climate. With smart controls, durable construction, and whisper-quiet operation, this system provides year-round comfort and maximum energy savings.

Daikin 12,000 BTU Aurora Multi Zone Wall Mount Mini Split Air Handler - R32 | 230V

Daikin Aurora 12,000 BTU Wall Mount Air Handler - R32 | 230V

The Daikin Aurora 12,000 BTU Wall Mount Air Handler is a versatile, energy-efficient heating and cooling solution for single zone and multi zone applications. Featuring advanced R32 refrigerant, built-in WiFi, and a robust heat pump, this unit delivers reliable comfort even in extreme temperatures while ensuring quiet operation and superior energy savings.

Key Features:

Superior Heating & Cooling Performance:

  • Supports 0.75 Ton to 2 Ton Heat Pump Systems
  • Delivers up to 21 SEER2 and up to 10.5 HSPF2 for outstanding energy efficiency
  • Maintains:
    • 100% heating capacity at 5°F
    • 100% cooling capacity at 104°F
  • Operates effectively within a wide temperature range:
    • Heating: -13°F to 64.4°F
    • Cooling: 50°F to 114.8°F

Advanced Technology:

  • Built-in WiFi (wall mount unit only) for seamless connectivity and remote control
  • Self-diagnostics with a digital display for easy maintenance and troubleshooting
  • Multiple operation modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
  • Equipped with Auto Fan Speed Control to ensure consistent and optimized airflow

Durable and Quiet Design:

  • Anti-Corrosion Treatment on the heat exchanger enhances durability and extends lifespan
  • Offers quiet operation for both indoor and outdoor units, minimizing noise disruptions

Flexible Installation and Operation:

  • Precharged for up to 49 ft of liquid line, simplifying installation
  • Max piping capabilities:
    • 09/12 MBH models: 66 ft length, 49 ft height
    • 15 MBH models: 98 ft length, 66 ft height
    • 18/24 MBH models: 99 ft length, 66 ft height
  • Low ambient cooling capability down to 5°F with field setting and air adjustment grille

User-Friendly Features:

  • Comes with a Wireless Backlit IR Remote Controller for convenient operation
  • Includes Auto Restart functionality to resume operation automatically after power interruptions

Warranty Coverage:

  • Limited 12-Year Parts Warranty for reliable performance
  • Extended 12-Year Labor Warranty for comprehensive protection

The Daikin Aurora 12,000 BTU Wall Mount Air Handler combines advanced features, durable design, and exceptional energy efficiency. Designed for single zone and multi zone systems, it ensures year-round comfort in extreme temperatures, making it an ideal choice for both residential and light commercial applications.

Technical Specifications — RXT12AVJU9

sku RXT12AVJU9
manufacturer Daikin
product category Ductless Mini-Splits
product class Mini-Split Heat Pump
system family Mini-Split
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family RXT_AVJU9
series name AURORA
short description Series Outdoor Mini-Split Heat Pump, Single Zone
family description 0.75 - 2.0 Ton AURORA R-32 Split Heat Pump Up to 21.0 SEER2 / 10.5 HSPF2 / 12.2 EER2
product description 20.0 SEER2, Heat Pump, Ductless ODU, 1.0 Ton, Daikin AURORA R-32
cooling btu 10,600
heating btu 13,500
decibel level (dba) 50 dBA
refrigerant R-32
compressor type Swing
liquid line 1/4 in
suction line 3/8 in
electrical 208-230 V | 60 Hz | 1 Ph
max breaker size 15 A
min. breaker size 14.6 A
tonnage 1
btu/tonnage 10,600 BTU/1 Ton
min/max outdoor temp for heating -13 °F to 60 °F
min/max outdoor temp for cooling 50 °F to 115 °F
zone compatibility Single Zone
height 21-15/16 in
width 26-6/16 in
depth 11-3/16 in
weight 72 lb
warranty ALL PARTS - 12 YEARS PARTS
safety information Proposition 65 Label: Yes

Technical Specifications — FTXV12AVJU9

sku FTXV12AVJU9
manufacturer Daikin
product category Ductless Mini-Splits
product class Multi-Split Fan Coil
system family Multi-Split
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family FTXV_AVJU9
series name Multi-Split Fan Coil Indoor
short description Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil
family description R-32 0.75 - 2.0 Ton Wall Mounted Unit
product description 1 Ton Wall Mount R-32
decibel level (dba) 45 dBA
refrigerant R-32
liquid line 1/4 in
suction line 3/8 in
electrical 208-230 V | 60 Hz | 1 Ph
tonnage 1
zone compatibility Multi Zone
height 11-1/4 in
width 30-5/16 in
depth 8-3/4 in
weight 19 lb
warranty ALL PARTS - 12 YEARS PARTS
safety information Proposition 65 Label: Yes
