Cooper&Hunter Universal Floor/Ceiling Indoor • R410A • 230V • Single/Multi-Zone

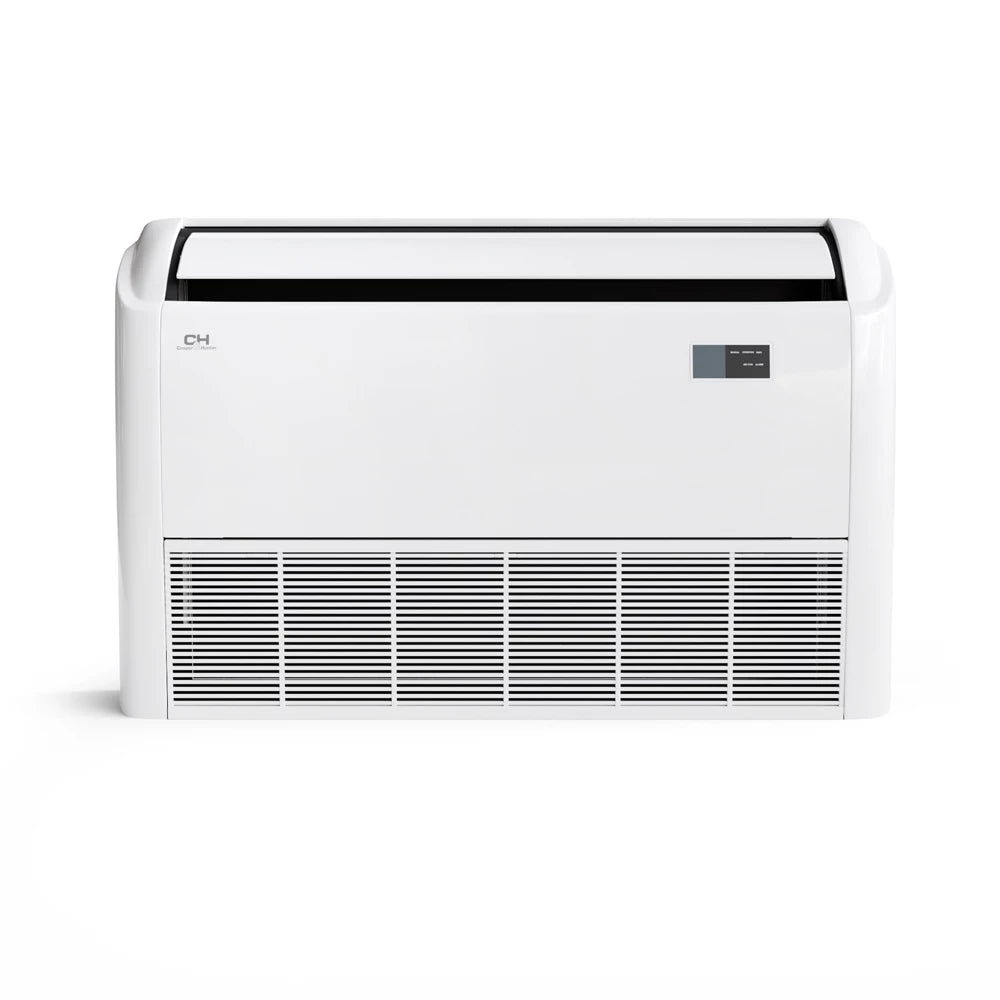

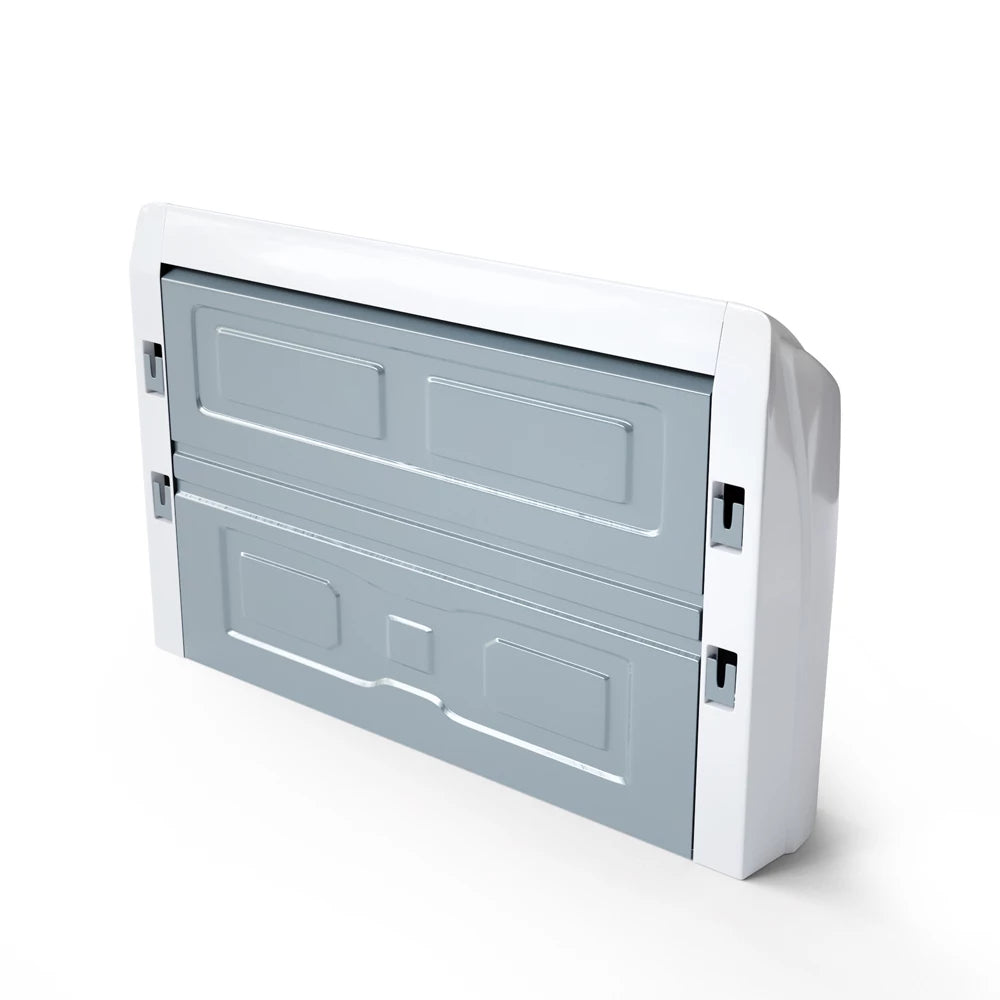

Cooper&Hunter Universal Floor/Ceiling 18,000 BTU Indoor Unit — CH-18MSPHFC-230VI
Flexible floor/ceiling indoor unit designed for horizontal ceiling or vertical wall installation, with multiple control options including remote, wired controller, or optional app control.
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS
CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Overview

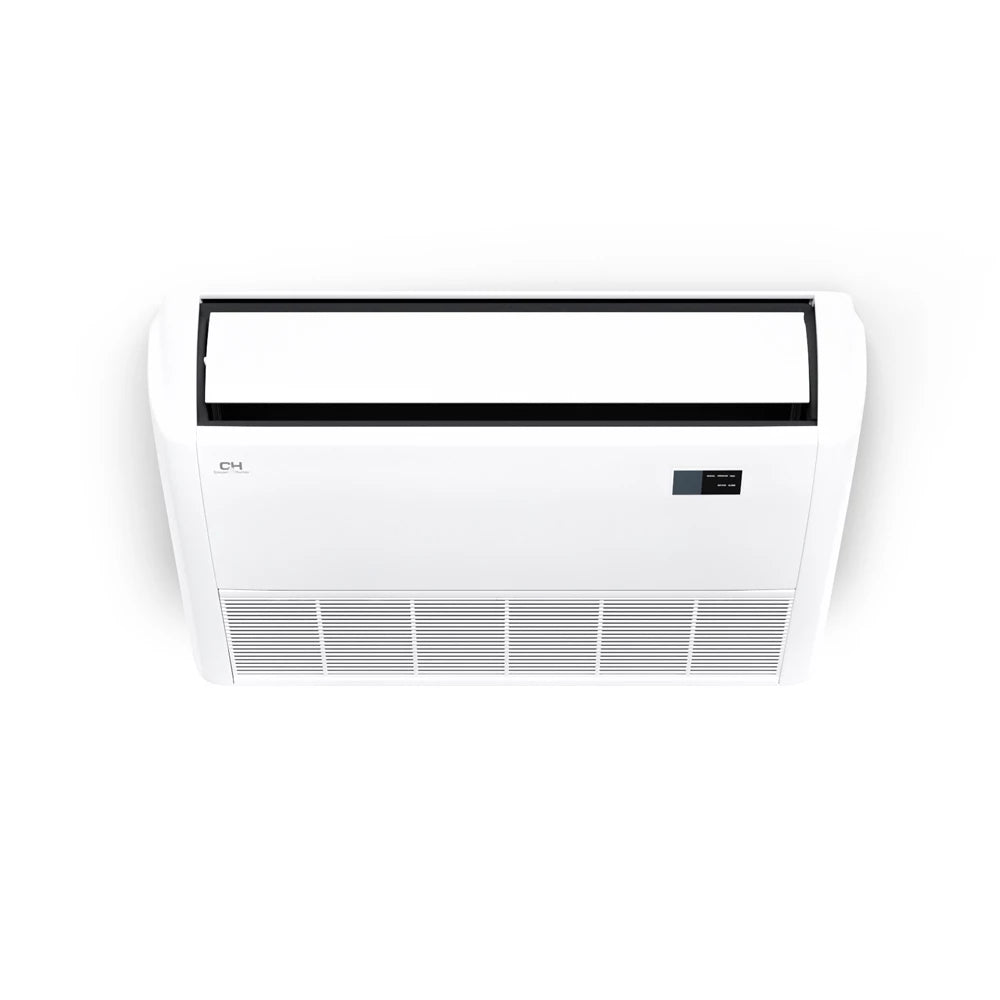

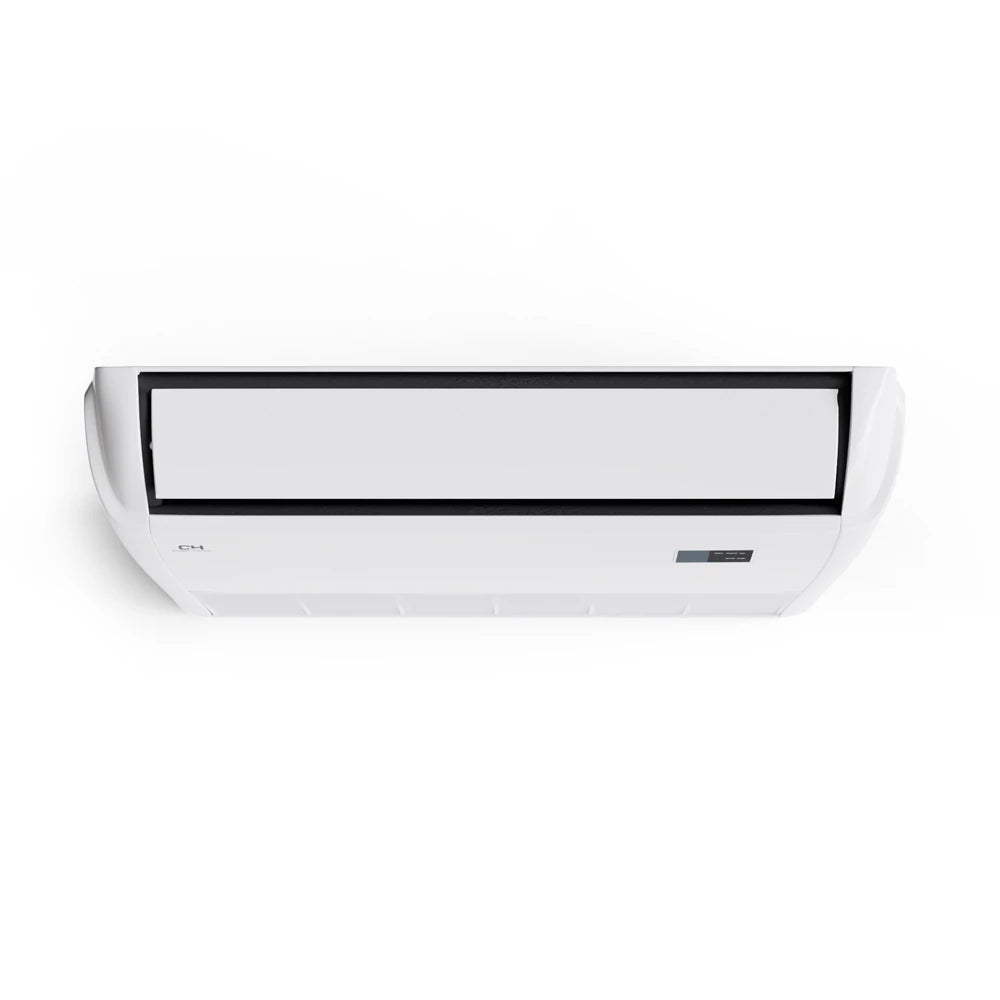

The Cooper&Hunter Universal Floor/Ceiling indoor series offers installation flexibility for spaces where a standard wall mount
isn’t ideal. These units can be installed horizontally on a ceiling or vertically on a wall, and are suitable for
single-zone or compatible multi-zone applications. Universal Floor/Ceiling units are offered in
18K, 24K, 36K, 48K, and 60K BTU sizes.
The CH-18MSPHFC-230VI is the 18,000 BTU indoor unit using R410A refrigerant and 208–230V power.
It can be controlled via remote control, a compatible wired controller, or via the C&H Remote app (with appropriate accessories/system pairing).
Highlights
18,000 BTU (rated)
SEER2 23
EER2 12.5
R410A
Floor or Ceiling Install
Remote Included (RG10K)
Wired Controller Compatible
App Control Capable
Single/Multi-Zone Compatible

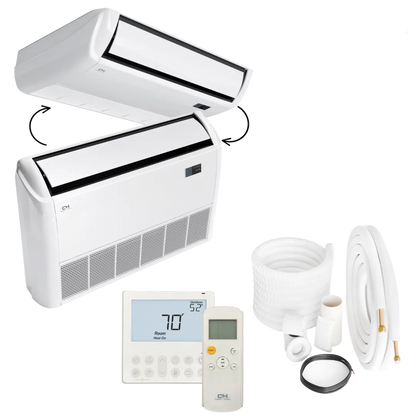

- Mounting flexibility: Install horizontally on a ceiling or vertically on a wall.

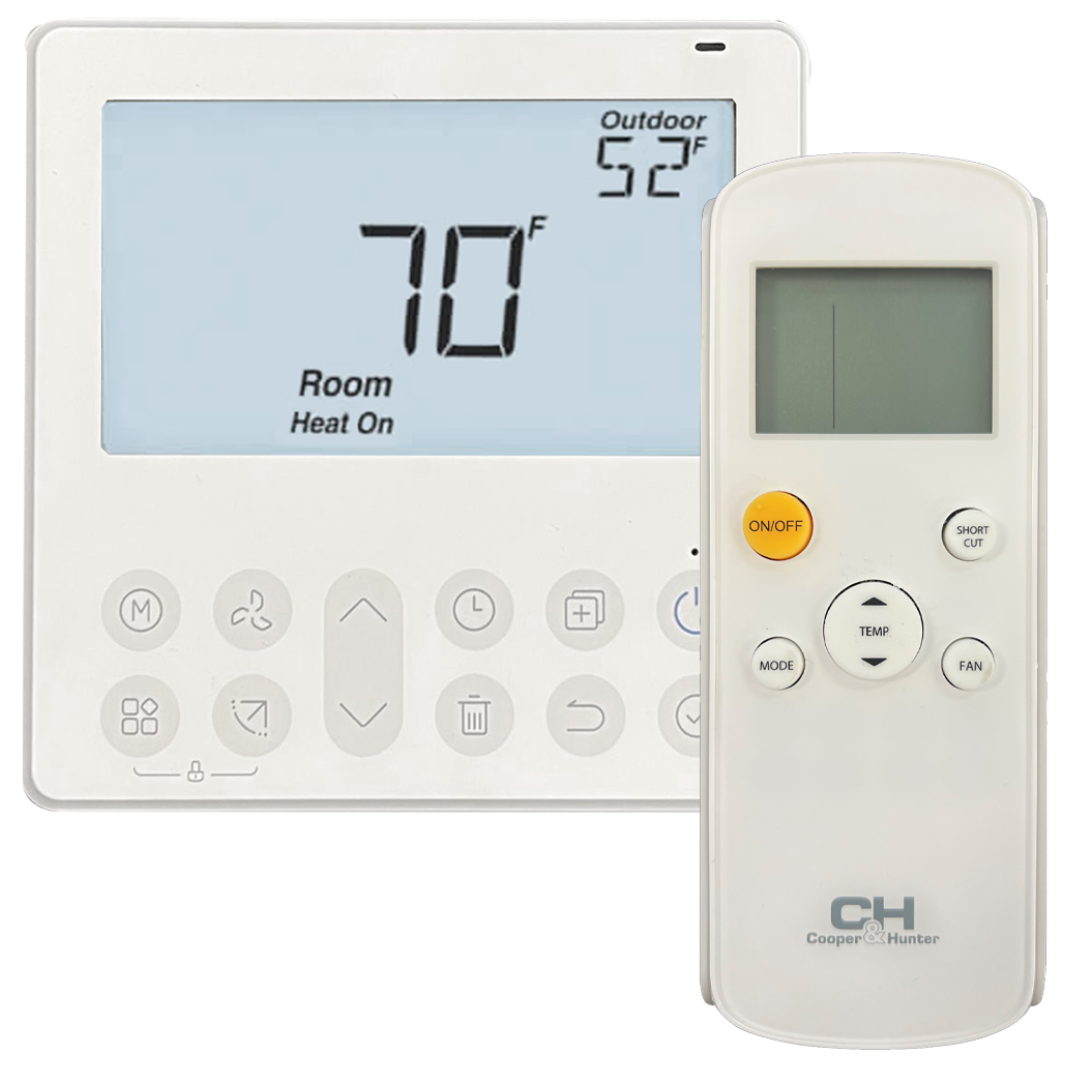

- Multiple control options: RG10K remote, compatible wired controller (120X/120N), and app control capability.
- Strong airflow delivery: Multi-speed airflow values: 582.7 / 548.24 / 485.29 / 420.59.
- Single or multi-zone: Works in single-zone or compatible multi-zone configurations with the correct outdoor unit.
ModelCH-18MSPHFC-230VI
System TypeSingle/Multi-Zone
Line Set1/4" (liq) / 1/2" (gas)
Sound (H/M/L)45.5/43/39 dB(A)
What's Included
- Universal floor/ceiling indoor unit: CH-18MSPHFC-230VI
- Remote control: RG10K-exclusive
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-18MSPHFC-230VI |
| Refrigerant Type | R410A |
| System Type | Single/Multi-zone unit |
| BTU Rated | 18,000 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |
| SEER2 / EER2 | 23 / 12.5 |
| Minimum Circuit Ampacity (MCA) | 1.9 A |
| Max Fuse | 15 A |
| Dehumidification | 4.63 pints/day |
| Controller | RG10K-exclusive remote & 120X or 120N wire controller |
| Refrigerant Piping (Liquid / Gas) | 1/4" / 1/2" |
| Indoor Noise (H/M/L) | 45.5 / 43 / 39 dB(A) |
| Indoor Air Flow | 582.7 / 548.24 / 485.29 / 420.59 |

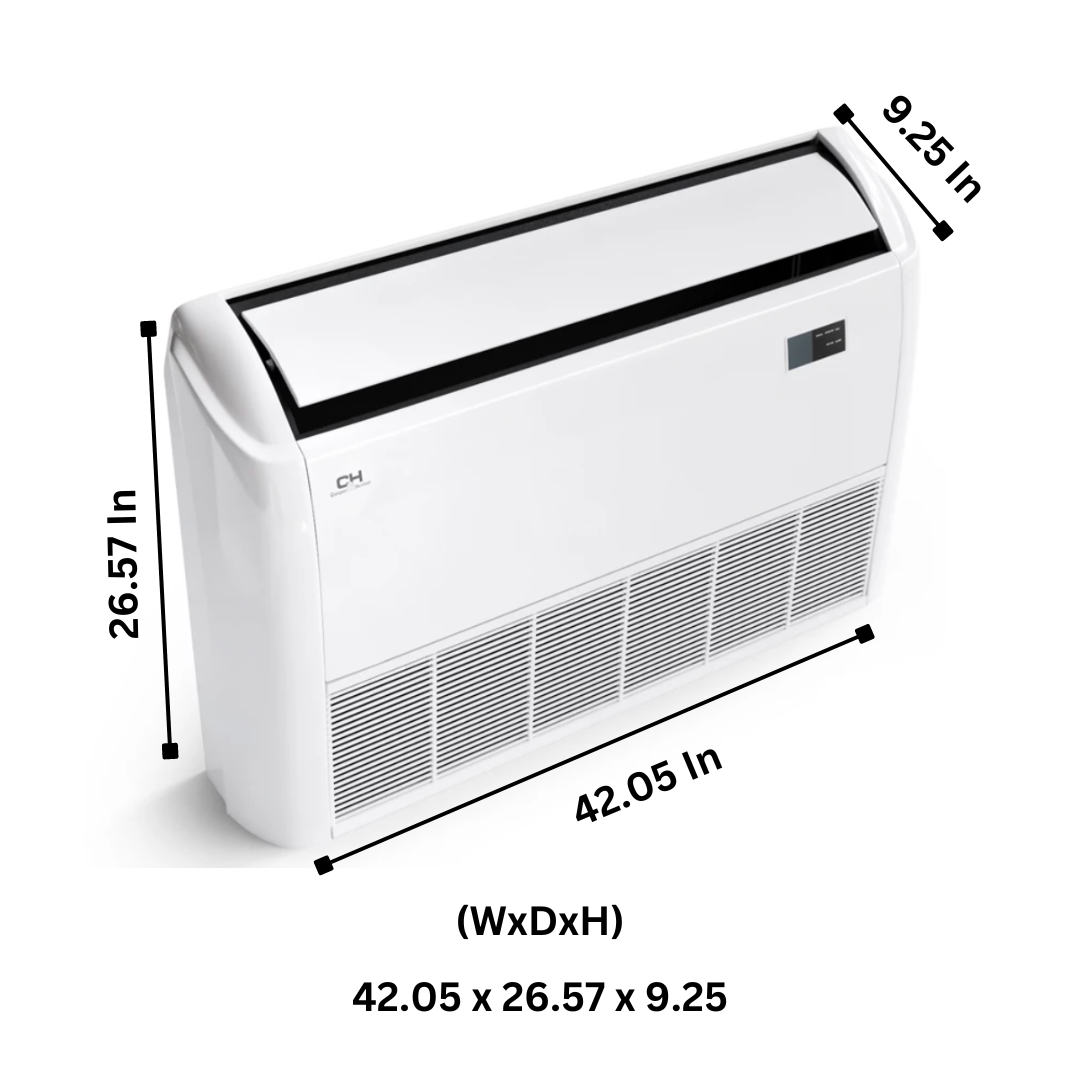

| Unit Dimensions (W×H×D) | 42.05 × 26.57 × 9.25 in |
| Unit Net / Gross Weight | 57.10 / 68.34 lb |
| Packing Dimensions (W×D×H) | 45.08 × 29.72 × 12.52 |
| Drain Pipe Diameter | 1" |
| Operation Range (Cooling) | 62–90 °F |
| Operation Range (Heating) | 32–86 °F |
Videos
Mini-split installation videos
How To & Instructional Videos
Products overview
Mini-Splits
- Can You Use a Mini Split in EXTREME COLD? Heat Pump vs. Propane Cost Comparison with Thermal Camera
- Where To Mount a Mini Split Indoor Wall Hung Unit
- How To Wall Mount a Mini Split Outdoor Condenser Unit
- Are Mini Split Air Conditioners Worth It? - Top 5 Pros & Cons
- Does a Wall Mounted MINISPLIT Need a CONDENSATE TRAP? Ductless vs Ducted Air Handlers!
- MINI SPLIT Parts Explained! Understand What They Do!
- Mini Split Failure from Electrical Surges, High and Low Voltage! HOW TO SOLVE IT!
- Full Installation of an Inverter Minisplit Heat Pump with Indoor Ceiling Cassette
- Checking the Refrigerant Charge on a Running R-410A Inverter MINI SPLIT Unit
- Mini Split Indoor Unit Types Explained! 5 Types- Applications, Connection Points, Mounting!
Documents & Downloads
Important

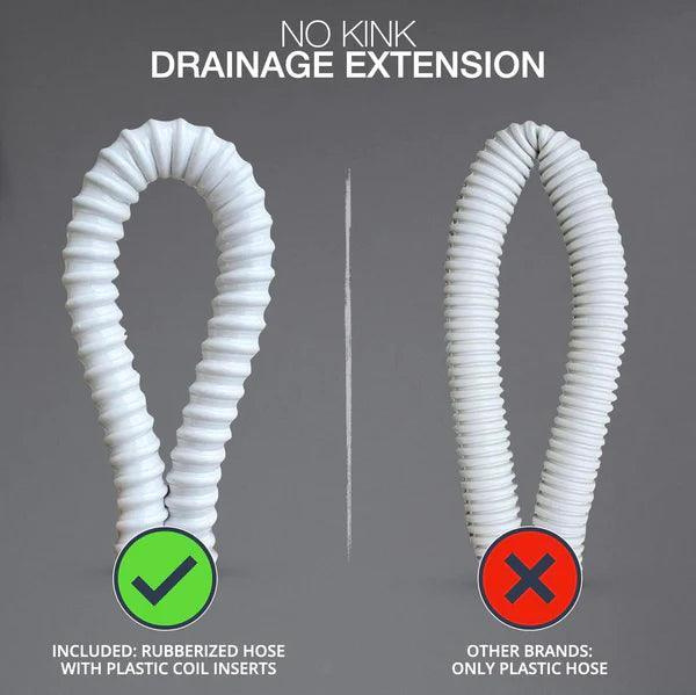

Install with a licensed HVAC professional. This is an indoor floor/ceiling unit intended to be matched with a compatible outdoor system. Confirm electrical requirements (208–230V) and refrigerant piping sizes (1/4" liquid, 1/2" gas). Condensate drainage uses a 1" drain connection and must be routed appropriately based on mounting orientation. Wired controller and app control availability depend on the specific controller and system pairing.
FAQs
Can this unit be mounted on the ceiling or the wall?
Yes. Universal Floor/Ceiling units can be installed horizontally on a ceiling or vertically on a wall.
Is this a single-zone or multi-zone indoor unit?
It is compatible with single-zone and multi-zone systems when paired with the correct outdoor unit.
What control options are supported?
Control options include remote control (RG10K), compatible wired controller (120X/120N), and app control capability via C&H Remote (with appropriate accessories/system pairing).
What line sizes are required?
Use 1/4" liquid and 1/2" gas refrigerant piping.
What are the unit dimensions and noise levels?
Dimensions are 42.05 × 26.57 × 9.25 in (W×H×D). Noise levels are 45.5/43/39 dB(A) (H/M/L).
