Cooper&Hunter Slim Duct Indoor • R410A • 230V • Single/Multi-Zone

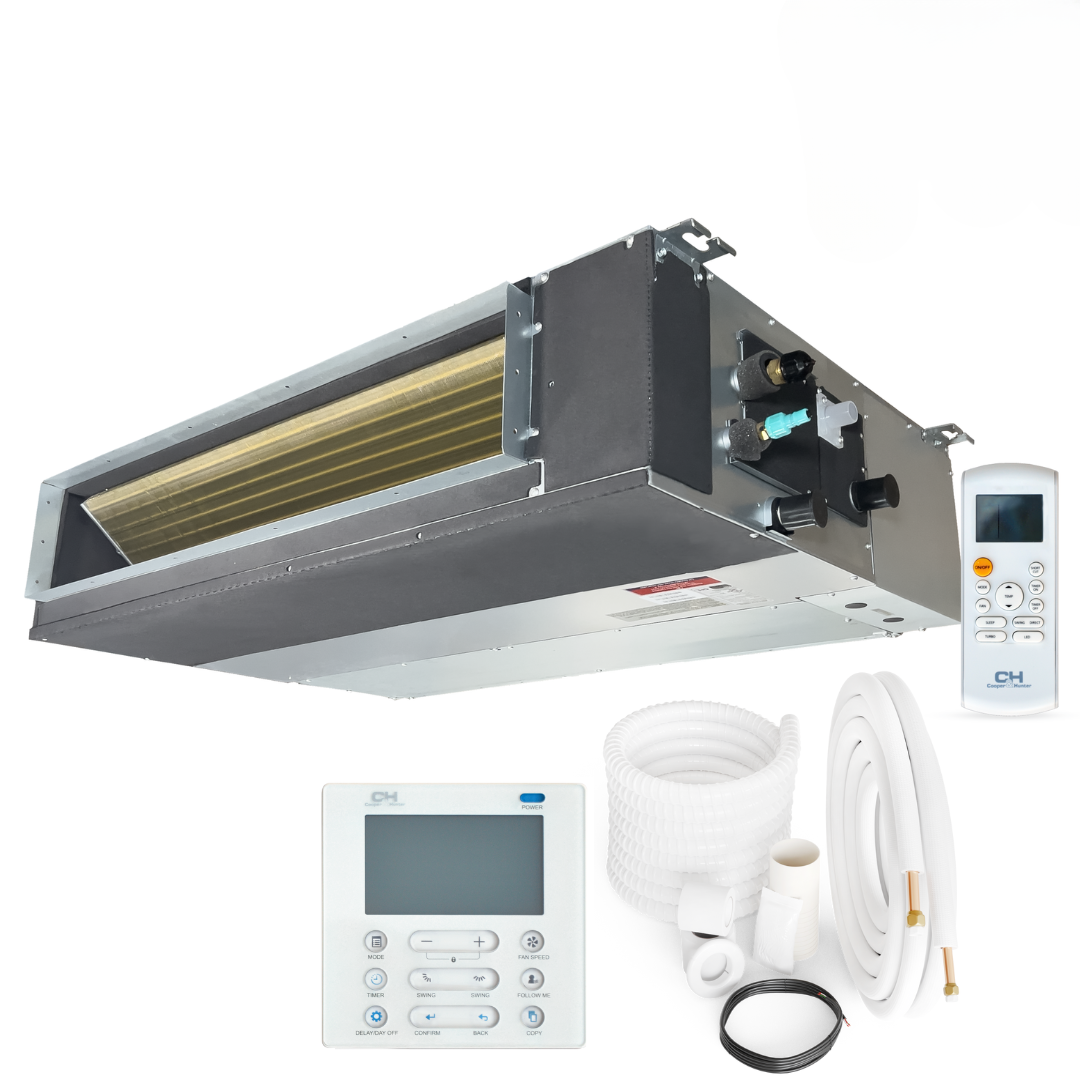

Cooper&Hunter 9,000 BTU Slim Duct Ducted Indoor Unit — CH-M09DTUI
Low-profile concealed ducted air handler designed for attics and ceiling crawl spaces, offering zone-style comfort without central-system duct losses.
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Overview
Cooper&Hunter Slim Duct indoor units provide an inconspicuous ducted solution by hiding the air handler in attics or ceiling crawl spaces, delivering comfort to one or more areas without the energy losses commonly associated with traditional central ducted systems. Duct runs can be directed into separate areas that are collectively controlled by a single wall thermostat (controller/system dependent).
The CH-M09DTUI is a 9,000 BTU slim-duct indoor unit designed for single-zone or compatible multi-zone applications in 208–230V systems. It supports multiple control methods, including the included remote and compatibility with wired controllers (120X/120N).
Highlights
9,000 BTU (rated) SEER2 20.2 EER2 13.2 Concealed Slim Duct ESP 0–0.32 Wired Controller Compatible RG10K Remote Included Single/Multi-Zone Compatible
- Hidden installation: Designed for tight locations like attics and ceiling crawl spaces.
- Flexible ducting: Route supply ducts into multiple areas that share one thermostat/controller (system dependent).
- Static pressure capability: ESP range 0–0.32 supports a variety of duct layouts.
- Comfort vs. noise: Indoor sound levels as low as 27 dB(A) (low).

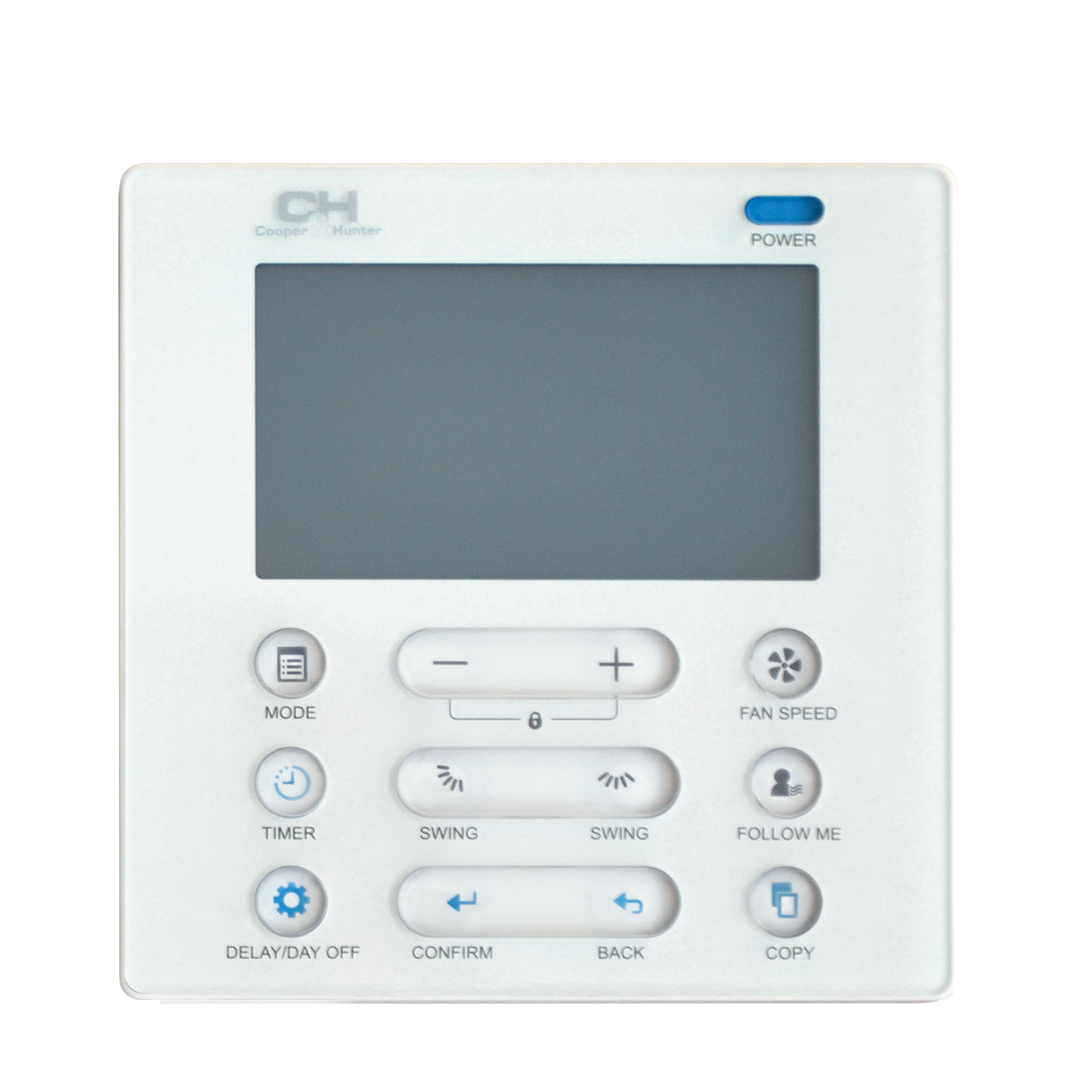

- Controls: RG10K remote and compatibility with 120X/120N wired controllers.
ModelCH-M09DTUI
System TypeSingle/Multi-Zone
Line Set1/4" (liq) / 3/8" (gas)
Sound (H/M/L)33.5/28.5/27 dB(A)
What's Included
- Slim duct indoor unit: CH-M09DTUI

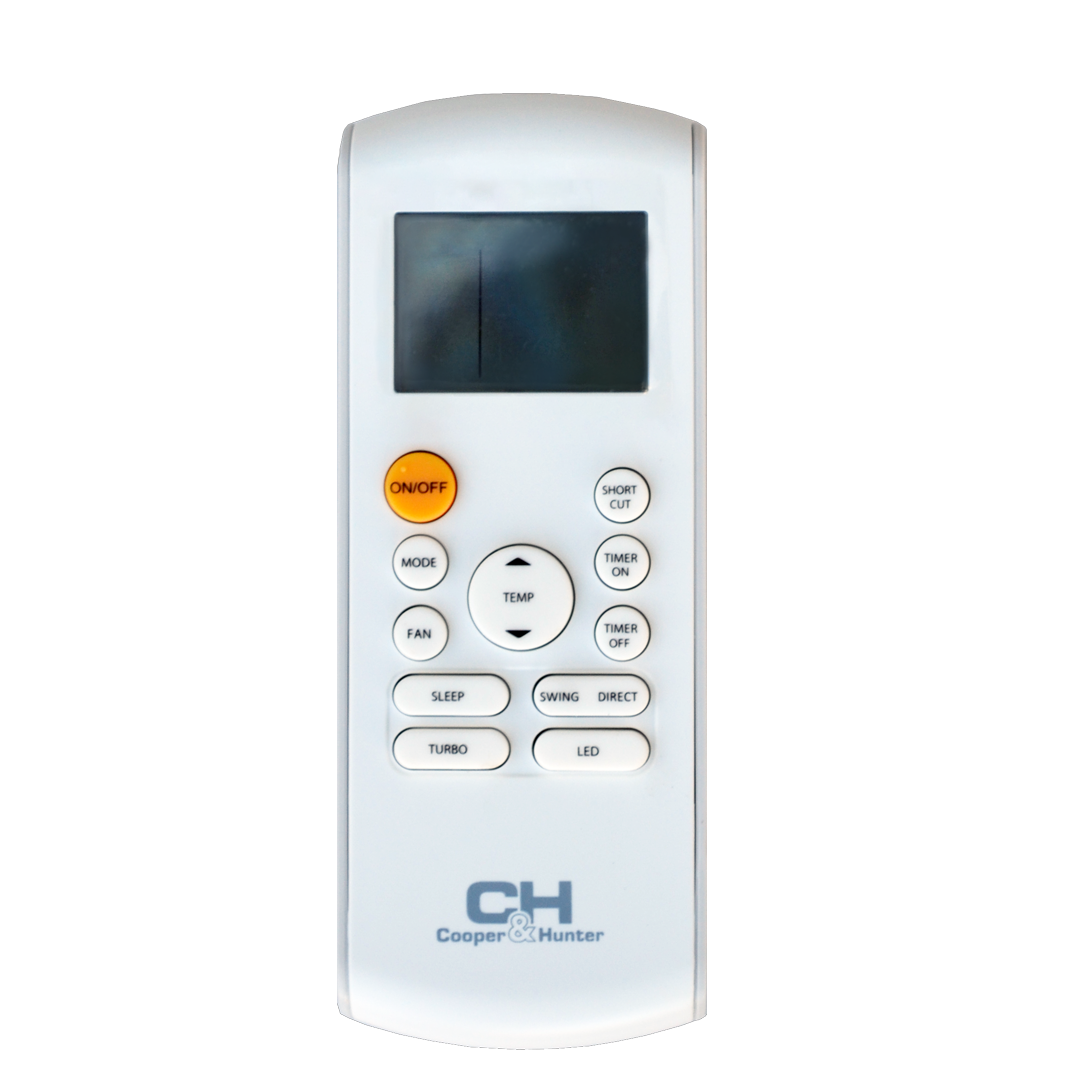

- Remote control: RG10K-exclusive
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-M09DTUI |
| System Type | Single/Multi-zone unit |
| BTU Rated | 9,000 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |
| SEER2 / EER2 | 20.2 / 13.2 |
| Minimum Circuit Ampacity (MCA) | 1.3 A |
| Max Fuse | 15 A |
| Dehumidification | 2.11 pints/day |
| Controller | RG10K-exclusive remote & 120X or 120N wire controller |
| Refrigerant Piping (Liquid / Gas) | 1/4" / 3/8" |
| Indoor Noise (H/M/L) | 33.5 / 28.5 / 27 dB(A) |
| Indoor Air Flow | 352.94 / 282.35 / 176.47 |
| ESP Range | 0–0.32 |

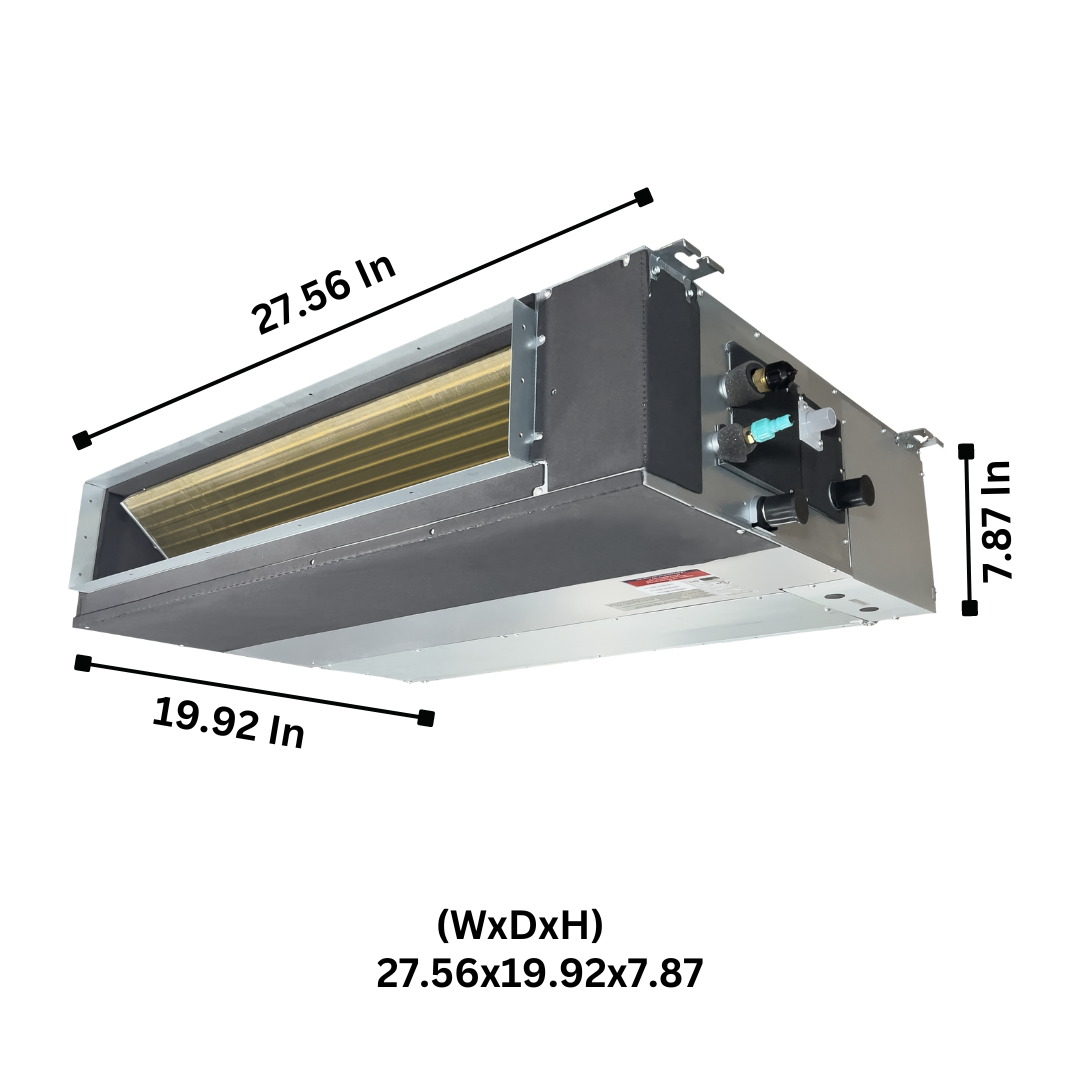

| Unit Dimensions (W×H×D) | 27.56 × 19.92 × 7.87 in |
| Unit Net / Gross Weight | 39.02 / 48.28 lb |
| Packing Dimensions (W×D×H) | 33.86 × 21.26 × 11.22 |
| Drain Pipe Diameter | 1" |
| Operation Range (Cooling) | 62–90 °F |
| Operation Range (Heating) | 32–86 °F |
Videos
Mini-split installation videos
How To & Instructional Videos
Documents & Downloads
- Submittal — CH-M09DTUI (PDF)
- Submittal — CH-ES09-230VO + CH-M09DTUI (PDF)
- Submittal — CH-HPR09-230VO + CH-M09DTUI (PDF)
- Cassette Installation & Users Manual (PDF)
- Submittal Data Sheet — Sophia Duct — CH-M09DTUI (PDF)
- Submittal Data Sheet — CH-M09DTUI + CH-09SHP-230VO (PDF)
- Submittal Data Sheet — CH-M09DTUI + CH-HYP09SHP230VO (PDF)
- Wired Control Installation Manual (PDF)
- Sophia Multi Booklet (PDF)
- Sophia Single Booklet (PDF)
- Slim Duct Series — Leaflet (2024) (PDF)
- Quick Start Guide (PDF)
- Duct 9K Hyper — Submittal Sheet (PDF)
- Duct 9K — Submittal (PDF)
- Installation Manual — Duct 09–24 (PDF)
- User’s Manual — Duct 09–24 (PDF)
- Multi-Zone Combination — HYPER (PDF)
- Multi-Zone Combination — Regular (PDF)
Important
Install with a licensed HVAC professional. This is a concealed ducted indoor unit intended to be matched with a compatible outdoor system. Confirm electrical requirements (208–230V), refrigerant piping sizes (1/4" liquid, 3/8" gas), and duct layout/static pressure needs (ESP 0–0.32). Condensate drainage uses a 1" drain connection. Wired controller and wall thermostat setups depend on the controller model and system pairing.
FAQs
Where is this indoor unit typically installed?
It’s designed to be concealed in attics or ceiling crawl spaces, with ducts distributing air to one or more areas.
Can it serve multiple rooms?
Yes. Duct runs can be directed into separate areas that are collectively controlled by one thermostat/controller (system dependent).
What line sizes are required?
Use 1/4" liquid and 3/8" gas refrigerant piping.
What does ESP mean for this unit?
ESP is the unit’s external static pressure capability. This model lists an ESP range of 0–0.32, which helps support different duct layouts.
What are the unit dimensions and noise levels?
Dimensions are 27.56 × 19.92 × 7.87 in (W×H×D). Noise levels are 33.5/28.5/27 dB(A) (H/M/L).
