High Static Slim Duct • 24,000 BTU • R454B • 230V
Cooper&Hunter 24K Slim Duct (High Static) — CH-RS24MDT-HS
Concealed ducted comfort with higher static capability for longer duct runs and stronger airflow control, plus Smart Kit app connectivity.
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Overview
The Cooper&Hunter CH-RS24MDT-HS is a high static slim duct indoor unit built for concealed installations where you need stronger airflow support for duct runs and registers. Using R454B refrigerant, it’s listed as a single-zone indoor unit and can be applied in multi-zone systems when paired with compatible outdoor equipment. With ESP 0–0.8, this model is suited for higher resistance duct layouts compared to medium-static options. A built-in Smart Kit enables app control, and the refrigerant sensor helps support stable operation. Built with TU1 copper tubes for durability and heat transfer, it’s a strong fit for larger rooms, open layouts, and applications where concealed ducting is preferred.
Highlights
24,000 BTU SEER2 19.0 EER2 12.0 R454B High Static (ESP 0–0.8) Built-in Smart Kit (App) Refrigerant Sensor Slim Duct Form Factor TU1 Copper Tubes
- High static performance: ESP 0–0.8 for stronger airflow through duct runs and registers.
- Slim concealed install: ideal for tight spaces in ceilings, bulkheads, or wall cavities.
- Connected control: built-in Smart Kit supports app control and remote management.
- Durable build: TU1 copper tubing for dependable heat transfer and long service life.
- Flexible orientation: designed to accommodate horizontal or vertical installation where applicable.
ModelCH-RS24MDT-HS
Voltage208–230V, 1Ph
Line Set3/8" (liq) / 5/8" (gas)
ESP0–0.8
What's Included
- Indoor high static slim duct unit: CH-RS24MDT-HS
- Built-in Smart Kit (C&H app control)
- Refrigerant sensor
- Support for wire controller + remote controller (as configured)
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-RS24MDT-HS |
| Refrigerant Type | R454B |
| System Type | Single Zone (multi-zone compatible with matching outdoor) |
| BTU Rated | 24,000 |
| SEER2 / EER2 | 19.0 / 12.0 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |
| Minimum Circuit Ampacity | 3 A |
| Max Fuse | 15 A |
| Refrigerant Piping (Liquid / Gas) | 3/8" / 5/8" |
| Dehumidification | 4.29 pints/day |
| Indoor Noise (H/M/L) | 40 / 37 / 35 dB(A) |
| Indoor Air Flow | 853.5 / 706.3 / 618.0 / 500.3 CFM |
| External Static Pressure (ESP) | 0–0.8 |

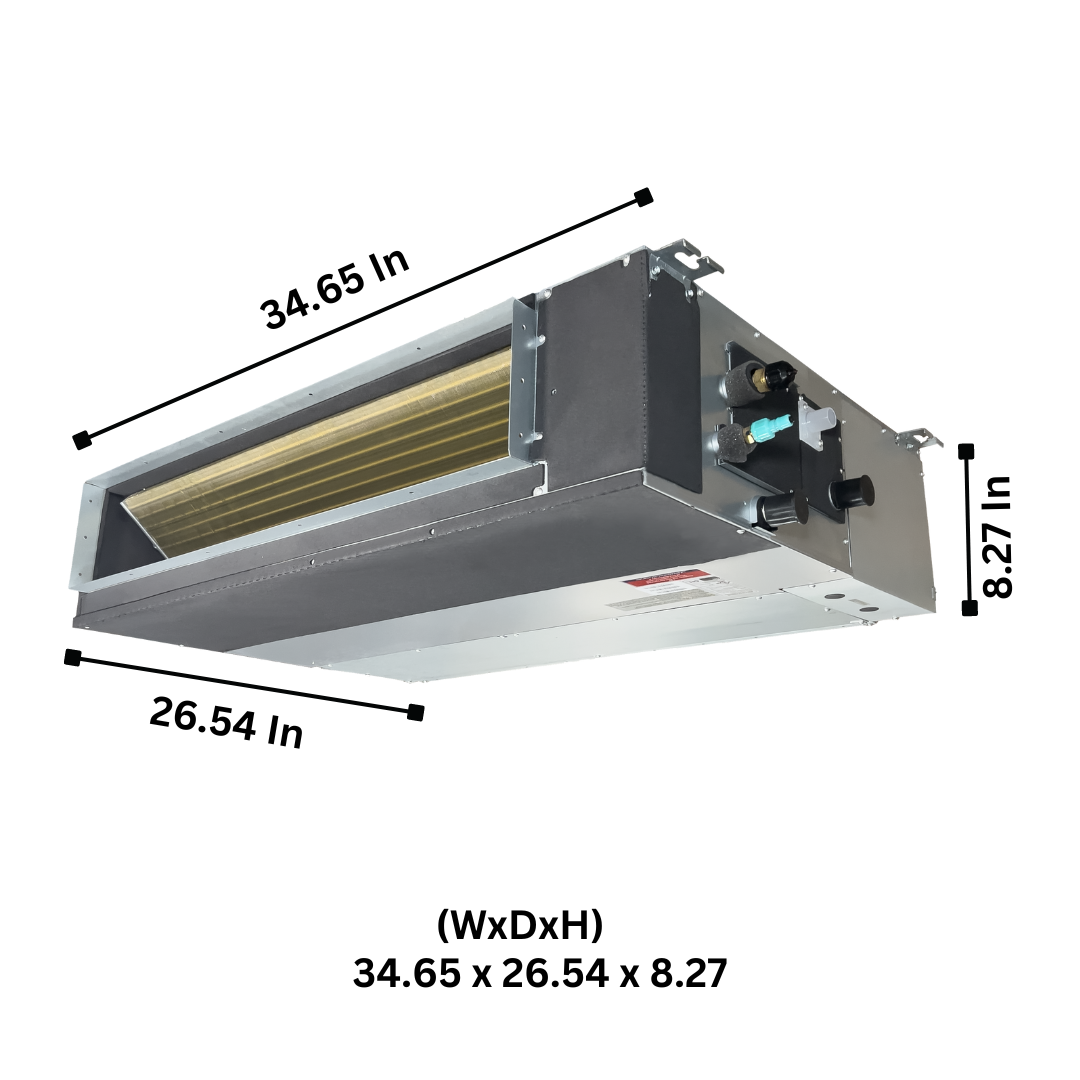

| Unit Dimensions (W×H×D) | 34.65 × 26.54 × 8.27 in |
| Unit Net / Gross Weight | 54.45 / 66.14 lb |
| Packing Dimensions (W×D×H) | 42.13 × 28.54 × 11.02 in |
| Filter Dimensions (W×D) | 17.28 × 7.95 in |
| Drain Pipe Diameter | 1" |
| Operation Range (Cooling) | 60–90 °F |
| Operation Range (Heating) | 32–86 °F |
Documents & Downloads
Important
Professional installation is recommended. This is an indoor unit intended to be paired with a compatible outdoor system. Confirm duct design/static pressure needs (ESP 0–0.8), electrical requirements (208–230V), line sizes (3/8" liquid, 5/8" gas), condensate routing (1" drain), and return/filter access before installation.
FAQs
What’s the key difference between high static and medium static slim ducts?
This model supports higher external static pressure (ESP 0–0.8), which helps maintain airflow in duct layouts with more resistance (longer runs, more fittings, or higher-effort registers) compared to medium-static units.
Does it support app control?
Yes. It includes a built-in Smart Kit for control via the C&H app.
What line sizes are required?
3/8" liquid and 5/8" gas.
Is it single-zone or multi-zone?
The indoor unit is listed as single-zone, and it can be used in multi-zone configurations when paired with a compatible outdoor unit.
Can it be installed horizontally or vertically?
The slim duct form factor supports flexible placement. Confirm clearances, condensate routing, and service access for your chosen orientation during installation planning.
