Cooper&Hunter One-Way Ceiling Cassette Indoor • 208–230V • Single/Multi-Zone
Cooper&Hunter 6,000 BTU One-Way Ceiling Cassette Indoor — CH-06MCT1W-230VI
Compact one-way cassette designed for smaller spaces, with precise directional airflow and an in-ceiling form factor that fits snugly between structural beams.
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Overview

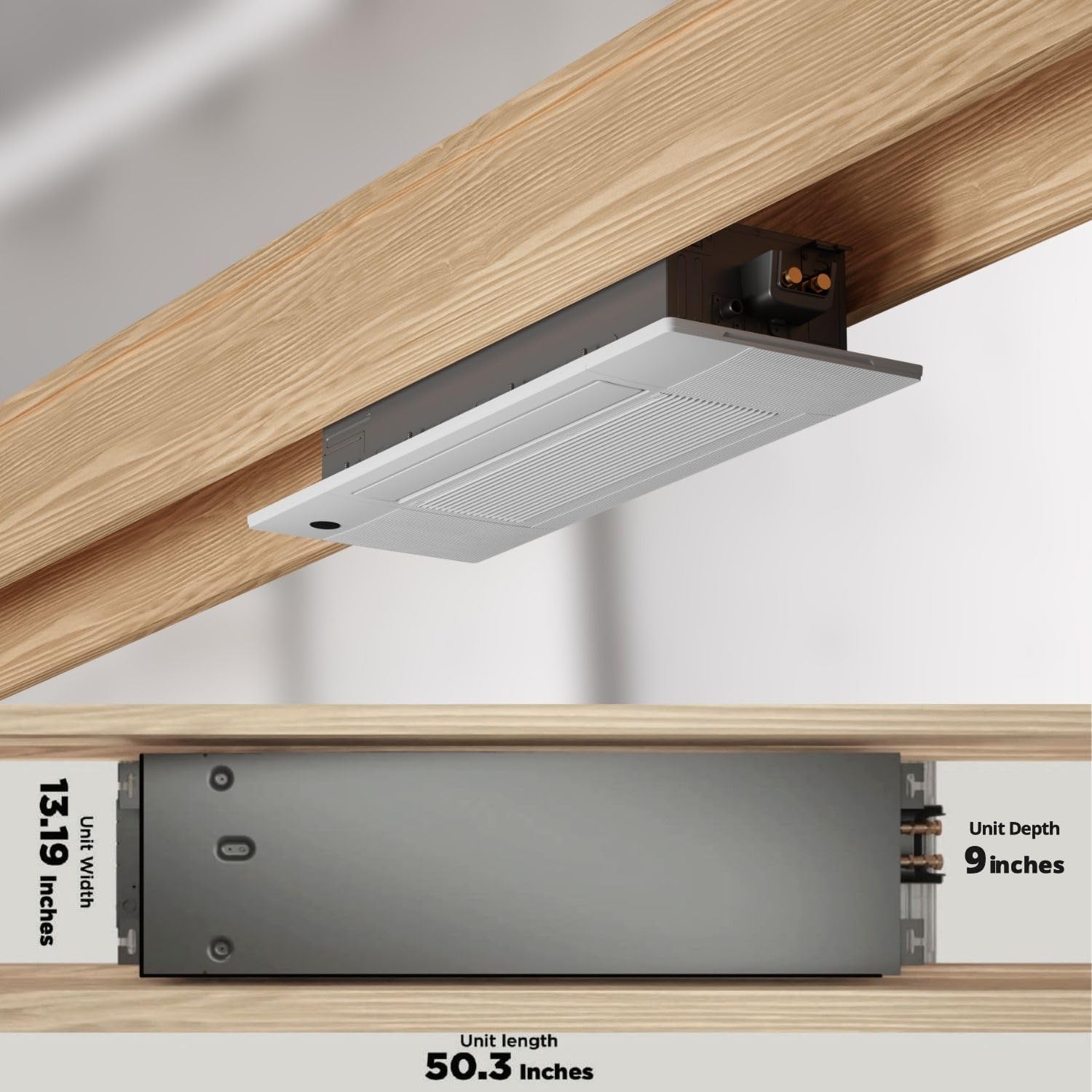

The Cooper&Hunter CH-06MCT1W-230VI is a 6,000 BTU one-way ceiling cassette indoor unit built for directional cooling and heating in tighter spaces such as homes, additions, conversions, and closets. The one-way discharge design supports targeted comfort with adjustable settings for the needs of a specific area. Its compact profile (unit depth is approximately 9 in) is designed to fit neatly between ceiling beams and it only requires 3-inch holes for conduits. This indoor unit is compatible with single-zone and multi-zone systems on 208–230V power.
Highlights
6,000 BTU (rated) SEER2 22 EER2 14.5 One-Way Directional Airflow Single/Multi-Zone Compatible 208–230V 1/4" / 3/8" Line Set Dehumidification 2.16 pints/day Low Profile In-Ceiling
- Built for small spaces: Ideal for homes, additions, conversions, and closets.
- Targeted comfort: One-way discharge for precise directional airflow.

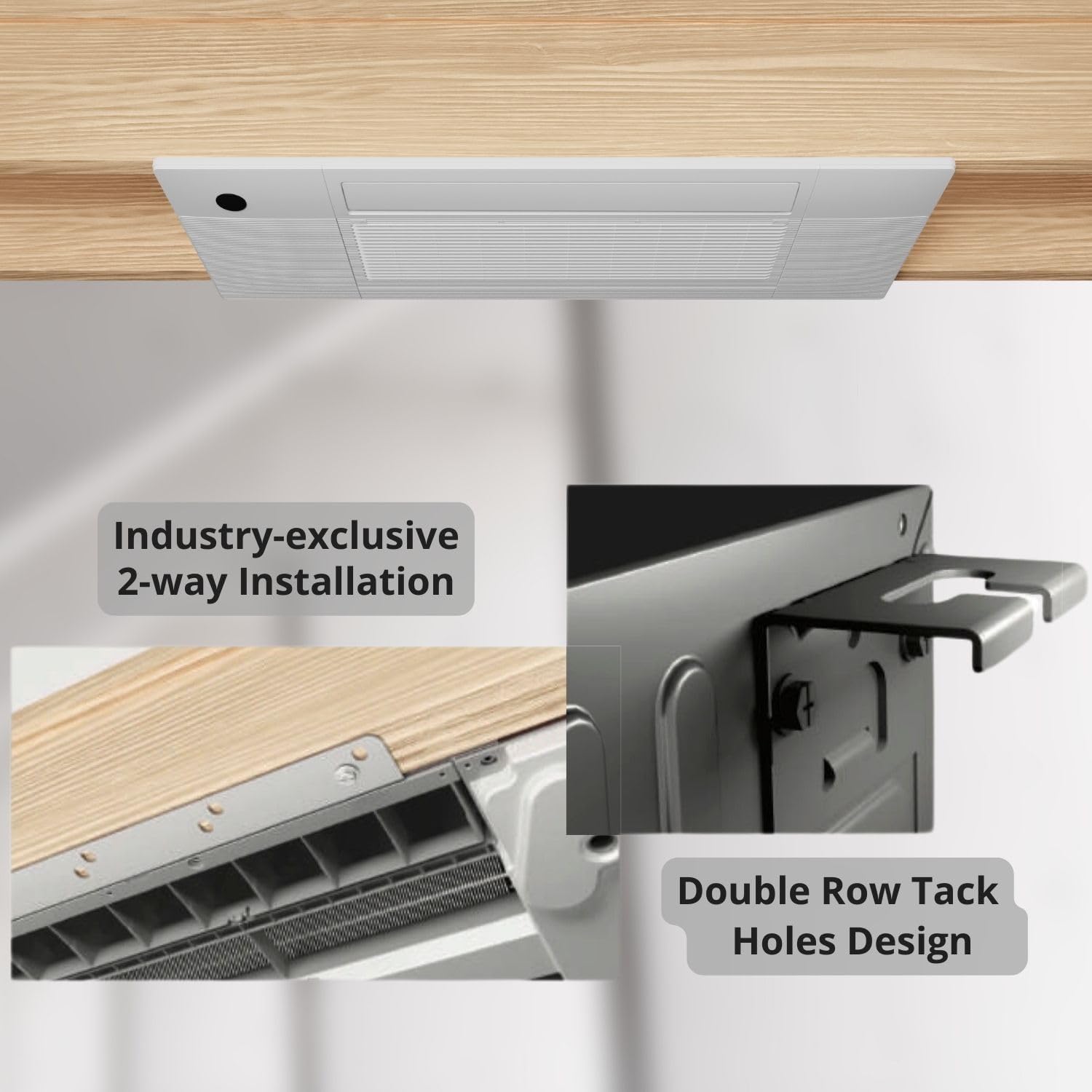

- Installation-friendly: Fits snugly between ceiling beams; requires 3" conduit holes.
- Flexible system pairing: Works in compatible single-zone or multi-zone applications.

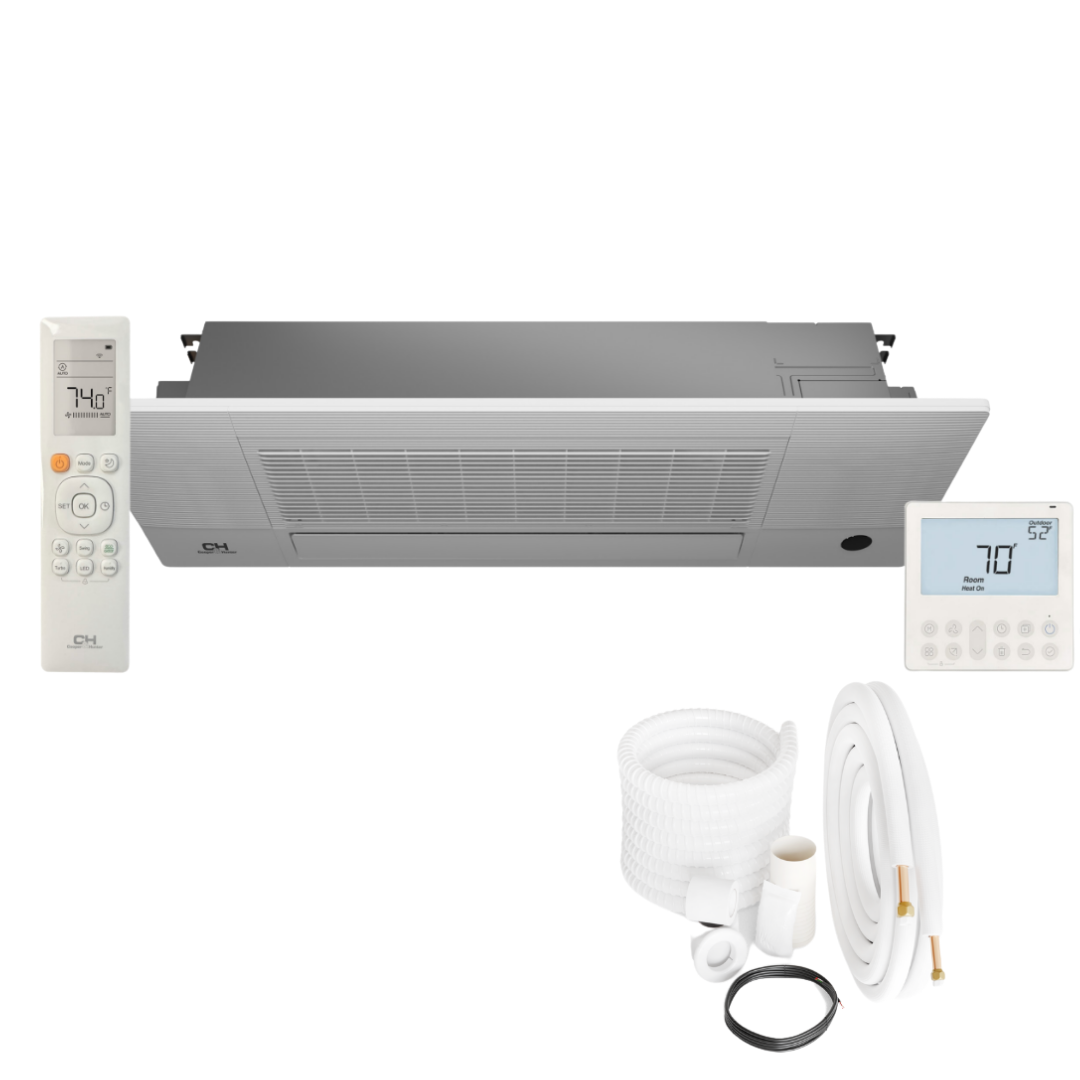

- Wiring/control options: Compatible with RG10K remote and 120X or 120N wired controllers.
ModelCH-06MCT1W-230VI
System TypeSingle/Multi-Zone
Line Set1/4" (liq) / 3/8" (gas)
Sound (H/M/L)37.5/35.5/32.5 dB(A)
What's Included
- Indoor one-way ceiling cassette unit: CH-06MCT1W-230VI
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-06MCT1W-230VI |
| System Type | Single/Multi-zone unit |
| BTU Rated | 6,000 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |
| SEER2 / EER2 | 22 / 14.5 |
| Minimum Circuit Ampacity (MCA) | 3 A |
| Max Fuse | 15 A |
| Dehumidification | 2.16 pints/day |

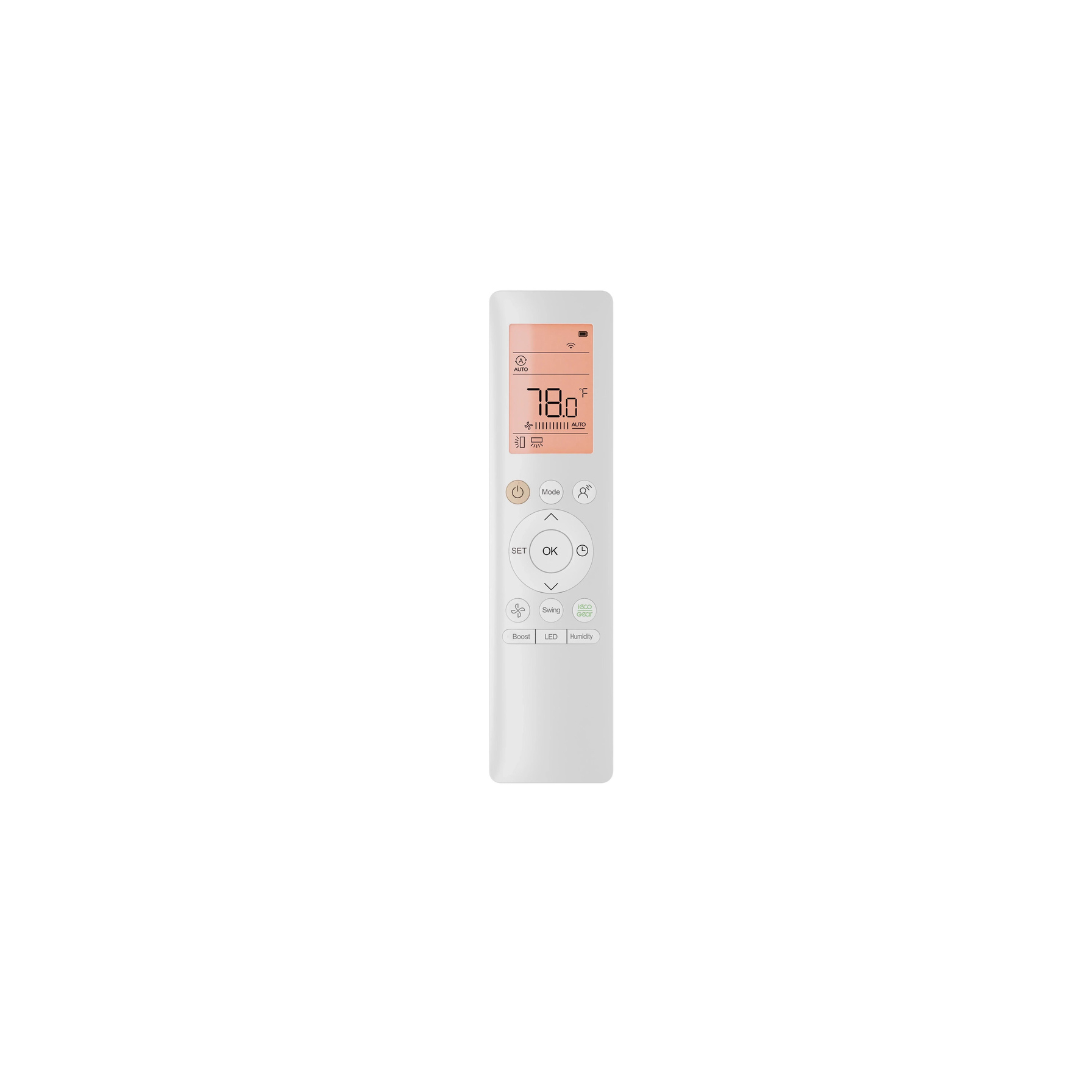

| Controller Compatibility | RG10K-exclusive remote & 120X or 120N wire controller |
| Refrigerant Piping (Liquid / Gas) | 1/4" / 3/8" |
| Indoor Noise (H/M/L) | 37.5 / 35.5 / 32.5 dB(A) |
| Indoor Air Flow | 341.18 / 294.12 / 258.82 / 235.29 |

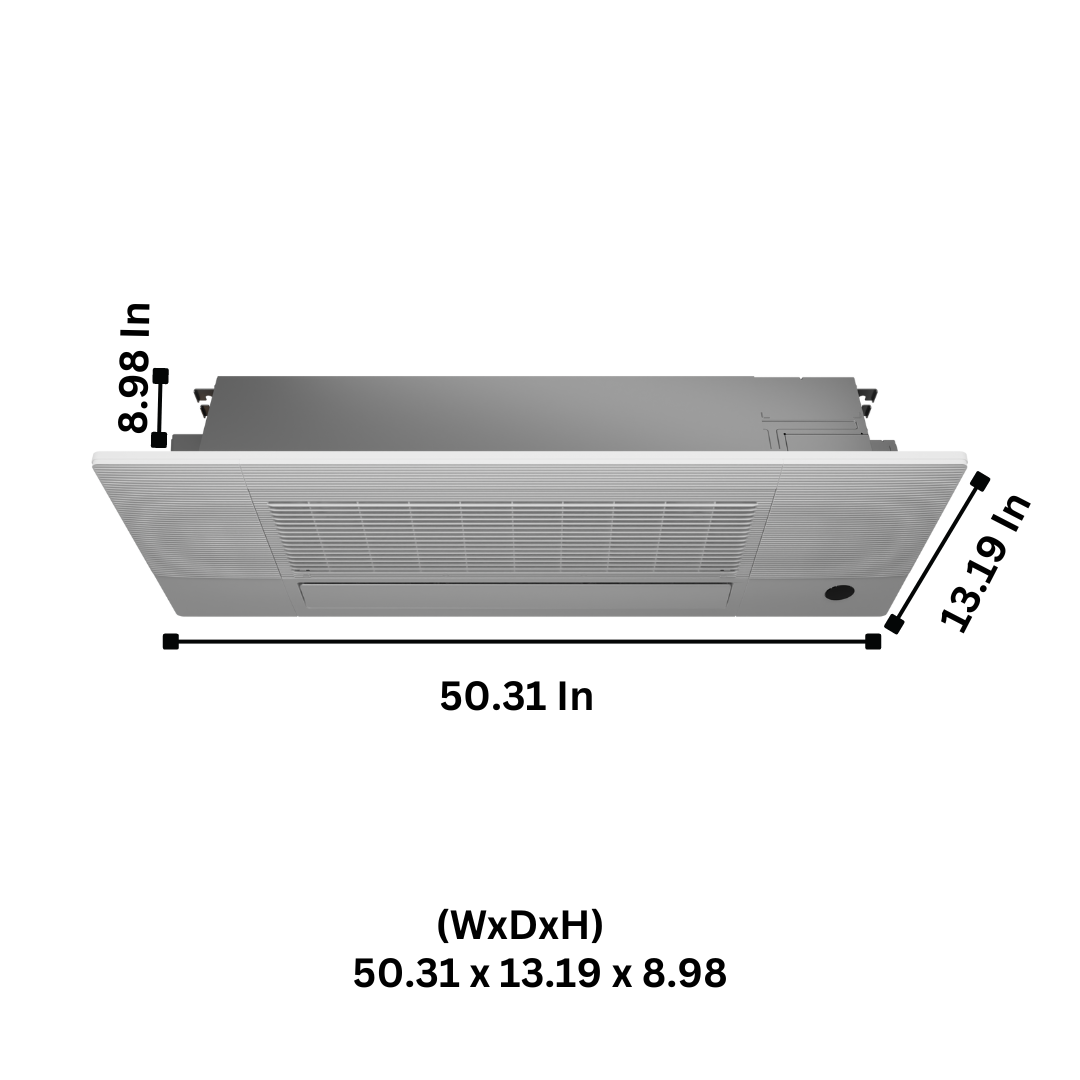

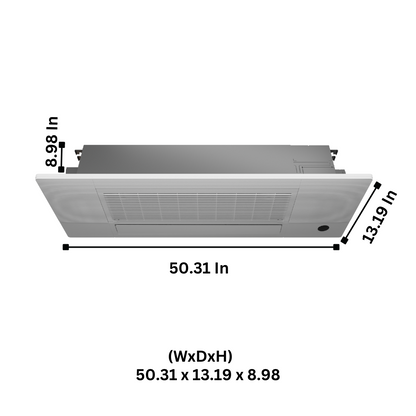

| Unit Dimensions (W×H×D) | 50.31 × 13.19 × 8.98 in |
| Unit Net / Gross Weight | 43.87 / 81.35 lb |
| Packing Dimensions (W×D×H) | 57.60 × 22.48 × 22.64 |
| Drain Pipe Diameter | 1" |
| Operation Range (Cooling) | 60–90 °F |
| Operation Range (Heating) | 32–86 °F |
Videos
Documents & Downloads
Important
Install with a licensed HVAC professional. This is an indoor ceiling cassette intended to be matched with a compatible outdoor system. Confirm electrical requirements (208–230V) and refrigerant piping sizes (1/4" liquid, 3/8" gas). Plan condensate drainage for the 1" drain connection.
FAQs
Is this single-zone or multi-zone?
This indoor unit is compatible with single-zone and multi-zone applications when paired with the correct outdoor system.
What spaces is a one-way cassette best for?
Smaller spaces where you want directional airflow, such as homes, additions, conversions, or closets.
What controllers can I use with this indoor unit?
It supports an RG10K-exclusive remote and is compatible with 120X or 120N wired controllers.
What line sizes are required?
Use 1/4" liquid and 3/8" gas refrigerant piping.
What are the unit dimensions?
The indoor unit measures 50.31 × 13.19 × 8.98 in (W×H×D).
What is the operating temperature range?
Cooling: 60–90 °F. Heating: 32–86 °F.
