Cooper&Hunter Olivia Indoor • R454B (system) • Wall-Mount • 230V
Cooper&Hunter Olivia Wall-Mount Indoor — 9,000 BTU — CH-R09MOLVWM-230VI
High-efficiency indoor unit using next-gen R454B refrigerant (system dependent), rated up to 26.0 SEER2 / 15 EER2, with Smart Kit app control and advanced comfort features.
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Highlights
9,000 BTU/h Up to 26.0 SEER2 EER2 15 R454B (system) Smart Kit (App Control) 208–230V, 1Ph Quiet to 20.5 dB(A)
- New R454B refrigerant: Designed for environmentally friendlier systems and strong efficiency (refrigerant is system dependent and set by the matched outdoor unit).
- Comfort coverage: Horizontal auto-swing louvers help eliminate hot/cold spots through improved air distribution.
- Rapid response: Turbo Mode plus High-Frequency Racer Technology for fast startup ramp and quicker temperature pull-down.
- Cold-weather protection: 46° Freeze Protection mode helps protect the space during low ambient conditions.
- Smarter control options: Smart Kit + C&H app control, included remote, and optional wall thermostat (sold separately).
ModelCH-R09MOLVWM-230VI
EfficiencySEER2 26.0 / EER2 15
Power208/230V, 1Ph, 60Hz
Airflow382.6 CFM (Turbo)
What's Included
- Indoor unit: CH-R09MOLVWM-230VI (9,000 BTU)
- Smart Kit for app connectivity (C&H app control)
- Wireless remote control
Wall thermostat is optional and can be purchased separately.
Tech Specs
| Spec | Details |
|---|---|
| Indoor Model | CH-R09MOLVWM-230VI |
| Rated Capacity | 9,000 BTU/h |
| SEER2 / EER2 | 26.0 / 15 |
| Power Supply (Rated) | 208/230 V, 1ø, 60 Hz |
| Minimum Circuit Ampacity (MCA) | 3 A |
| Max Fuse | 15 A |
| Refrigerant Piping (Liquid / Gas) | 1/4" / 3/8" |
| Indoor Air Flow (CFM) | Turbo/Hi/Med/Lo: 382.6 / 294.3 / 194.2 / 153.0 |
| Indoor Noise (dB(A)) | Hi/Med/Lo/Silent: 39.5 / 33 / 24 / 20.5 (Turbo: N/A) |

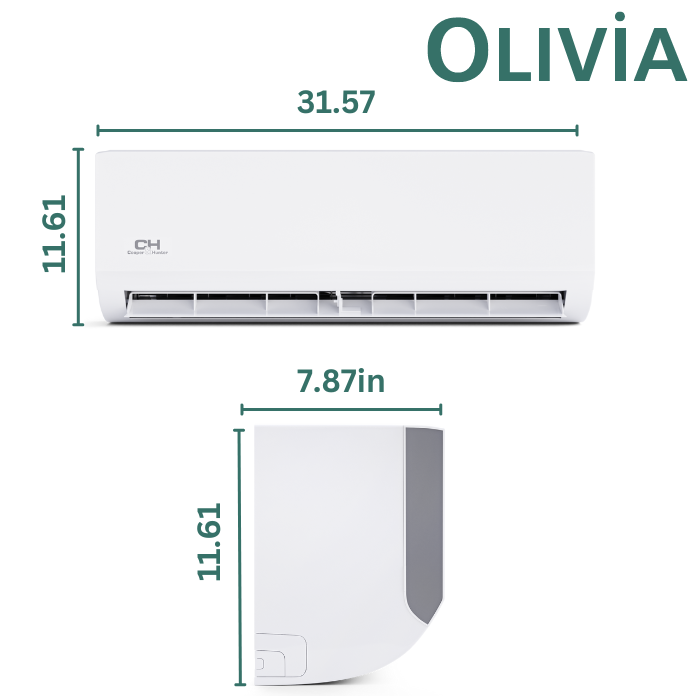

| Unit Dimensions (W×D×H) | 31.57 × 7.87 × 11.61 in |
| Packing Dimensions (W×D×H) | 31.57 × 7.87 × 11.61 in |
| Net / Gross Weight | 18.96 / 24.25 lb |
| Room Temp Range (Cooling) | 60–90 °F |
| Room Temp Range (Heating) | 32–86 °F |
| Drain Pipe Diameter | 5/8" |
Refrigerant type and published efficiency depend on the matched outdoor unit and whether the configuration is single-zone or multi-zone.
Performance Features
- Auto-swing horizontal louvers for improved circulation
- Genius Core low-speed operation (quiet, stable performance)
- Turbo Mode for rapid cooling/heating
- Follow Me mode for comfort based on remote location
- Timer On/Off and Sleep Mode scheduling
- 46° Freeze Protection
- Electronic expansion valve (system dependent) for optimized refrigerant flow
- Intelligent dusting switch (coil cleaning via fan reversal)
- Self-Clean and Eco Mode available on compatible single-zone configurations (feature availability may differ on multi-zone)
Documents & Downloads
Important
Professional installation by a licensed HVAC contractor is required. This is an indoor unit that must be matched with a compatible outdoor unit. Verify electrical requirements, line sizes (1/4" liquid, 3/8" gas), and control options for your specific system design. Some features (such as Self-Clean and Eco Mode) may be limited to compatible single-zone configurations.
FAQs
Does this include Wi-Fi / app control?
Yes. It includes a Smart Kit for connectivity and control via the C&H app, plus an included remote control.
Is this R454B?
This indoor unit is intended for R454B system pairings; the refrigerant is determined by the matched outdoor unit and the complete system configuration.
What line sizes are required?
1/4" liquid and 3/8" gas.
How quiet is it?
Indoor noise levels are 39.5/33/24/20.5 dB(A) in Hi/Med/Lo/Silent (Turbo listed as N/A on the spec set provided).
Does it include a wall thermostat?
No. The remote is included; a wall thermostat can be purchased separately.
