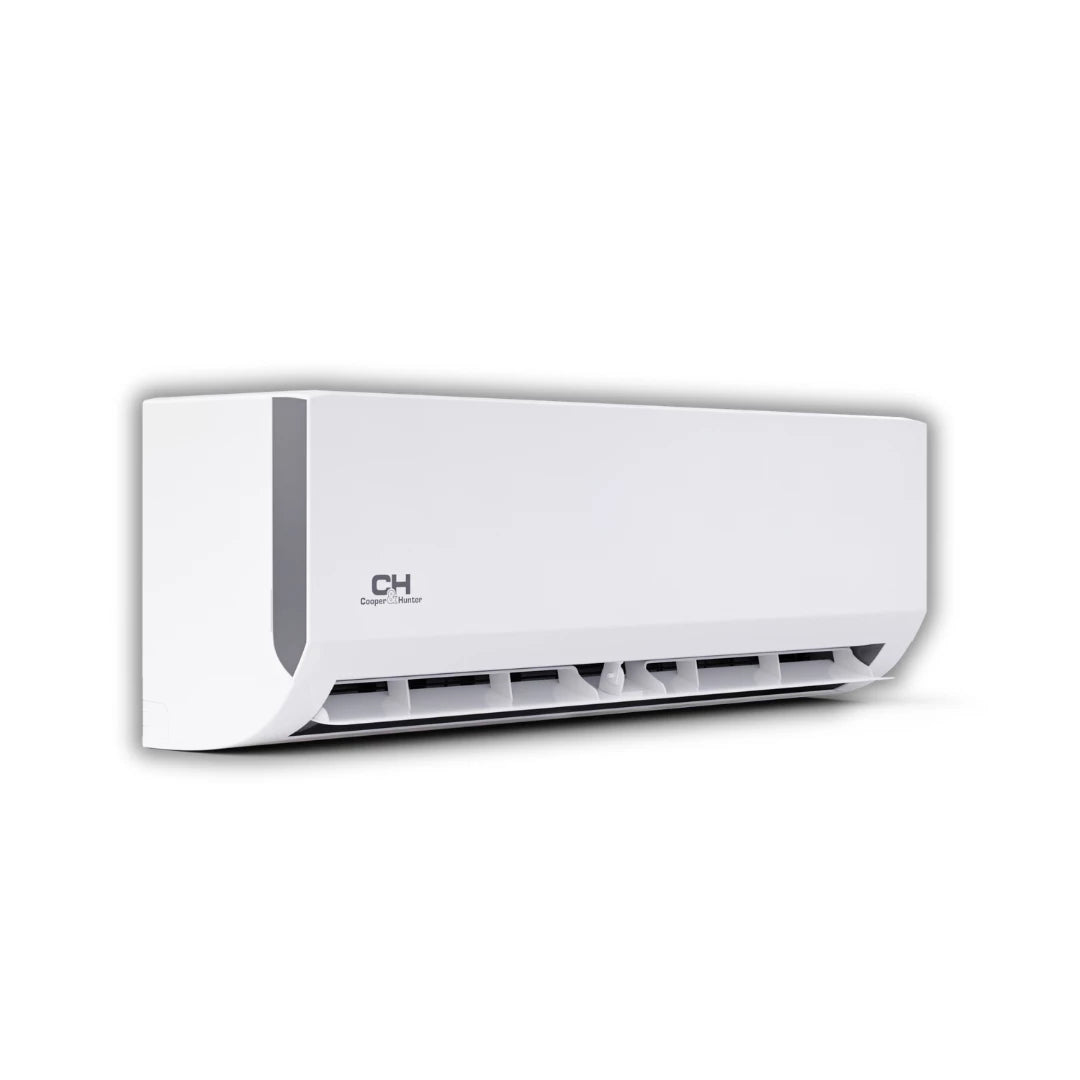

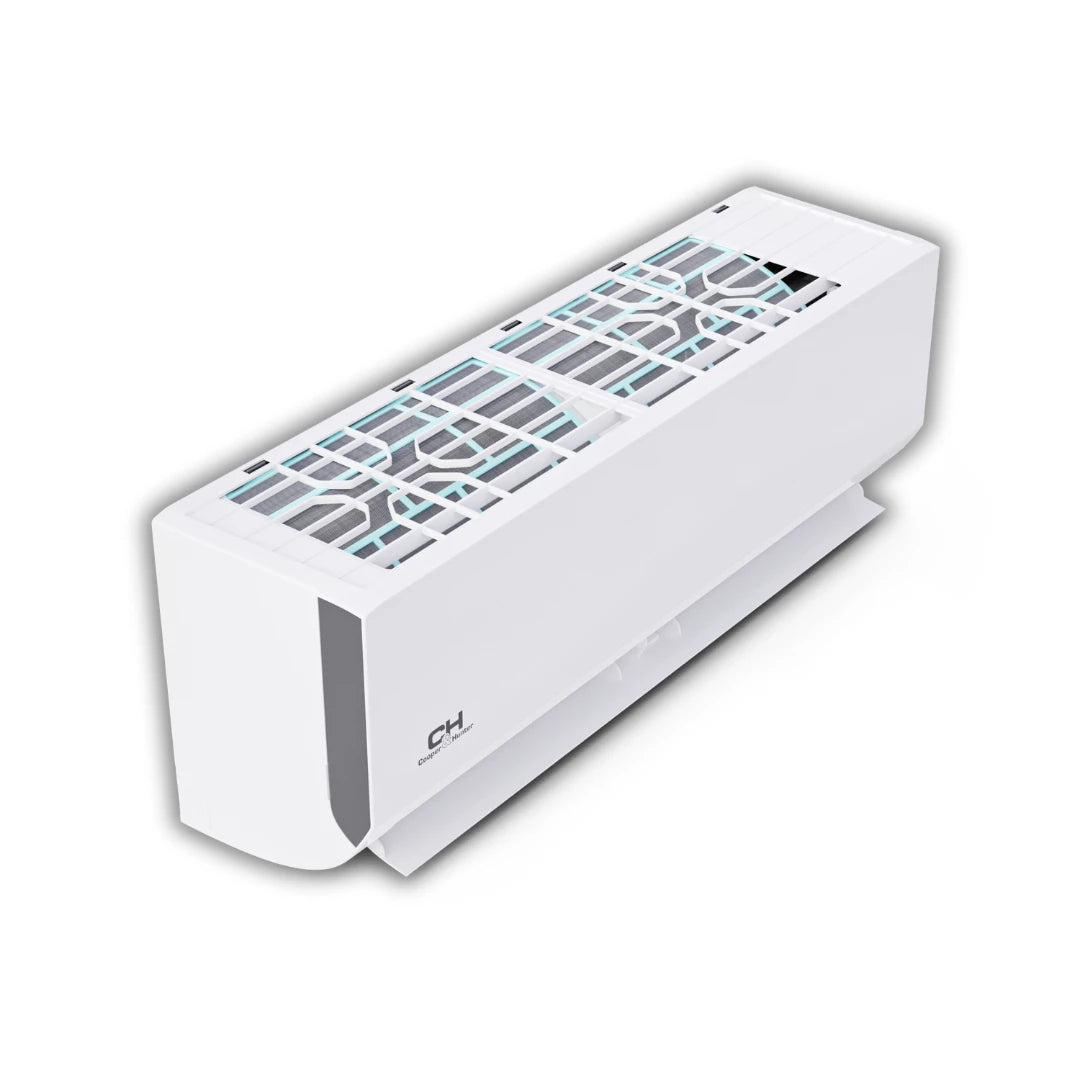

Cooper&Hunter Olivia Wall-Mount Indoor — 6,000 BTU — CH-R06MOLVWM-230VI
High-efficiency indoor unit (up to 25.3 SEER2 / 16 EER2) designed for compatible single-zone or multi-zone C&H systems, with Smart Kit app control and advanced comfort features.
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Highlights
6,000 BTU/h Up to 25.3 SEER2 EER2 16 Smart Kit (App Control) 208–230V, 1Ph Auto-Swing Louvers Quiet to 20.5 dB(A)
- Smart control: Smart Kit connectivity with the C&H app, plus included handheld remote (wall thermostat sold separately).
- Comfort coverage: Horizontal auto-swing helps eliminate hot/cold spots through improved air distribution.
- Rapid response: Turbo Mode for quick cooling/heating and High-Frequency Racer Technology for fast startup ramp.
- Cold-weather protection: 46° Freeze Protection mode helps protect the space during low ambient conditions.
- Efficiency-focused design: Electronic expansion valve for optimized refrigerant flow management (system dependent).
ModelCH-R06MOLVWM-230VI
EfficiencySEER2 25.3 / EER2 16
Power208/230V, 1Ph, 60Hz
Sound20.5–42 dB(A) (Silent–Turbo)

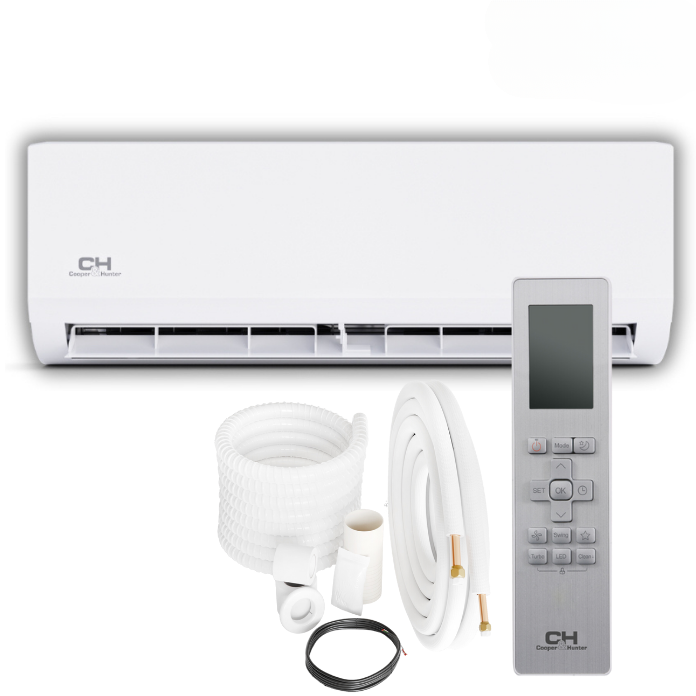

What's Included
- Indoor unit: CH-R06MOLVWM-230VI (6,000 BTU)
- Smart Kit for app connectivity (C&H app control)

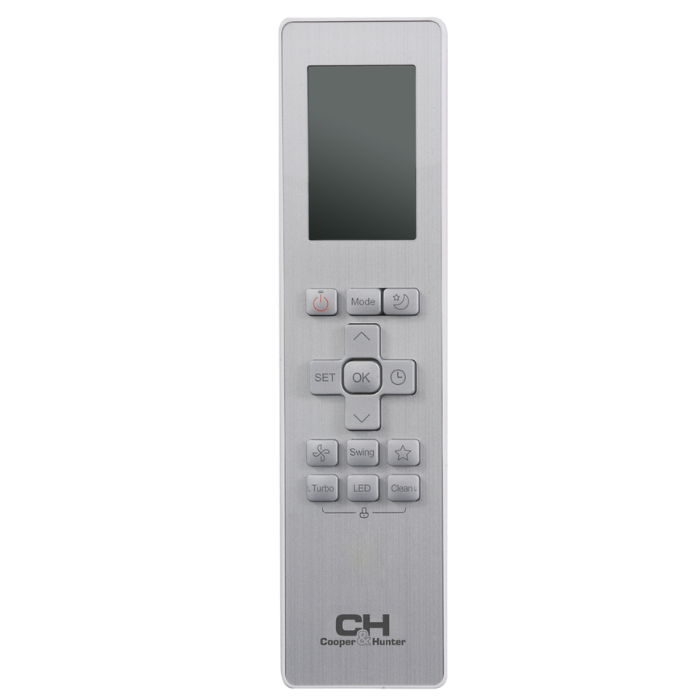

- Wireless remote control
Wall thermostat is optional and can be purchased separately.
Tech Specs
| Spec | Details |
|---|---|
| Indoor Model | CH-R06MOLVWM-230VI |
| Rated Capacity | 6,000 BTU/h |
| SEER2 / EER2 | 25.3 / 16 |
| Power Supply (Rated) | 208/230 V, 1ø, 60 Hz |
| Minimum Circuit Ampacity (MCA) | 3 A |
| Max Fuse | 15 A |
| Refrigerant Piping (Liquid / Gas) | 1/4" / 3/8" |
| Indoor Air Flow (CFM) | Turbo/Hi/Med/Lo: 294.3 / 235.4 / 176.6 / 141.3 |
| Indoor Noise (dB(A)) | Turbo/Hi/Med/Lo/Silent: 42 / 37 / 32 / 24 / 20.5 |

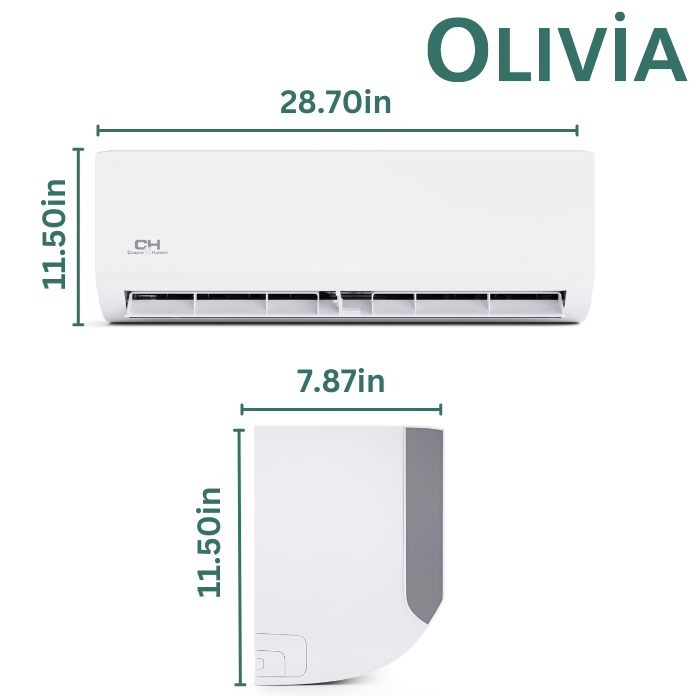

| Unit Dimensions (W×D×H) | 28.70 × 7.87 × 11.50 in |
| Packing Dimensions (W×D×H) | 31.10 × 10.63 × 14.76 in |
| Net / Gross Weight | 17.64 / 23.15 lb |
| Room Temp Range (Cooling) | 60–90 °F |
| Room Temp Range (Heating) | 32–86 °F |
| Drain Pipe Diameter | 5/8" |
System performance, controls, and certain functions may vary based on the matched outdoor unit and whether the configuration is single-zone or multi-zone.
Performance Features
- Auto-swing horizontal louvers for improved circulation
- Genius Core low-speed operation (quiet, stable performance)
- Turbo Mode for rapid cooling/heating
- Follow Me mode for comfort based on remote location
- Timer On/Off and Sleep Mode scheduling
- Electronic expansion valve (system dependent) for optimized refrigerant flow

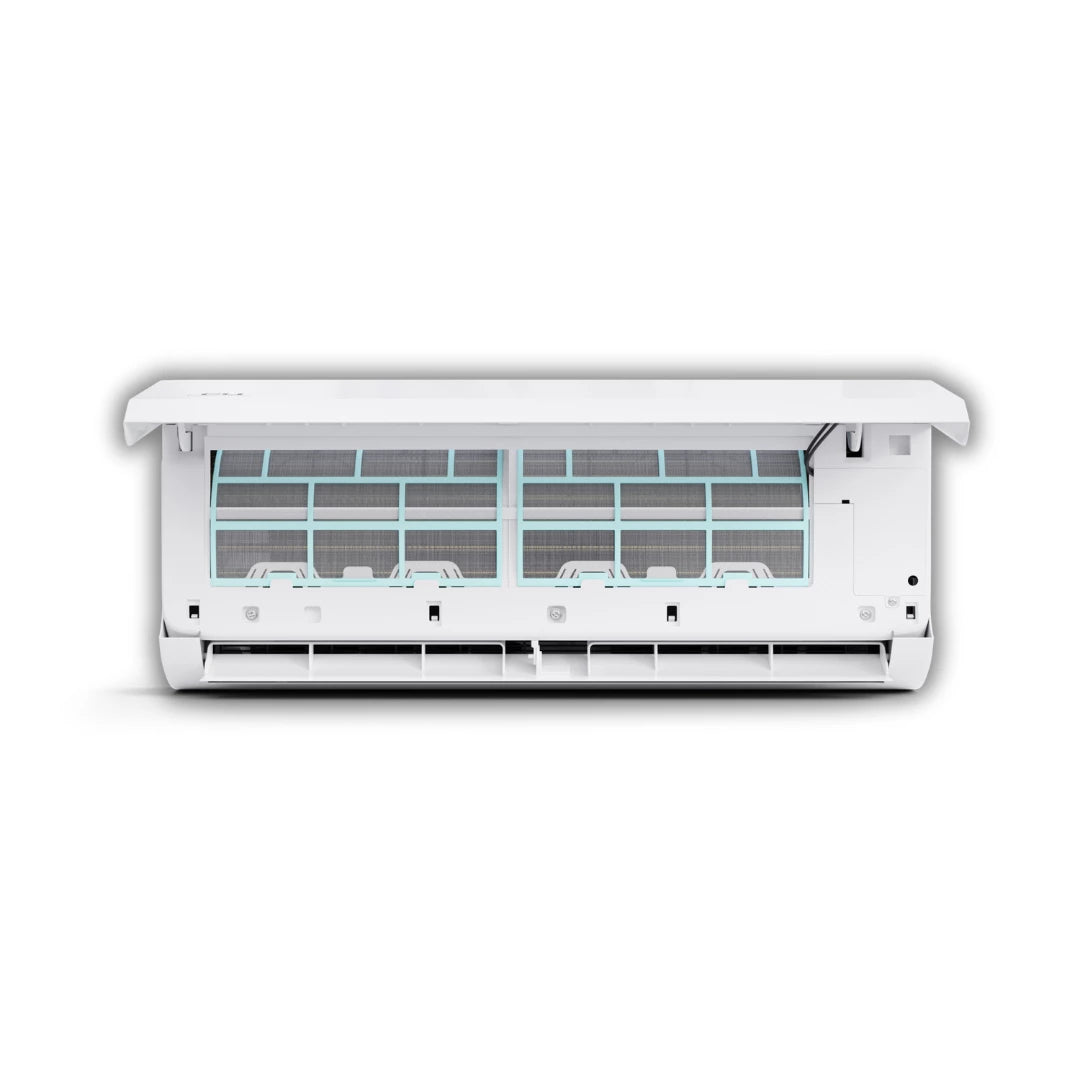

- Intelligent dusting switch (coil cleaning via fan reversal)
- Self-Clean and Eco Mode available on compatible single-zone configurations (feature availability may differ on multi-zone)
Documents & Downloads
Important
Professional installation by a licensed HVAC contractor is required. This is an indoor unit that must be matched with a compatible outdoor unit. Verify electrical requirements, line sizes (1/4" liquid, 3/8" gas), and control options for your specific system design. Some features (such as Self-Clean and Eco Mode) may be limited to compatible single-zone configurations.
FAQs
Does this include Wi-Fi / app control?
Yes. It includes a Smart Kit for connectivity and control via the C&H app, plus an included remote control.
Is it for single-zone or multi-zone systems?
It can be used in either, as long as it is paired with a compatible Cooper&Hunter outdoor unit and properly matched by capacity and design.
What line sizes are required?
1/4" liquid and 3/8" gas.
How quiet is it?
Indoor noise levels are 42/37/32/24/20.5 dB(A) in Turbo/Hi/Med/Lo/Silent.
Does it include a wall thermostat?
No. The remote is included; a wall thermostat can be purchased separately.
