Cooper&Hunter Olivia Indoor • R454B (system) • Wall-Mount • 230V
Cooper&Hunter Olivia Wall-Mount Indoor — 18,000 BTU — CH-R18MOLVWM-230VI
High-capacity wall-mount indoor unit intended for R454B system pairings (system dependent), with Smart Kit app control and advanced comfort features.
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Highlights
18,000 BTU/h SEER2 21.7 EER2 13 R454B (system) Smart Kit (App Control) 208–230V, 1Ph Quiet to 20 dB(A)
- R454B-ready system pairing: Built for next-gen system configurations; actual refrigerant is determined by the matched outdoor unit.
- Wide coverage airflow: Auto-swing horizontal louvers for more even comfort and fewer hot/cold spots.
- Fast temperature pull: Turbo Mode + High-Frequency Racer Technology for rapid ramp-up on startup.
- Protection mode: 46° Freeze Protection helps protect the space during low ambient conditions.
- Smart & flexible control: Smart Kit + C&H app, included remote, optional wall thermostat (sold separately).
ModelCH-R18MOLVWM-230VI
EfficiencySEER2 21.7 / EER2 13
Power208/230V, 1Ph, 60Hz
Line Set1/4" (liq) / 1/2" (gas)
What's Included
- Indoor unit: CH-R18MOLVWM-230VI (18,000 BTU)
- Smart Kit for app connectivity (C&H app control)
- Wireless remote control
Wall thermostat is optional and can be purchased separately.
Tech Specs
| Spec | Details |
|---|---|
| Indoor Model | CH-R18MOLVWM-230VI |
| Rated Capacity | 18,000 BTU/h |
| SEER2 / EER2 | 21.7 / 13 |
| Power Supply (Rated) | 208/230 V, 1ø, 60 Hz |
| Minimum Circuit Ampacity (MCA) | 3 A |
| Max Fuse | 15 A |
| Refrigerant Piping (Liquid / Gas) | 1/4" / 1/2" |
| Indoor Air Flow (CFM) | Turbo/Hi/Med/Lo: 759.3 / 500.3 / 441.4 / 370.8 |
| Indoor Noise (dB(A)) | Turbo/Hi/Med/Lo/Silent: 54.5 / 45 / 40 / 24.5 / 20 |

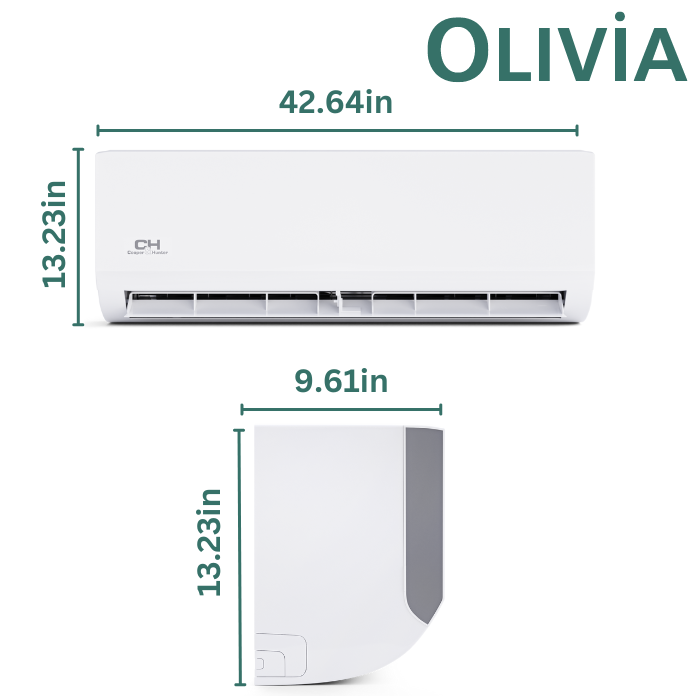

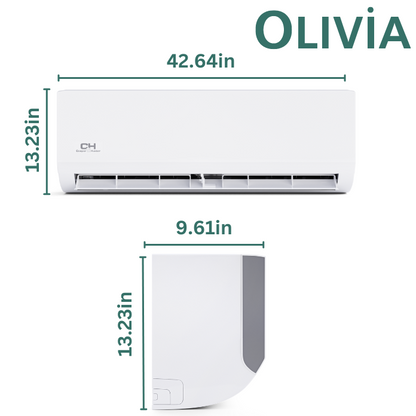

| Unit Dimensions (W×D×H) | 42.60 × 9.21 × 13.27 in |
| Packing Dimensions (W×D×H) | 45.47 × 12.40 × 16.34 in |
| Net / Gross Weight | 30.42 / 39.68 lb |
| Room Temp Range (Cooling) | 60–90 °F |
| Room Temp Range (Heating) | 32–86 °F |
| Drain Pipe Diameter | 5/8" |
Refrigerant type and published efficiency depend on the matched outdoor unit and whether the configuration is single-zone or multi-zone.
Performance Features
- Auto-swing horizontal louvers for improved circulation
- Genius Core low-speed operation (quiet, stable performance)
- Turbo Mode for rapid cooling/heating
- Follow Me mode for comfort based on remote location
- Timer On/Off and Sleep Mode scheduling
- 46° Freeze Protection
- Electronic expansion valve (system dependent) for optimized refrigerant flow
- Intelligent dusting switch (coil cleaning via fan reversal)
- Self-Clean and Eco Mode available on compatible single-zone configurations (feature availability may differ on multi-zone)
Documents & Downloads
Important
Professional installation by a licensed HVAC contractor is required. This is an indoor unit that must be matched with a compatible outdoor unit. Verify electrical requirements, line sizes (1/4" liquid, 1/2" gas), and control options for your specific system design. Some features (such as Self-Clean and Eco Mode) may be limited to compatible single-zone configurations.
FAQs
Does this include Wi-Fi / app control?
Yes. It includes a Smart Kit for connectivity and control via the C&H app, plus an included remote control.
Is this R454B?
This indoor unit is intended for R454B system pairings; the refrigerant is determined by the matched outdoor unit and the complete system configuration.
What line sizes are required?
1/4" liquid and 1/2" gas.
How quiet is it?
Indoor noise levels are 54.5/45/40/24.5/20 dB(A) in Turbo/Hi/Med/Lo/Silent.
Does it include a wall thermostat?
No. The remote is included; a wall thermostat can be purchased separately.
