Cooper&Hunter Olivia Midnight Wall Mount Indoor • R410A • 230V • Single/Multi-Zone
Cooper&Hunter Olivia Midnight 6,000 BTU Wall Mount Indoor Unit — CH-B06MOLVWM-230VI
Sleek black-panel Olivia Midnight indoor unit with auto-swing airflow, Follow Me comfort sensing, Freeze Protection, and optional Smart Kit app control.
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS
CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Overview

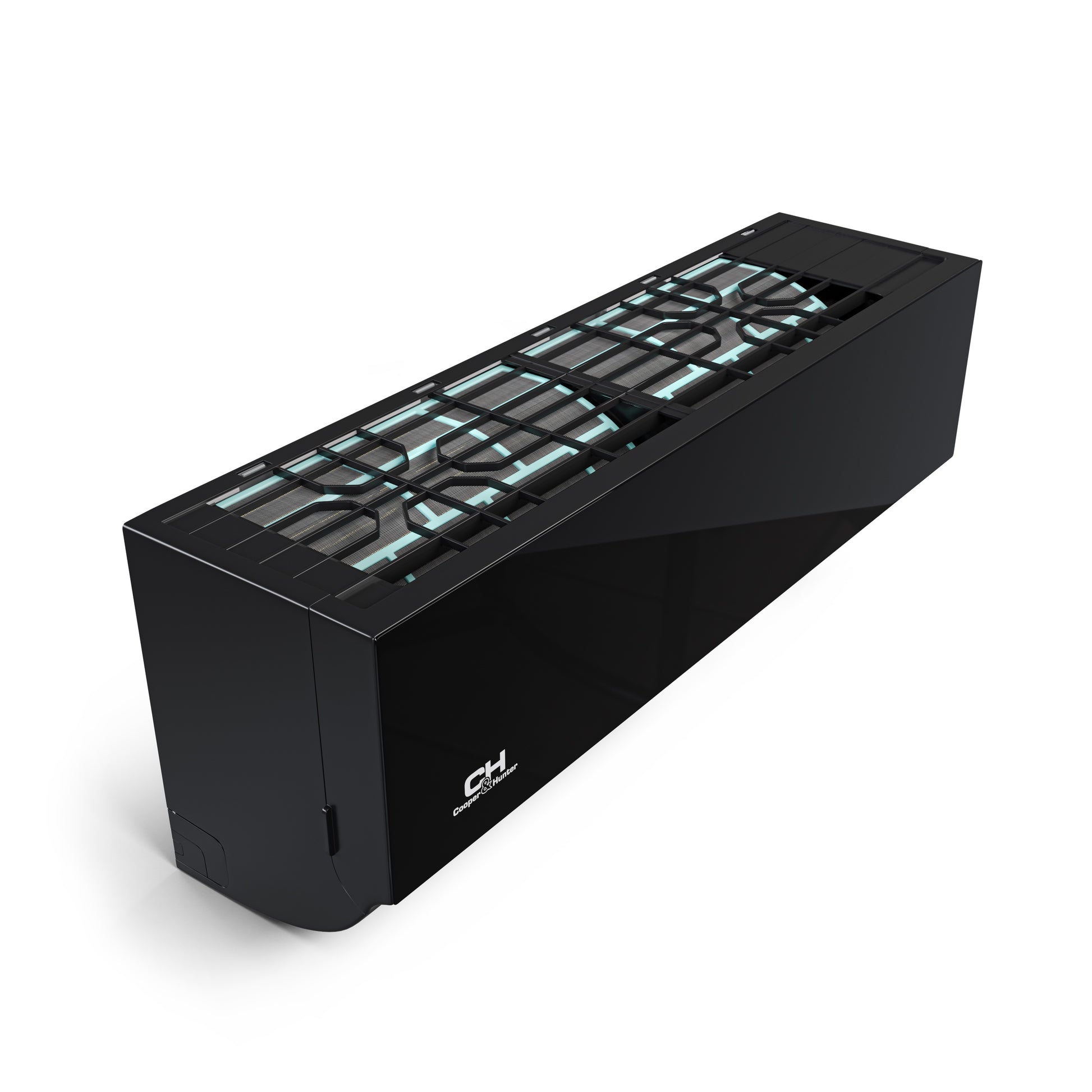

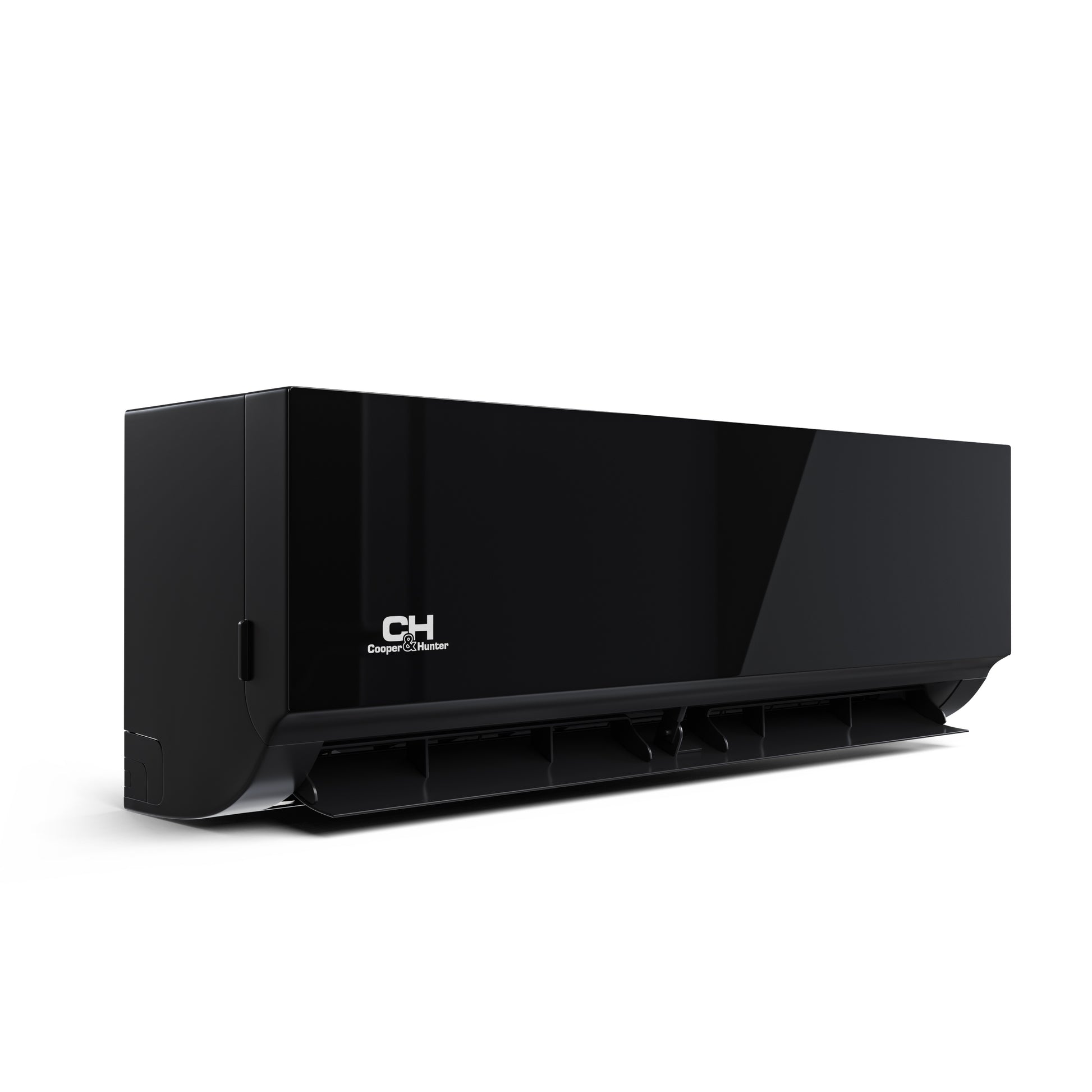

The Cooper&Hunter Olivia Midnight wall-mounted indoor series combines aesthetics and functionality with a sleek black panel alternative to standard white indoor units. Designed for single-zone or compatible multi-zone applications, the Olivia Midnight line is available in 6K, 9K, 12K, 18K, and 24K sizes. The CH-B06MOLVWM-230VI is the 6,000 BTU indoor unit and uses R410A refrigerant with 208–230V power. Auto-swing horizontal louvers help keep airflow even throughout the room, while comfort features like Follow Me, Sleep Mode, Timer options, and 46° Freeze Protection support everyday convenience. Control is handled by the included C&H remote, with optional smart-device control when paired with Cooper&Hunter’s optional Smart Kit and the C&H Remote app. Olivia Midnight models can be paired with compatible Regular or Hyper heat pump outdoor units. Genius Core Technology supports ultra-low compressor speeds (down to 12Hz) for energy savings (system-dependent).
Highlights
6,000 BTU (rated)
SEER2 23.5
EER2 15
R410A
Black Panel Design
Auto-Swing Louvers
Follow Me Mode
Sleep + Timer Modes
46° Freeze Protection
Optional Smart Kit (WiFi)
RG10K Remote Included
- Modern look: Black-panel indoor unit for spaces where aesthetics matter.
- Even airflow: Auto-swing horizontal louvers help distribute air throughout the room.
- Comfort where you are: Follow Me Mode helps the system respond to the sensed temperature at the controller location.
- Simple scheduling: Sleep Mode and Timer options support set-it-and-forget-it operation.
- Cold-weather safeguard: 46° Freeze Protection helps protect the space in low ambient conditions (system-dependent).

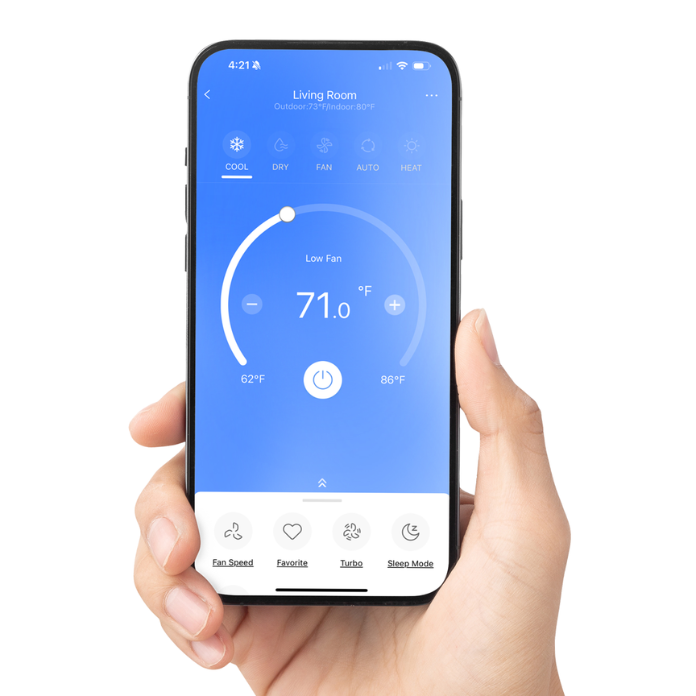

- Optional app control: Add the Smart Kit to control via the C&H Remote app.
ModelCH-B06MOLVWM-230VI
System TypeSingle/Multi-Zone
Line Set1/4" (liq) / 3/8" (gas)
Sound (H/M/L)38.5/33/20.5 dB(A)

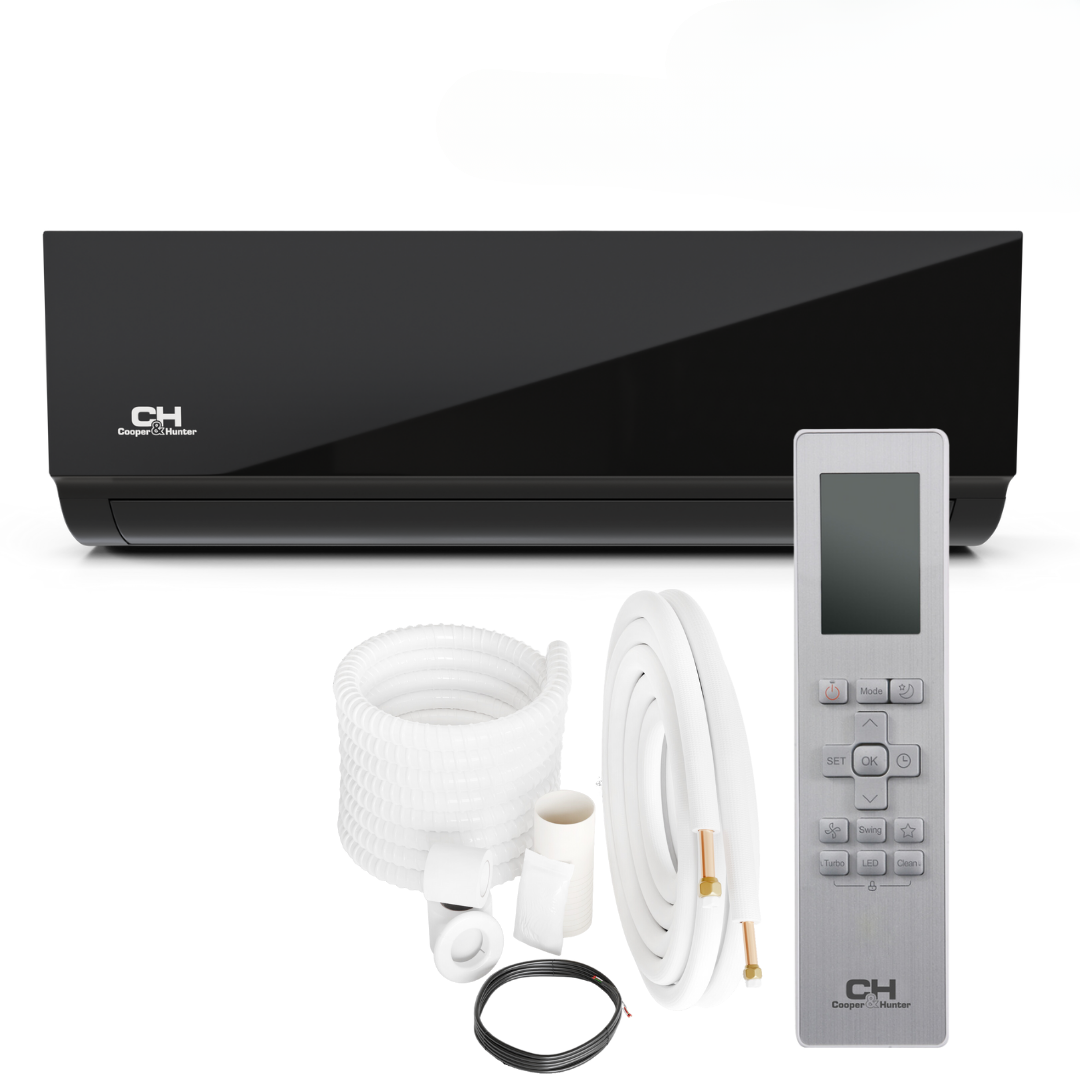

What's Included
- Indoor wall mount unit: CH-B06MOLVWM-230VI

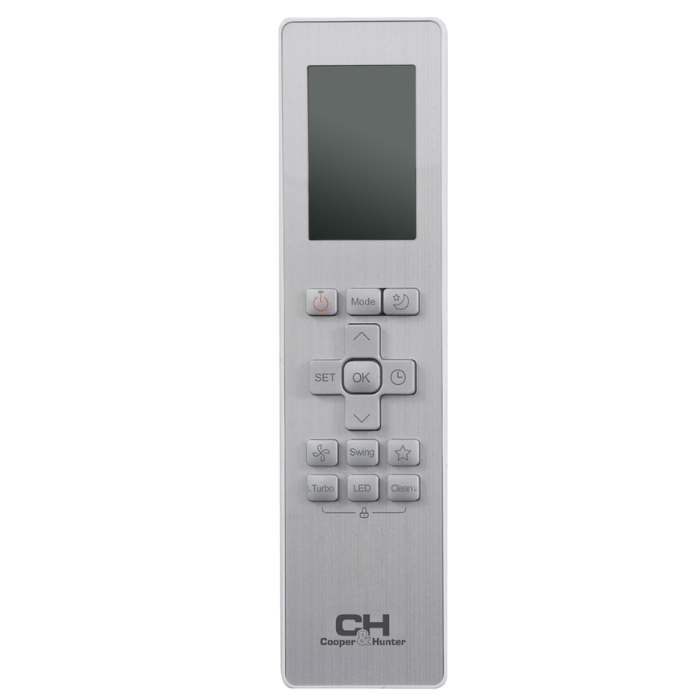

- Remote control: RG10K-exclusive
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-B06MOLVWM-230VI |
| System Type | Single/Multi-zone unit |
| BTU Rated | 6,000 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |
| SEER2 / EER2 | 23.5 / 15 |
| Minimum Circuit Ampacity (MCA) | 3 A |
| Max Fuse | 15 A |
| Dehumidification | 0.74 pints/day |
| Controller | RG10K-exclusive remote |
| Refrigerant Piping (Liquid / Gas) | 1/4" / 3/8" |
| Indoor Noise (H/M/L) | 38.5 / 33 / 20.5 dB(A) |
| Indoor Air Flow | 294.12 / 247.06 / 176.47 / 141.18 |

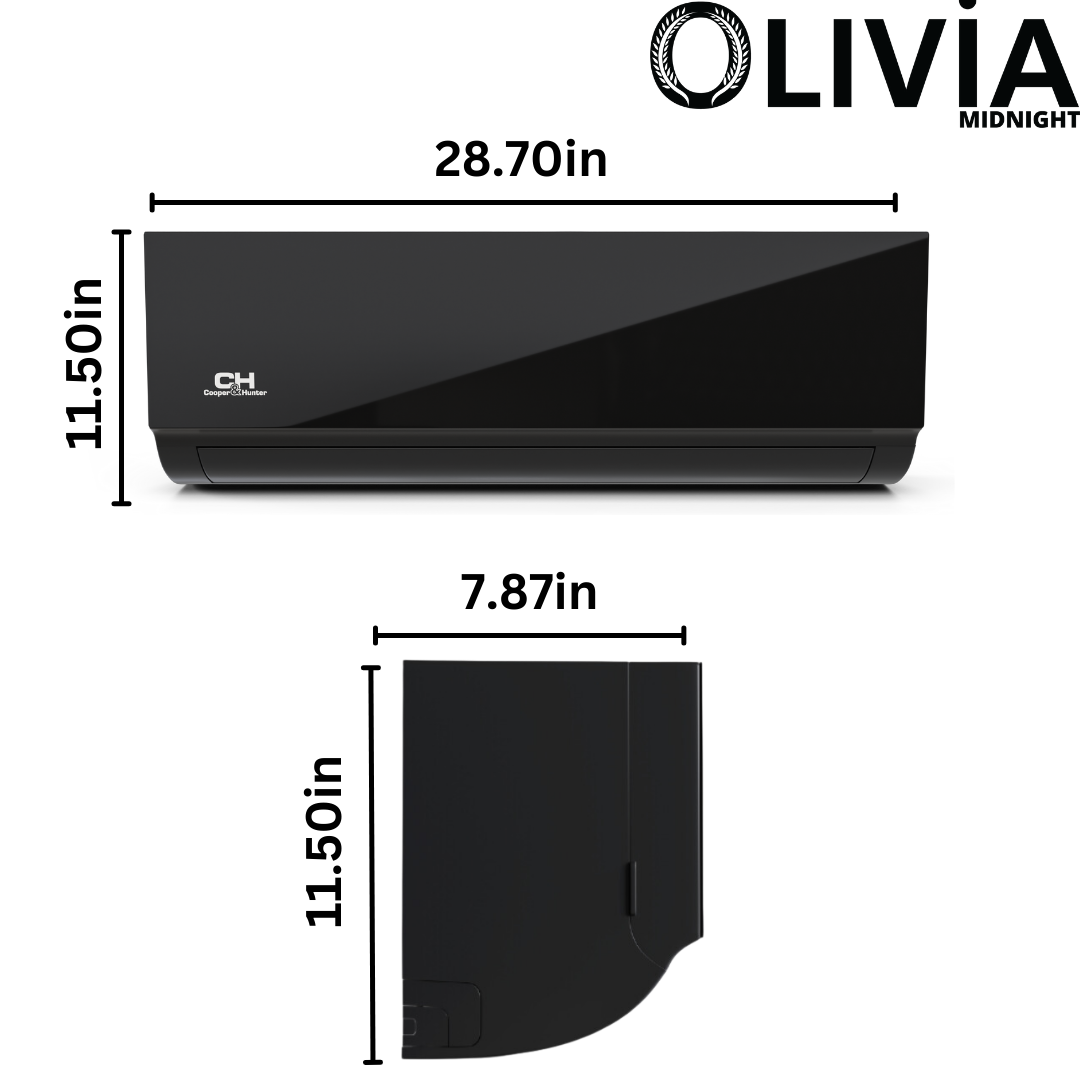

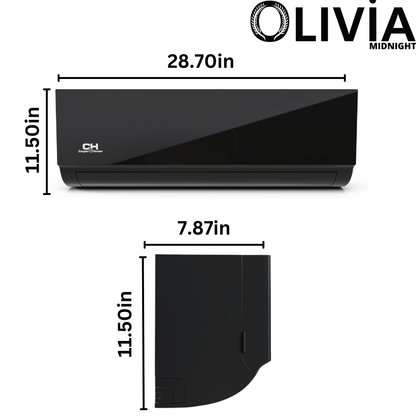

| Unit Dimensions (W×H×D) | 28.70 × 7.87 × 11.50 in |
| Unit Net / Gross Weight | 17.64 / 22.49 lb |
| Packing Dimensions (W×D×H) | 31.10 × 10.63 × 14.76 |
| Drain Pipe Diameter | 5/8" |
| Operation Range (Cooling) | 60–90 °F |
| Operation Range (Heating) | 32–86 °F |
Videos
Mini-split installation videos
How To & Instructional Videos
Products overview
Documents & Downloads
- Submittal — CH-B06MOLVWM-230VI (PDF)
- Submittal — CH-HPR06F9-230VO + CH-B06MOLVWM-230VI (PDF)
- Wall-Mounted Installation Manual (PDF)
- Accessories — Leaflet (2023) (PDF)
- Installation Manual — Olivia Midnight (PDF)
- Owner’s Manual — Olivia Midnight (PDF)
- Olivia Midnight — Leaflet (PDF)
- Remote Manual Content (PDF)
- Multi-Zone Combination — HYPER (PDF)
- Multi-Zone Combination — Regular (PDF)
Important
Install with a licensed HVAC professional. This is an indoor wall mount unit intended to be matched with a compatible outdoor system. Confirm electrical requirements (208–230V) and refrigerant piping sizes (1/4" liquid, 3/8" gas). For smart-device control, add Cooper&Hunter’s optional Smart Kit (WiFi) and use the C&H Remote app.
FAQs
What makes Olivia Midnight different from standard wall mounts?
Olivia Midnight features a sleek black-panel design for a distinct look while keeping the same comfort and control features.
Is this a single-zone or multi-zone indoor unit?
It is compatible with single-zone and multi-zone systems when paired with the correct outdoor unit.
Does it include Wi-Fi / app control?
Not by default. App control is available when you add the optional Smart Kit (WiFi) and use the C&H Remote app.
What line sizes are required?
Use 1/4" liquid and 3/8" gas refrigerant piping.
What are the unit dimensions and noise levels?
Dimensions are 28.70 × 7.87 × 11.50 in (W×H×D). Noise levels are 38.5/33/20.5 dB(A) (H/M/L).
