Cooper&Hunter Olivia Midnight Indoor • R454B • Wall-Mount • 230V • Black Finish
Cooper&Hunter Olivia Midnight Wall-Mount Indoor — 12,000 BTU — CH-RB12MOLVWM-230VI
Midnight-black wall-mount indoor unit using R454B refrigerant, designed for single- or multi-zone applications, with Smart Kit app control, advanced comfort modes, and multi-speed operation.
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS
CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Overview

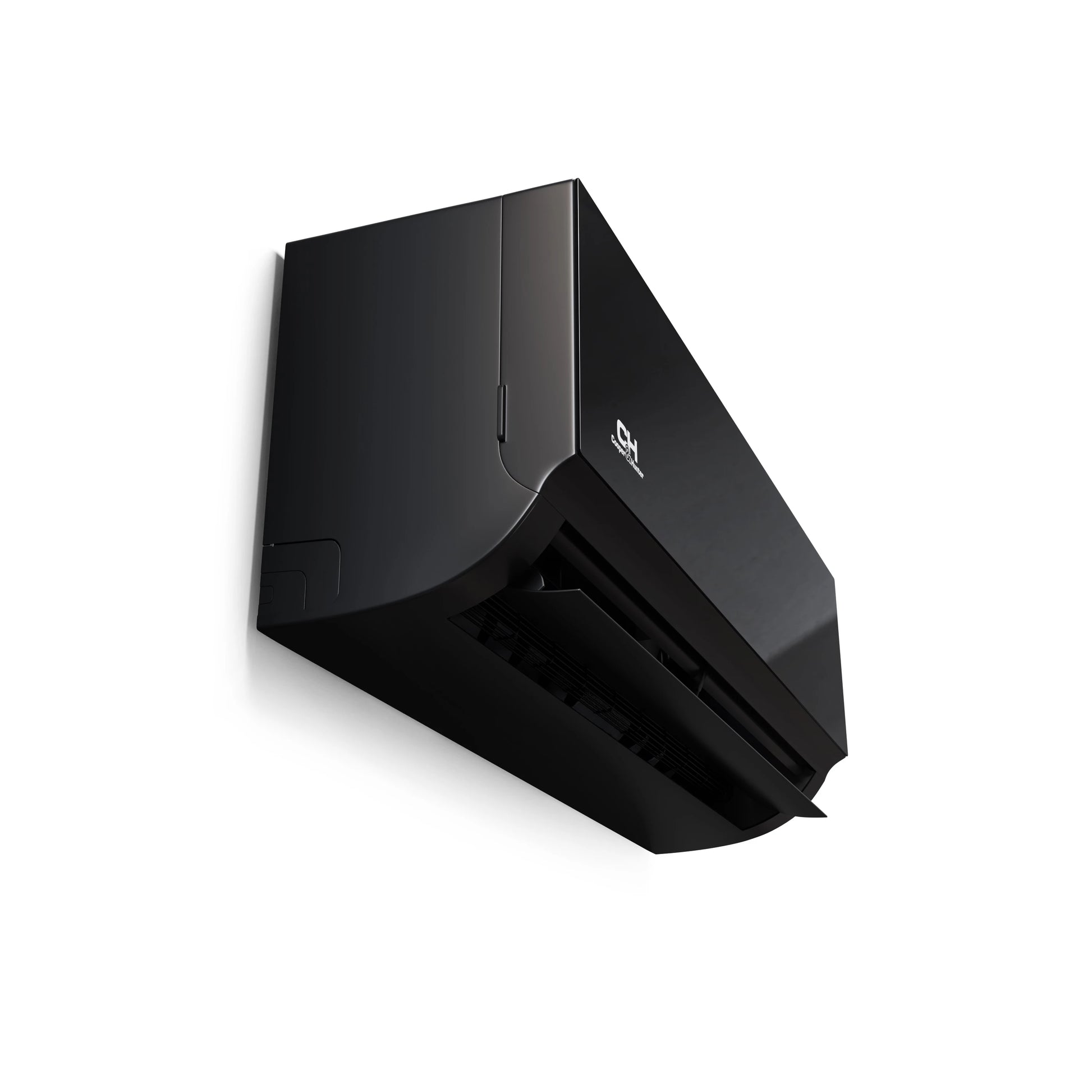

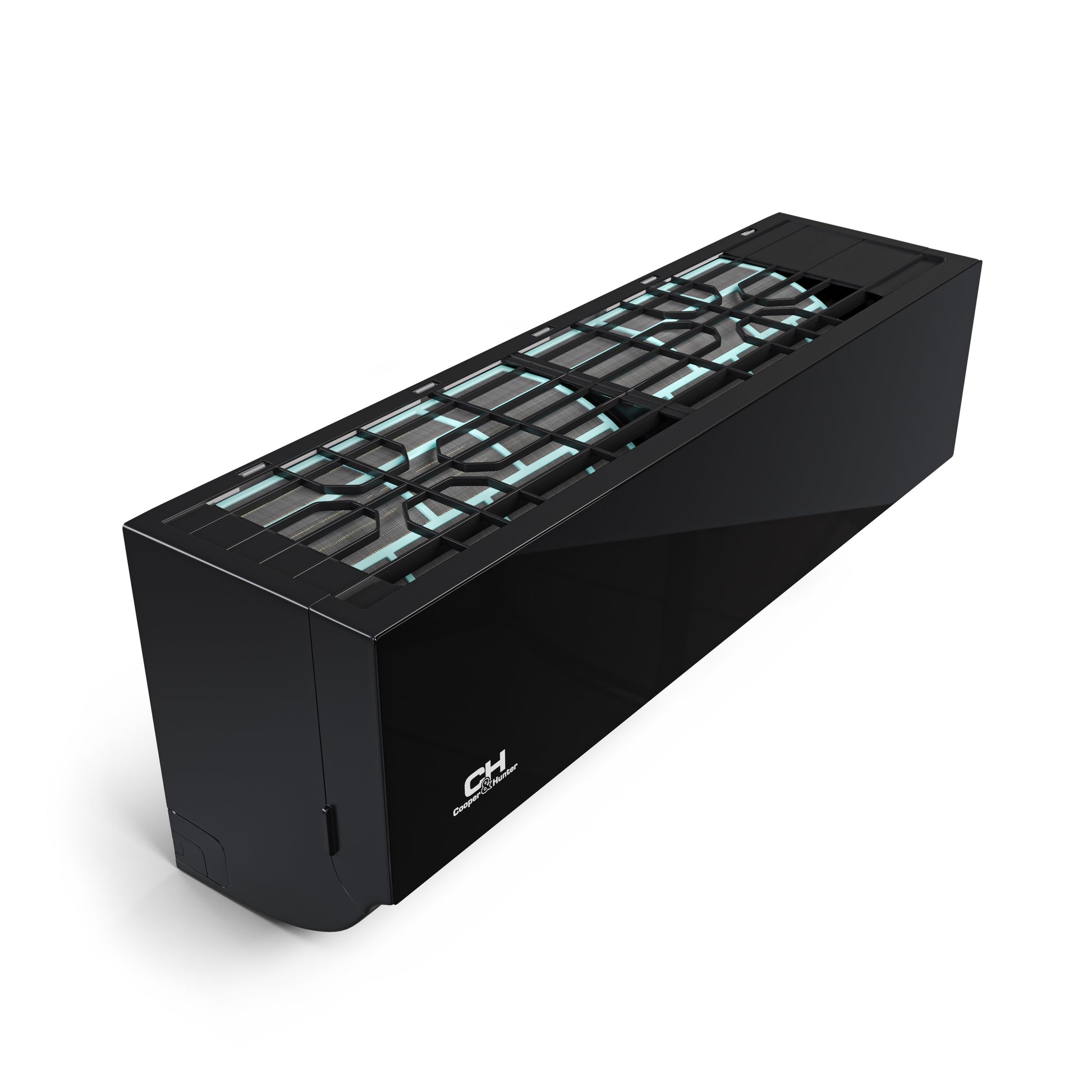

The Cooper&Hunter Olivia Midnight 12K wall-mounted indoor unit pairs a modern black finish with comfort-focused features: horizontal auto-swing louvers for better distribution, Turbo Mode for quick pull-down/pull-up, 46° Freeze Protection, Follow Me comfort sensing, and Smart Kit connectivity for control through the C&H app. Control options include Smart Kit + app, the included remote, and an optional wall thermostat (sold separately).
Highlights
12,000 BTU (rated)
SEER2 up to 24.0
SEER2 23.1
EER2 13
R454B
Smart Kit (App Control)
Single/Multi-zone ready
- Even comfort: Horizontal auto-swing helps reduce hot/cold spots.
- Fast response: Turbo Mode plus rapid ramp-up technology for quicker temperature control.
- Cold protection: 46° Freeze Protection helps safeguard the space in low ambient conditions.
- Smart & flexible control: Smart Kit + C&H app, included remote, optional wall thermostat (sold separately).
- Midnight finish: Contemporary black styling for modern interiors.
ModelCH-RB12MOLVWM-230VI
System TypeSingle/Multi-zone unit
Line Set1/4" (liq) / 3/8" (gas)
Voltage187–253 V range

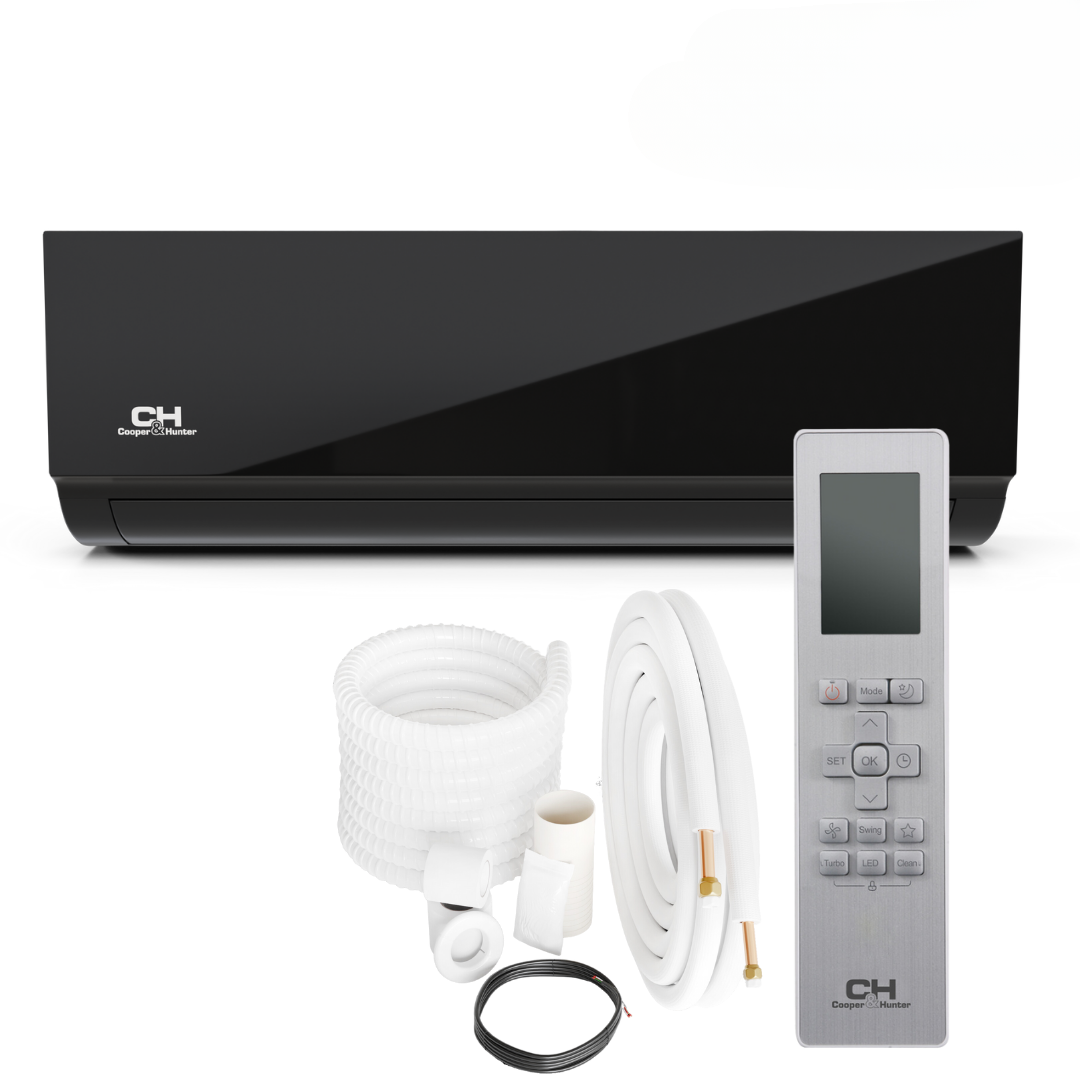

What's Included
- Indoor unit: CH-RB12MOLVWM-230VI

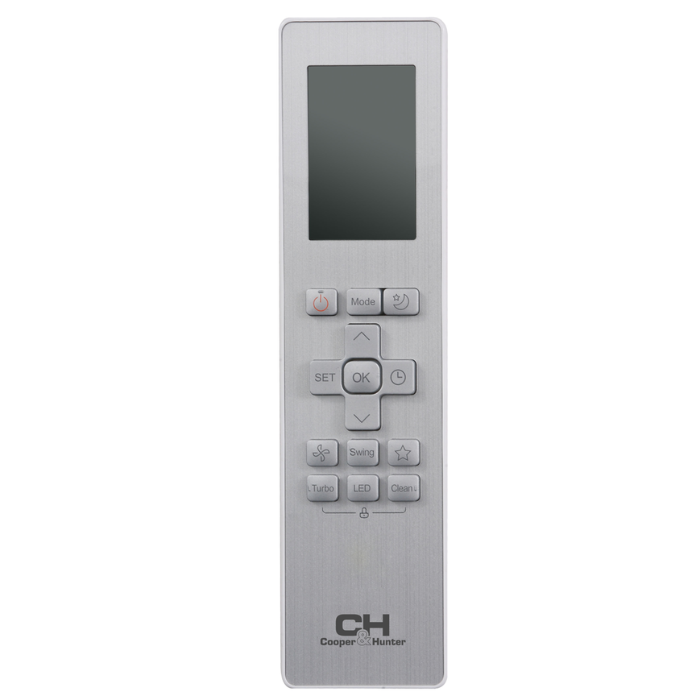

- RG10K-exclusive remote
- Smart Kit for app connectivity (C&H app control)
Wall thermostat is optional and can be purchased separately.
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-RB12MOLVWM-230VI |
| Refrigerant Type | R454B |
| System Type | Single/Multi-zone unit |
| BTU Rated | 12,000 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |
| SEER2 / EER2 | 23.1 / 13 |
| Minimum Circuit Ampacity (MCA) | 3 A |
| Max Fuse | 15 A |
| Dehumidification | 2.83 pints/day |
| Controller | RG10K-exclusive remote |
| Refrigerant Piping (Liquid / Gas) | 1/4" / 3/8" |
| Indoor Noise (H/M/L) | 42 / 36 / 25 dB(A) |
| Indoor Air Flow | 341.18 / 291.18 / 194.12 / 152.94 |

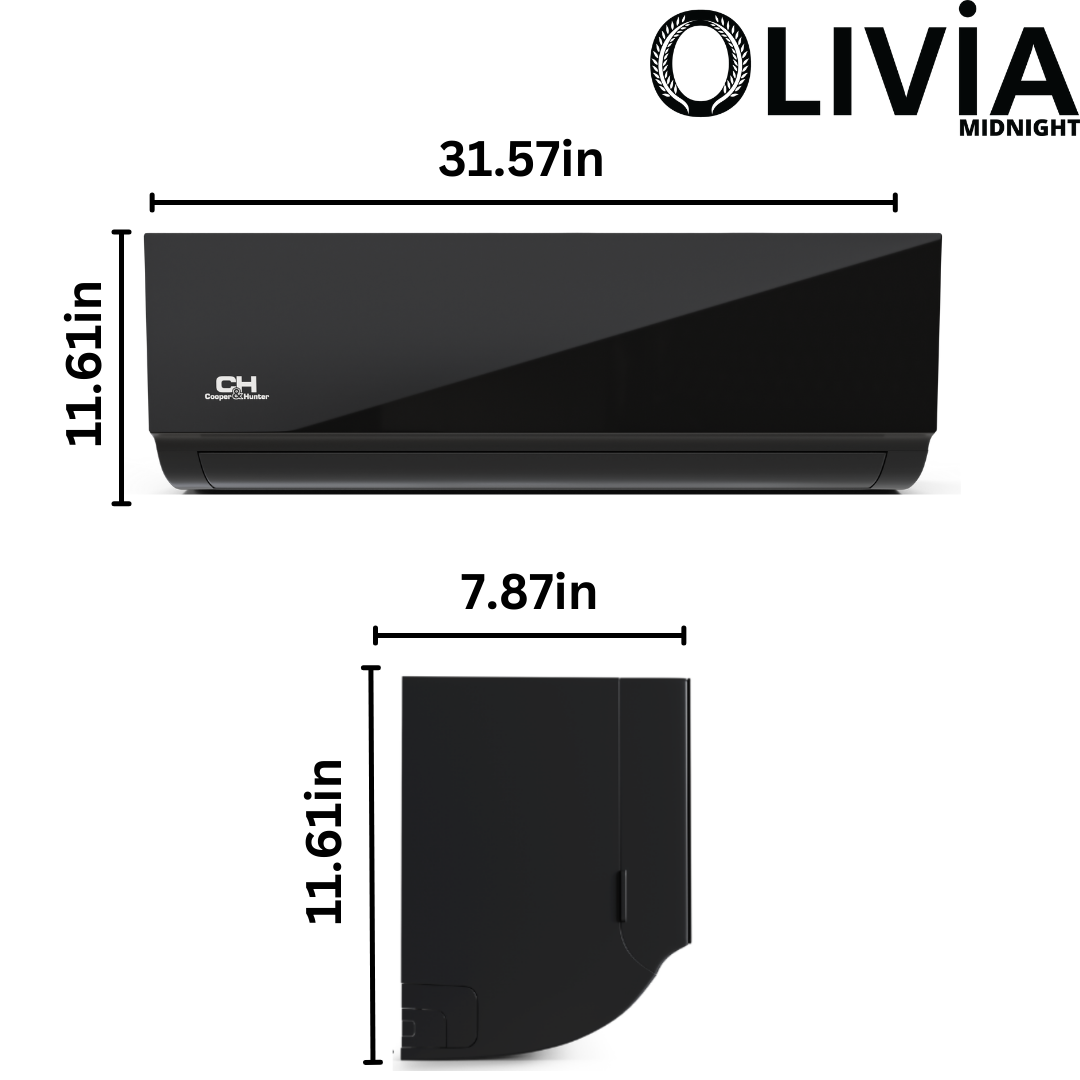

| Unit Dimensions (W×H×D) | 31.57 × 7.87 × 11.61 in |
| Unit Net / Gross Weight | 18.74 / 24.25 lb |
| Packing Dimensions (W×D×H) | 34.45 × 11.22 × 14.96 in |
| Drain Pipe Diameter | 5/8" |
| Operation Range (Cooling) | 60–90 °F |
| Operation Range (Heating) | 32–86 °F |
Documents & Downloads
Important
Installed by a licensed HVAC professional. This is an indoor unit that must be matched with compatible outdoor equipment. Confirm electrical requirements, line sizes (1/4" liquid, 3/8" gas), and control options for your system design. Some features (such as Self-Clean and Eco Mode) may be limited to compatible single-zone configurations.
FAQs
Does this include Wi-Fi / app control?
Yes. Smart Kit connectivity supports control via the C&H app, and the RG10K remote is included.
Is this single-zone or multi-zone?
This indoor unit is listed for single- and multi-zone applications when paired with compatible outdoor units.
What line sizes are required?
1/4" liquid and 3/8" gas.
Does it include a wall thermostat?
No. The remote is included; a wall thermostat can be purchased separately.
What is “Olivia Midnight”?
It’s the Olivia series wall-mount indoor unit in a black (midnight) finish.
