Cooper&Hunter

Cooper&Hunter Olivia Midnight 6-Zone Ductless Mini Split AC & Heat Pump 60000 BTU (9K+9K+12K+12K+12K+12K), Wall Mount Units, 230V

SKU: CH-R60MES-230VO + 2X CH-RB09MOLVWM-230VI + 4X CH-RB12MOLVWM-230VI

System highlights
AC Type
Wall Mount
Refrigerant Type
R454B
Brand
Cooper&Hunter
Outdoor Unit
60000 BTU VO (5.0 TON)
Indoor Unit
9000 BTU (0.75 TON), 12000 BTU (1.0 TON)
Voltage
208-230V
Looking For
Wall Mount, Pre-Made Kits
Cooling Area (sq.ft.)
250-400, 400-550
Series
Olivia Midnight
SEER2 Rating
22.0
Line Set Length
$5,782.00 USD
$5,782.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
COOPER & HUNTER — Olivia Midnight Series

Cooper&Hunter Olivia Midnight 6-Zone Ductless Mini Split AC & Heat Pump 60000 BTU (9K+9K+12K+12K+12K+12K), Wall Mount Units, 230V

The Cooper & Hunter Olivia Midnight Series system pairs a 60000 BTU outdoor unit with CH-R60MES-230VO + 2X CH-RB09MOLVWM-230VI + 4X CH-RB12MOLVWM-230VI Olivia Midnight (black) wall-mounted indoor units. This high-efficiency DC inverter heat pump delivers zoned comfort in 6 zones and supports low-ambient heating & cooling down to -13 F.

Midnight Black Finish 6 Zone(s) 60000 BTU Outdoor Up to 22 SEER2 Heats to -13 F Outdoor SKU CH-R60MES-230VO Outdoor noise: 65 dB(A) Indoor noise: 19.5 dB(A) Smart Kit Included 46°F Freeze Protection R454B Refrigerant
Contact for custom quotes Call 800-543-8933

Key features

Comfort & airflow

  • 6-zone independent temperature control
  • Auto-swing louvers for broad air distribution
  • Multiple fan speeds (LOW / MED / HI / TURBO)
  • Turbo mode for rapid cooling/heating
  • Follow Me mode (remote-based temperature sensing)
  • Timer On/Off scheduling + Sleep mode
  • LED display (model-dependent)

Efficiency & protection

  • High efficiency operation (up to 22 SEER2)
  • Low-ambient performance down to -13 F
  • 46°F Freeze Protection
  • Self-clean function (single-zone models only, if equipped)
  • Eco mode (single-zone models only, if equipped)

Build & materials

  • TU1 copper tubes for durability and heat transfer
  • Genius Core ultra-low compressor speed (12Hz) for quiet, stable operation
  • Quiet operation (Outdoor as low as 65 dB(A); Indoor as low as 19.5 dB(A))

At-a-glance

Zoning
6 zones
Outdoor BTU
60000
SEER2
22
Low ambient
-13 F
Outdoor noise
65 dB(A)
Indoor noise
19.5 dB(A)
Outdoor SKU
CH-R60MES-230VO
Smart control
Smart Kit Included

Warranty requires licensed HVAC installation and registration within 60 days (if required).

Control options

  • Smart Kit included with downloadable C&H app
  • Remote control included (new user-friendly design)
  • 12V wall thermostat compatible (purchased separately)

Outdoor technology

  • High-Frequency Racer Technology: helps the compressor reach maximum speed within ~6 seconds on startup
  • Electronic expansion valve: optimizes refrigerant flow management
  • Intelligent dusting switch: reverses the fan to help clear dust/sand/debris from the coil
  • Genius Core ultra-low compressor speed of 12Hz

Installation & electrical

  • Indoor line sizes (varies by head): 1/4"/3/8"
  • Refrigerant precharge: 150
  • Additional refrigerant charge (1/4 liquid line): 0.16
  • Additional refrigerant charge (3/8 liquid line): 0.32
  • Minimum circuit ampacity: 36
  • Max fuse / breaker: 40

Use the installation manual to confirm charge units and when additional charge is required (based on line length and piping configuration).

Product video

What’s included

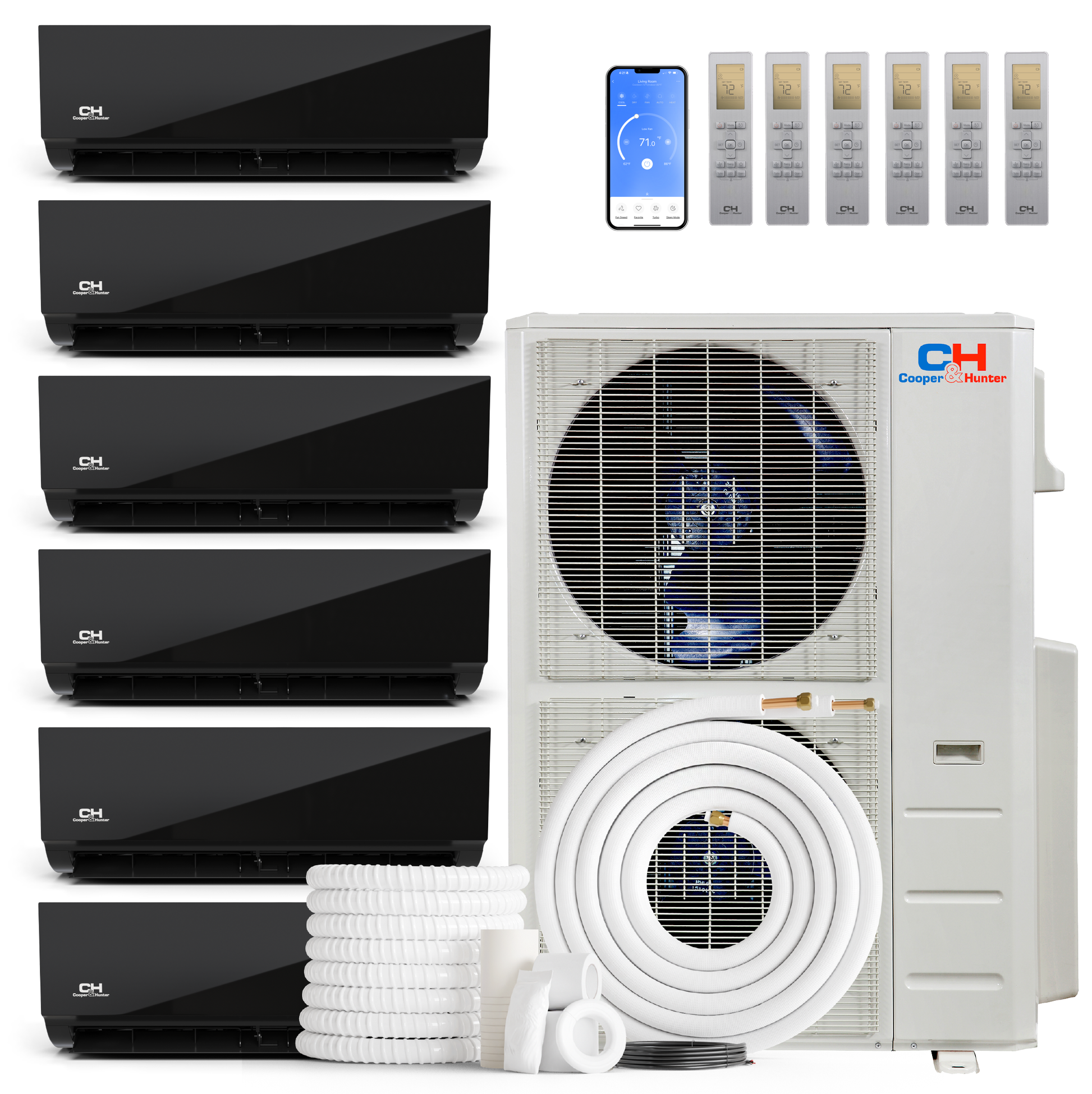

Cooper & Hunter Olivia Midnight Series Ductless Mini Split System

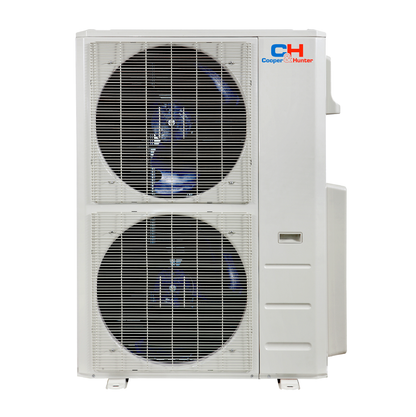

Outdoor Unit: 60000 BTU (1 pc) — Model: CH-R60MES-230VO

Indoor Units:

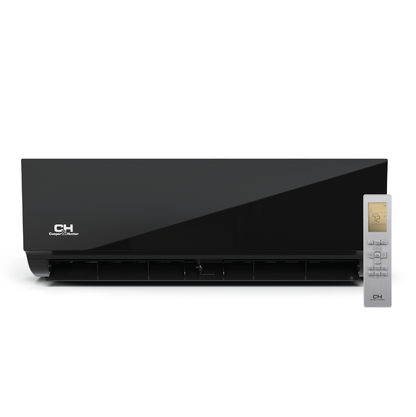

- 9,000 BTU (x2) — Model: CH-RB09MOLVWM-230VI

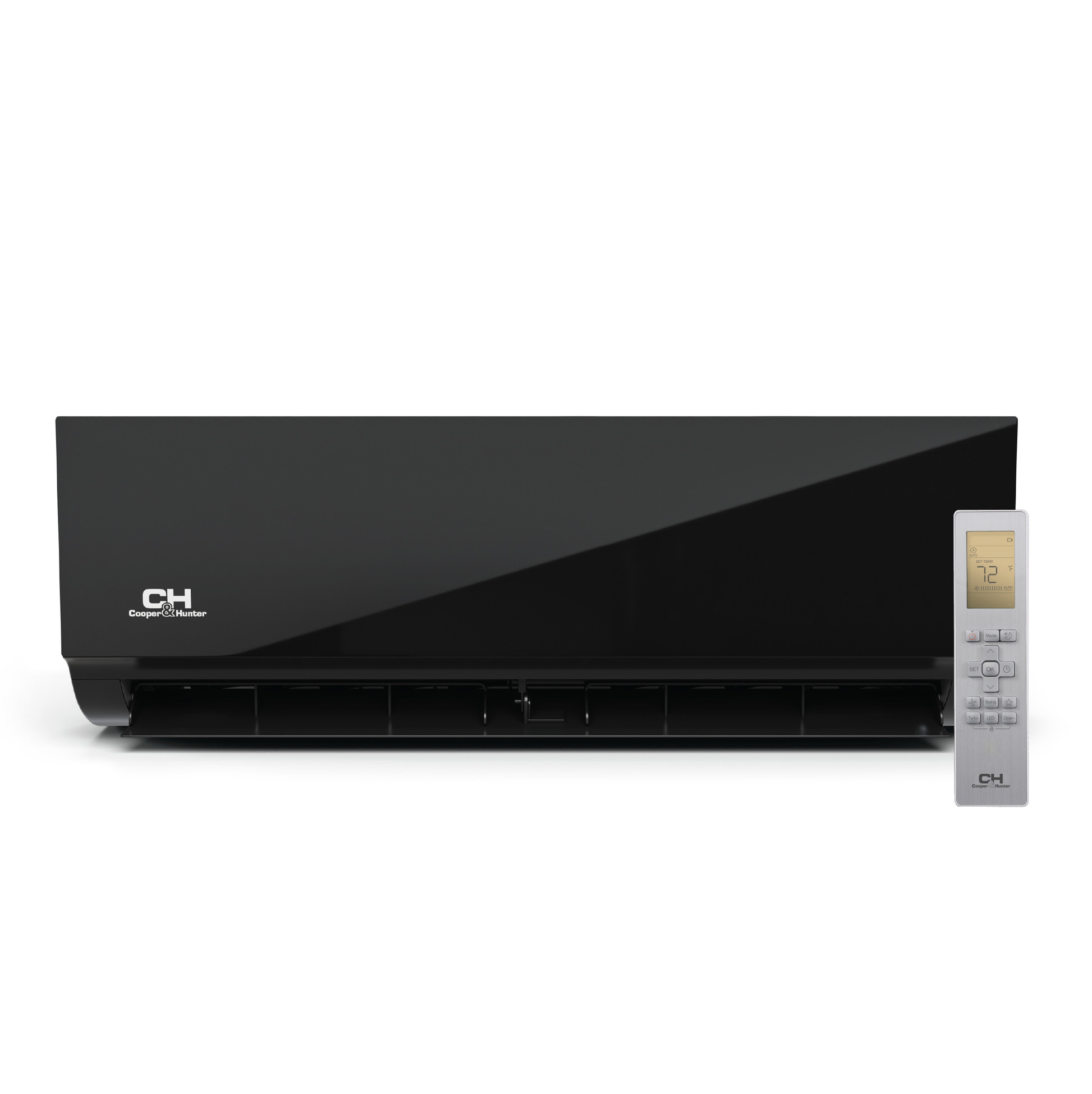

- 12,000 BTU (x4) — Model: CH-RB12MOLVWM-230VI

  • Installation Kits options (No Installation / 16 ft / 25 ft / 50 ft)
  • (INSTALLATION KIT SIZE MUST BE SELECTED, TO INCLUDE)
  • Wireless Remote Controls (6 remotes)
  • Smart Kit Included
  • Installation Manual
  • User's Manual
  • Manufacturer Warranty

Complete technical specifications — Indoor

Indoor Unit Specifications — CH-RB09MOLVWM-230VI

Rated V-Ph-Hz 208/230,1,60
Rated Capacity Btu/h 9000
Minimum Circuit Ampacity (MCA) A 3
Max. Fuse A 15
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM 382.6/294.3/194.2/153.0/N/A
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A) 45.5/42/36/21/19.5
Dimension (WxDxH) inch 31.57×7.87×11.61
Packing (WxDxH) inch 34.45×11.22×14.96
Net/Gross Weight lbs 18.96/24.25
Cooling Temp °F 60–90
Heating Temp °F 32–86
Liquid/Gas Side inch 1/4″/3/8″
EER2 15.8
SEER2 26.4.1
Unit Net/Gross weight 18.96/24.25
Unit dimensions (W*H*D) 31.57x7.87x11.61
Operation Range - Heating 32~86
Operation Range - Cooling 60~90
Minimum circuit ampacity 3
Max.fuse 15
Indoor Noise Level H/M/L 40/34/23.5
Indoor Air Flow 341.18/291.18/194.12/152.94
Drainage water pipe diameter 5/8"

Indoor Unit Specifications — CH-RB12MOLVWM-230VI

Refrigerant type R454B
System type Single/Multi-zone unit
BTU Rated 12,000
Power source 208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day) 2.83
Voltage range (V) 187-253
Packing dimensions (WxDxH) 34.45x11.22x14.96
Controller RG10K-exclusive remote
Refrigerant piping Liquid/Gas side (inch) 1/4"/3/8"
EER2 13
SEER2 23.1
Unit Net/Gross weight 18.74/24.25
Unit dimensions (W*H*D) 31.57x7.87x11.61
Operation Range - Heating 32~86
Operation Range - Cooling 60~90
Minimum circuit ampacity 3
Max.fuse 15
Indoor Noise Level H/M/L 42/36/25
Indoor Air Flow 341.18/291.18/194.12/152.94
Drainage water pipe diameter 5/8"

Submittals

Complete technical specifications — Outdoor

Outdoor Unit Specifications — CH-R60MES-230VO

Refrigerant type R454B
System type Multi-zone unit
Power source 208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day) 10.57
Voltage range (V) 187-253
Packing dimensions (WxDxH) 43.11 x 19.49 x 58.27
Refrigerant piping Liquid/Gas side (inch) 6x1/4" - 4x3/8"+2x1/2"
HSPF2-5 7.4
HSPF2-4 9.5
EER2 10
Cooling capacity (Min/Max) (BTU/h) 60,000(19,000~62,000)
SEER2 22
Unit Net/Gross weight 237.88/270.28
Unit dimensions (W*H*D) 37.48 x 16.34 x 52.48
Refrigerant precharge 150
Outdoor Noise Level 65
Outdoor Air Flow 4,502.8
Minimum circuit ampacity 36
Max.fuse 40
Max height difference between Indoor and Outdoor unit 49.2
Heating capacity (Min/Max) (Btu/h) 60,000(20,000~60,000)
COP 3.7
Ambient temperature - Heating (F) -13~75
Ambient temperature - Cooling (F) -13~122
Additional Refrigerant Charge 3/8 liquid line 0.32
Additional Refrigerant Charge 1/4 liquid line 0.16

Manuals

Submittals

Documents

Warranty information

  • 7-Year Compressor Warranty
  • 5-Year Parts Warranty
  • 1-Year Remote Control Warranty

Note: Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.

Summary

Expand

Transform your home's climate control with the Cooper & Hunter Olivia Midnight wall mounted mini split (R454B refrigerant). The midnight black indoor unit delivers modern style with advanced comfort features, including auto-swing louvers, Turbo mode, Follow Me temperature sensing, and Smart Kit app control. Designed for quiet, efficient performance (up to 22 SEER2), it supports low-ambient operation down to -13 F and in
