COOPER & HUNTER — Olivia Series

Cooper&Hunter Olivia 3-Zone Ductless Mini Split AC & Heat Pump 18000 BTU (6K+9K+9K), Wall Mount Units, 230V

The Cooper & Hunter Olivia Series system features a 18000 BTU outdoor unit paired with CH-R18MES-230VO + CH-R06MOLVWM-230VI + 2X CH-R09MOLVWM-230VI wall-mounted indoor units. This high-efficiency model with auto-swing louvers will heat & cool down to -13 F. The DC inverter heat pump provides independent control in 3 zones.

3 Zone(s) 18000 BTU Outdoor SEER2 25.1 Heats to -13 F Outdoor SKU CH-R18MES-230VO Outdoor noise: 59.5 dB(A) Indoor noise: 20.5 dB(A) Smart Kit Included 46°F Freeze Protection

Contact for custom quotes Call 800-543-8933

Key features

Comfort & airflow

3-zone independent temperature control
Auto-swing louvers (horizontal + vertical)
Follow Me mode (remote-based temperature sensing)
Turbo mode for rapid cooling/heating
Sleep mode + Timer On/Off scheduling
New user-friendly remote controller design

Efficiency & protection

High efficiency operation (25.1 SEER2)
Low-ambient performance down to -13 F
46°F Freeze Protection
Self-Clean function (single-zone only, if equipped)
Eco mode (single-zone only, if equipped)

Build & materials

TU1 copper tubes
Quiet operation (Outdoor as low as 59.5 dB(A); Indoor as low as 20.5 dB(A))

At-a-glance

Zoning
3 zones

Outdoor BTU
18000

SEER2
25.1

Low ambient
-13 F

Outdoor noise
59.5 dB(A)

Indoor noise
20.5 dB(A)

Outdoor SKU
CH-R18MES-230VO

Smart control
Smart Kit Included

Warranty requires licensed HVAC installation and registration within 60 days (if required).

Control options

Smart Kit included with downloadable C&H app
Remote control included
Wall thermostat compatible (purchased separately, if supported by the model)

Outdoor technology

High-Frequency Racer Technology: helps the compressor reach maximum speed within ~6 seconds on startup
Electronic expansion valve: manages refrigerant flow for stable performance
Intelligent dusting switch: reverses the fan to help clear dust/sand/debris from the coil
Genius Core ultra-low compressor speed of 12Hz

Installation & electrical

Indoor line sizes (varies by head): 1/4"/3/8"
Refrigerant precharge: 75
Additional refrigerant charge (1/4 liquid line): 0.16
Additional refrigerant charge (3/8 liquid line): 0.32
Minimum circuit ampacity: 16
Max fuse / breaker: 20

Use the installation manual to confirm charge units and when additional charge is required (based on line length and piping configuration).

Product video

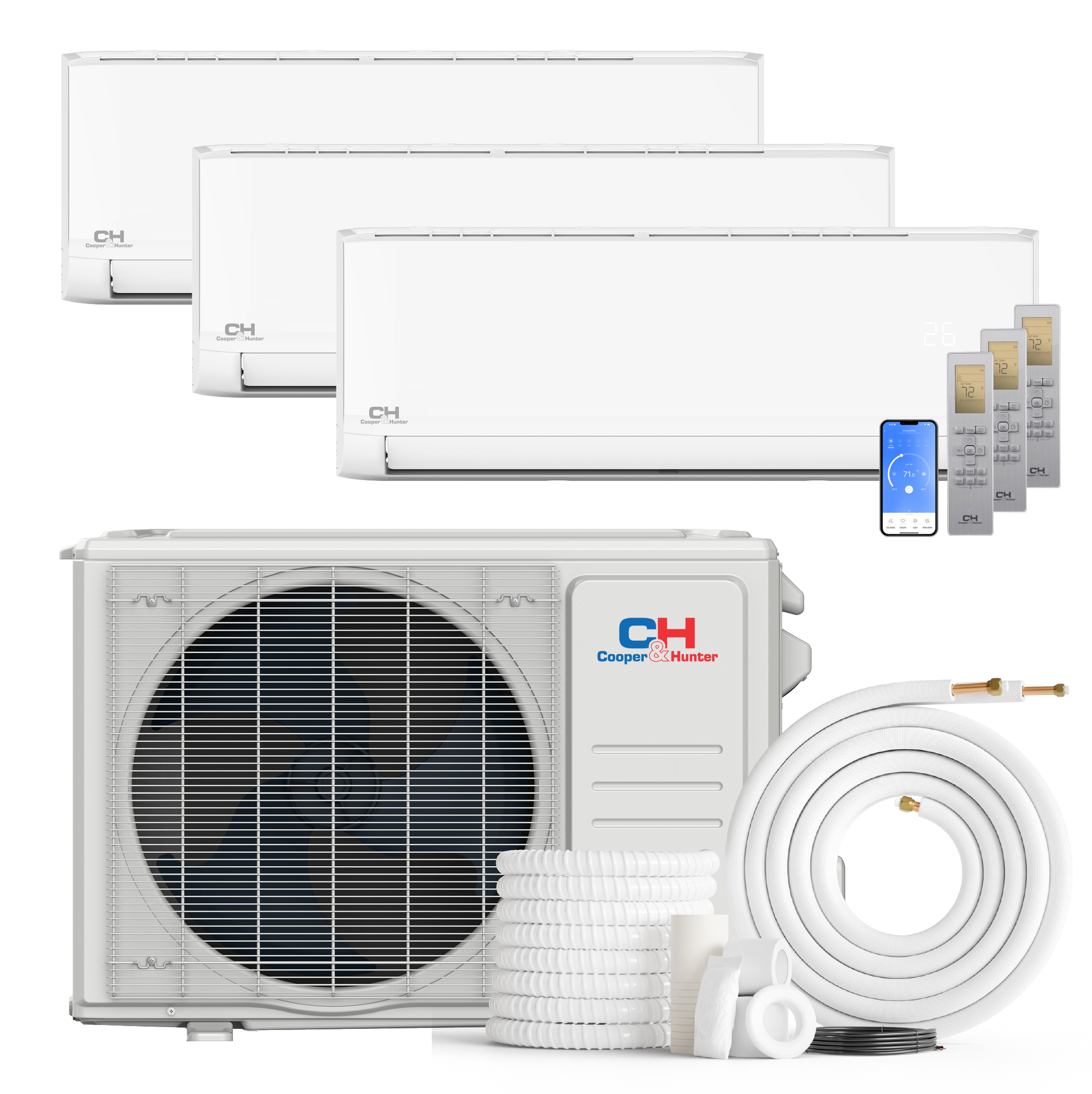

What’s included

Cooper & Hunter Olivia Series Ductless Mini Split System

Outdoor Unit: 18000 BTU (1 pc) — Model: CH-R18MES-230VO

Indoor Units:

- 6,000 BTU (x1) — Model: CH-R06MOLVWM-230VI

- 9,000 BTU (x2) — Model: CH-R09MOLVWM-230VI

Installation Kits options (No Installation / 16 ft / 25 ft / 50 ft)
(INSTALLATION KIT SIZE MUST BE SELECTED, TO INCLUDE)
Wireless Remote Controls (3 remotes)
Wi-Fi Adapter (17310900A05963)
Installation Manual
User's Manual
Manufacturer Warranty

Complete technical specifications — Indoor

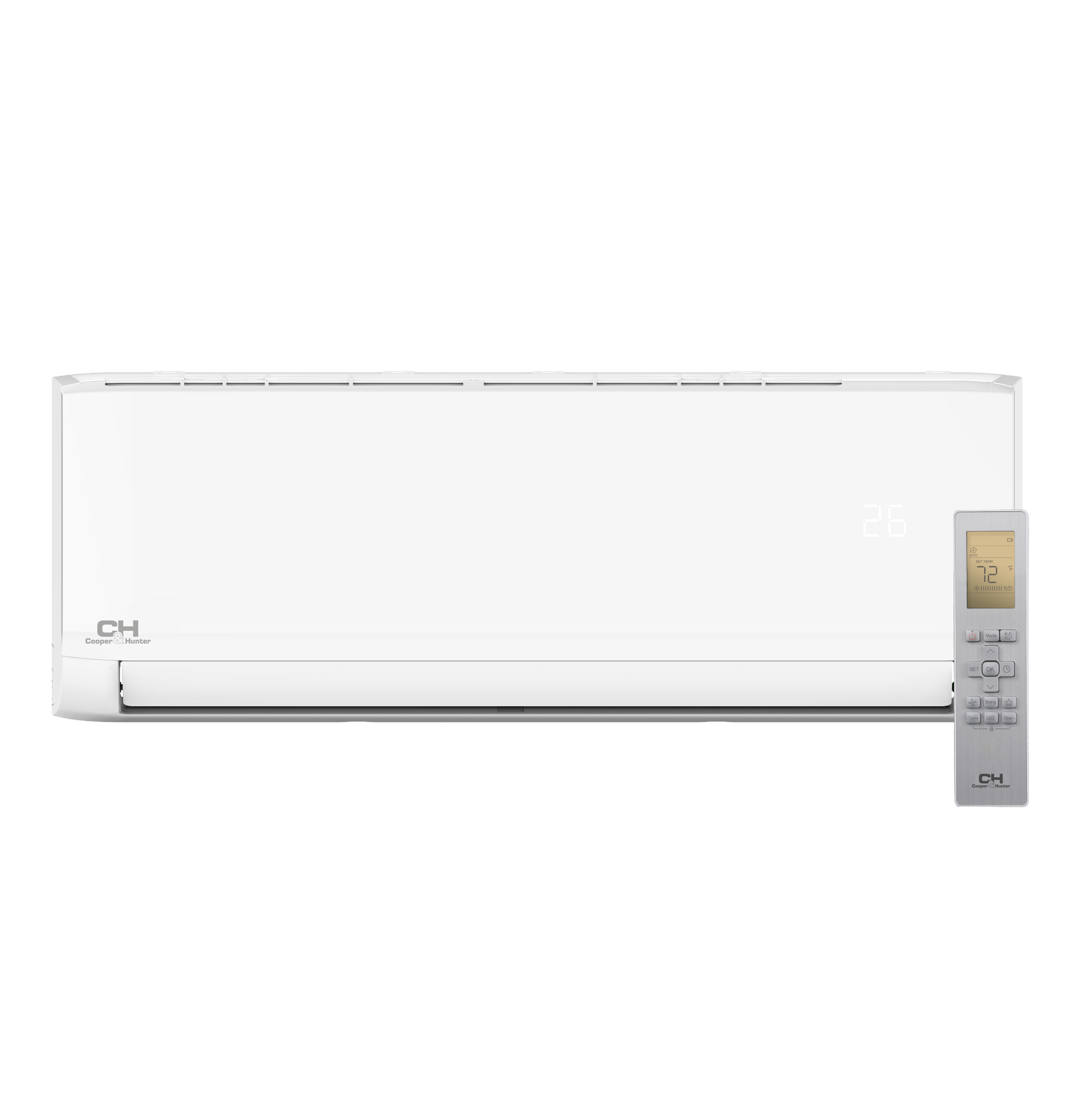

Indoor Unit Specifications — CH-R06MOLVWM-230VI

Indoor Model	CH-R06MOLVWM-230VI
Power Supply (Rated)	208/230 V, 1 Ø, 60 Hz
Rated Capacity Btu/h	6,000
Minimum Circuit Ampacity (MCA)	3
Max. fuse (A)	15
Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM)	294.3/235.4/176.6/141.3/N/A
Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A)	42/37/32/24/20.5
Dimension (WxDxH) (in)	28.70×7.8×11.50
Packing (WxDxH) (in)	31.10×10.63×14.76
Net/Gross Weight (lb)	17.64/23.15
Room Temperature (Cooling) (°F)	60–90
Room Temperature (Heating) (°F)	32–86
Refrigerant piping Liquid/Gas side (inch)	1/4"/3/8"
EER2	16
SEER2	25.3
Unit Net/Gross weight	17.64/23.15
Unit dimensions (WHD)	28.70 x 7.87 x 11.50
Operation Range - Heating	32~86
Operation Range - Cooling	60~90
Minimum circuit ampacity	3
Max.fuse	15
Indoor Noise Level H/M/L	37/32/24
Indoor Air Flow	294.3 / 235.4 / 176.6 / 141.3
Drainage water pipe diameter	5/8"

Indoor Unit Specifications — CH-R09MOLVWM-230VI

Indoor Model	CH-R09MOLVWM-230VI
Power Supply (Rated)	208/230 V, 1 Ø, 60 Hz
Rated Capacity Btu/h	9,000
Minimum Circuit Ampacity (MCA)	3
Max. fuse (A)	15
Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM)	382.6/294.3/194.2/ 153.0/ N/A
Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A)	N/A/39.5/33/24/20.5
Dimension (WxDxH) (in)	31.57x7.87x11.61
Packing (WxDxH) (in)	31.57x7.87x11.61
Net/Gross Weight (lb)	18.96/24.25
Room Temperature (Cooling) (°F)	60–90
Room Temperature (Heating) (°F)	32–86
Refrigerant piping Liquid/Gas side (inch)	1/4"/3/8"
EER2	15
SEER2	26
Unit Net/Gross weight	18.96/24.25
Unit dimensions (WHD)	31.57x7.87x11.61
Operation Range - Heating	32~86
Operation Range - Cooling	60~90
Minimum circuit ampacity	3
Max.fuse	15
Indoor Noise Level H/M/L	39.5/33/24
Indoor Air Flow	382.6 / 294.3 / 194.2 / 153
Drainage water pipe diameter	5/8"

Submittals

Complete technical specifications — Outdoor

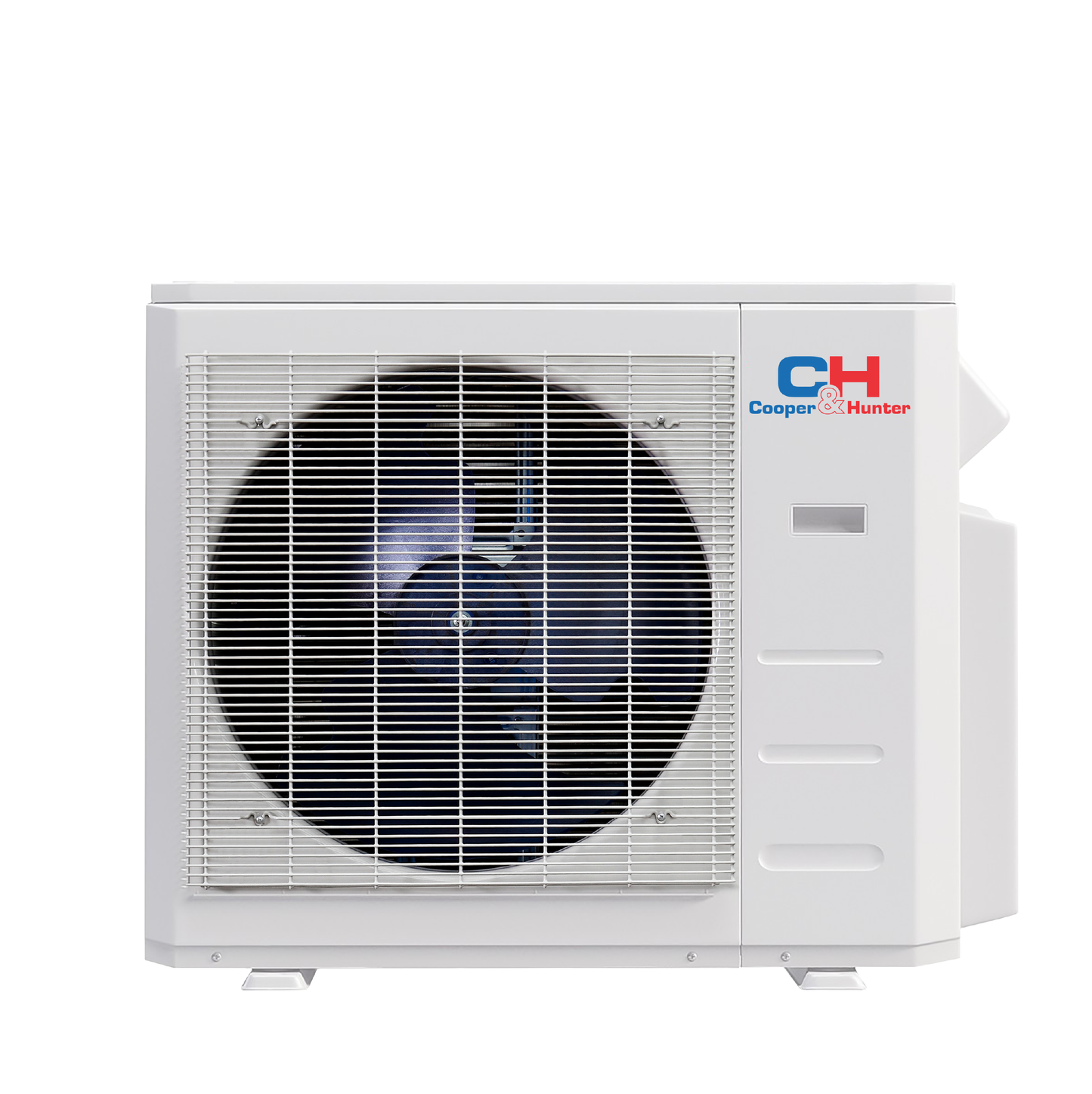

Outdoor Unit Specifications — CH-R18MES-230VO

Refrigerant type	R454B
System type	Multi-zone unit
Power source	208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day)	0.42
Voltage range (V)	187-253
Packing dimensions (WxDxH)	40.55 x 17.24 x 29.53
Refrigerant piping Liquid/Gas side (inch)	3x1/4"- 3x3/8"
HSPF2-5	7.8
HSPF2-4	9.8
EER2	14
Cooling capacity (Min/Max) (BTU/h)	18,000(5,400~21,600)
SEER2	25.1
Unit Net/Gross weight	100.53/109.35
Unit dimensions (WHD)	35.04 x 13.46 x 26.50
Refrigerant precharge	75
Outdoor Noise Level	59.5
Outdoor Air Flow	1,765.8
Minimum circuit ampacity	16
Max.fuse	20
Max height difference between Indoor and Outdoor unit	49.2
Heating capacity (Min/Max) (Btu/h)	19,000(5,700~21,600)
COP	3.8
Ambient temperature - Heating (F)	-13~75
Ambient temperature - Cooling (F)	-13~122
Additional Refrigerant Charge 3/8 liquid line	0.32
Additional Refrigerant Charge 1/4 liquid line	0.16
