Cooper&Hunter Olivia 2-Zone Ductless Mini Split AC & Heat Pump 18000 BTU (9K+12K), Wall Mount Units, 230V

SKU: CH-R09MOLVWM-230VI + CH-R12MOLVWM-230VI + CH-R18MES-230VO

System highlights
AC Type
Wall Mount
Refrigerant Type
R454B
Brand
Cooper&Hunter
Outdoor Unit
18000 BTU VO (1.5 TON)
Indoor Unit
9000 BTU (0.75 TON), 12000 BTU (1.0 TON)
Voltage
208-230V
Looking For
Wall Mount, Pre-Made Kits
Cooling Area (sq.ft.)
250-400, 400-550
Series
Olivia
SEER2 Rating
25.1
Cooper&Hunter Olivia Wall Mount Ductless Mini Split AC Indoor Unit – 9000 BTU (Installation Kit)
Cooper&Hunter Olivia Wall Mount Ductless Mini Split AC Indoor Unit – 12000 BTU (Installation Kit)
$2,354.00 USD
$2,354.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
COOPER & HUNTER — Olivia Series

Cooper&Hunter Olivia 2-Zone Ductless Mini Split AC & Heat Pump 18000 BTU (9K+12K), Wall Mount Units, 230V

The Cooper & Hunter Olivia Series system features a 18000 BTU outdoor unit paired with CH-R18MES-230VO + CH-R09MOLVWM-230VI + CH-R12MOLVWM-230VI wall-mounted indoor units. This high-efficiency model with auto-swing louvers will heat & cool down to -13 F. The DC inverter heat pump provides independent control in 2 zones.

2 Zone(s) 18000 BTU Outdoor SEER2 25.1 Heats to -13 F Outdoor SKU CH-R18MES-230VO Outdoor noise: 59.5 dB(A) Indoor noise: 20 dB(A) Smart Kit Included 46°F Freeze Protection
Contact for custom quotes Call 800-543-8933

Key features

Comfort & airflow

  • 2-zone independent temperature control
  • Auto-swing louvers (horizontal + vertical)
  • Follow Me mode (remote-based temperature sensing)
  • Turbo mode for rapid cooling/heating
  • Sleep mode + Timer On/Off scheduling
  • New user-friendly remote controller design

Efficiency & protection

  • High efficiency operation (25.1 SEER2)
  • Low-ambient performance down to -13 F
  • 46°F Freeze Protection
  • Self-Clean function (single-zone only, if equipped)
  • Eco mode (single-zone only, if equipped)

Build & materials

  • TU1 copper tubes
  • Quiet operation (Outdoor as low as 59.5 dB(A); Indoor as low as 20 dB(A))

At-a-glance

Zoning
2 zones
Outdoor BTU
18000
SEER2
25.1
Low ambient
-13 F
Outdoor noise
59.5 dB(A)
Indoor noise
20 dB(A)
Outdoor SKU
CH-R18MES-230VO
Smart control
Smart Kit Included

Warranty requires licensed HVAC installation and registration within 60 days (if required).

Control options

  • Smart Kit included with downloadable C&H app
  • Remote control included
  • Wall thermostat compatible (purchased separately, if supported by the model)

Outdoor technology

  • High-Frequency Racer Technology: helps the compressor reach maximum speed within ~6 seconds on startup
  • Electronic expansion valve: manages refrigerant flow for stable performance
  • Intelligent dusting switch: reverses the fan to help clear dust/sand/debris from the coil
  • Genius Core ultra-low compressor speed of 12Hz

Installation & electrical

  • Indoor line sizes (varies by head): 1/4"/3/8"
  • Refrigerant precharge: 75
  • Additional refrigerant charge (1/4 liquid line): 0.16
  • Additional refrigerant charge (3/8 liquid line): 0.32
  • Minimum circuit ampacity: 16
  • Max fuse / breaker: 20

Use the installation manual to confirm charge units and when additional charge is required (based on line length and piping configuration).

Product video

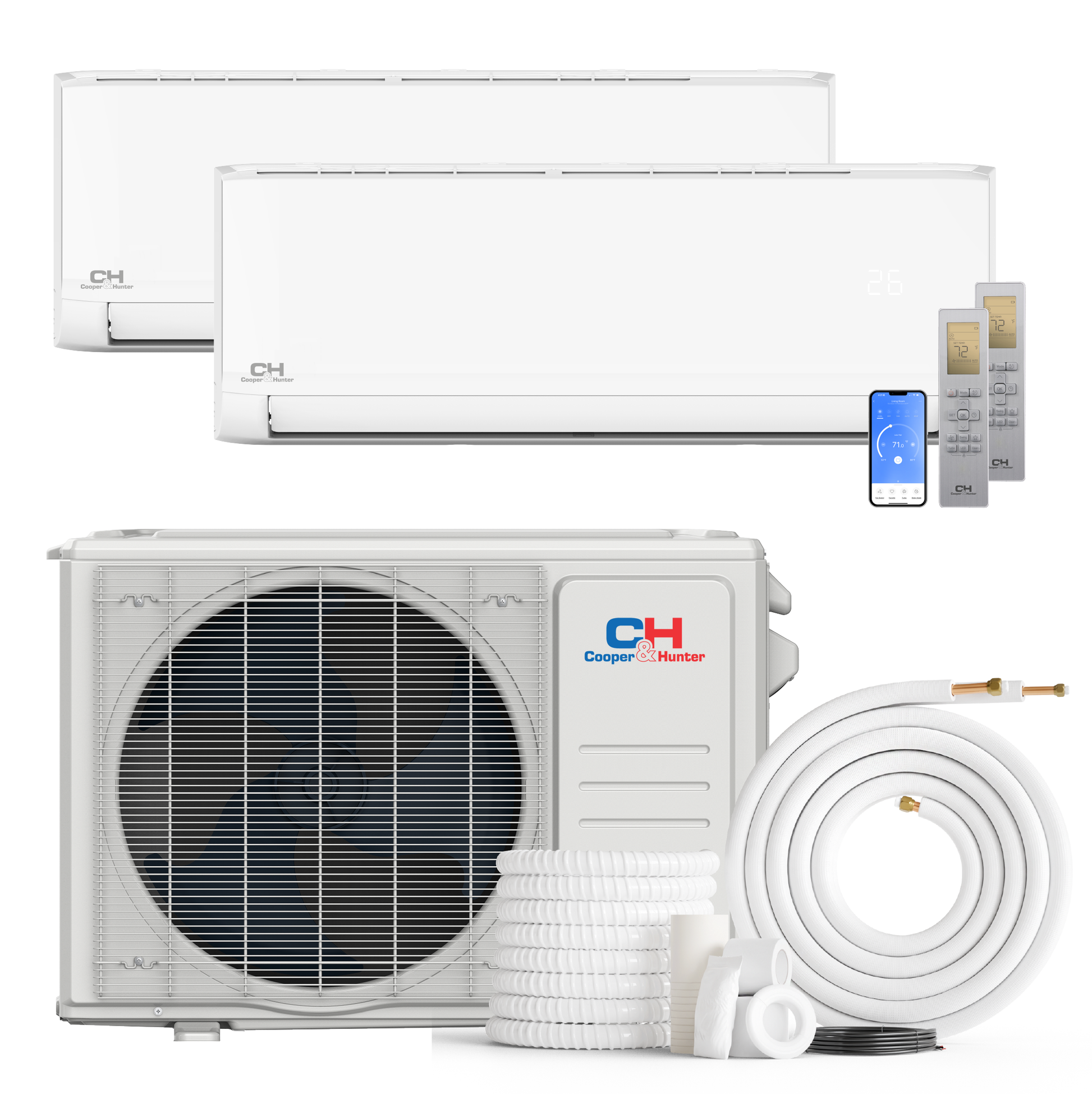

What’s included

Cooper & Hunter Olivia Series Ductless Mini Split System

Outdoor Unit: 18000 BTU (1 pc) — Model: CH-R18MES-230VO

Indoor Units:

- 9,000 BTU (x1) — Model: CH-R09MOLVWM-230VI

- 12,000 BTU (x1) — Model: CH-R12MOLVWM-230VI

  • Installation Kits options (No Installation / 16 ft / 25 ft / 50 ft)
  • (INSTALLATION KIT SIZE MUST BE SELECTED, TO INCLUDE)
  • Wireless Remote Controls (2 remotes)
  • Wi-Fi Adapter (17310900A05963)
  • Installation Manual
  • User's Manual
  • Manufacturer Warranty

Complete technical specifications — Indoor

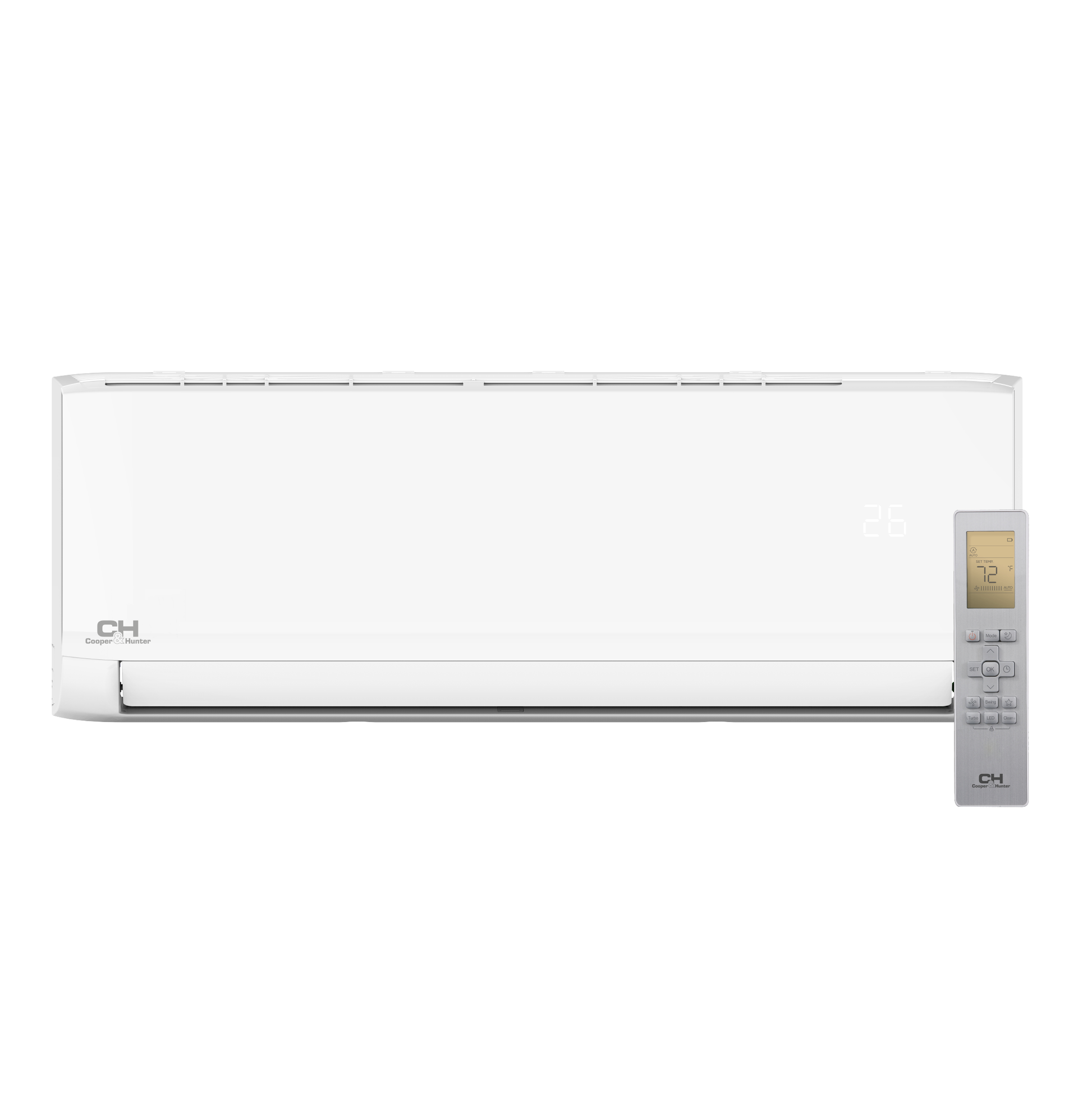

Indoor Unit Specifications — CH-R09MOLVWM-230VI

Indoor Model CH-R09MOLVWM-230VI
Power Supply (Rated) 208/230 V, 1 Ø, 60 Hz
Rated Capacity Btu/h 9,000
Minimum Circuit Ampacity (MCA) 3
Max. fuse (A) 15
Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) 382.6/294.3/194.2/ 153.0/ N/A
Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) N/A/39.5/33/24/20.5
Dimension (WxDxH) (in) 31.57x7.87x11.61
Packing (WxDxH) (in) 31.57x7.87x11.61
Net/Gross Weight (lb) 18.96/24.25
Room Temperature (Cooling) (°F) 60–90
Room Temperature (Heating) (°F) 32–86
Refrigerant piping Liquid/Gas side (inch) 1/4"/3/8"
EER2 15
SEER2 26
Unit Net/Gross weight 18.96/24.25
Unit dimensions (W*H*D) 31.57x7.87x11.61
Operation Range - Heating 32~86
Operation Range - Cooling 60~90
Minimum circuit ampacity 3
Max.fuse 15
Indoor Noise Level H/M/L 39.5/33/24
Indoor Air Flow 382.6 / 294.3 / 194.2 / 153
Drainage water pipe diameter 5/8"

Indoor Unit Specifications — CH-R12MOLVWM-230VI

Indoor Model CH-R12MOLVWM-230VI
Power Supply (Rated) 208/230 V, 1 Ø, 60 Hz
Rated Capacity Btu/h 12,000
Minimum Circuit Ampacity (MCA) 3
Max. fuse (A) 15
Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) 382.6/294.3/194.2/ 153.0 / /
Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) N/A/42/35.5/22.5/20
Dimension (WxDxH) (in) 31.57x7.87x11.61
Packing (WxDxH) (in) 31.57x7.87x11.61
Net/Gross Weight (lb) 18.96/24.25
Room Temperature (Cooling) (°F) 60–90
Room Temperature (Heating) (°F) 32–86
Refrigerant piping Liquid/Gas side (inch) 1/4"/3/8"
EER2 13.2
SEER2 24
Unit Net/Gross weight 18.96/24.25
Unit dimensions (W*H*D) 31.57 x 7.87 x 11.61
Operation Range - Heating 32~86
Operation Range - Cooling 60~90
Minimum circuit ampacity 3
Max.fuse 15
Indoor Noise Level H/M/L 42/35.5/22.5
Indoor Air Flow 382.6 / 294.3 / 194.2 / 15
Drainage water pipe diameter 5/8"

Submittals

Complete technical specifications — Outdoor

Outdoor Unit Specifications — CH-R18MES-230VO

Refrigerant type R454B
System type Multi-zone unit
Power source 208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day) 0.42
Voltage range (V) 187-253
Packing dimensions (WxDxH) 40.55 x 17.24 x 29.53
Refrigerant piping Liquid/Gas side (inch) 3x1/4"- 3x3/8"
HSPF2-5 7.8
HSPF2-4 9.8
EER2 14
Cooling capacity (Min/Max) (BTU/h) 18,000(5,400~21,600)
SEER2 25.1
Unit Net/Gross weight 100.53/109.35
Unit dimensions (W*H*D) 35.04 x 13.46 x 26.50
Refrigerant precharge 75
Outdoor Noise Level 59.5
Outdoor Air Flow 1,765.8
Minimum circuit ampacity 16
Max.fuse 20
Max height difference between Indoor and Outdoor unit 49.2
Heating capacity (Min/Max) (Btu/h) 19,000(5,700~21,600)
COP 3.8

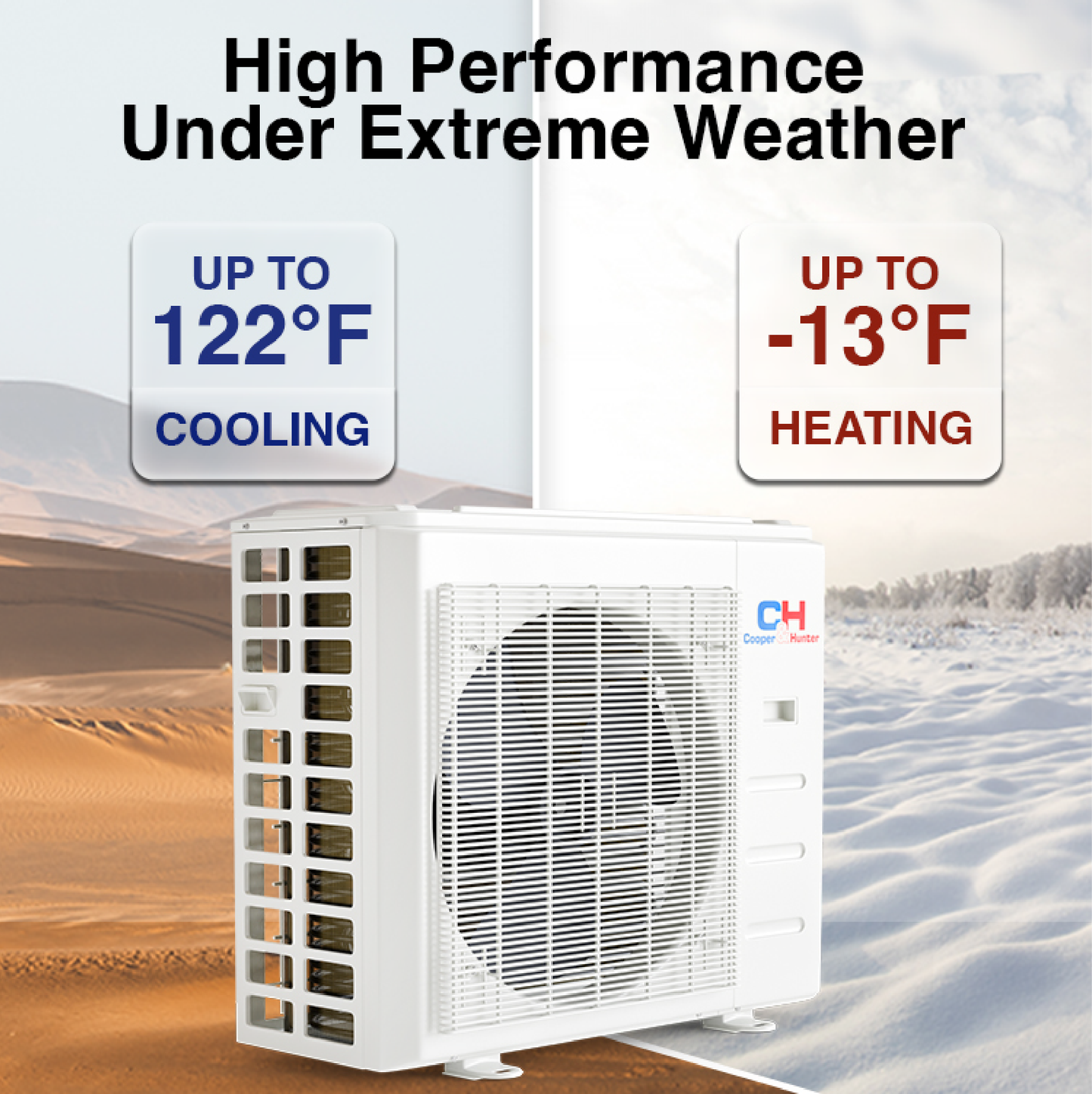

Ambient temperature - Heating (F) -13~75
Ambient temperature - Cooling (F) -13~122
Additional Refrigerant Charge 3/8 liquid line 0.32
Additional Refrigerant Charge 1/4 liquid line 0.16

Manuals

Submittals

Documents

Warranty information

  • 7-Year Compressor Warranty
  • 5-Year Parts Warranty
  • 1-Year Remote Control Warranty

Note: Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.

Summary

Expand

The Cooper & Hunter Olivia Series system features a 18000 BTU outdoor unit paired with CH-R18MES-230VO + CH-R09MOLVWM-230VI + CH-R12MOLVWM-230VI wall-mounted indoor units. This high-efficiency model with auto-swing louvers will heat & cool down to -13 F. The DC inverter heat pump provides independent control in 2 zones.
