Cooper&Hunter Hyper Multi-Zone Outdoor • R454B • Multi-Zone

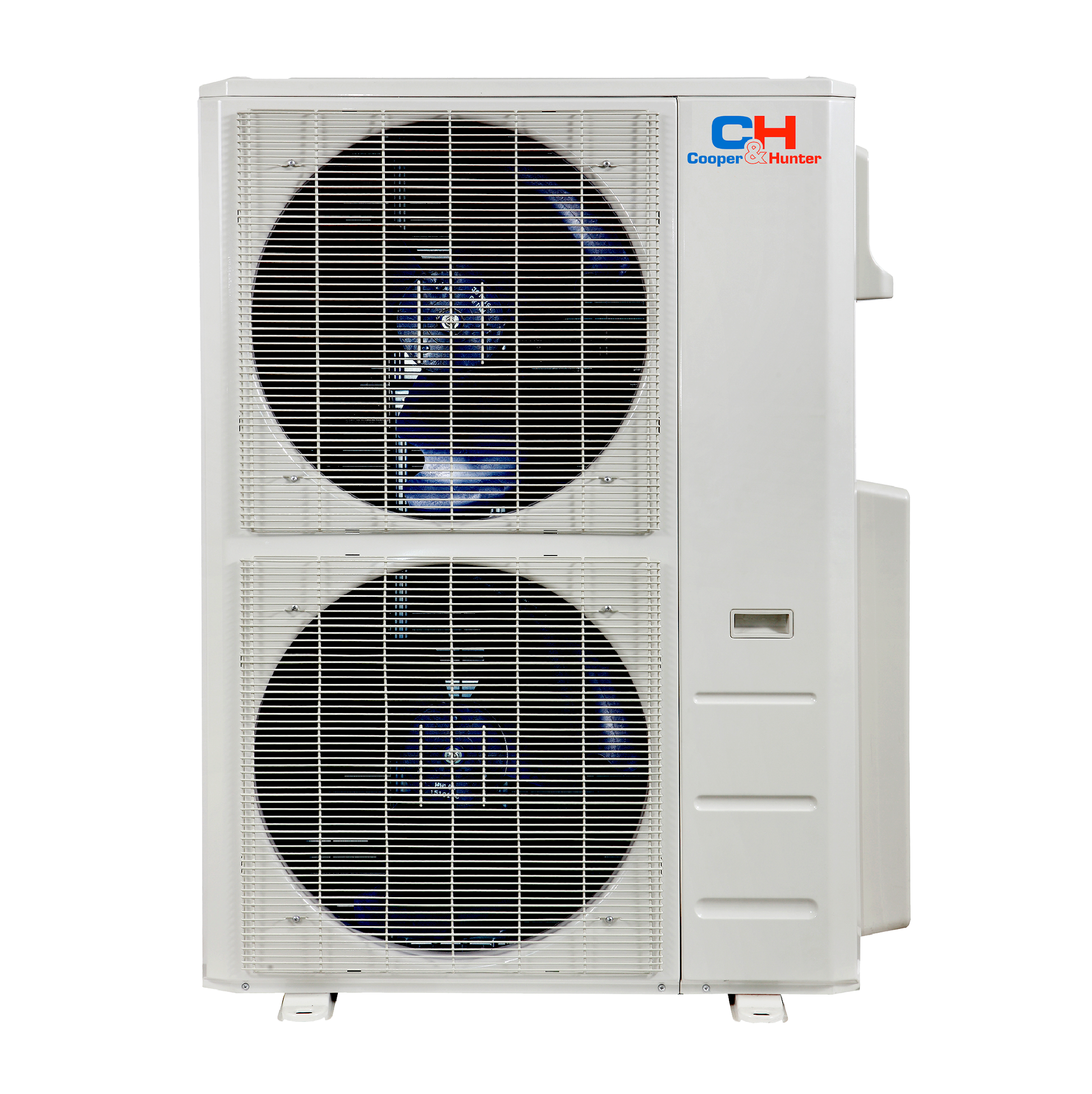

Cooper&Hunter Hyper Multi-Zone Outdoor — 60,000 BTU, R454B — CH-R60MES-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Overview
Cooper&Hunter’s 60K BTU Hyper Multi-Zone outdoor unit is an advanced solution for efficient climate control in large residential spaces. Supporting up to six zones, it enables independent temperature settings across multiple areas for tailored comfort. Cutting-edge inverter technology dynamically adjusts compressor activity to match load demands, optimizing energy usage while maintaining consistent performance. With up to 22 SEER2 efficiency and R454B refrigerant (lower GWP vs. many conventional options), it’s designed for reliable, eco-conscious multi-zone installations built for year-round comfort.
Highlights
60,000 BTU cool (19,000–62,000) 60,000 BTU heat (20,000–60,000) Up to 6 zones SEER2 22 · EER2 10 HSPF2 9.5 (Region IV) · 7.4 (Region V) COP 3.7 R454B 208–230V 1Ph −13–122 °F cool · −13–75 °F heat
- Multi-zone flexibility: supports up to 6 independent zones with compatible indoor units.
- Optimized efficiency: up to 22 SEER2 for meaningful seasonal energy savings.
- Inverter performance: dynamic compressor modulation helps maintain steady comfort under varying loads.
- Eco-forward refrigerant: uses R454B to reduce environmental impact.
- Built for large spaces: strong capacity and multi-room control for bigger layouts.
ModelCH-R60MES-230VO
ZonesUp to 6
Outdoor Sound65 dB(A)
Lines6× 1/4″ liquid · (4× 3/8″ + 2× 1/2″) gas
What's Included
- Outdoor unit CH-R60MES-230VO
- Owner / installation documentation
Pair only with compatible Cooper&Hunter Hyper Multi-Zone indoor units. Confirm zone combinations and piping requirements before installation.
Indoor Specs
| Spec | Details |
|---|---|
| System type | Multi-zone unit (outdoor) |
| Zones supported | Up to 6 independent zones (depends on indoor unit selection) |
| Compatible indoor units | Cooper&Hunter Hyper Multi-Zone indoor units (zone mix varies by combination) |
| Refrigerant piping (per zone) | 6 circuits total: 6× 1/4″ liquid; gas connections are 4× 3/8″ + 2× 1/2″ |
| Max height difference (IDU↔ODU) | 49.2 ft |
| Combination guidance | Use the provided Multi-Zone Combination PDFs to confirm valid indoor mixes |
Indoor-unit capacities, features, and controls depend on the specific indoor models selected for each zone.
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-R60MES-230VO |
| Refrigerant type | R454B |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Cooling capacity (Min/Max) | 60,000 BTU/h (19,000–62,000) |
| Heating capacity (Min/Max) | 60,000 BTU/h (20,000–60,000) |
| SEER2 / EER2 | 22 / 10 |
| HSPF2-4 / HSPF2-5 | 9.5 / 7.4 |
| COP | 3.7 |
| Minimum circuit ampacity (MCA) | 36 A |
| Max fuse | 40 A |
| Outdoor Air Flow | 4,502.8 CFM |
| Outdoor Noise Level | 65 dB(A) |
| Dehumidification | 10.57 pints/day |

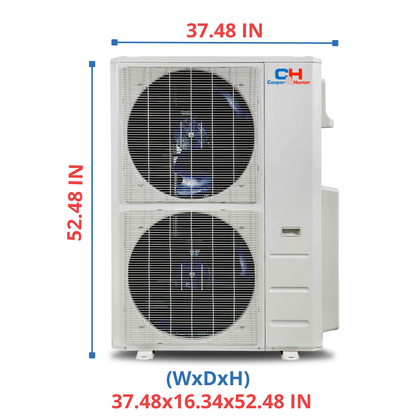

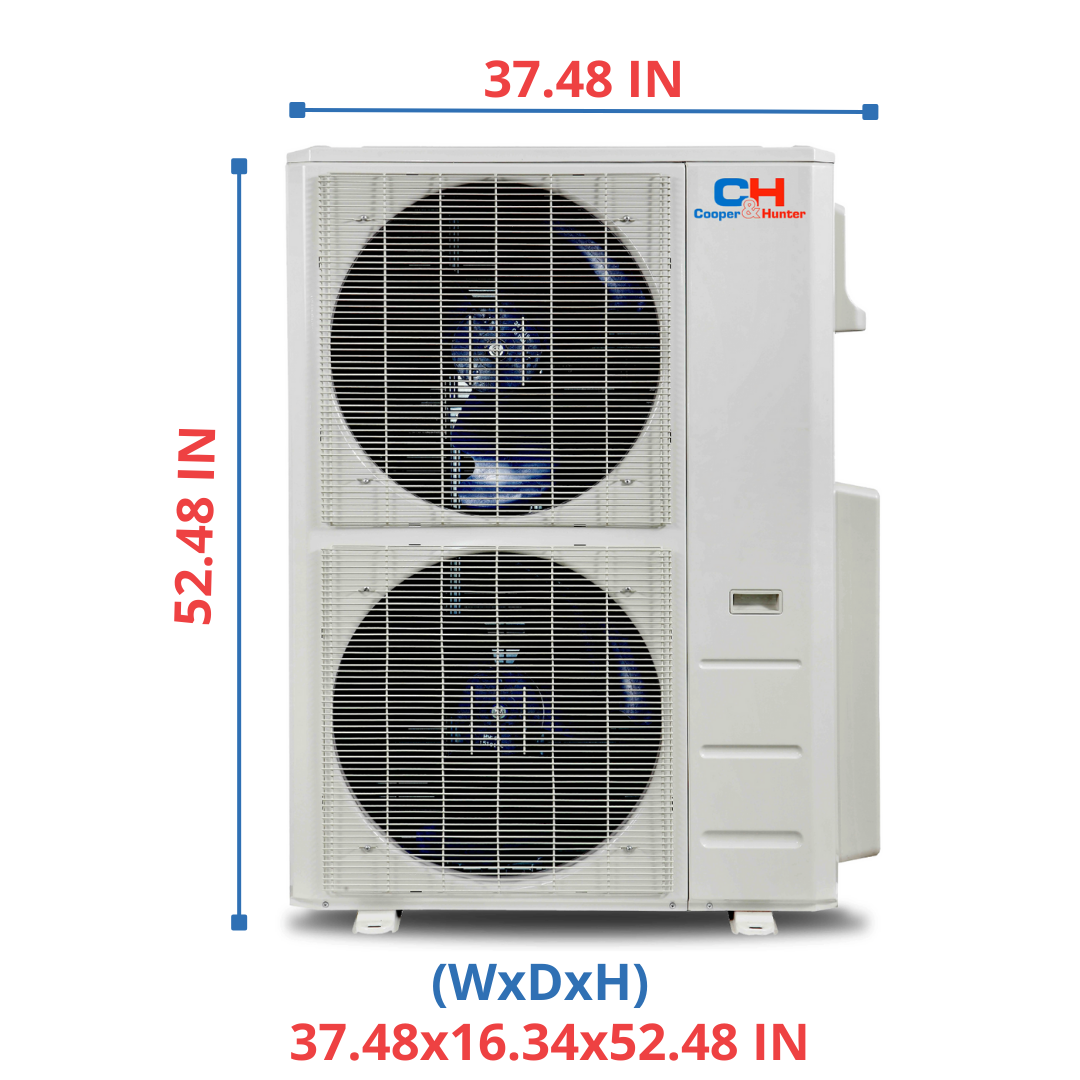

| Unit dimensions (W×H×D) | 37.48 × 16.34 × 52.48 in |
| Packing dimensions (W×D×H) | 43.11 × 19.49 × 58.27 in |
| Net / Gross weight | 237.88 / 270.28 lb |
| Refrigerant precharge | 150 (factory charge) |
| Refrigerant piping (Liquid/Gas) | 6× 1/4″ liquid · (4× 3/8″ + 2× 1/2″) gas |
| Ambient temperature — Heating | −13 to 75 °F |
| Ambient temperature — Cooling | −13 to 122 °F |
| Additional refrigerant charge — 3/8″ liquid line | 0.32 |
| Additional refrigerant charge — 1/4″ liquid line | 0.16 |
Documents & Downloads
- CH-R60MES-230VO Submittal (PDF)
- CH-R60MES-230VO Submittal — Non-Ducted (PDF)
- Installation Manual — Multi-R (PDF)
- Multi-Zone Combination — HYPER (PDF)
- Multi-Zone Combination — Regular (PDF)
AHRI certification numbers (reference): Ducted 215864266 · Non-Ducted 215864267 · Mixed 215864268.
Important
Install by a licensed HVAC professional. Confirm indoor unit combinations, voltage range (187–253 V), MCA/max-fuse, refrigerant piping per zone (including the 1/2″ gas circuits), height limits, and ambient operating ranges before commissioning.
FAQs
How many zones can this support?
Up to six independent zones with compatible Cooper&Hunter Hyper Multi-Zone indoor units.
What line sizes are required?
Six circuits total: 6× 1/4″ liquid; gas connections are 4× 3/8″ plus 2× 1/2″.
What are the power requirements?
208–230 V, single-phase, 60 Hz. Voltage range 187–253 V. MCA 36 A. Max fuse 40 A.
What refrigerant does it use?
R454B.
What are the operating temperature ranges?
Cooling: −13 to 122 °F. Heating: −13 to 75 °F.
How efficient is this outdoor unit?
Rated up to 22 SEER2 and 10 EER2. HSPF2 is 9.5 (Region IV) / 7.4 (Region V).
