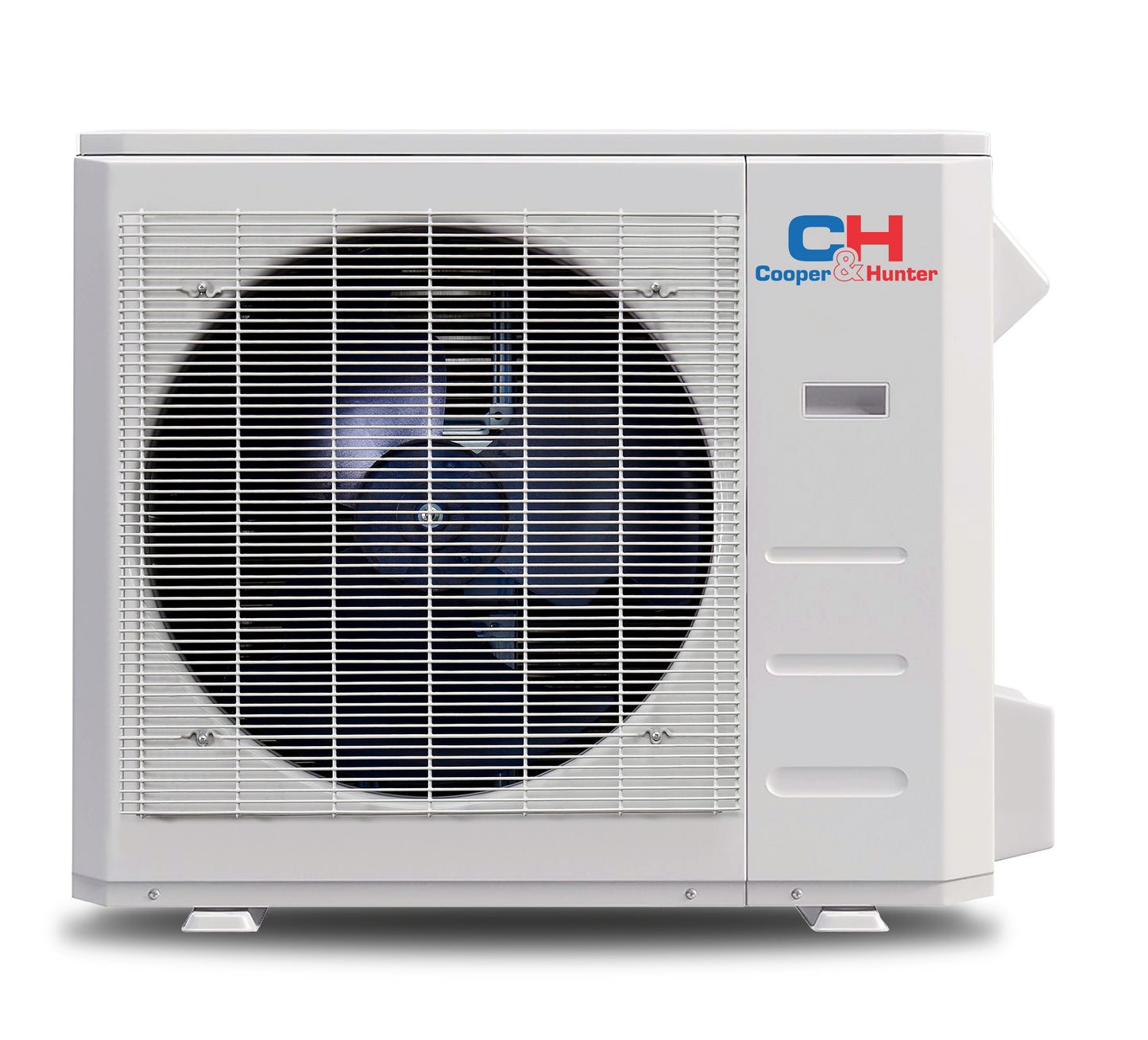

Cooper&Hunter 18,000 BTU Multi-Zone Outdoor Condenser (1.5 Ton) — CH-18MES-230VO
Energy Star–listed ES series multi-zone condenser for pairing with multiple indoor unit styles, supporting up to 24 SEER (system dependent).
Overview
The Cooper&Hunter ES condenser series includes Energy Star Certified options in 9K, 12K, 18K, and 24K capacities. ES condensers are available in both single and multi-zone configurations and can be paired with a wide range of indoor unit styles—including wall mounts, ceiling cassettes, slim ducts, universal floor/ceiling units, mini floor consoles, and air handlers (match-up dependent).
The CH-18MES-230VO is a multi-zone outdoor condenser rated at 18,000 BTU (1.5 ton) using R410A refrigerant on 208–230V power. It supports total piping up to 131 ft and a maximum indoor/outdoor height difference up to 49.21 ft. Ambient operating ranges are broad, with cooling down to 5°F and heating down to -13°F.
Highlights
- Multi-zone flexibility: Designed to serve multiple indoor units (match-up dependent).
- System efficiency: Rated SEER2 19 and EER2 12 (system dependent).
- Wide operating range: Cooling 5–122°F; heating -13–75°F.
- Capacity modulation: Cooling range 3,850–22,400 BTU/h; heating range 4,350–25,800 BTU/h.
- Installation parameters: Max total piping 131 ft and height difference up to 49.21 ft.
- Service planning: Additional refrigerant charge guidance included for 1/4" and 3/8" liquid lines.
What's Included
- Outdoor condenser unit: CH-18MES-230VO
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-18MES-230VO |
| Refrigerant Type | R410A |
| System Type | Multi-zone unit |
| BTU Rated | 18,000 |
| Cooling Capacity (Min/Max) | 18,000 (3,850–22,400) BTU/h |
| Heating Capacity (Min/Max) | 19,000 (4,350–25,800) BTU/h |
| SEER2 / EER2 | 19 / 12 |
| HSPF2-4 / HSPF2-5 | 9.8 / 7.6 |
| COP | 3.62 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |
| Minimum Circuit Ampacity (MCA) | 18 A |
| Max Fuse | 25 A |
| Max Pipe Length | 131 ft |
| Max Height Difference (Indoor↔Outdoor) | 49.21 ft |
| Refrigerant Piping (Liquid / Gas) | 2× 1/4" (liq) / 2× 3/8" (gas) |
| Refrigerant Precharge | Up to 50 ft |
| Outdoor Noise | 58.5 dB(A) |
| Outdoor Air Flow | 1,764.71 |
| Ambient Range (Cooling) | 5–122 °F |
| Ambient Range (Heating) | -13–75 °F |
| Additional Charge (3/8" liquid) | 0.32 |
| Additional Charge (1/4" liquid) | 0.16 |
| Unit Dimensions (W×H×D) | 35.04 × 13.46 × 26.50 in |
| Unit Net / Gross Weight | 100.31 / 108.69 lb |
| Packing Dimensions (W×D×H) | 40.55 × 17.24 × 29.53 |
| Dehumidification | 2.20 pints/day |
Videos
Documents & Downloads
Important
Install with a licensed HVAC professional. This is a multi-zone outdoor condenser intended to be matched with compatible indoor units. Confirm match-ups, total connected indoor capacity, and piping design before ordering. Observe maximum total piping (131 ft), height limits (49.21 ft), and required electrical protection (MCA 18A, max fuse 25A). Refrigerant is R410A with factory precharge up to 50 ft; additional charge may be required beyond that length.
