Cooper&Hunter — Installation Kits for Mini Splits 1/4" – 3/8"
Installation kit offers ease and convenience for HVAC technicians while providing a long-lasting, quality product that customers will not have to replace.
Insulated copper tubes liquid – suction: 1/4" – 3/8" Data communication wires 230V Drain hose 16 / 25 / 50 ft options Sleeve cover
Watch: Overview
Why pros choose Cooper&Hunter kits
- Faster installs: pre-flared copper, pre-insulated lines.
- Fewer callbacks: triple-layer insulation with UV/UV-C protection and thickened brass flare nuts hold up over time.
- Code-grade materials: 99.9% copper (ASTM B280) and insulation meeting ASTM D154.
- Broad compatibility: supports 1/4" / 3/8" with common liquid/suction sizes.
- Right length on the truck: 16/25/50 ft options simplify inventory and reduce waste.
At-a-glance
Features
Pre-flared line set
Pre-flared line set
Lengths
16 ft • 25 ft • 50 ft
16 ft • 25 ft • 50 ft
Liquid / suction lines
1/4" / 3/8"
1/4" / 3/8"
Copper line set
99.9% copper (ASTM B-280)
All ends pre-flared
99.9% copper (ASTM B-280)
All ends pre-flared

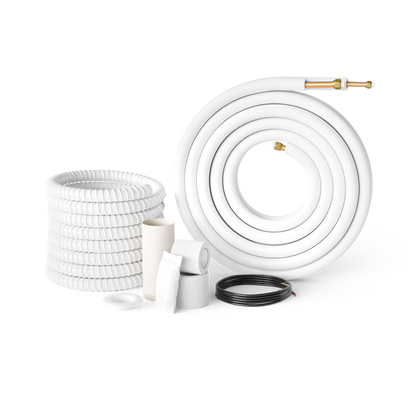

What’s included
- Insulated copper tubes (pre-flared line set, liquid and suction lines)
- Data communication wires
- Wrapping bands / bandage tape
- Rubber drain hose
- Sleeve cover / wall sleeve
- PVC wall corner
- Sealing mud
- Neoprene components
Key features
- Seamless copper tube
- Three-layer insulation: inner, outer, and protective layer
- Brass flare hex nuts
- Extra-thick construction for better durability
- UV & UV-C protected insulation

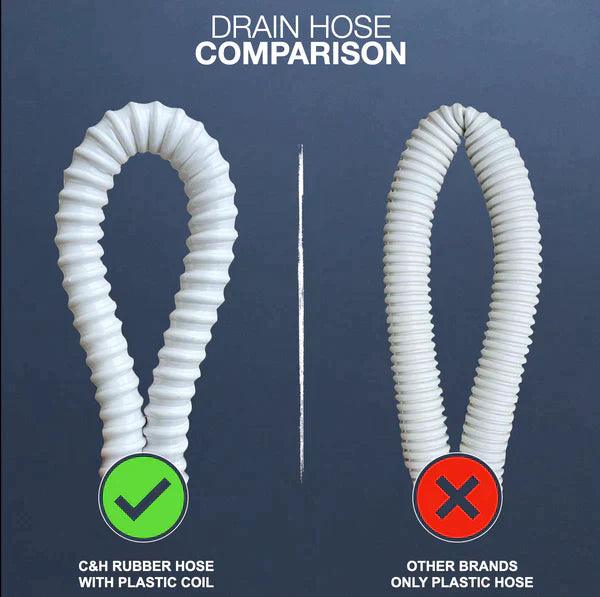

- Rubber hose with plastic coil
- 4/16 AWG connecting cable
- Rubberized drainage hose
- Bandage tape for line protection
- Wall sleeve for clean wall penetration
- Neoprene for additional sealing and vibration control
Manufacturer may change specifications without notice.

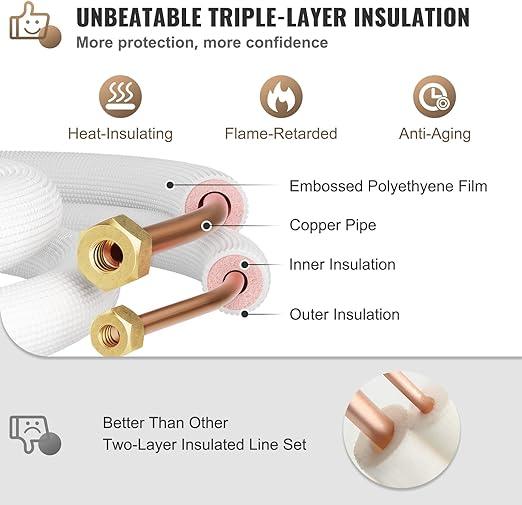

Unbeatable triple-layer insulation
- Heat-insulating foam layer to reduce energy loss.
- Flame-retarded materials designed for safety.
- Anti-aging outer layer for long service life.
- Embossed polyethylene film for extra toughness.
- Copper pipe core for reliable refrigerant flow.
Warranty
3-Year Compressor and 3-Year Parts (brand terms apply; registration required).
Register within 60 days of installation; see manufacturer warranty for full details.
Tech specs — models & lengths
All data below is from the manufacturer.
| Model | Rubber drain hose length | Line set size (liquid – suction) | Copper line length | Cable length |
|---|---|---|---|---|
| PJX-N1-C16FTW-MAX(16FT) PJX-N1-C25FTW-MAX(25FT) PJX-N1-C50FTW-MAX(50FT) |
16 ft | 1/4" – 3/8" | 18 ft 25 ft 50 ft |
16 ft 29.5 ft 55.8 ft |
Full description
Tap to expand

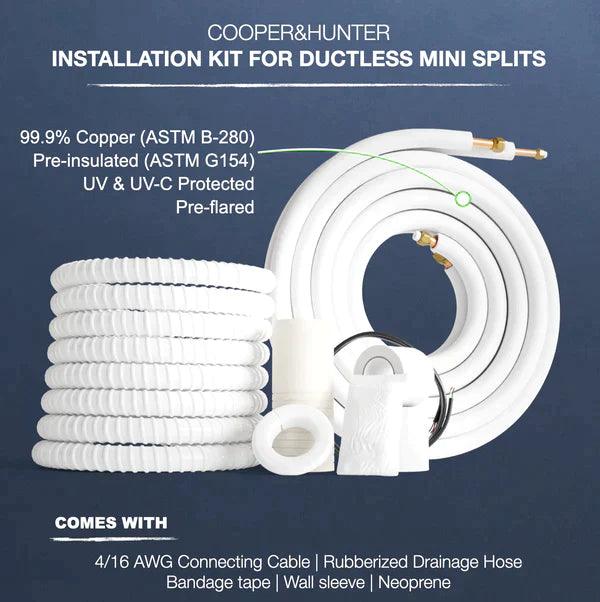

Cooper&Hunter bundled installation kits are built to make ductless mini split installs faster and more consistent. Each kit combines a pre-flared, pre-insulated copper line set with communication cable, drain hose, and accessories, so technicians can arrive on site with everything needed for a clean, professional install.
The copper line set uses 99.9% copper (ASTM B-280) and factory-applied insulation (ASTM D154) with UV and UV-C protection, helping it stand up to attic, crawlspace, and exterior runs. Pre-flared ends reduce on-site prep time and help support reliable connections when installed to manufacturer torque specs.
Included 4/16 AWG connecting cable, rubber drain hose, bandage tape, wall sleeve, and neoprene components help simplify penetrations and routing, giving the finished job a more polished appearance while protecting lines from abrasion and weather.
FAQs
Do these kits include communication wires?
Yes. Each kit includes a communication cable sized to match or slightly exceed the line set length.
How long are the communication wires?
They are typically slightly longer than the copper line set — usually about a foot more — to allow for routing and terminations.
Are the lines pre-charged with refrigerant?
No. These are copper line sets only and are not pre-charged with refrigerant.
Are the lines pre-flared?
Yes. All copper line sets in these kits come with factory pre-flared ends and flare nuts.
What’s included in the installation kit?
Copper line set (liquid and suction lines), communication wires, insulation, drainage tube, wrapping/bandage tape, wall sleeve, sealing components, and related accessories. Exact contents may vary by model and length.
